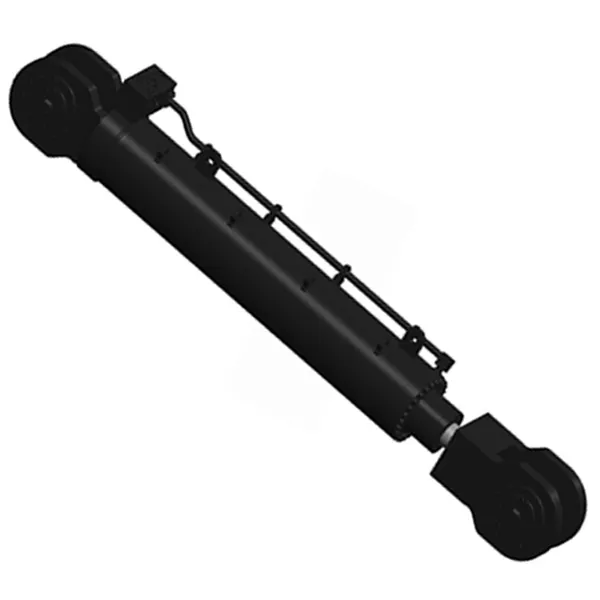

Split Barge Split Cylinder

Split Barge Split Cylinder

A split barge split cylinder is a hydraulic cylinder that is used to open and close the two halves of a split barge. Split barges are used to transport and discharge dredged materials, and the split cylinder allows the barge to discharge its cargo quickly and efficiently.

Split barge split cylinders are typically made of high-strength steel and are designed to withstand the high pressures and forces that are encountered when opening and closing the barge. The cylinders are also equipped with a number of safety features to prevent accidents, such as overload protection and overpressure protection.

Split barge split cylinders are typically mounted on the bottom of the barge, and they extend through the hull to connect to the two halves of the barge. When the cylinder is activated, it pushes the two halves of the barge apart, opening the hopper and allowing the cargo to be discharged.

Split barge split cylinders are a critical component of split barges, and they play an important role in the dredging industry. By allowing split barges to discharge their cargo quickly and efficiently, split barge split cylinders help to improve the efficiency and profitability of dredging operations.

Here are some of the key benefits of using split barge split cylinders:

• Increased efficiency: Split barge split cylinders allow split barges to discharge their cargo quickly and efficiently, which can save time and money.
• Improved safety: Split barge split cylinders are equipped with a number of safety features to prevent accidents, such as overload protection and overpressure protection.
• Reduced environmental impact: Split barge split cylinders can help to reduce the environmental impact of dredging operations by allowing barges to discharge their cargo in a controlled manner.

Split Barge Split Cylinder Specifications:

Product Name	Split Barge Split Cylinder
Features:	Closed hull
Bore diameter:	Up to 550mm
Rod diameter:	Up to 280mmStroke≤1000mm
Pull force:	Up to 6000KN
Pressure：	Up to 38MPa
Applications:	Split Barge

Advantages of Split Barge Split Cylinder:

• The design has a wide range of temperature resistance (-40℃～+100℃) and can provide higher or lower temperature cylinders.• Mature and unique sealing and waterproof structure design to ensure long-term reliable and leak-free operation of the oil cylinder.• The theoretical analysis and FEA calculation of the system can make the design of the cylinder structure more optimized and safer.• The guide sleeve adopts a special anti-corrosion technology to solve the problem of rusting of the guide sleeve.• Provide a variety of surface anti-corrosion treatment solutions: ceramic spraying, laser cladding, etc.• It can be designed and integrated according to requirements, including P.O. check valves, load holding valves, sequence valves, relief valves, pressure measuring joints, etc.• Working pressure, size specifications, installation methods, etc., can be customized according to the customer's needs.

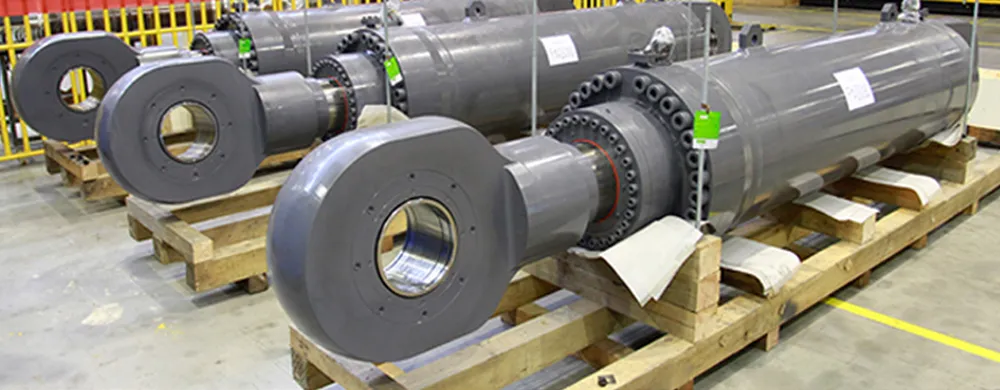

Features of Split Barge Split Cylinder:

Split barge split cylinders are a type of hydraulic cylinder that is used to split the hull of a split barge. The cylinder is typically split into two halves, with each half being mounted on one of the barge halves. When the cylinder is extended, it forces the two barge halves apart, which dumps the cargo.

Split barge split cylinders are designed to be highly durable and reliable. They must be able to withstand the harsh marine environment and the high forces involved in splitting the barge hull. Split barge split cylinders are also typically designed to be easy to maintain and repair.

Here are some of the key features of split barge split cylinders:

1. Closed hull: Split barge split cylinders are typically closed-hull cylinders, which means that the piston rod is enclosed within the cylinder body. This helps to protect the piston rod from corrosion and wear.2. High strength: Split barge split cylinders must be able to withstand high forces, so they are typically made from high-strength materials such as steel or stainless steel.3. Long stroke: Split barge split cylinders typically have a long stroke, which allows them to split the barge hull completely.4. High pressure: Split barge split cylinders are typically operated at high pressures, typically up to 38 MPa.5. Durable seals: Split barge split cylinders must have durable seals to prevent leaks.6. Easy maintenance: Split barge split cylinders are typically designed to be easy to maintain and repair.

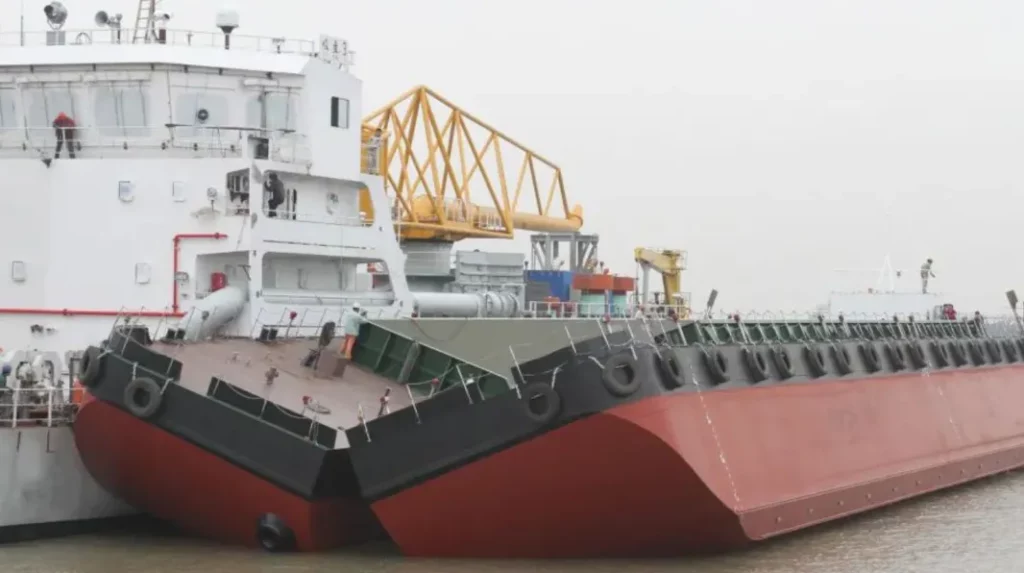

Applications of Split Barge Split Cylinder:

Split barge split cylinders are used in a variety of applications, including:

(1) Dredging: Split hopper barges are used to transport and discharge dredged materials, such as sand, silt, and gravel. Split barge split cylinders allow the barge to split open and discharge its cargo quickly and efficiently, even in challenging sea conditions.(2) Filling: Split hopper barges can also be used to fill areas with dredged materials, such as creating new land or restoring damaged coastlines. Split barge split cylinders allow the barge to discharge its cargo evenly and accurately, regardless of the seabed conditions.(3) Hydraulic engineering: Split hopper barges are also used for a variety of hydraulic engineering projects, such as building dams, levees, and canals. Split barge split cylinders allow the barge to discharge its cargo precisely, which is important for ensuring the success of these projects.

Split barge split cylinders are a reliable and efficient way to open and close split barges, and they play an important role in a variety of industries.

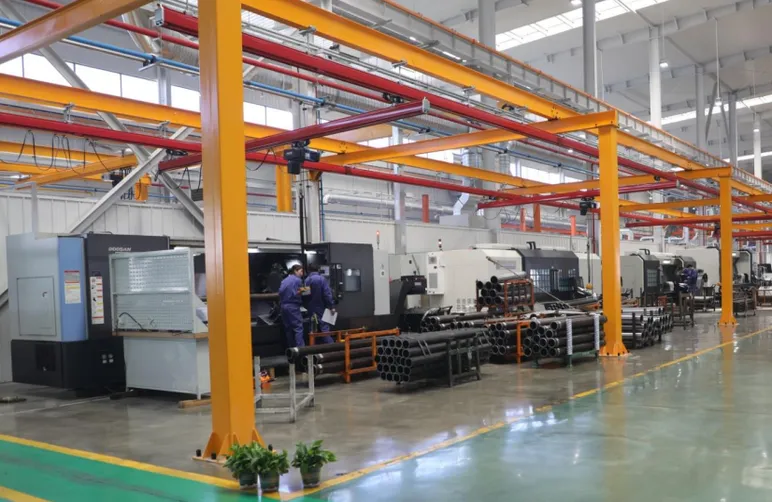

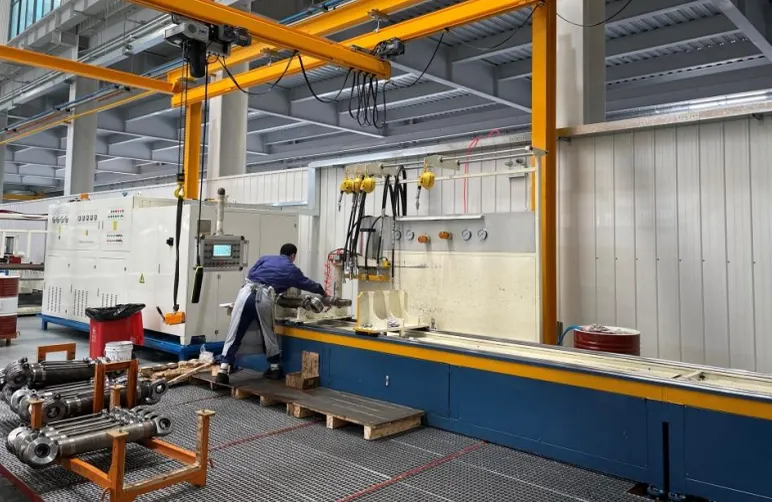

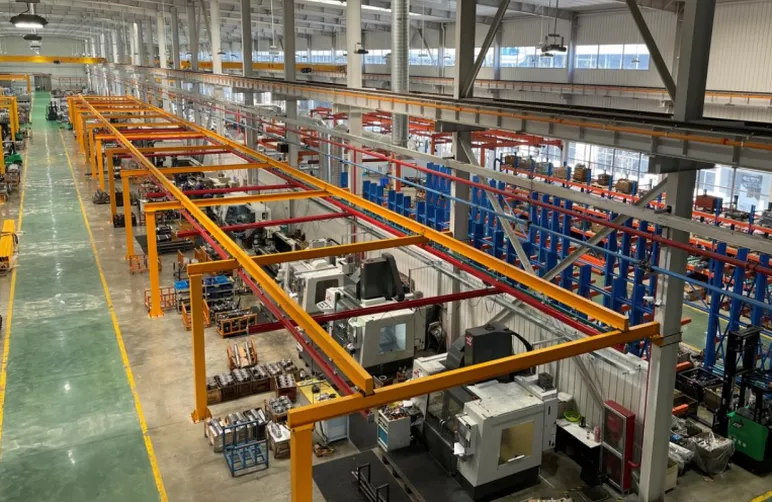

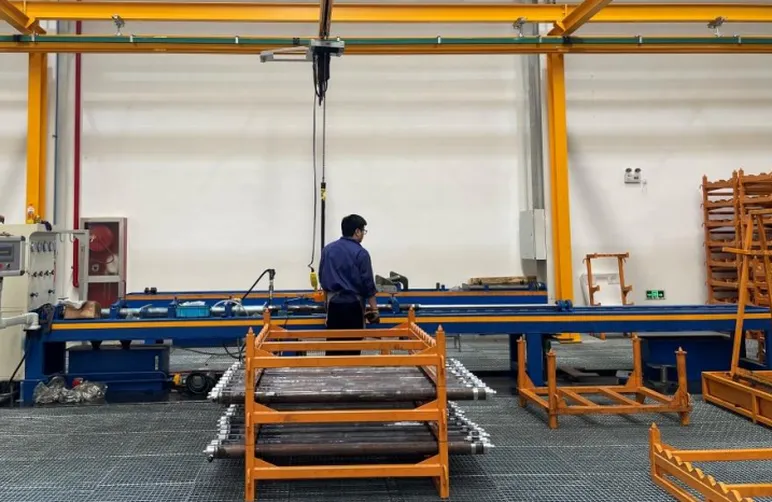

China Split Barge Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, industrial engineering hydraulic cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
