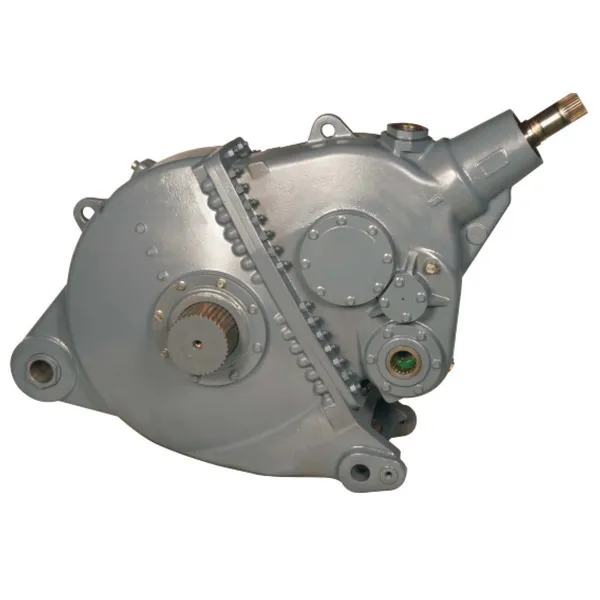

Square Baler Gearbox RDF-DFK192 for Big Square Baler

Square Baler Gearbox RDF-DFK192 for Big Square Baler

The Square Baler Gearbox RDF-DFK192 is a heavy-duty gearbox specifically designed to meet the high demands of big square balers, which are extensively used in large-scale agricultural operations for compressing and bundling vast quantities of crop materials into large, square-shaped bales. This particular gearbox model plays a crucial role in ensuring the baler's capacity to handle the substantial workload efficiently and reliably.The RDF-DFK192 Square Baler Gearbox is responsible for efficiently transmitting substantial mechanical power from the tractor's Power Take-Off (PTO) to the operational components of the big square baler. This includes driving heavy-duty mechanisms such as the plunger that compresses the crop material and the knotters or tying mechanisms that secure the large bales. The gearbox is engineered to manage and regulate the high torque and speed provided by the tractor's PTO, ensuring that the baler's components operate at the optimal speeds and force required to produce large, well-formed bales efficiently.

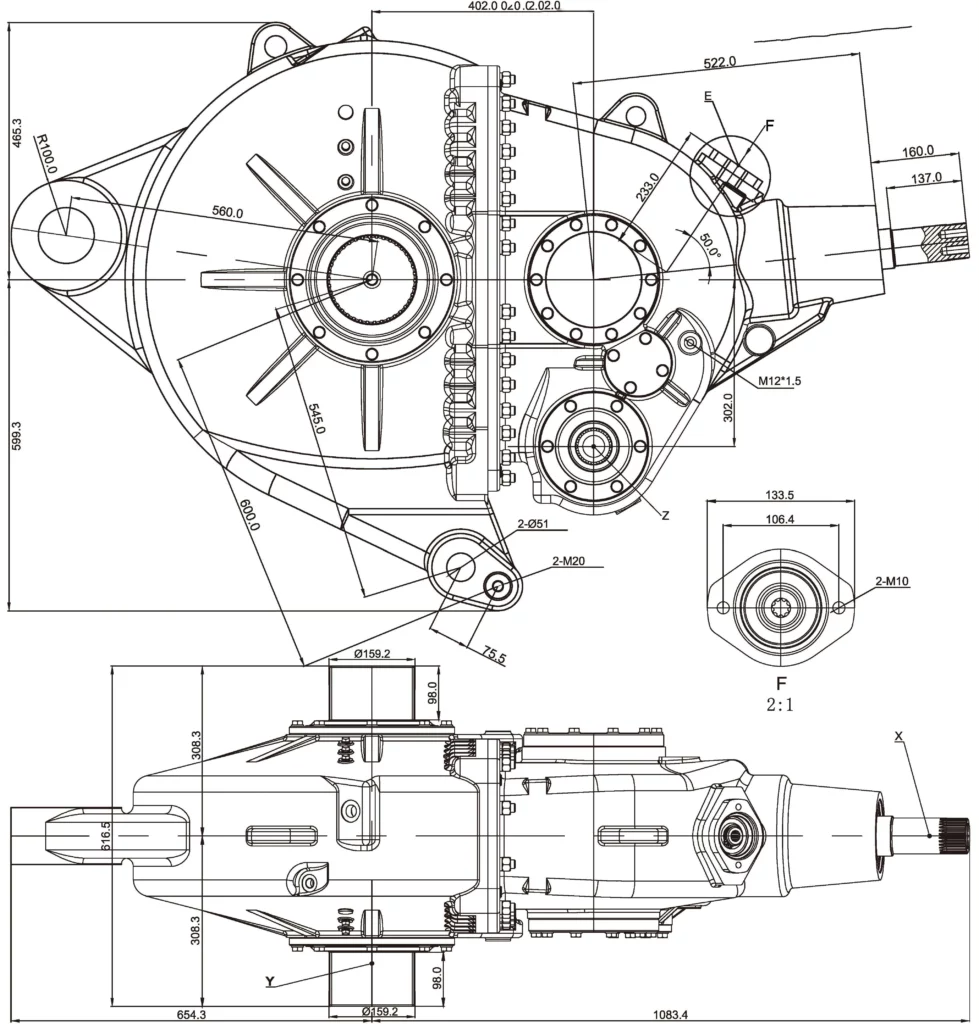

Square Baler Gearbox RDF-DFK192 Dimensions

Square Baler Gearbox RDF-DFK192 Technical Data

i			Suitable	Rpm input	KW(Nom)	Rated torque	Maximum Load	X-axis type
				r/min	kw	N.m	N.m
X-Y	X-Z	X-E	Big Square Baler	1000	192	1825	4000	2 types
Remark: If you have any special require feel free let me know, we also accept custom.

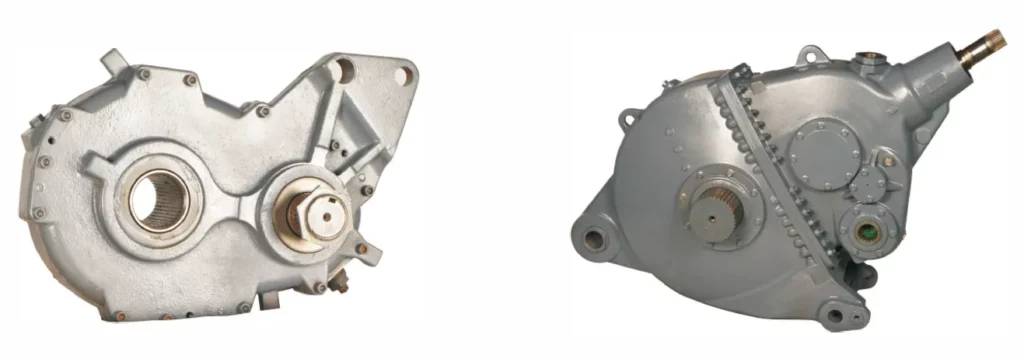

Benefits of Square Baler Gearbox RDF-DFK192 for Big Square Baler

The Square Baler Gearbox RDF-DFK192, specifically designed for big square balers, brings numerous benefits to large-scale agricultural operations. This gearbox is central to the baler's performance, ensuring that the heavy-duty baling processes are carried out efficiently and reliably. Here are the key benefits of using the Square Baler Gearbox RDF-DFK192 in big square balers:1. Enhanced Durability and Longevity: Made with high-strength materials and designed to withstand the rigorous demands of large-scale baling, the RDF-DFK192 gearbox ensures durability and a longer lifespan. The gearbox's components are encased in a durable housing that protects them from environmental elements, further contributing to the longevity of the unit.2. High Performance in Heavy-Duty Operations: The gearbox is engineered to efficiently transmit high levels of power and torque from the tractor's PTO to the baler, ensuring robust operation suitable for large-scale farming. The RDF-DFK192 maintains consistent operational speeds, crucial for producing evenly compressed and well-formed large bales.3. Operational Efficiency and Productivity: The gearbox enables the baler to process large amounts of crop material quickly and efficiently, significantly increasing the overall productivity of the baling operation. Its reliable performance and robust construction minimize downtime for maintenance, keeping the baler operational during critical harvesting periods.4. Improved Bale Quality: The precision with which the RDF-DFK192 operates ensures that each bale is consistent in size and density, which is important for storage, handling, and transportation.5. Ease of Maintenance: The gearbox is designed for ease of access, making routine maintenance, inspections, and any necessary repairs more manageable and less time-consuming.A well-designed lubrication system ensures that all moving parts are adequately lubricated, reducing wear and tear and extending the life of the gearbox.6. Versatility and Adaptability: The RDF-DFK192 is adaptable to a range of crop materials, making it a versatile choice for different types of farming operations. The gearbox's settings can be adjusted to meet specific baling requirements, adding to its versatility and effectiveness.

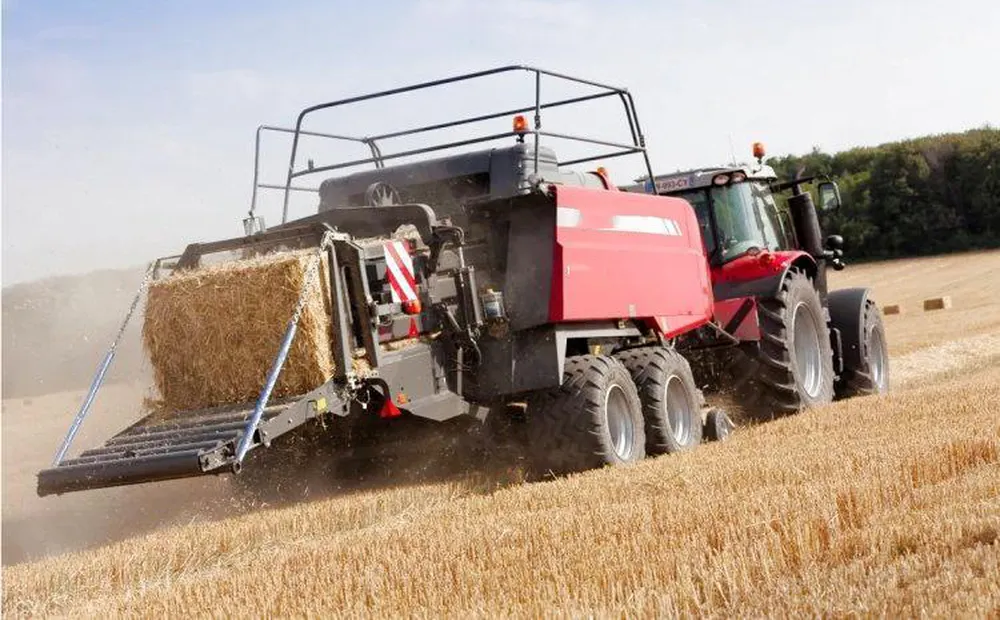

Applications of Square Baler Gearbox RDF-DFK192 for Big Square Baler

The Square Baler Gearbox RDF-DFK192, designed for big square balers, is pivotal in large-scale agricultural operations where efficient, high-volume baling is required. The robust construction and efficient power transmission of the RDF-DFK192 make it suitable for various applications within the agricultural sector, particularly focusing on the processing and packaging of crop materials in large quantities. Here are some of the primary applications of the Square Baler Gearbox RDF-DFK192 in big square baler operations:1. Hay Production: The RDF-DFK192 gearbox is integral in driving the mechanisms of big square balers used for baling large quantities of hay. It ensures optimal operation of the baler, compressing hay into tightly bound large square bales.These large bales are convenient for handling, storage, and transportation, making them ideal for large-scale livestock feed operations and commercial hay producers.2. Straw Processing: In straw baling, the RDF-DFK192 gearbox facilitates the smooth functioning of the baler as it processes and bales straw, a by-product of cereal grain harvesting like wheat and barley, in large volumes. The resulting large straw bales are utilized for various purposes, such as animal bedding, feed, mulching, or as raw material in industries like construction (e.g., straw-bale houses) and manufacturing.3. Cotton Baling: The gearbox ensures the efficient operation of the baler in compressing large quantities of cotton into compact bales, crucial for ease of handling, storage, and transportation in the cotton industry. Efficient baling of cotton in large quantities is essential for maintaining the quality of the cotton fiber and optimizing the supply chain from the farm to textile mills.4. Silage Baling: The RDF-DFK192 can be utilized in balers for compacting and baling large volumes of silage – fermented, high-moisture fodder stored in bales for livestock feeding. Baled silage is protected from air and moisture, preserving its nutritional value and ensuring a steady supply of quality feed for livestock, especially in regions with long winters or dry seasons.

Working Principle of Square Baler Gearbox for Big Square Baler

The square baler gearbox of a big square baler is an essential component designed to efficiently transfer and modify the power from the tractor’s Power Take-Off (PTO) to the mechanisms of the baler that perform the tasks of compacting and binding large volumes of agricultural material, such as hay, straw, or cotton. Here's a detailed explanation of how the gearbox in a big square baler operates:1. Power Input from the Tractor PTO: The process begins with the tractor’s PTO, which delivers the rotational power necessary to drive the baler. This power is typically provided at standard PTO speeds, which are usually either 540 RPM or 1000 RPM, depending on the tractor model. The PTO shaft connects directly to the gearbox input shaft of the square baler.2. Transmission Through the Input Shaft: The input shaft of the gearbox receives the rotational energy from the tractor’s PTO. This shaft is robustly constructed to handle the high torque and speed transmitted by the tractor, and it channels this energy into the gearbox system.3. Gear Reduction or Multiplication: Within the gearbox, there are multiple gears arranged to convert the tractor’s input speed and torque to the levels required for optimal baler operation. Gear ratios are carefully selected to increase torque while reducing or maintaining speed, depending on the specific operational needs of the baler. This gear arrangement typically involves spur gears, helical gears, or a combination thereof, depending on the design requirements for smoothness and durability.4. Torque Adjustment: The modified power (now adjusted for optimal torque and speed) is essential for driving the heavy-duty components of a big square baler, which requires more power to compress larger volumes of material into bales. The gearbox ensures that the output torque is sufficient to drive the plunger that compresses the material and the mechanisms that cut and tie the bales.5. Power Output to Baler Mechanisms: The output shaft of the gearbox transmits the adjusted power to various parts of the baler. This includes the plunger that compresses the material into the bale chamber, the knives that cut the material to the correct size, and the tying mechanisms that wrap and secure the bales with twine or wire.6. Control and Regulation: Modern big square balers often include hydraulic or electronic control systems that interact with the gearbox. These systems allow operators to adjust the operation of the gearbox from the tractor cabin, such as changing the speed or torque according to the type of material being baled or the desired bale density. This control is crucial for maintaining efficiency and preventing jams or mechanical strain under varying operational conditions.

Choose the Right Square Baler Gearbox for Big Square Baler

Selecting the right gearbox for a big square baler involves considering several crucial factors to ensure that it can efficiently handle the demands of large-scale baling operations. Here’s a guide on how to choose the appropriate gearbox for your big square baler, taking into account various technical specifications and operational needs:

1. Determine the Required Gear Ratio

• Understanding Gear Ratio: The gear ratio is vital because it determines how the input speed from the tractor's PTO is adjusted to achieve the optimal output speed and torque for the baler. The gear ratio affects the efficiency of the baler’s plunger, cutting, and tying mechanisms.
• Application-Specific Needs: Depending on the crop type (e.g., straw, hay, or silage) and the desired bale density and size, the required gear ratio may vary. Consult with manufacturers or experts to understand the best gear ratio for your specific baling needs.

2. Match the Gearbox to Tractor PTO Speed

• PTO Speed Compatibility: Gearboxes are typically designed to operate with standard PTO speeds of 540 or 1000 RPM. Ensure that the gearbox is compatible with the PTO speed of your tractor to avoid operational inefficiencies or damage.
• Efficient Power Transfer: Select a gearbox that can efficiently transfer power at the tractor’s PTO speed without excessive wear or energy loss.

3. Output Speed and Torque Requirements

• Output Speed: The output speed of the gearbox should match the speed requirements of the baler’s moving parts to ensure smooth and efficient baling operations.
• Output Torque: The gearbox should be capable of converting the tractor’s input power into sufficient torque to drive the baler's heavy components, particularly the plunger and knotters, under varying load conditions.

4. Material and Construction Quality

• Durability and Wear Resistance: Choose a gearbox made from high-quality, durable materials that can withstand the harsh conditions of farming. Gearboxes with hardened steel gears and robust housing materials offer better durability and longer service life.
• Corrosion Resistance: Consider gearboxes with corrosion-resistant coatings or materials, especially if you work in damp or corrosive environments.

5. Maintenance and Ease of Repair

• Ease of Maintenance: Look for a gearbox with a design that is easy to maintain. Features like easily accessible lubrication points and simple assembly/disassembly can make regular maintenance tasks less cumbersome.
• Availability of Spare Parts: Ensure that spare parts are readily available for the gearbox model you choose. Quick access to replacement gears, bearings, and seals can significantly reduce downtime.

6. Check for Additional Features

• Safety Features: Options such as overload protection (e.g., shear bolts or slip clutches) can prevent damage to the gearbox and baler during jams or overloads.
• Adaptability and Control: Some gearboxes offer variable settings or controls that can be adjusted from the tractor, allowing for more precise control over baling operations based on real-time conditions.
