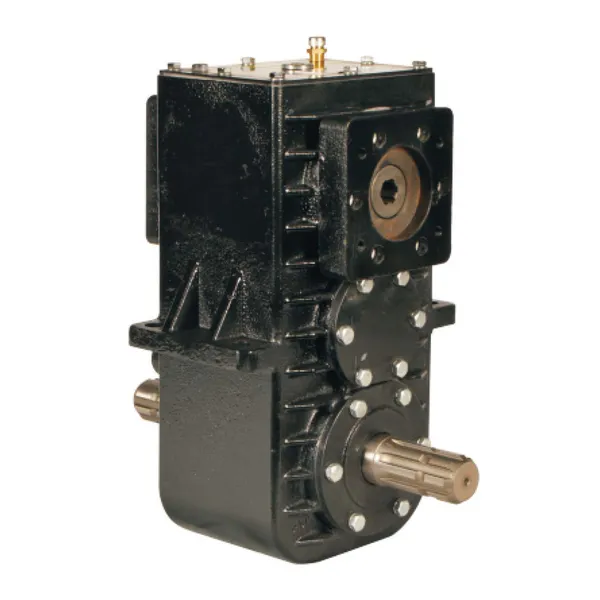

Square Baler Gearbox RDF-FK263

Square Baler Gearbox RDF-FK263

The Square Baler Gearbox RDF-FK263 is a specialized gearbox designed for use in square balers, which are crucial in agricultural operations for compacting and bundling various crop materials such as hay, straw, and cotton. This specific model of gearbox plays a pivotal role in ensuring the efficiency and reliability of the baling process. The RDF-FK263 Square Baler Gearbox is responsible for transmitting mechanical power from the tractor's PTO (Power Take-Off) to the various moving parts of the baler. It drives the mechanisms that perform the baling process, such as the plunger, the pickup mechanism, and the knotters. The gearbox regulates the operational speed of the baler, ensuring that the components move at the correct speeds to form consistent and well-shaped bales efficiently.

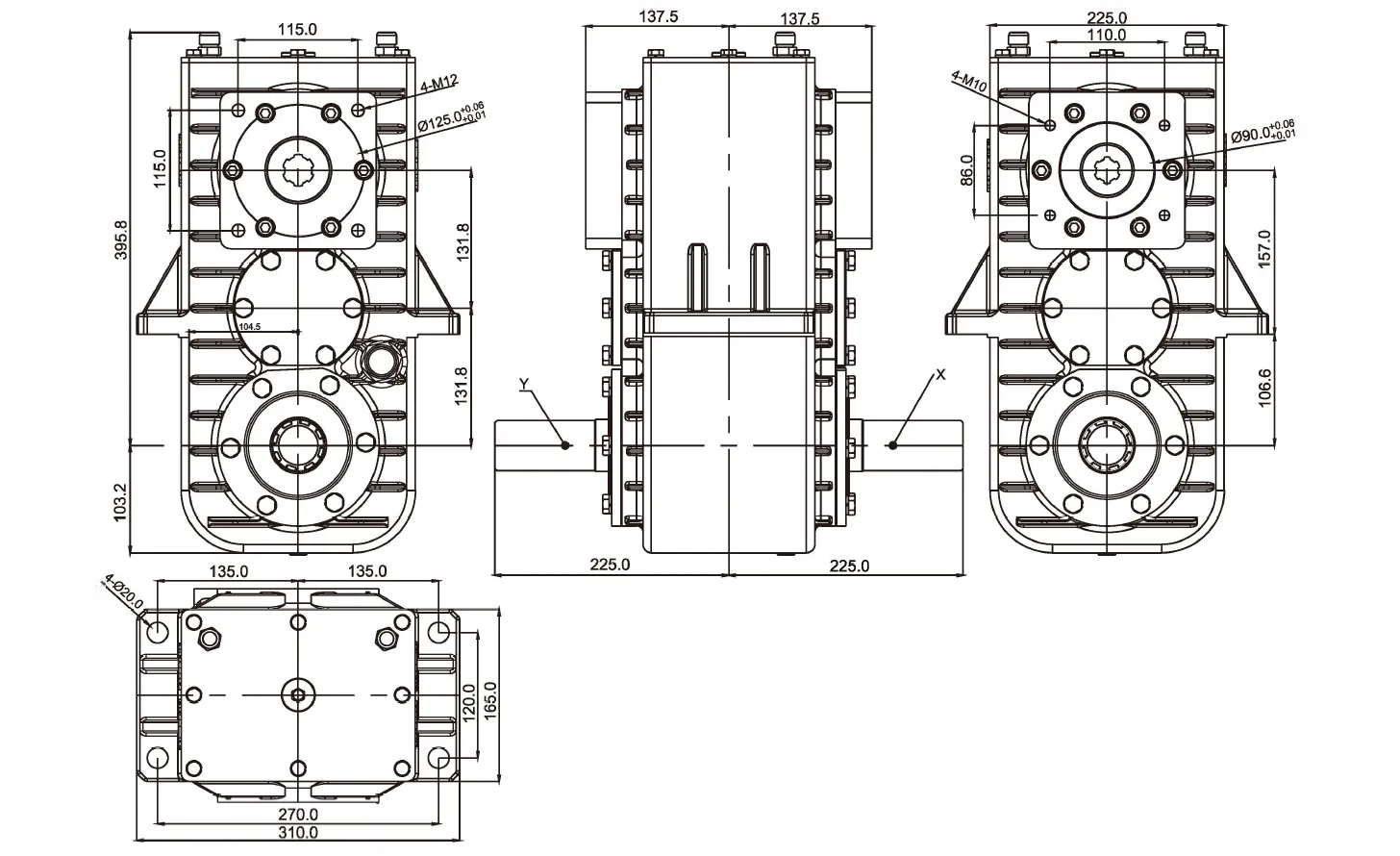

Square Baler Gearbox RDF-FK263 Dimensions

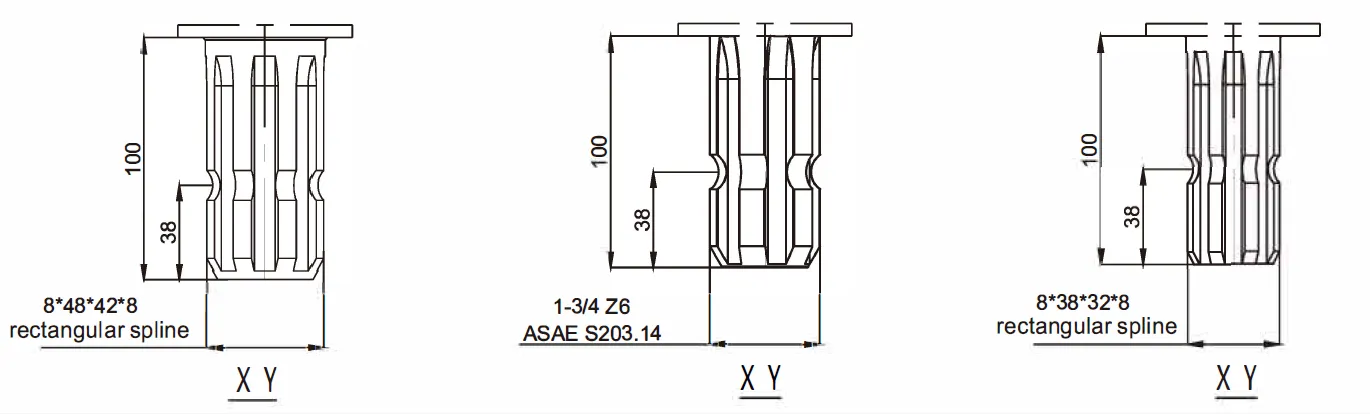

Square Baler Gearbox RDF-FK263 Shaft Dimensions

Square Baler Gearbox RDF-FK263 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	Toothing
			r/min	r/min	hp	hp
Speed increase	1:2.69	Square Baler, etc	760	2045	180	250	Gleason StraightTeeth
Remark: If you have any special require feel free let me know, we also accept custom.

How Does Square Baler Gearbox RDF-FK263 Work?

The Square Baler Gearbox RDF-FK263 is a crucial component of a square baler, an agricultural machine used for compressing cut crops into compact, easy-to-handle square bales. The gearbox's primary function is to transfer and regulate power from the tractor to the baler's operational mechanisms. Here's how the Square Baler Gearbox RDF-FK263 works:1. Power Input: The gearbox is connected to the tractor's Power Take-Off (PTO) shaft. The PTO provides rotational power from the tractor's engine to the baler. PTO Input Shaft: The gearbox receives mechanical power through its input shaft, which is connected to the PTO shaft of the tractor.2. Gear Operation: Inside the gearbox, the power from the PTO shaft engages a series of gears. These gears are precision-engineered to handle the required torque and speed for the baling process. Speed and Torque Modification: The gears within the RDF-FK263 gearbox modify the speed and torque received from the tractor's PTO. The gearbox design ensures that the output speed and torque are optimized for the baler's operations.3. Power Output: Transmission to Baler Components: the modified power is transmitted from the gearbox's output shaft to the various components of the baler. This includes the plunger that compresses the crop material, the pickup mechanism that gathers the crops, and the knotters that tie the bales.The gearbox ensures a consistent and smooth transfer of power, which is crucial for the synchronized operation of the baler components. This results in efficiently formed, uniform square bales.

Square Baler Gearbox RDF-FK263 for Agricultural

The Square Baler Gearbox RDF-FK263 is an integral component of square balers, which are widely used in agriculture to process and package various crops. The gearbox ensures efficient power transmission from the tractor to the baler, enabling it to perform its functions effectively. Here are some agricultural applications of the Square Baler Gearbox RDF-FK263:1. Hay Baling: The gearbox is crucial in driving the mechanisms of square balers used for baling hay. It ensures the baler operates at the correct speed and power to compress hay into compact, square bales. These bales are easy to handle, store, and transport, making them ideal for livestock feed.2. Straw Baling: Straw, a by-product of cereal crops like wheat and barley, is baled using square balers equipped with the RDF-FK263 gearbox. The gearbox ensures the efficient operation of the baler as it processes and bales straw. The resulting bales are used for animal bedding, feed, or as raw material for industries like construction (straw-bale houses) and manufacturing.3. Cotton Baling: In the cotton industry, square balers with the RDF-FK263 gearbox are used to compress cotton into bales, which is crucial for ease of handling, storage, and transportation.Efficient baling of cotton is essential for maintaining the quality of the fiber and optimizing the supply chain from the farm to the textile mills.4. Silage Baling: The RDF-FK263 gearbox also powers balers used for compacting silage – fermented, high-moisture fodder stored in bales for livestock feeding. Baling silage helps in preserving its nutritional value and ensures a steady supply of quality feed for livestock, especially in areas with long winters or dry seasons.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy an agricultural gearbox, please get in touch with us.

Why Choose Our Square Baler Gearbox?

Raydafon MACHINERY (Ningbo) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Ningbo R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.
