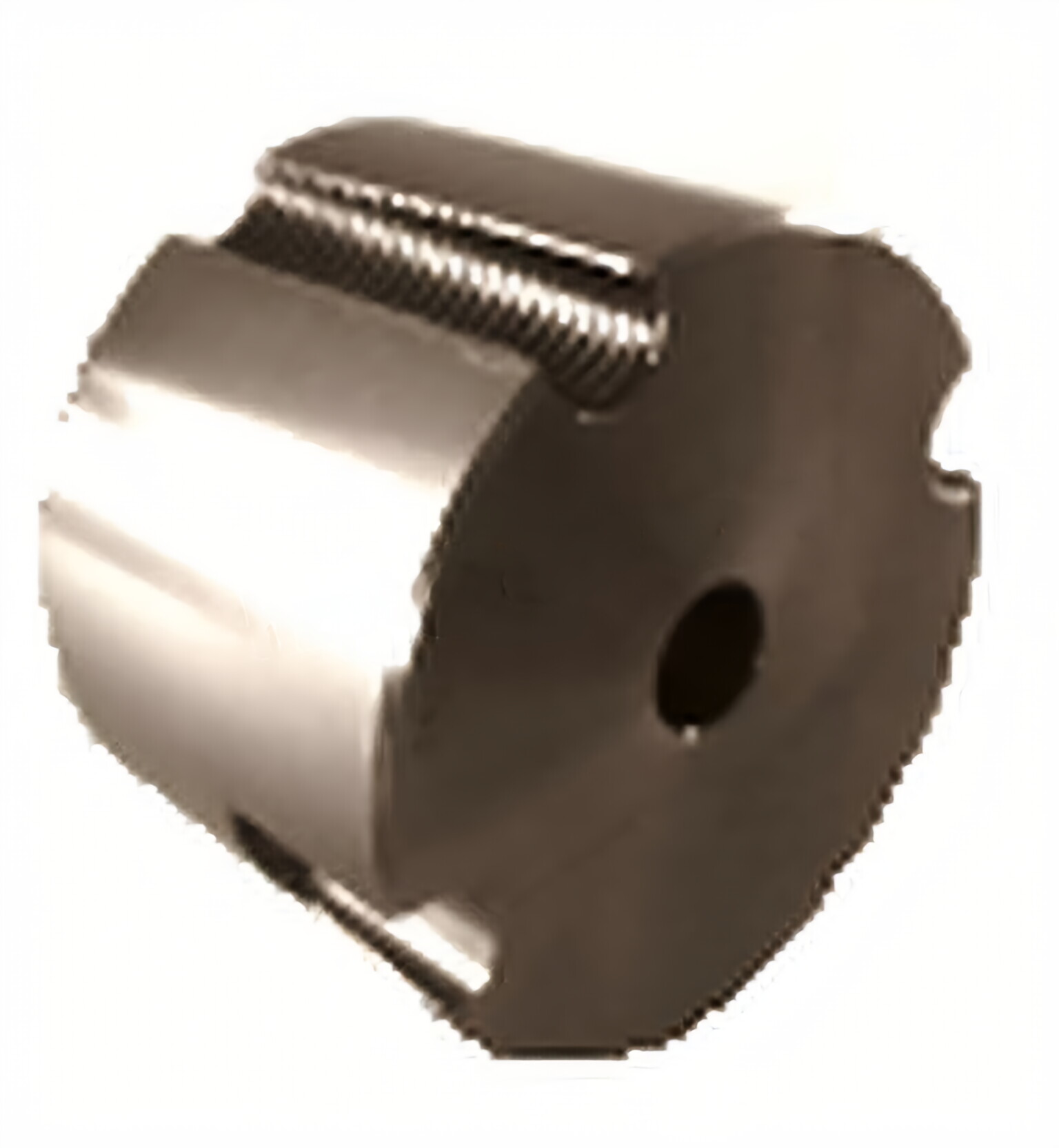

SS 4545 Stainless Steel Taper Lock Bushing

SS 4545 Stainless Steel Taper Lock BushingTapered locking bushings have an 8-degree taper to reduce through-hole length. The taper is formed by a screw inside the bushing. The taper makes the bushing thinner than flanged bushings. Although the diameter of the tapered bushing may be smaller, it can still be installed in a shaft with a standard flange. However, before assembling the bushing, make sure the shaft type is correct before assembling.While the sprocket hub may be larger than expected, the Taper-Lock bushing allows for an extremely narrow width. Additionally, the left-aligned hub design keeps the shaft close to the bearing, avoiding problems associated with high overhung loads. The tapered portion of the bushing passes through the flange and the tapering taper creates a true clamping fit. This makes it similar to a shrink-fit in that it prevents overhanging loads and provides maximum strength.Another common use for tapered bushings is to install pulleys. They are separated and secured by screws. Their evenly distributed mounting makes them very effective in high torque applications. The tapered portion of the assembly is pressed into the hub and driven with the hub by high-strength screws. These bushings ensure that the sprockets are installed correctly and can also be used for recessed ceiling lights.

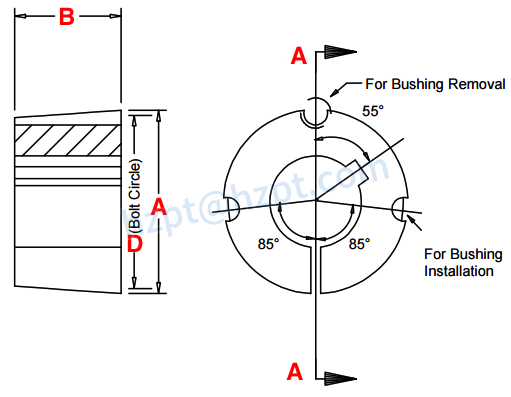

Dimensions of SS 4545 stainless steel taper lock bushing

• Bushing Size: SS-4545
• Bore Size:1-7/8"、1/2"、1-15/16"、 2-1/16"、2 -3/16"、2-11/16"、2-1/8"、2-1/2"、2-1/4"、2-5/16"、2-7/16"、2-9/16"、2-3/8"、2"、9/16"、2-5/8"、5/8"、11/16"、13/16‘、2 -13/16"、3/4"、2-3/4"、2-7/8"、15/16"、3"、3-1/2"、3-1/4"、3-1/8"、3-1/16"、3-3/8"、3-3/16"、3-5/16"、3-7/16"、3-9/16"、3-5/8"、3-7/8"、3-11/16"、3-3/4"、3-13/16"、3-15/16"、4"、4 -3/16"、4-1/4"、4-3/8"、4-7/16"、4-1/2"、55mm、60mm、65mm、70mm、75mm、80mm、85mm、90mm、95mm、100mm、105mm、110mm
• Dimension (A): 6-3/8"
• Dimension (B): 4-1/2"
• Dimension (D): 6.13"
• Bushing Weight: 26 LBS

Tapered bushings are often used to mount pulleys. Their split design facilitates use in applications requiring strong gripping force. These components are typically used in recessed ceiling lights. They offer high torque transmission. These bushings are also designed for precise alignment. Unlike other types of bushings, they are easy to install. In addition to the benefits they provide, tapered locking bushings are durable, ensuring they last longer than the competition.Tapered locking bushings are commonly used in the motor industry. These components can be made of different materials. One type is the split cone. The split design is easier to install and remove than other designs. Split cones are interchangeable between manufacturers, making them an excellent choice for many applications. There are two main types of split tapered bushings: keyless and split. Keyless bushings allow for backlash-free tightening. These assemblies work well with smaller bearings. The split taper can be installed immediately and the quick disconnect option is easy to remove. Keyless and split tapered bushings are designed to prevent shaft rotation.Click and check out more products you're looking for.
