Stainless Steel Environment Wastewater Chain for Sewage Treatment

Chain for Sewage Treatment is used in water treatment facilities such as transfer water treatment and sludge tank. It is mainly used in municipal sewage treatment of large and medium-sized cities and wastewater treatment of heavy industry and hazardous chemical industry;Special alloy steel, special stainless steel and other materials are selected to meet the requirements of high strength, wear resistance and corrosion resistance through special strengthening and surface treatment

Raydafon?has provided important?water treatment chains?for various water treatment equipment, which can be used in the production line of water treatment equipment including transit water treatment, sand grain sediment box, preliminary sedimentation and secondary sedimentation. In order to meet the functional requirements of different water treatment equipment, GIDI can not only provide water treatment chains made of stainless steel and special alloy steel, but also provide molded water treatment chains.The material can be 304SS,316SS and 300,600 duplex stainless steel.

Application examples Of Chain for Sewage Treatment

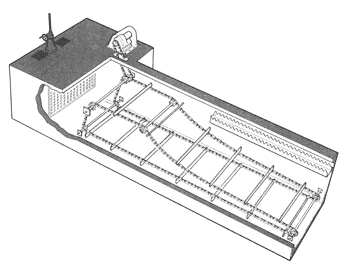

One of the main uses of large spacing conveyor chains is for water treatment facilities. In a large sewage treatment facility, sewage passes through several tanks where solid waste is removed by sedimentation and flotation.In the sludge pond, use vacuum or V-shaped bucket to remove sand and dirt. In the sedimentation tank, the sludge in the water or on its surface is scraped to the outlet, and a "ladder" (plate) is installed every 3 m between the two chains. The sewage treatment chain (ACS chain) is used for this process. Remove accumulated dirt with a pump.Cast iron chains have been used in sewage treatment facilities. In this corrosive environment, chain deterioration is inevitable. Due to corrosion, the volume of the chain material is reduced and the wear is accelerated. In order to offset the material loss caused by corrosion, cast iron chains become quite heavy, but the tension required in water treatment applications does not justify the use of chains with such high tensile strength.In the mid-1960s, Japan developed ACS stainless steel chains, especially for water treatment facilities. The stainless steel construction ensures excellent corrosion resistance, thus eliminating the need for overweight cast iron chains. Because of its superior function, ACS chain has been widely recognized.The chain is also used to transport corrosive objects in ordinary scraper conveyors.

Related Products

We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

We also provide sprockets to match your roller chains：https://hzpt.com/sprockets/

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Production Workshop of Roller Chains

Raydafon is an industry-leading, reliable and outstanding roller chain supplier that aims to provide high-quality products at more competitive prices and better service.* Good quality products at competitive pricing* Wide variety of products available in various materials and sizes* Our products are manufactured in an ISO9001 certified factory* Great customer service that's here to answer all of your questions* Largest online selection of power transmission products* Easy online shopping and ordering available 24/7 - 365 days a year* High quality made to order products
