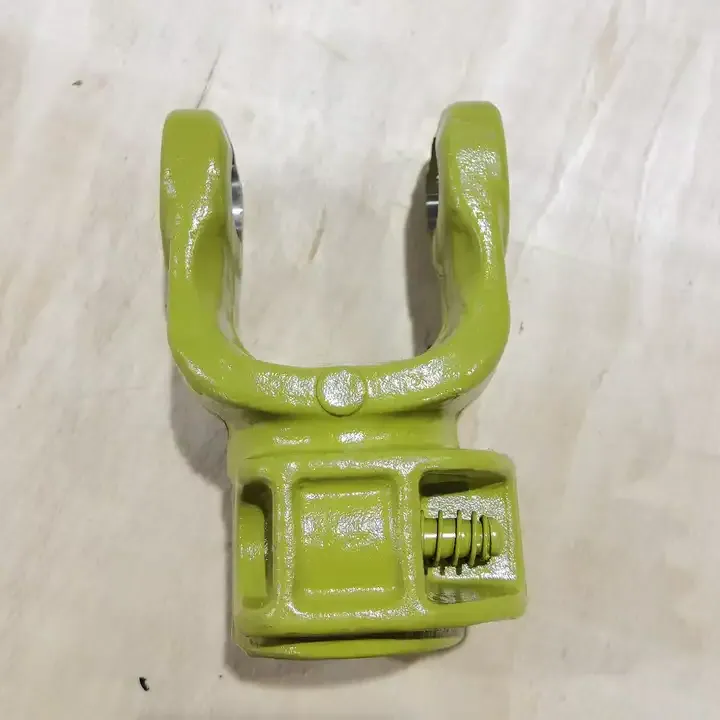

Steel 1.05C30 Plain Bore Yoke with Keyway and Threaded Hole PTO SHAFT PARTS

Introducing our premium quality product - the Steel 1.05C30 Plain Bore Yoke with Keyway and Threaded Hole PTO SHAFT PARTS. This high-quality product is designed to serve as a crucial component in the machinery used for various farming operations. It is a brand-new, high-quality product with a 1-year warranty. This durable plain bore yoke is suitable for a wide range of industries including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, and many more.

Key Features of the Steel 1.05C30 Plain Bore Yoke

Agricultural Power Take-Off (PTO) shaft yokes are crucial components in the machinery used for various farming operations. Understanding the features of PTO shaft yokes is important for proper usage and maintenance. Here are some key features of the Steel 1.05C30 Plain Bore Yoke:

• Type of Yokes: This product serves as a tractor yoke that connects the PTO shaft to the tractor, matching the spline of the tractor??s PTO output. It can also function as an implement yoke that attaches the PTO shaft to the agricultural implement, with a design specific to the implement's input shaft.
• Spline Count and Size: Our yoke has internal splines that match the count and size of the shaft splines they connect to. It comes with a locking mechanism such as a push-pin or a ball-lock system to securely attach to the PTO shaft.
• Material and Construction: The PTO shaft yoke is made from robust materials like forged steel to withstand the stress and torque of agricultural work. It is coated or treated to resist corrosion and wear.
• Safety Features: Safety is a priority. Our yoke comes with or is compatible with safety shields to prevent accidents, as the rotating shaft can be a significant hazard.
• Quick Release Options: Some yokes are designed with a quick-release feature, allowing for easy and fast attachment or detachment from the tractor or implement.
• Customization and Compatibility: We offer various sizes and types of yokes to suit different tractors and implements, ensuring compatibility across a wide range of machinery.

We are proud to produce this product. Our Steel 1.05C30 Plain Bore Yoke is a perfect replacement for the corresponding parts that are damaged on PTO shaft parts.

Applications of the Steel 1.05C30 Plain Bore Yoke

Agricultural power take-off (PTO) shaft yokes are versatile components that find application in various farming operations. They are essential for connecting the PTO shaft to the tractor's power source and the implement's input shaft, enabling the transfer of power and torque. Here are some common applications of agricultural PTO shaft yokes:

• Rotary Mowers: PTO shaft yokes are used in rotary mowers, including brush cutters, finish mowers, and flail mowers. These implements require a reliable connection between the PTO shaft and the mower's gearbox or driveline, allowing the transfer of power for cutting vegetation.
• Hay Equipment: PTO shaft yokes are widely used in hay equipment such as balers, hay rakes, hay tedders, and hay mergers. These implements rely on the PTO shaft to power various functions, including baling, raking, tedding, and merging hay. PTO shaft yokes ensure a secure and efficient connection between the tractor and the hay equipment.
• Tillage Equipment: PTO shaft yokes are commonly employed in tillage equipment, including plows, disc harrows, cultivators, and seeders. These implements require a robust PTO connection to transfer power for ground engagement and soil preparation. PTO shaft yokes play a vital role in ensuring efficient power transmission and durability in demanding tillage applications.
• Spreaders: Fertilizer spreaders, manure spreaders, and lime spreaders often rely on PTO shaft yokes to connect the PTO shaft to the spreader's agitator or spinner mechanism. The yokes facilitate the transfer of power to spread the materials evenly across the field, improving nutrient distribution and crop productivity.
• Grain Handling Equipment: PTO shaft yokes are used in grain handling equipment, including grain augers, grain bins, and grain conveyors. These implements require a reliable connection between the PTO shaft and the equipment's auger or conveyor system, enabling efficient grain transfer, loading, and unloading operations.
• Sprayers: PTO shaft yokes find application in agricultural sprayers, such as boom sprayers and tractor-mounted sprayers. These implements rely on the PTO shaft to power the sprayer pump, allowing for precise and uniform application of pesticides, herbicides, and fertilizers. PTO shaft yokes ensure a secure connection between the tractor and the sprayer pump.

How to Replace Yoke on PTO Shaft

Replacing a PTO (Power Take-Off) shaft yoke is a crucial maintenance task in agricultural machinery. The yoke is the component that connects the PTO shaft from a tractor to an implement, such as a mower or baler. If the yoke is worn or damaged, it's important to replace it to ensure efficient operation and prevent machinery breakdown. Here's steps for replacing a PTO shaft yoke:

1. 1. Remove the Old Yoke: Secure the PTO shaft in a vise or with supports. Identify the fastener (pin, bolt, or snap ring) that secures the yoke to the shaft. This might be a shear pin or a roll pin in some designs. Carefully remove the fastener. For pins, you may need to tap them out with a hammer and punch. For snap rings, use snap ring pliers.
   2. Slide Off the Old Yoke: Once the fastener is removed, slide the yoke off the shaft. If it??s seized or stuck, applying penetrating oil and gently tapping around the yoke with a hammer can help loosen it.

1. Prepare the New Yoke: Before installation, check the new yoke for any lubrication points and apply grease as needed.
2. Install the New Yoke: Slide the new yoke onto the shaft, aligning it properly. Once in position, reinsert the fastener (pin, bolt, or snap ring) to secure the yoke onto the shaft. Ensure it is properly seated and secure.
3. Lubricate the Yoke: Apply grease to any grease fittings on the yoke and universal joint to ensure smooth operation.
4. Reconnect the PTO Shaft: Reattach the PTO shaft to the tractor and the implement, making sure all connections are secure and properly aligned.

How to Remove Yoke from PTO Shaft?

Removing a yoke from a PTO (Power Take-Off) shaft is a task that requires attention to detail and safety. The yoke is the component that connects the PTO shaft to the tractor or implement. Here are steps to remove the yoke from a PTO shaft:

1. Secure the PTO Shaft: If possible, secure the PTO shaft in a vise or with supports to keep it steady while you work.
2. Identify the Fastening Mechanism: Examine the yoke to determine how it is attached to the shaft. Common mechanisms include a shear pin, a roll pin, a bolt, or a snap ring.
3. Remove the Fastener: If it??s a shear or roll pin, use a punch and hammer to gently tap it out. If it??s a bolt, use the appropriate wrench or socket to unscrew it. If a snap ring holds the yoke, use snap ring pliers or a flathead screwdriver to remove it.
4. Slide Off the Yoke: Once the fastener is removed, slide the yoke off the end of the PTO shaft. If the yoke is stuck, it may be due to rust or debris. Apply penetrating oil and let it soak in to loosen it. Gently tap around the yoke with a hammer to help free it.
5. Inspect and Clean: After removal, inspect the shaft and the yoke for wear or damage. Clean off any rust, dirt, or debris.

Maintenance and Care of the Steel 1.05C30 Plain Bore Yoke

Proper maintenance and care of agricultural power take-off (PTO) shaft yokes are essential to ensure their longevity, reliability, and safe operation. Here are some maintenance and care tips for agricultural PTO shaft yokes:

1. Regular Inspection: Perform visual inspections of the PTO shaft yokes regularly. Look for signs of wear, damage, or misalignment. Check for cracks, bent components, or excessive play in the yoke. Inspect the splines, keyways, and locking mechanisms for any signs of wear or damage.
2. Lubrication: Proper lubrication is crucial for the smooth operation of PTO shaft yokes. Follow the manufacturer's recommendations for lubrication intervals and use the appropriate lubricant specified for the yoke. Apply lubrication to the yoke's moving parts, such as the splines, U-joint, and locking devices. This helps reduce friction, prevent corrosion, and extend the life of the yoke.
3. Cleanliness: Keep the PTO shaft yokes clean and free from dirt, debris, and agricultural residues. Regularly remove any buildup or contaminants that can interfere with the yoke's operation or cause damage. Use a brush or compressed air to clean the yoke thoroughly.
4. Proper Storage: When not in use, store the PTO shaft yokes in a clean and dry environment. Protect them from exposure to moisture, excessive heat, and corrosive substances. If necessary, apply a thin coat of rust-inhibiting oil or grease to the yoke to prevent corrosion during storage.
5. Correct Usage: Ensure that the PTO shaft yokes are used within their specified operating parameters. Avoid exceeding the recommended torque or load capacity of the yoke. Use the yoke only with compatible PTO shafts and implements. Improper usage can lead to premature wear, damage, or failure of the yoke.
6. Replace Worn or Damaged Yokes: If you notice significant wear, damage, or signs of failure in a PTO shaft yoke, it is crucial to replace it promptly. Continuing to use a damaged or worn yoke can lead to unsafe conditions and further damage to the equipment.
7. Proper Alignment: Ensure that the PTO shaft yokes are properly aligned during installation. Misalignment can cause excessive stress, vibration, or binding, leading to premature wear or failure of the yoke and other components. Follow the manufacturer's instructions for aligning the yoke with the PTO shaft and the implement's input shaft.

Why Choose Raydafon's Agricultural PTO Shaft Yokes?

Located in Ningbo Zhejiang City, Raydafon Drive Shaft Co., Ltd. is a professional company with over 100 dedicated staff members. We specialize in the development, manufacturing, and marketing of a variety of products such as PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, PTO shaft universal joints, industrial cardan shafts, car driveshafts, and u-joint coupling shafts.With an annual turnover of 60 million RMB, 9 Million Dollars, our products have gained a great reputation from customers worldwide, and we are the top professional OEM supplier for many agricultural implement factories in the domestic market. We follow the QDP principles: Quality first, Deliver quickly, and Price Competitive. We have achieved the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.At Raydafon, we are committed to professionalism, international certifications, customized services, state-of-the-art production facilities, and exceptional after-sales services. We strive to provide the highest quality products and services to our customers.Author: Yjx
