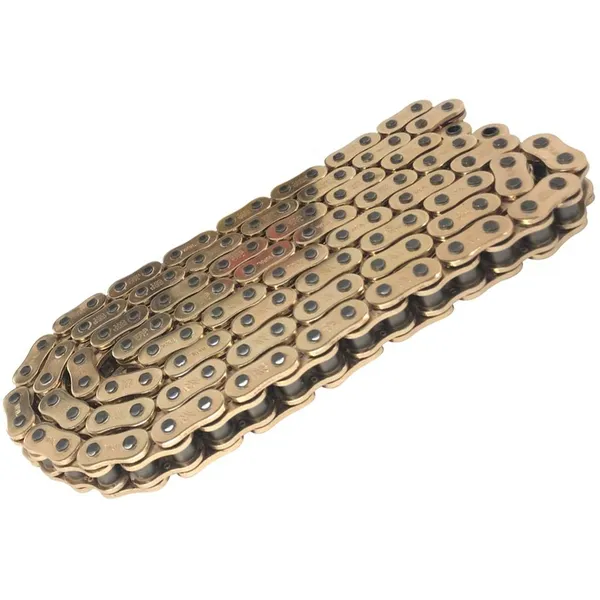

Super X-Ring Motorcycle Chain
A Super X-Ring motorcycle chain is a type of sealed chain that uses a unique X-shaped ring seal to retain lubrication and keep dirt out. This type of chain is designed to be more durable and wear-resistant than traditional O-ring motorcycle chains and is often used on high-performance motorcycles and ATVs.
The X-ring seal has a number of advantages over the O-ring seal. First, it has a larger contact area, which helps to distribute stress more evenly and reduce friction. Second, the X-ring has a triple-lip design that provides a more effective seal against dirt and moisture. Finally, the X-ring is made of a more durable material than the O-ring, which helps to extend the chain's lifespan.
Super X-Ring motorcycle chains are typically made with high-strength alloy steel and are available in a variety of sizes to fit different motorcycles. They are also available in a variety of finishes, including black, gold, and silver.

| Chain No. | Pitch | Bush Type | Width | Pin Dia | Pin Length | Roller Dia | Plate Thickness Inner | Plate Thickness Outer | Tensile Strength | Weight |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m | ||
| 428SX | 12.700 | Solid | 7.85 | 5.00 | 20.60 | 8.51 | 2.20 | 2.03 | 28.0 | 1.02 |
| 52055 | 15.875 | Solid | 6.35 | 5.34 | 19.20 | 10.18 | 1.85 | 1.85 | 30.5 | 0.91 |
| 520-SX | 15.875 | Solid | 6.35 | 5.34 | 19.20 | 10.18 | 2.03 | 2.03 | 36.0 | 0.94 |
| 520-SX3 | 15.875 | Solid | 6.35 | 5.34 | 21.80 | 10.18 | 2.35 | 2.35 | 38.0 | 1.12 |
| 525-SX | 15.875 | Solid | 7.94 | 5.50 | 22.80 | 10. 20 | 2.35 | 2.35 | 40.0 | 1.12 |
| 530-SX | 15.875 | Solid | 9.60 | 5.50 | 24.50 | 10. 20 | 2.40 | 2.40 | 43.0 | 1.20 |
| 520H-5X | 15.875 | Solid | 6.35 | 5.24 | 22.00 | 10.16 | 2.40 | 2.40 | 38.0 | 1.21 |
| 525H-SX | 15.875 | Solid | 7.94 | 5.24 | 23.80 | 10.16 | 2.40 | 2.40 | 38.0 | 1.35 |
| 530H-5X | 15.875 | Solid | 9.60 | 5.24 | 25.40 | 10.16 | 2.40 | 2.40 | 38.0 | 1.39 |

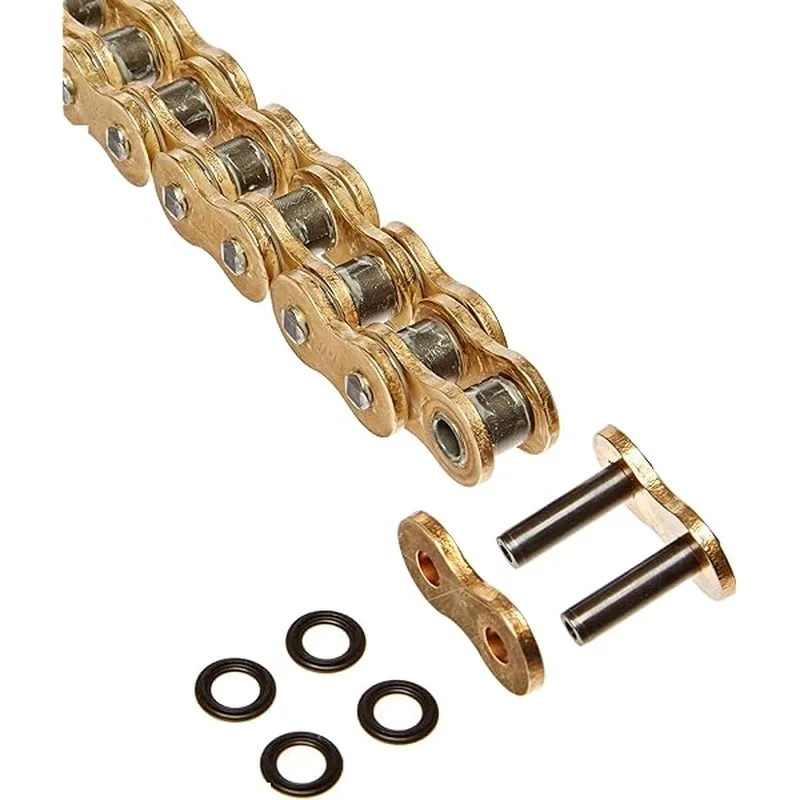

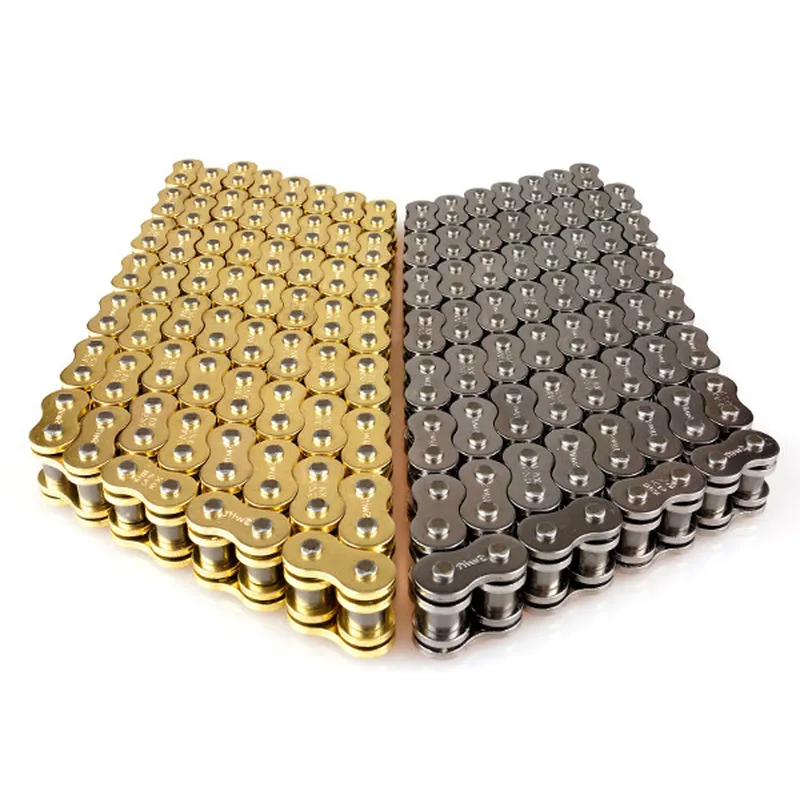

Super X-ring motorcycle chains offer a number of benefits over standard and O-ring chains, including:
1. Longer wear life: Super X-ring motorcycle chains are designed to last longer than standard and O-rings, with some brands claiming up to 3 times the lifespan. This is due to their unique shape, which provides better sealing and reduces friction.2. Reduced friction: Super X-ring motorcycle chains have a lower coefficient of friction than standard and O-rings, which means that they lose less power to friction. This can improve performance and fuel efficiency.3. Improved performance: Super X-ring motorcycle chains can help to improve motorcycle performance in a number of ways, including by reducing power loss, improving throttle response, and providing smoother shifting.4. Reduced maintenance: Super X-ring motorcycle chains require less maintenance than standard and O-rings, as they are less likely to stretch or wear out. This can save you time and money in the long run.5. Better all-weather performance: Super X-ring motorcycle chains are less susceptible to the effects of dirt, water, and other contaminants than standard and O-rings. This means that they can perform better in all weather conditions.In addition to these benefits, super X-ring chains are also typically stronger and more durable than standard and O-ring chains. This makes them a good choice for high-performance motorcycles and other applications where demanding conditions are expected.
![]() | ![]() |
To clean a motorcycle chain, you will need:
Once the chain is clean, you should lubricate it. This will help to protect the chain from rust and wear.
Here are some additional tips for cleaning a motorcycle chain:
By following these steps, you can keep your motorcycle chain clean and in good condition, which will help to extend its lifespan.

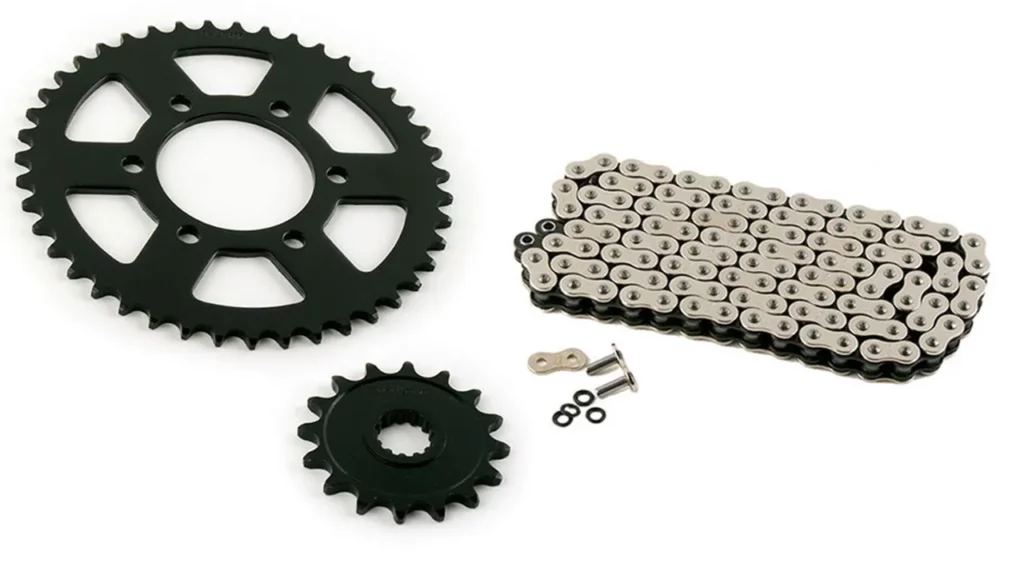

Motorcycle sprockets are toothed wheels that transmit power from the engine to the rear wheel. The front sprocket is connected to the engine's crankshaft, and the rear sprocket is connected to the rear axle. The chain runs over the sprockets, transferring power from one to the other.
X-ring motorcycle chains are a type of sealed roller chain that uses X-shaped seals to retain lubricant and keep out dirt and debris. This makes them more durable and longer-lasting than non-sealed chains. X-ring chains are also more efficient, meaning they reduce power loss and improve performance.
The sprockets and chain work together as a system to transmit power from the engine to the rear wheel. If any of the components are worn or damaged, it can affect the performance and reliability of the motorcycle. It is important to inspect the sprockets and chain regularly and replace them as needed.
When choosing sprockets and X-ring motorcycle chains for your motorcycle, it is important to select the correct size and type of components for your specific model. You should also consider your riding style and the conditions in which you will be riding. For example, if you do a lot of off-road riding, you may want to choose a heavier-duty chain and sprockets.
Here are some tips for maintaining your motorcycle sprockets and chain:
By following these tips, you can help to ensure that your motorcycle's sprockets and chain last for many years and miles.
