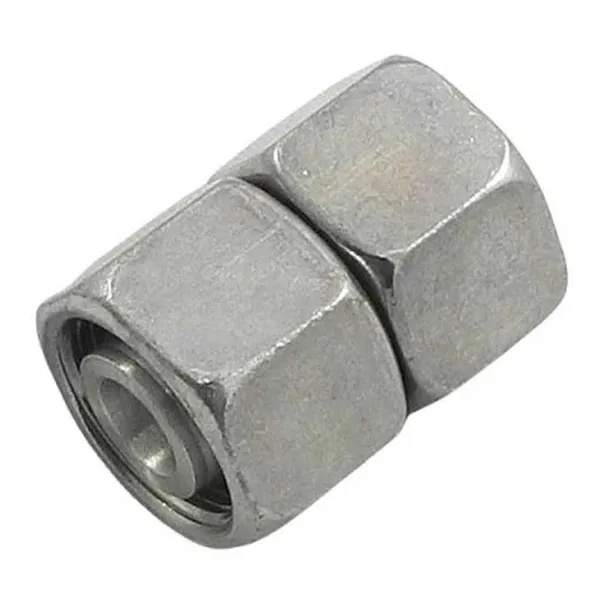

Swivel Union-GZ Hydraulic Fittings

Swivel Union-GZ Hydraulic Fittings

Swivel Union-GZ hydraulic fittings are components used in hydraulic systems to connect and seal hydraulic hoses, tubes, and pipes. These fittings provide a secure and leak-free connection between different hydraulic components, allowing the transmission of hydraulic fluid under high pressure.The "Swivel Union" refers to the ability of the hydraulic fitting to rotate or swivel, providing flexibility and ease of installation. This feature allows for angular movement between connected components without causing stress or strain on the hose or pipe. Swivel Union-GZ hydraulic fittings are particularly useful in applications where there is a need for movement or rotation, such as in heavy machinery, construction equipment, and hydraulic systems with moving parts.Swivel Union-GZ hydraulic fittings are typically made from high-quality materials such as stainless steel, brass, or carbon steel, depending on the specific application and compatibility requirements. It is important to select the appropriate fitting based on factors such as pressure rating, temperature range, fluid compatibility, and the specific needs of the hydraulic system.

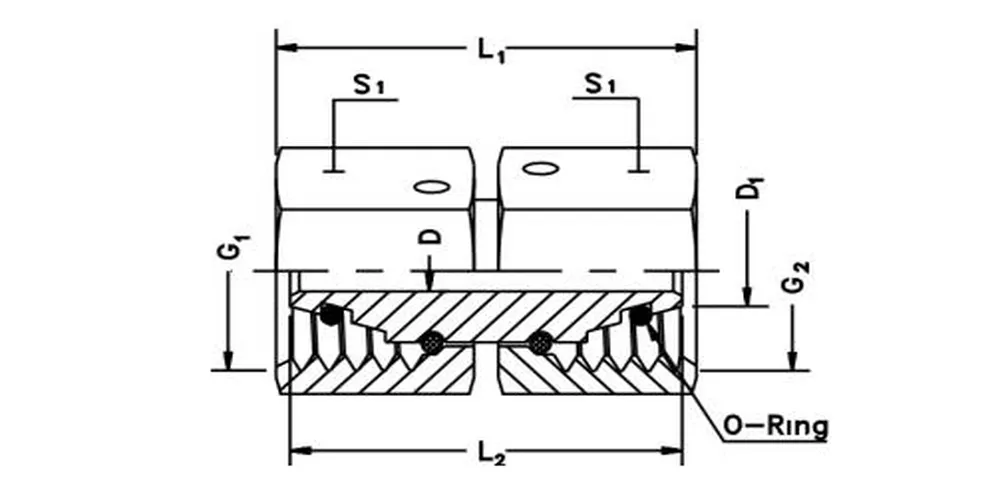

Swivel Union-GZ Hydraulic Fitting Size Chart:

GZPart no.	Series Working Pressure (bar/psi)	D1Tube o.d.	G1, G2Metric Thread	L1	L2	S1	D
GZ06L	L light 315 bar4570 psi	6	M12x1.5	33	32	14	2.5
GZ08L		8	M14x1.5	33	32	17	4
GZ10L		10	M16x1.5	34	33	19	6
GZ12L		12	M18x1.5	34	33	22	8
GZ15L		15	M22x1.5	39	38	27	10
GZ18L		18	M26x1.5	38	36	32	13
GZ22L	160 bar2320 psi	22	M30x2	44	42	36	17
GZ28L		28	M36x2	48	46	41	22
GZ35L		35	M45x2	52	48	50	28
GZ42L		42	M52x2	57	52	60	34
GZ06S	S heavy 630 bar9135 psi	6	M14x1.5	33	32	17	2.5
GZ08S		8	M16x1.5	34	33	19	4
GZ10S		10	M18x1.5	35	33	22	6
GZ12S		12	M20x1.5	38	36	24	8
GZ14S		14	M22x1.5	41	39	27	9
GZ16S	400 bar5800 psi	16	M24x1.5	42	39	30	11
GZ20S		20	M30x2	48	44	36	14
GZ25S		25	M36x2	53	46	46	18
GZ30S		30	M42x2	62	52	50	23
GZ38S	315 bar4570 psi	38	M52x2	67	52	60	30

How to Choose the Right Swivel Union-GZ Hydraulic Fittings?

Choosing the right Swivel Union-GZ hydraulic fittings requires careful consideration of several factors. Here are some important aspects to consider when selecting these hydraulic fittings:1. System Requirements: Understand the specific requirements of your hydraulic system. Consider factors such as the maximum pressure rating, temperature range, and compatibility with the hydraulic fluid used in the system. These specifications will help you determine the appropriate fittings that can handle the system's demands.2. Connection Type: Identify the types of connections present in your hydraulic system. Determine whether you need Swivel Union-GZ Hydraulic Fittings with threaded connections, flange connections, or a combination of both. Ensure that the Swivel Union-GZ fittings you choose are compatible with the existing connections or can adapt between different connection types if needed.3. Size and Configuration: Determine the correct size and configuration of the Swivel Union-GZ Hydraulic Fittings required. Consider factors such as the diameter of the hydraulic hoses or pipes, the thread size (if applicable), and the overall space available for installation. Ensure that the fittings you choose have the correct dimensions to seamlessly connect the components in your system.4. Swivel Range: Assess the required swivel range for your application. Determine the degree of rotation or angular movement needed between the connected components. Swivel Union-GZ Hydraulic Fittings come in various swivel angles, such as 45 degrees, 90 degrees, or full 360-degree rotation. Choose the fitting that provides the necessary flexibility and range of motion for your specific application.5. Material Selection: Consider the material used in the construction of the Swivel Union-GZ Hydraulic Fittings. Common materials include stainless steel, brass, and carbon steel. The material choice should depend on factors such as the operating environment, exposure to corrosive substances, and the specific requirements of your hydraulic system. Ensure that the chosen material offers durability, resistance to corrosion, and compatibility with the hydraulic fluid and operating conditions.6. Quality and Reliability: Select Swivel Union-GZ Hydraulic Fittings from reputable manufacturers or suppliers known for producing high-quality hydraulic components. Quality fittings are essential for maintaining a leak-free and reliable hydraulic system. Check for certifications and industry standards compliance to ensure that the fittings meet the necessary quality and safety requirements.
