TAW720S Wastewater Treatment Chain

TAW720S Wastewater Treatment Chain

The TAW720S Wastewater Treatment Chain is a type of heavy-duty chain that is specifically designed for use in wastewater treatment applications. It is made from high-strength materials that are resistant to corrosion and wear, and it is available in a variety of configurations to meet the specific needs of different wastewater treatment facilities.

One of the most important features of the TAW720S Wastewater Treatment Chain is its strength. It is designed to withstand the high loads and abrasive conditions that are common in wastewater treatment applications. The TAW720S Wastewater Chain is also corrosion-resistant, which means that it can withstand the effects of harsh chemicals and wastewater.

Another important feature of the TAW720S Wastewater Treatment Chain is its versatility. It is available in a variety of configurations, including riveted or cottered construction, and with a variety of different attachments. This makes it possible to select the right chain for a wide range of wastewater treatment applications.

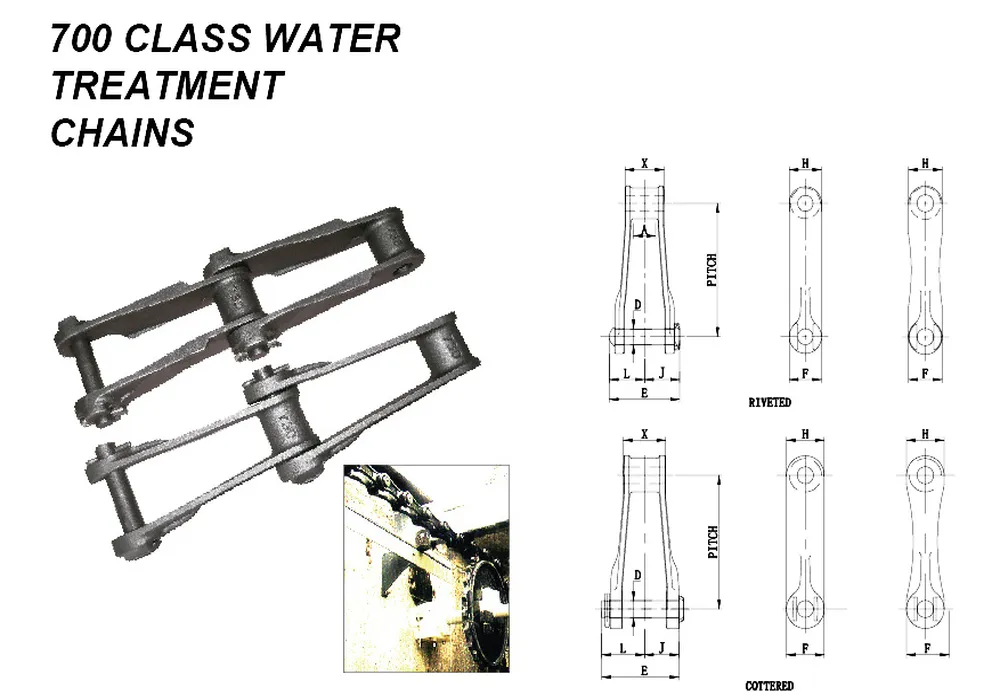

TAW720S Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
TAW720S	6.000	5.30	37500	4070	3.84	3.81	0.75	1.13	1.56	1.44	1.88	A21,A53,A474,AM116,F2,F3,F22-6,F22-8,M1

TAW720S Wastewater Treatment Chain Attachments:

TAW720S Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight and features an average ultimate strength of 40,000 LBS. Raydafon has a premium TAW720S chain in either riveted or cottered construction. Something special about this chain is the T-head pins that eliminate pin rotation while at the same time preventing the entrance of dirt and or grit. As a drive chain, the TAW720S chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for 720S chain are: A21, A53, A474, AM116, F2, F3, F22-6, F22-8, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

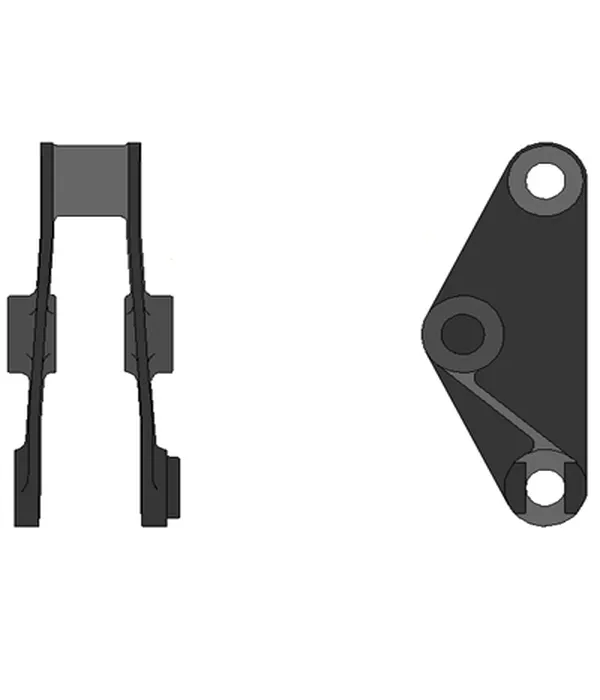

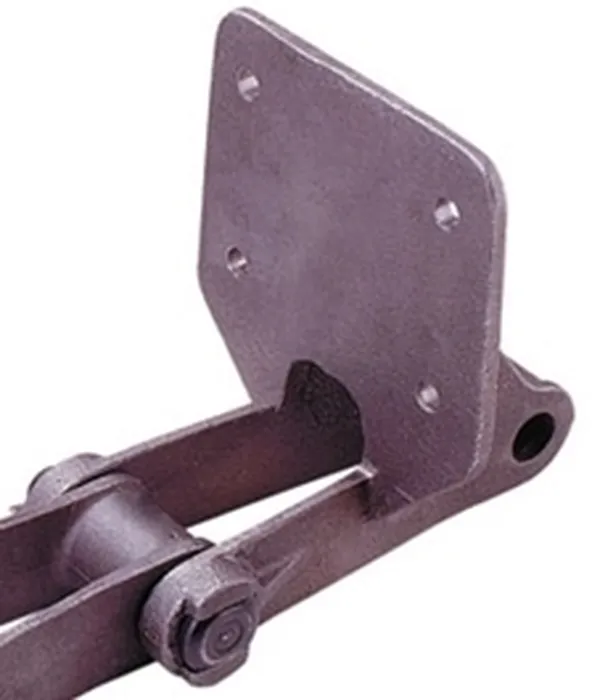

TAW720S Wastewater Chain F226 Attachment	TAW720S Wastewater Chain M1 Attachment

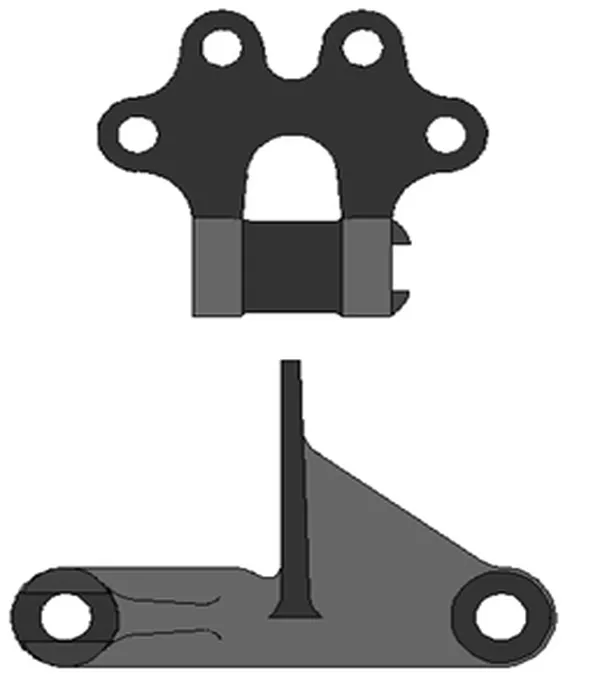

TAW720S Wastewater Chain F2 Attachment	TAW720S Wastewater Chain F228 Attachment

Benefits of Using the TAW720S Wastewater Treatment Chain:

The TAW720S?wastewater treatment chain is a type of chain that is specifically designed for use in wastewater treatment applications. It is a strong and durable chain that can withstand the harsh conditions of wastewater treatment, and it is also relatively lightweight and easy to install.

Some of the key benefits of using the TAW720S?wastewater treatment chain include:

• Durability: The TAW720S?chain is made from high-quality materials and is designed to withstand the harsh conditions of wastewater treatment. It is resistant to corrosion, abrasion, and wear and tear, and it has a long service life.
• Lightweight: The TAW720S water treatment chain is relatively lightweight, which makes it easier to install and maintain. This can help to reduce labor costs and downtime.
• Easy installation: The TAW720S wastewater chain is easy to install and remove, and it does not require any special tools. This can help to reduce downtime and maintenance costs.
• Compatibility: The TAW720S?chain is compatible with a wide range of wastewater treatment equipment, including clarifiers, grit collectors, and bar screens. This makes it a versatile option for wastewater treatment facilities.

• Improve performance: The TAW720S wastewater treatment chain is designed to provide smooth and efficient operation of wastewater treatment equipment. This can help to improve the overall performance of the treatment process.
• Reduce costs: The durability, lightweight construction, and easy installation of the TAW720S water treatment chain can help to reduce labor costs, downtime, and maintenance costs.
• Extend equipment life: The TAW720S wastewater chain is designed to reduce wear and tear on wastewater treatment equipment. This can help to extend the life of the equipment and reduce the need for costly repairs and replacements.

Overall, the 720S wastewater treatment chain is a durable, lightweight, and easy-to-install chain that can provide a number of benefits for wastewater treatment facilities. It can help to improve performance, reduce costs, and extend equipment life.

700 Series Wastewater Chain Sprockets for 700 Class Wastewater Chain:

The 700 Series wastewater chain sprockets are specifically designed to work with the 700 Class wastewater chains. These sprockets are commonly used in wastewater treatment plants and other applications where heavy-duty chains are required to convey wastewater or sludge.The 700 Class wastewater chain refers to a specific chain size and design, typically with a pitch of 3 inches (76.2 mm) and a larger roller diameter compared to standard chains. The sprockets for this chain are designed to accommodate the larger rollers and provide a precise engagement for smooth and efficient chain operation.When selecting 700 Series wastewater chain sprockets, it's essential to consider factors such as the number of teeth, tooth profile, material, and mounting configuration. These factors depend on the specific application requirements, including the flow rate, load capacity, speed, and environmental conditions.The sprockets are typically made from durable materials such as stainless steel or hardened steel to withstand the harsh conditions of wastewater treatment environments. They are designed with specific tooth profiles to match the chain design, ensuring proper engagement and reducing wear and noise during operation.It's important to consult our specifications and recommendations for the 700 Series wastewater chain and sprockets to ensure compatibility and optimal performance. Additionally, maintenance practices such as regular lubrication and inspection should be followed to prolong the lifespan of the sprockets and chains and prevent premature failure.We have a full line of high-quality 700-series chain sprockets that are manufactured for wastewater applications and other conveying applications. We offer the sprockets in a wide range of materials; bore sizes, configurations, and hub types. To get a quote on 700 series sprockets please specify the chain size, tooth count, bore size, requested material, hub type, and any special features or configurations.
