The TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder is a high-performance hydraulic component designed to excel in a wide range of industrial applications. With its robust construction, exceptional force output, and versatile design, this hydraulic cylinder is engineered to meet the demanding requirements of heavy-duty tasks. From material handling equipment to construction machinery, the TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder delivers the power, precision, and reliability needed to optimize industrial operations.Key Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: The TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder is built with durable materials, such as high-grade steel or alloy, ensuring its ability to withstand heavy loads, extreme pressures, and challenging environmental conditions. Its rugged construction guarantees long-lasting durability and resistance to wear, corrosion, and damage.High Force Output: This hydraulic cylinder is engineered to deliver exceptional force output, making it ideal for applications that involve heavy lifting, pushing, or pulling. Its large piston diameter and high-pressure capabilities provide the strength needed to easily handle demanding tasks.Middle Trunnion Mounting: The TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder features a middle trunnion mounting system, which offers flexibility and ease of installation. The middle trunnion mount allows for secure integration into various hydraulic systems and equipment configurations.Precise Control: Equipped with precision-machined components and high-quality seals, this hydraulic cylinder ensures accurate and reliable operation. It provides precise control over the movement and positioning of loads, allowing for efficient and accurate handling.

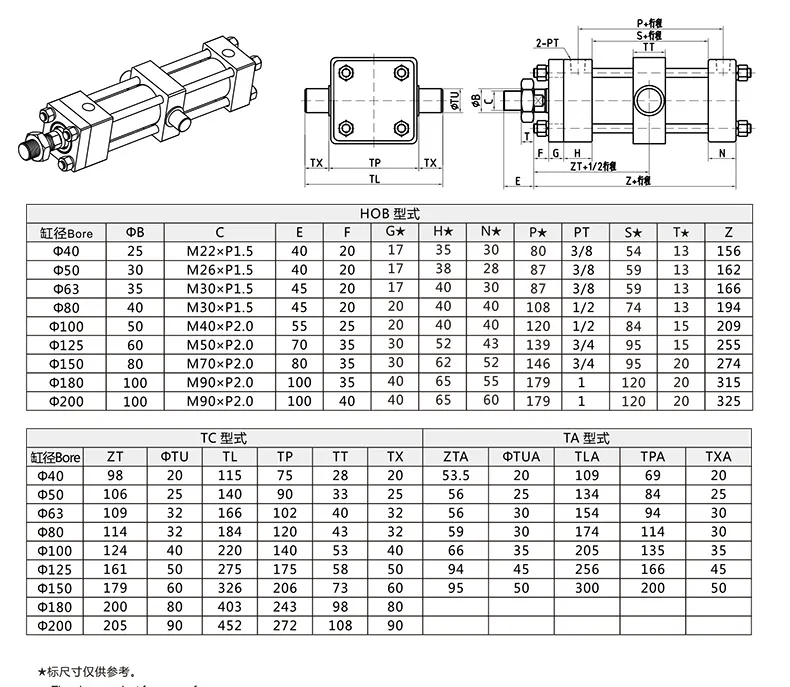

TA Front Trunnion Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of TA Front Trunnion Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder to the designated location using appropriate mounting brackets or fixtures. Ensure proper alignment and stability during the installation process to prevent misalignment or stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable hydraulic pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings according to the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of TA Front Trunnion Type Heavy Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure optimal performance and longevity of the TC Middle Trunnion Type Heavy Rod Hydraulic Cylinder. Here are some maintenance tips to follow:

1. Regular Inspection: Conduct routine inspections to identify any signs of wear, damage, or leaks. Inspect the cylinder body, piston rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How To Replace Seals In A Hydraulic Cylinder？

Replacing seals in a hydraulic cylinder requires careful attention and proper procedure to ensure successful replacement. Here's a step-by-step guide on how to replace seals in a hydraulic cylinder:

1. Safety Precautions: Before starting any maintenance work, take appropriate safety precautions. Ensure the hydraulic system is depressurized and the equipment is adequately supported and secured. Wear protective gloves and safety glasses to protect yourself from any potential hazards.
2. Cylinder Removal: Depending on the specific hydraulic system and cylinder design, you may need to remove the hydraulic cylinder from its mounting location. Follow the manufacturer's instructions or consult the equipment manual for the proper procedure to remove the cylinder.
3. Cylinder Disassembly: Once the hydraulic cylinder is removed, carefully disassemble it to access the seals. Typically, hydraulic cylinders consist of a cylinder barrel, piston, piston rod, and various seals. Follow these steps:a. Remove the Cylinder Head: Unscrew or unbolt the cylinder head from the barrel, exposing the piston and piston rod.b. Remove the Piston: Gently slide the piston out of the cylinder barrel. Be cautious to avoid damaging the piston or the cylinder walls.c. Remove the Old Seals: Identify the seals that need to be replaced, such as piston seals, rod seals, or wiper seals. Use appropriate tools, such as seal removal picks or hooks, to remove the old seals from their grooves. Take note of the seal orientation for proper installation of the new seals.
4. Seal Preparation: Inspect the new seals for any defects or damage before installing them. Ensure that you have the correct replacement seals that match the specifications of the original ones. Apply a thin film of hydraulic oil or seal lubricant to the new seals to facilitate proper installation and reduce friction.
5. Seal Installation:a. Piston Seals: Start by installing the new piston seals. Carefully position the seals into their grooves, ensuring they sit flush and are not twisted. Use a seal installation tool or soft-faced mallet to press the seals into place gently. Ensure that the seals are evenly seated and properly aligned.b. Rod Seals and Wiper Seals: Move on to installing the rod and wiper seals. Again, position the seals correctly in their grooves, ensuring they are not twisted. Apply gentle pressure using a seal installation tool or a mallet to secure the seals.
6. Reassembly: Once all the new seals are installed, reassemble the hydraulic cylinder. Follow these steps:a. Reinstall the Piston: Carefully slide the piston back into the cylinder barrel, ensuring it moves freely without any obstruction. Align any retention mechanisms, such as snap rings or circlips, as necessary.b. Reattach the Cylinder Head: Place the cylinder head back onto the cylinder barrel and secure it with screws or bolts. Ensure proper tightening according to the manufacturer's specifications.
7. Cylinder Installation: If you removed the hydraulic cylinder from its mounting location, reinstall it following the appropriate procedure. Ensure proper alignment and connection to the hydraulic system, including the lines and fittings.
8. Testing and Inspection: Test its functionality once the hydraulic cylinder is reinstalled. Gradually pressurize the system and check for any leaks, abnormal noises, or improper operation. Conduct a thorough inspection to ensure the seals are performing as intended.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
