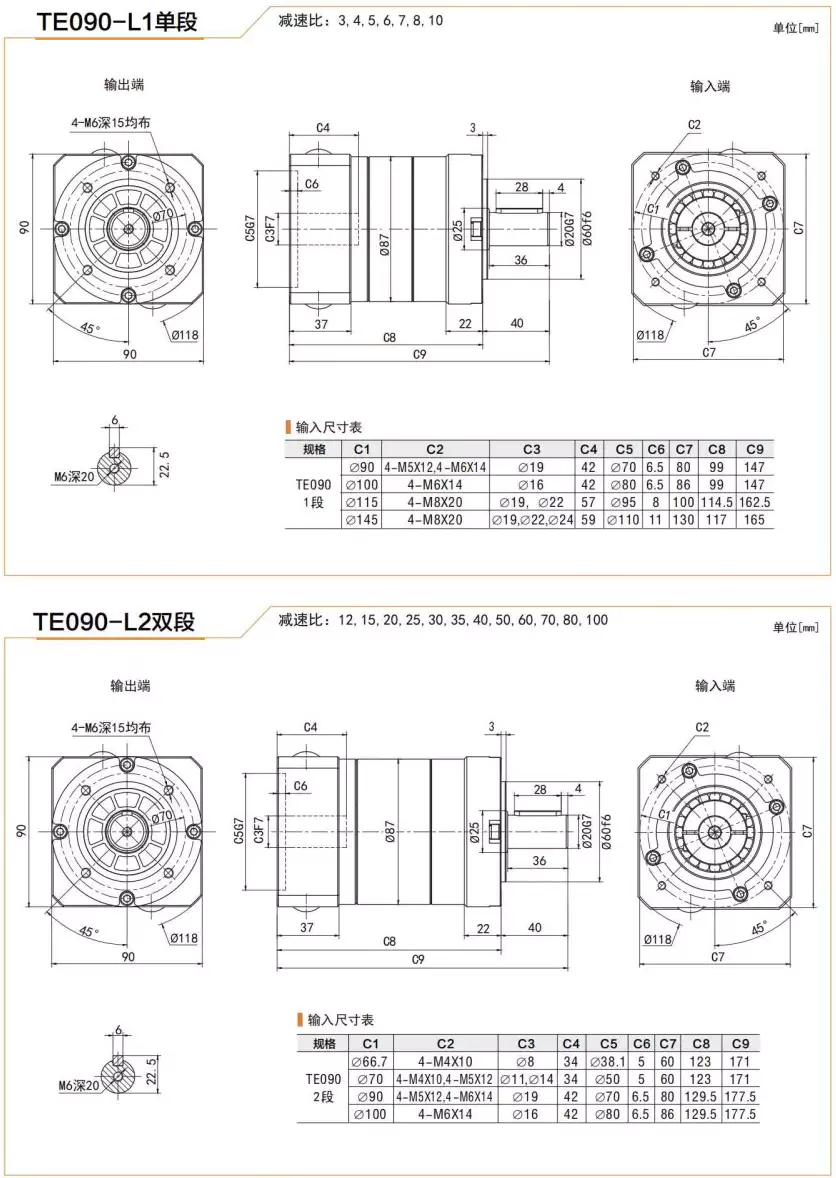

TE090 Series High Precision Planetary Gearbox Helical Gear Reducer

TE090 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview

TE090 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a high-precision mechanical component widely used in various fields of machinery. It is designed to reduce the input speed and increase the output torque of a motor to meet the specific requirements of different applications.

High Precision Planetary Gearbox Construction

Sun Gear

The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.

Planet Gears

The planet gears rotate around the sun gear and are supported by and maintain their relative positions through the planet carrier. Each planet gear engages with the sun gear and the ring gear/annulus simultaneously, and when power is input, they together bear and distribute the load.

Planet Carrier

The planet carrier is a structure with multiple planet gear axial holes, which supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output component or be connected to another shaft to transmit or receive torque.

Ring Gear/Annulus

The ring gear/annulus is a large diameter ring gear fixed inside the housing with teeth on both its inner and outer surfaces, which engage with the planet gears. In some applications, the ring gear/annulus can also serve as an input or output end.

Bearings and Shaft System

Bearings in the high-precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of the components.

Housing and Seals

The housing is the external frame of the entire gearbox, protecting the internal components from external environmental influences and providing installation interfaces. Seals ensure that internal lubricants do not leak and prevent dust and water from entering the gearbox.

High Precision Planetary Gearbox Working Principle

Torque Transmission

When power is input to the sun gear, the planet gears rotate around the sun gear. As the planet gears engage with both the sun gear and the ring gear/annulus, they rotate themselves around their own axis while revolving around the center of the sun gear through the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier on the output end through the planet gears.

Speed Conversion and Torque Amplification

By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, increasing the number of planet gears or the gear ratio results in a more significant increase in torque but a decrease in output speed.

Low Backlash Design

In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes adopt preload technology to reduce or eliminate the clearance between gears, i.e., "zero/low backlash" design.

Load Distribution and Dynamic Response

An essential advantage of planetary gear mechanisms is that they can evenly distribute loads among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.

High Precision Planetary Gearbox Design and Selection Considerations

Design Factors	Selection Considerations
Load characteristics	Choose the gearbox with sufficient bearing capacity and torque capacity according to the actual load and working condition.
Precision requirements	Select the gearbox with appropriate gear accuracy, backlash, and smoothness to meet the precision requirements of the application.
Speed and torque requirements	Determine the required gear ratio and calculate the expected output speed and torque to select the appropriate gearbox.
Environmental factors	Consider the temperature, humidity, dust, and other environmental factors that may affect the gearbox's performance and select the appropriate protection level and sealing structure.

Applications of High Precision Planetary Gearbox

Servo Motor System

Teamed up with the servo motor, it is used for precision speed control and position positioning in industrial automation equipment, such as robot joint drive, feed mechanism of precision machine tools, and semiconductor manufacturing equipment.

Medical Equipment

It is used to achieve precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, and surgical robots.

Aerospace Engineering

It is applied in highly reliable and precise scenarios such as aircraft landing gear retraction and extension systems, flight control system actuators, and satellite attitude adjustment devices.

Precision Instruments

It is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other scenarios with extremely high requirements for transmission accuracy.

Automotive Manufacturing

It is applied in power steering systems of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars, etc.

Robotics Technology

It is used in the joint transmission parts of industrial robots, service robots, and special operation robots.

Logistics Automation

It is applied in lifting platforms, conveyor drive devices, and AGVs (Automated Guided Vehicles) in automatic warehousing systems.

About Our Company

We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. Our company strictly follows the international quality management system standard ISO9001:2015 and has passed the mandatory CCC certification in China and the CE certification of the European Union. Our products are produced according to international IC standards and have reached the advanced level of similar international products.

Advantages of Our Company

• Strict quality management system to ensure product quality and stability.
• Experienced R&D team to provide customized solutions for different customers.
• Advanced production equipment and testing instruments to improve productivity and efficiency.
• Professional sales team to provide timely and efficient services for customers worldwide.
• Competitive price and reliable delivery time to meet customers' needs.

Author: Miya.
