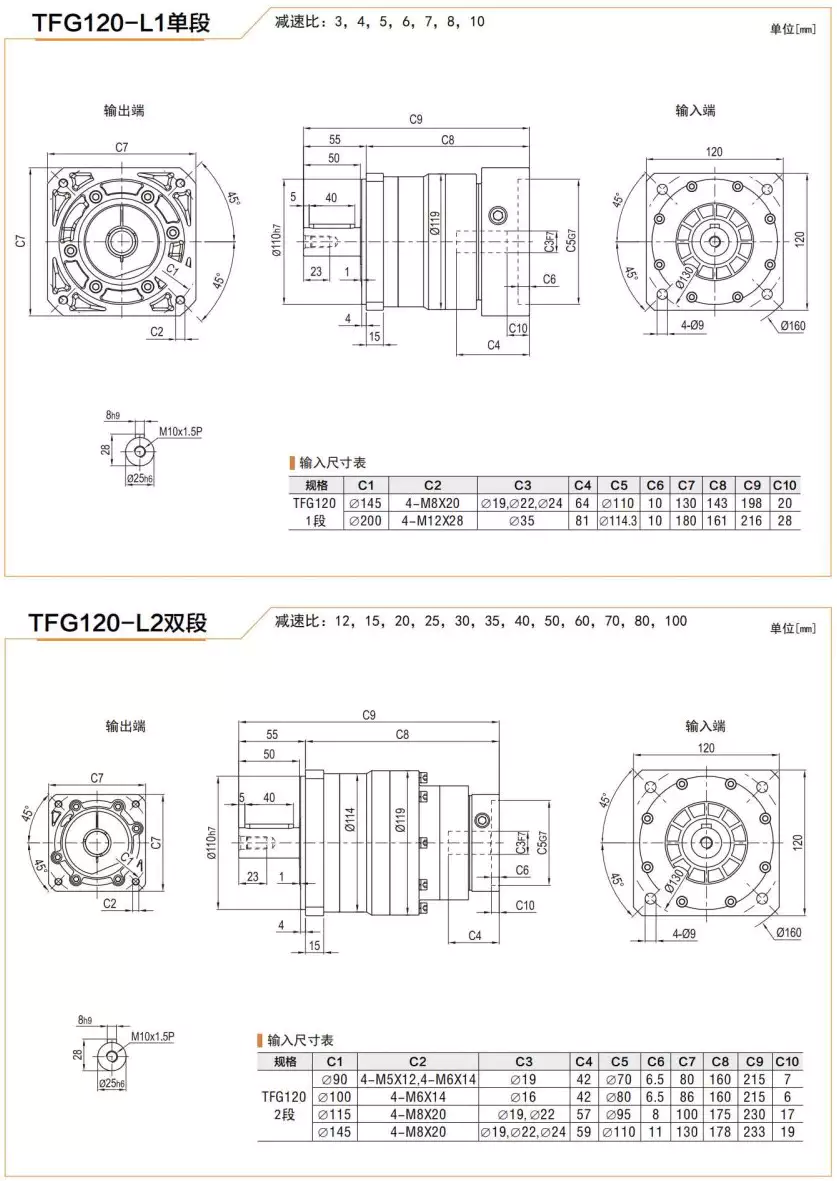

TFG120 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is commonly used in precision motion control applications. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The gearbox features a helical gear design that provides high efficiency and low noise operation. It is designed to handle high loads and provide precise positioning of the output shaft. The following is an image of TFG120 Series High Precision Planetary Gearbox Helical Gear Reducer:
The high precision planetary gearbox consists of several key components that work together to provide reliable and accurate power transmission. The following is an image of the basic construction of high precision planetary gearbox:
The sun gear is located in the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with the sun gear and the ring gear and distributes the load when power is input.
The planet carrier is a structure with multiple holes for planet gear shafts. It supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transfer or receive torque.
The ring gear is a large diameter circular gear fixed inside the housing. It has teeth on both its inner and outer surface and meshes with the planet gears. In some applications, the ring gear can also serve as an input or output end.
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier. They ensure stable rotation and smooth operation of the components.
The housing is the external framework of the gearbox that protects internal components from external environmental influences and provides mounting interfaces. The seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.
The working principle of the high precision planetary gearbox is based on torque transmission, speed conversion, load distribution, and dynamic response. The following is an image of the working principle of the high precision planetary gearbox:
When power is input to the sun gear, the planet gears rotate around the sun gear. The planet gears also mesh with the ring gear and distribute the load to the planet carrier. The torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end.
By adjusting the gear ratio of different components, the high precision planetary gearbox can convert input and output speeds and amplify torque. Generally, increasing the number of planet gears or gear ratio results in greater torque amplification but a lower output speed.
In high precision applications, the high precision planetary gearbox uses preload technology to reduce or eliminate the clearance between gears. This is known as a "zero/low backlash" design and ensures precise position control and minimal mechanical play.
The planetary gear mechanism evenly distributes the load among multiple planet gears, improving the overall bearing capacity and stability of the system. It also optimizes the dynamic response performance.
The design and selection of high precision planetary gearbox depend on several factors, including:
| Factors to Consider | Explanation |
|---|---|
| Load | The gearbox must be able to handle the maximum load that will be applied to it. The load capacity is determined by the torque and speed requirements. |
| Accuracy and Precision | The gearbox must provide the required level of accuracy and precision for the application. This includes backlash, positioning accuracy, and repeatability. |
| Operating Environment | The operating environment, including temperature, humidity, and vibration, must be considered when selecting the gearbox. |
| Mounting and Integration | The gearbox must be compatible with the mounting and integration requirements of the application. |
| Cost | The cost of the gearbox must be balanced with the performance and reliability requirements of the application. |
The high precision planetary gearbox has a wide range of applications, including:
