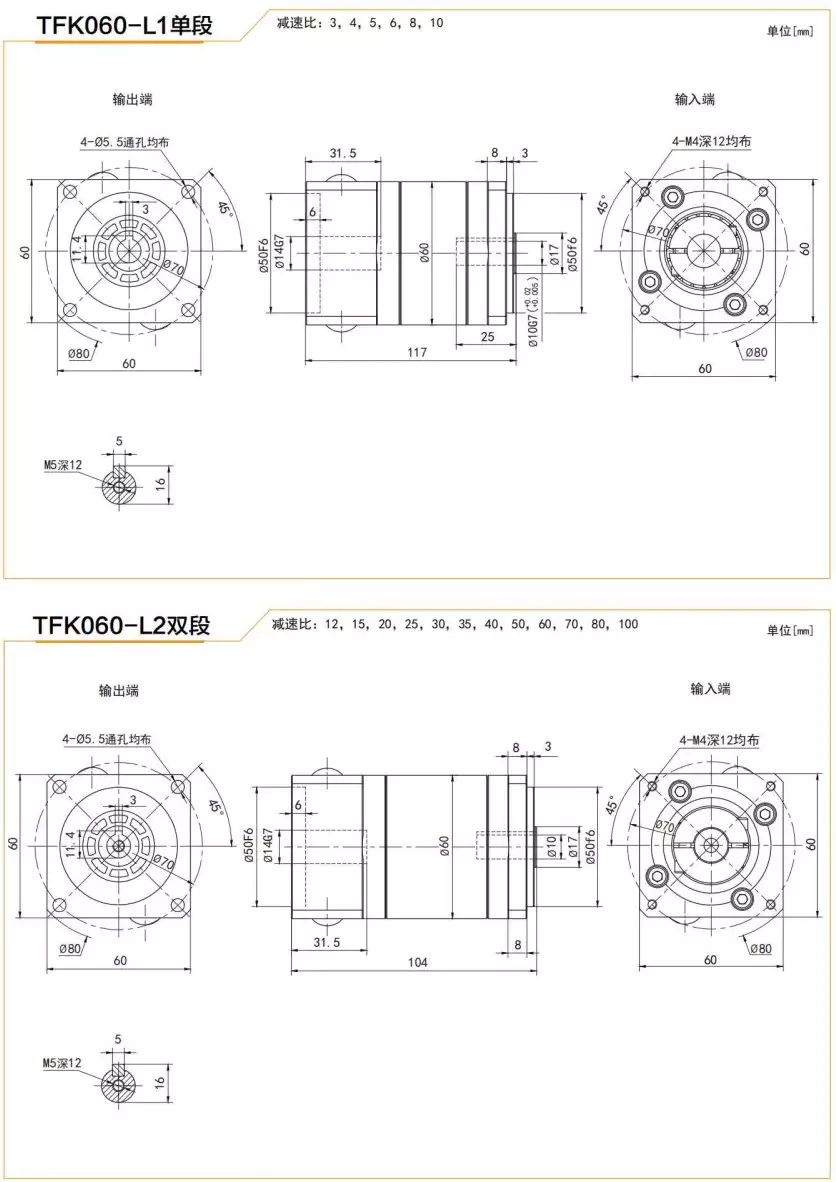

TFK060 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview

TFK060 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox or low backlash planetary gearbox, is a high-performance power transmission component widely used in various fields. It is designed to transmit power and motion between parallel shafts, while providing precision, reliability, and efficiency. The gearbox is an essential part of many industrial automation systems that require high precision and repeatability, such as robotics, medical equipment, aerospace, and machinery.

Basic Structure of High Precision Planetary Gearbox

A High Precision Planetary Gearbox consists of following components:

• Sun Gear: The central gear that is normally connected to the input shaft or fixed to the gearbox housing as a stationary component.
• Planet Gears: Multiple gears that rotate around the sun gear and are supported and maintained in their relative positions by a planet carrier. Each planet gear meshes with the sun gear and the ring gear.
• Planet Carrier: A structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: A large-diameter circular gear fixed inside the gearbox housing, with both internal and external teeth that mesh with the planet gears. In some applications, the ring gear can also serve as an input or output end.
• Bearings and Shaft System: Bearings in high precision planetary gearboxes are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components.
• Housing and Seals: The housing is the external framework of the entire gearbox, protecting the internal components from external environmental influences and providing mounting interfaces. Seals prevent internal lubricants from leaking and prevent dust and water from entering the gearbox.

Explanation of Basic Structure of High Precision Planetary Gearbox

1. The sun gear is located in the center of the planetary gearbox and rotates around its own axis along with the planet gears. It usually serves as the input of the gearbox, connected to the driving shaft.
2. The planet gears rotate around the sun gear and mesh with both the sun gear and ring gear. They are supported by the planet carrier.
3. The planet carrier connects the planet gears and supports them to rotate around the sun gear.
4. The ring gear is fixed inside the gearbox and surrounds the planet gears. It meshes with the planet gears and serves as the output of the gearbox.
5. The bearings and shaft system support the internal components of the gearbox and ensure smooth and stable operation.
6. The housing and seals protect the internal components from dust, water, and other environmental influences, and provide the mounting interface for the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of a High Precision Planetary Gearbox can be summarized as follows:

1. Torque transmission: When power is input to the sun gear, it drives the planet gears to rotate. Since the planet gears mesh with both the sun gear and the ring gear, they rotate on their own axis while revolving around the sun gear with the planet carrier. In this way, the torque input to the sun gear is magnified and evenly distributed to the planet carrier at the output end.
2. Speed conversion and torque amplification: By adjusting the gear ratio between different components, speed conversion and torque amplification can be achieved between the input and output ends. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease at the same time.
3. Low backlash design: In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes adopt preload technology to reduce or eliminate gear clearance, which is commonly known as "zero/low backlash" design.
4. Load distribution and dynamic response: One important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thus improving the load-bearing capacity and stability of the entire system, and optimizing dynamic response performance.

Explanation of Working Principle of High Precision Planetary Gearbox

High-precision planetary gearboxes work by transmitting power and motion between parallel shafts while providing high precision, reliability, and efficiency. They can achieve speed conversion and torque amplification by adjusting the gear ratio and evenly distribute the load among multiple planet gears. In addition, they adopt preload technology to reduce or eliminate gear clearance, thus ensuring accurate position control and minimal mechanical clearance.

Design and Selection Considerations of High Precision Planetary Gearbox

The design and selection of a High Precision Planetary Gearbox depend on various factors, such as:

Applications of High Precision Planetary Gearbox

High Precision Planetary Gearboxes are widely used in various industries and applications, such as:

• Servo motor systems: Used for precise speed control and position positioning in industrial automation equipment, such as robotic joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
• Medical equipment: Used for precise motion control and torque amplification in high-end medical equipment, such as CT scanners, MRI machines, surgical robots, etc.
• Aerospace: Used in aircraft landing gear, flight control system actuators, satellite attitude adjustment devices, etc. that require high reliability and accuracy.
• Precision instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc. that demand high transmission accuracy.
• Automotive manufacturing: Used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
• Robotics: Used in joint drives of industrial robots, service robots, and special operation robots.
• Logistics automation: Used in lifters, conveyor drivers, AGV (Automated Guided Vehicles), etc. of automatic warehousing systems.

Explanation of Applications of High Precision Planetary Gearbox

High Precision Planetary Gearboxes are widely used in various fields, including industrial automation, medical equipment, aerospace, precision instruments, automotive manufacturing, robotics, and logistics automation. They are designed to provide high precision, reliability, and efficiency in applications that require precise speed control, motion control, and torque amplification.

About Our Company

We are a professional power transmission equipment manufacturer located in Ningbo, Zhejiang. We have a complete research, production, and sales system that strictly follows ISO9001:2015 international quality management system standards. Our products have passed the mandatory CCC certification in China and the CE certification in the European Union. Our products are produced according to the international IC standard and have reached the advanced level of similar products internationally.

Our advantages include:

• Advanced technology and high-quality products that meet international standards
• A complete production and sales system that ensures efficient and timely delivery
• A strong technical team that provides professional technical support and customized services
• A commitment to customer satisfaction and long-term cooperation

If you are interested in our products or services, please contact us for more information.
