THM200 series precision hollow rotating platform. This groundbreaking platform is designed to bring exceptional performance and efficiency to rotational motion applications. Offering unmatched precision and flexibility, the THM200 series is the perfect solution for industries that demand accurate positioning, smooth rotation, and multi-axis motion control.The THM200 series precision hollow, rotating platform is a game-changer for rotational motion applications. Its unparalleled precision, hollow structure with a large aperture, high load capacity, and compact design offer unmatched performance and flexibility. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and longevity of this remarkable product. Elevate your rotational motion applications to new heights with the THM200 series precision hollow rotating platform and experience the perfect blend of precision, versatility, and reliability.We offer affordable, precision, cheap rotating platforms designed for exceptional performance without breaking the bank. Our platforms combine cutting-edge technology with cost-effectiveness, making them ideal for various applications. Whether you're in robotics, CNC machining, or any other industry requiring precise rotational movement, our solutions deliver reliability and accuracy at a price that fits your budget. Explore our range today and discover how our precision platforms can elevate your projects while keeping costs low!

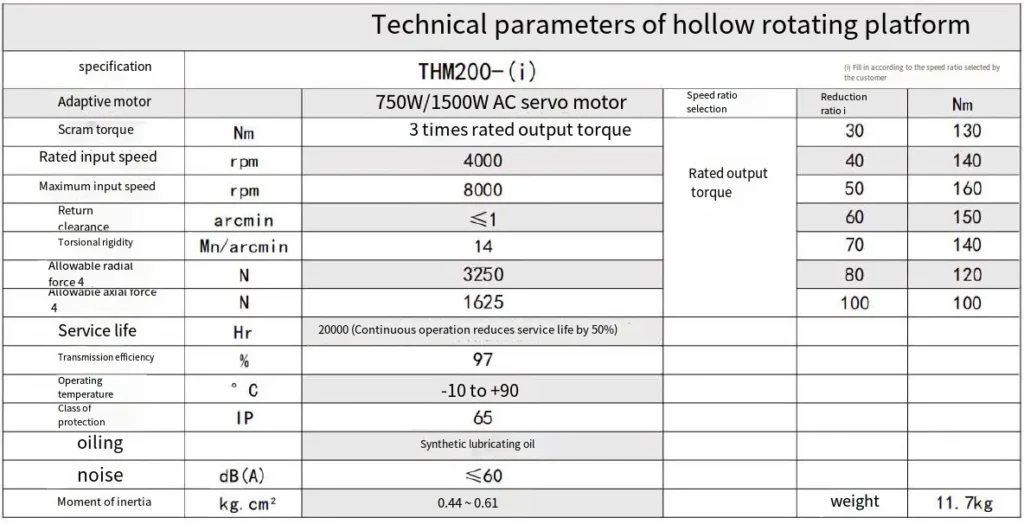

THM200 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THM200 Series Precision Hollow Rotating Platform:

High Precision

• Exceptional Accuracy: Tailored for applications that demand precise rotational movements, the THM200 guarantees reliable performance even in the most challenging environments.
• Low Backlash Mechanism: This innovative design minimizes backlash, significantly enhancing positional accuracy and responsiveness.

Hollow Shaft Design

• Effortless Cable Management: The hollow center allows for seamless routing of cables, hoses, and other components, reducing clutter and simplifying your setup.
• Maximized Space Efficiency: This design optimizes usable space on the platform, making it perfect for compact applications where every inch counts.

Robust Construction

• Built to Last: Crafted from high-quality materials, the THM200 withstands heavy loads and rigorous use, ensuring long-lasting performance in demanding conditions.
• Environmental Resistance: Designed to excel in various environments, it offers resistance to dust, moisture, and temperature variations, making it suitable for diverse applications.

Versatile Applications

• Wide-Ranging Use: Ideal for a multitude of applications, including robotics, CNC machining, medical equipment, and automated systems, the THM200 is a versatile choice for many industries.

User-Friendly Integration

• Easy Installation: With straightforward mounting and connection procedures, you can enjoy quick setup and minimal downtime, allowing you to focus on your work.
• Seamless Compatibility: The THM200 easily integrates with existing motion control systems, enhancing flexibility and adaptability in your automation projects.

Smooth Operation

• Advanced Bearing Technology: Equipped with high-quality bearings, the platform delivers smooth and consistent rotation, significantly reducing wear and tear over time.
• Quiet Performance: Operating quietly, the THM200 is perfect for environments where noise reduction is essential, ensuring a more pleasant working atmosphere.

With these standout features, the THM200 Series Precision Hollow Rotating Platform meets and exceeds the expectations of modern engineering and automation needs!

THG200-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THG200 Series Precision Hollow Rotating Platform:

Getting started with the THM200 Series Precision Hollow Rotating Platform is simple and user-friendly. Follow these steps to unleash its full potential:

Mounting

• Begin by securely attaching the rotating platform to a stable surface or structure. This ensures proper alignment and stability for precise and reliable rotational motion.
• Ensure to adhere to the manufacturer’s instructions and guidelines during the mounting process for optimal performance and safety.

Power and Control Connection

• Connect the platform to an appropriate power supply, following the manufacturer’s guidelines and local electrical codes to ensure safety.
• Set up the necessary control connections through a dedicated controller or integration into a broader motion control system.

Configuration and Programming

• Configure the rotational parameters, including speed, acceleration, and positioning, to suit your application needs.
• Program the platform’s motion control system to define the desired rotational behavior and control options.

With these straightforward steps, you’ll be ready to experience the precision and versatility of the THM200 Series Precision Hollow Rotating Platform, enhancing your projects with ease and efficiency!

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

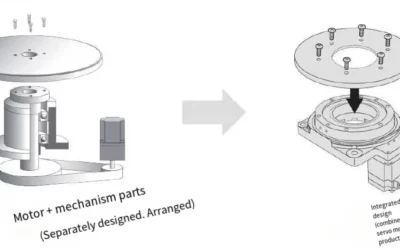

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

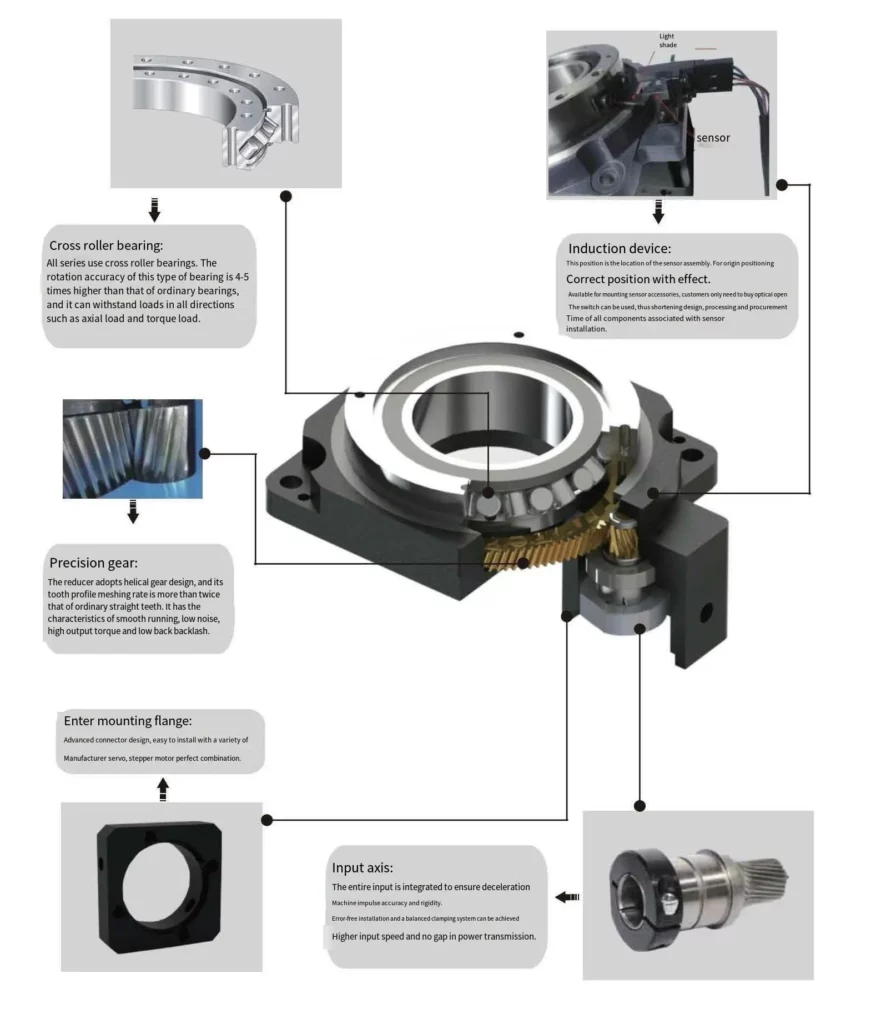

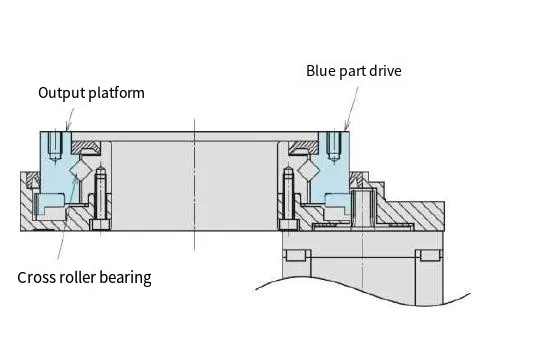

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

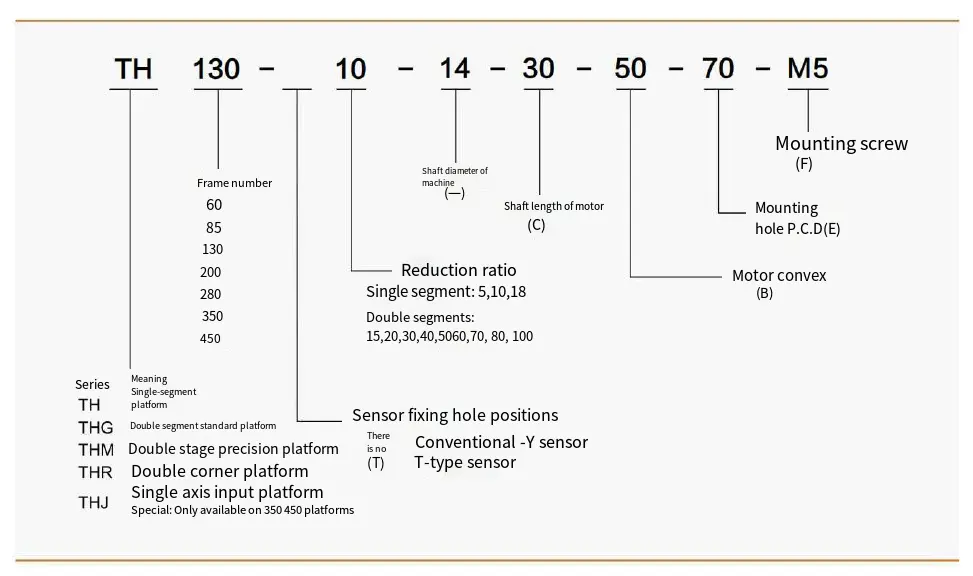

Model Identification Method:

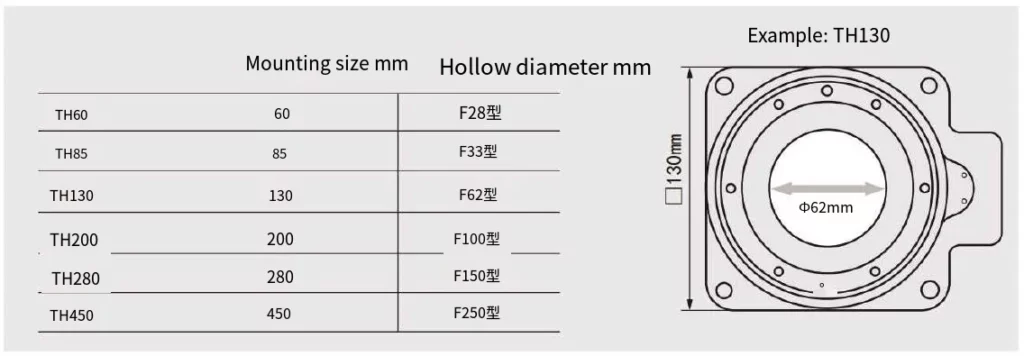

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.

How Does A Precision Hollow Rotating Platform Operate?

A precision hollow rotating platform operates based on mechanical and electronic components to achieve smooth and accurate rotational movements. Here’s a breakdown of its operation:

1. Structure

• Hollow Design: The platform features a central hollow section that allows for the passage of cables, hoses, or other components, making it ideal for applications where limited space or equipment needs to be connected through the center.
• Base and Rotating Table: The platform consists of a stationary base and a rotating table mounted on bearings.

2. Drive Mechanism

• Motor: An electric motor typically drives the rotation. This motor can be a stepper, servo, or DC motor, depending on the required precision and application.
• Gear System: A gearing mechanism may be used to enhance torque and control the rotation speed. Gear ratios can be adjusted to achieve the desired output speed.

3. Control System

• Feedback Mechanisms: Precision hollow, rotating platforms often include encoders (incremental or absolute) that provide feedback on the position and speed of the platform, allowing for precise control.
• Control Interface: The platform is controlled through a computer or a programmable logic controller (PLC), which processes input commands and adjusts the motor's operation accordingly.

4. Sensors

• Position Sensors: These sensors help monitor the platform's position, ensuring accurate movement and allowing for precise positioning in automation tasks.
• Load Sensors: In some applications, load sensors may be integrated to monitor the weight and distribution of loads on the platform.

5. Rotation

• Smooth Rotation: The platform rotates around a central axis, facilitated by high-precision bearings that reduce friction and allow for smooth motion.
• Controlled Movement: The control system adjusts the motor's speed and direction based on the desired operational parameters, enabling continuous rotation and precise positioning.

6. Applications

• Robotics: Used in robotic arms and automated systems for tasks requiring precise positioning.
• CNC Machines: Commonly integrated into CNC machining processes for rotational workpieces.
• Medical Equipment: Employed in imaging equipment and surgical devices for precise rotational capabilities.

A precision hollow rotating platform operates through mechanical design, motor-driven rotation, control systems, and feedback mechanisms, providing high accuracy and versatility for various industrial and technical applications.
