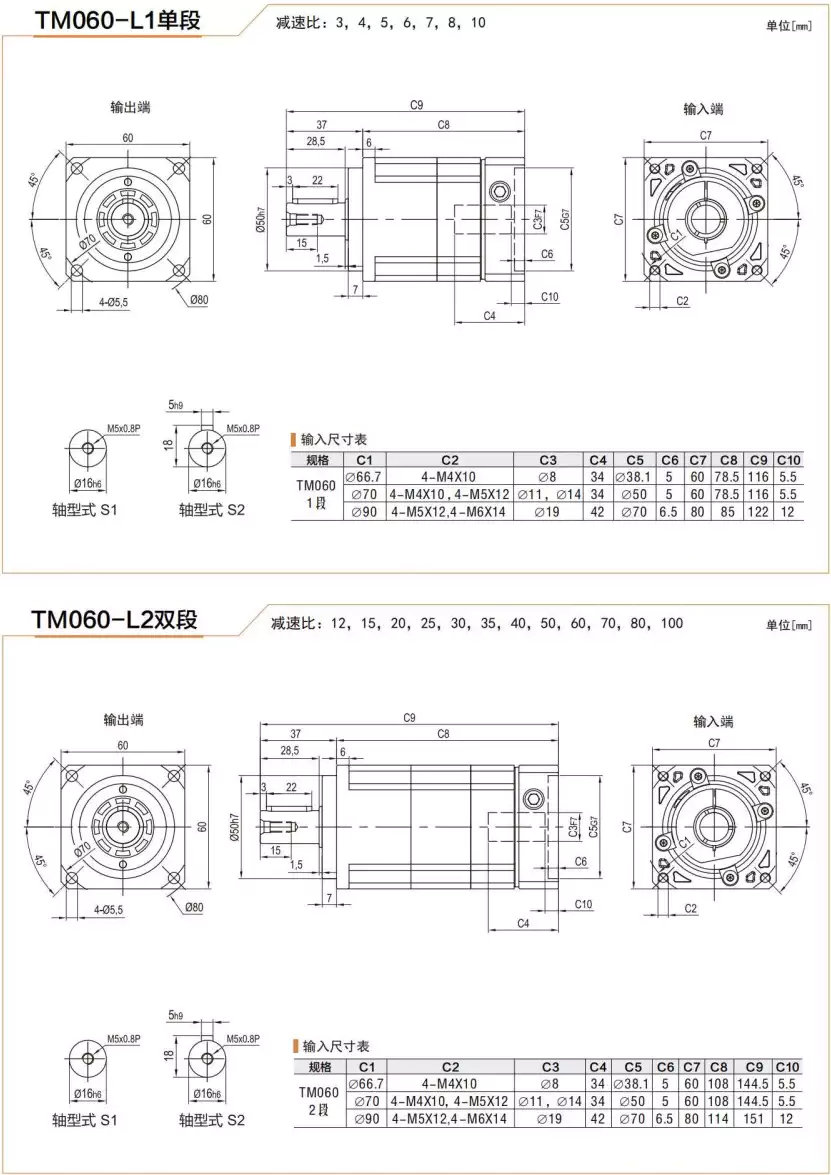

TM060 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview of TM060 Series High Precision Planetary Gearbox Helical Gear Reducer

TM060 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox designed for high precision applications. It is used in industries that require accurate speed control and position positioning, such as robotics, precision machine tools, and semiconductor manufacturing equipment.

Basic Structure of High Precision Planetary Gearbox

High Precision Planetary Gearbox has the following components:

1. Sun Gear: Located at the center of the planetary gearbox, the sun gear is typically connected to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears rotate around the sun gear and are supported and held in their relative positions by the planet carrier. Each planet gear meshes with the sun gear and the ring gear simultaneously. When power is input, they collectively bear and distribute the load.
3. Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear is a large diameter circular gear fixed inside the housing, with teeth on both the inside and outside surfaces, which meshes with the planet gears. In some applications, the ring gear can also be used as an input or output end.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components.
6. Housing and Seals: The housing is the external frame of the entire gearbox, which protects the internal components from external environmental effects and provides installation interfaces. Seals ensure that the internal grease does not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of High Precision Planetary Gearbox is as follows:

1. Torque Transmission: When power is input to the sun gear, the planet gears around the sun gear rotate. Since the planet gears mesh with both the sun gear and the ring gear, they rotate about their own axis while revolving around the sun gear's center through the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will also decrease.
3. Low Backlash Design: In high precision applications, to ensure accurate position control and minimal mechanical clearance, high precision planetary gearboxes use preload technology to reduce or eliminate the clearance between gears, i.e. "zero/low backlash" design.
4. Load Distribution and Dynamic Response: An important advantage of planetary gear mechanisms is that they can distribute the load evenly among multiple planet gears, thus improving the bearing capacity and stability of the entire system and optimizing the dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

The following table lists the design and selection considerations of High Precision Planetary Gearbox:

Design and Selection Considerations	Description
Load requirements	Maximum torque, radial and axial loads, and input and output speeds under different conditions.
Precision requirements	Backlash, torsional rigidity, and accuracy of position control.
Environmental requirements	Temperature, humidity, dust, and other factors that may affect the gearbox performance.
Mounting requirements	The gearbox installation position, connection method, and space limitations.
Service life	The expected service life, maintenance requirements, and reliability.
Cost considerations	The cost of the gearbox and its impact on the overall system.

Applications of High Precision Planetary Gearbox

High Precision Planetary Gearbox is widely used in the following applications:

1. Servo Motor Systems: Used in conjunction with servo motors for precise speed control and position positioning in industrial automation equipment, such as robotic joint drives, feed mechanisms of precision machine tools, and semiconductor manufacturing equipment.
2. Medical Devices: Used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots for precise motion control and torque amplification.
3. Aerospace: Used in aircraft landing gear actuation systems, flight control system actuators, and satellite attitude adjustment devices that require high reliability and precision.
4. Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, and optical tracking systems that have extremely high requirements for transmission accuracy.
5. Automotive Manufacturing: Used in power steering systems for new energy vehicles, drive units for electric vehicles, and transmission systems for high-performance racing cars.
6. Robotics: Including joint transmission parts in industrial robots, service robots, and special operation robots.
7. Logistics Automation: Used in automatic storage systems such as lifters, conveyor drives, and AGVs (automated guided vehicles).

About Our Company

We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. Strictly operating according to the international quality management system standard ISO90012015, our products have passed China's mandatory CCC certification and European Union CE certification. Our products are produced according to international IC standards and have reached the advanced level of similar products internationally.Our company's advantages include:

• Advanced production technology and equipment
• Professional R&D team and excellent design capability
• Strict quality control and inspection measures
• Prompt and efficient aftersales service
• Competitive prices and on-time delivery

Author: Miya
