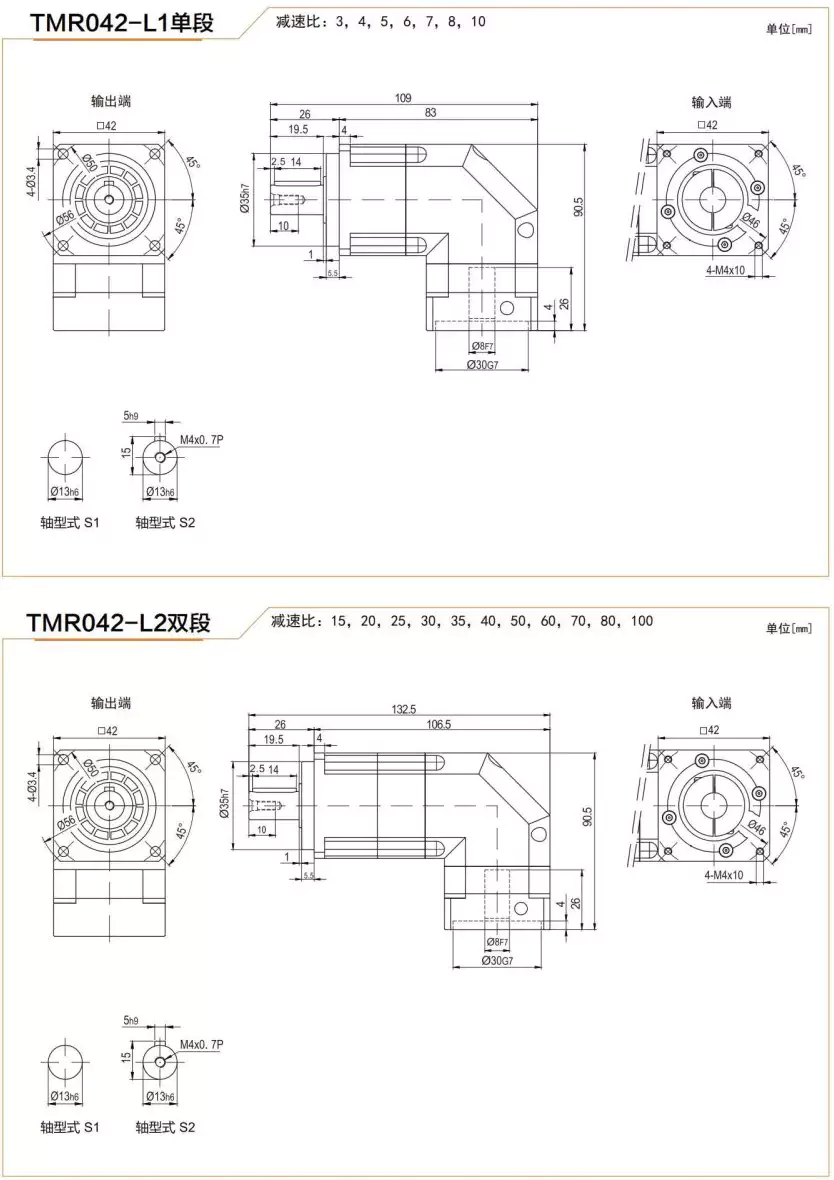

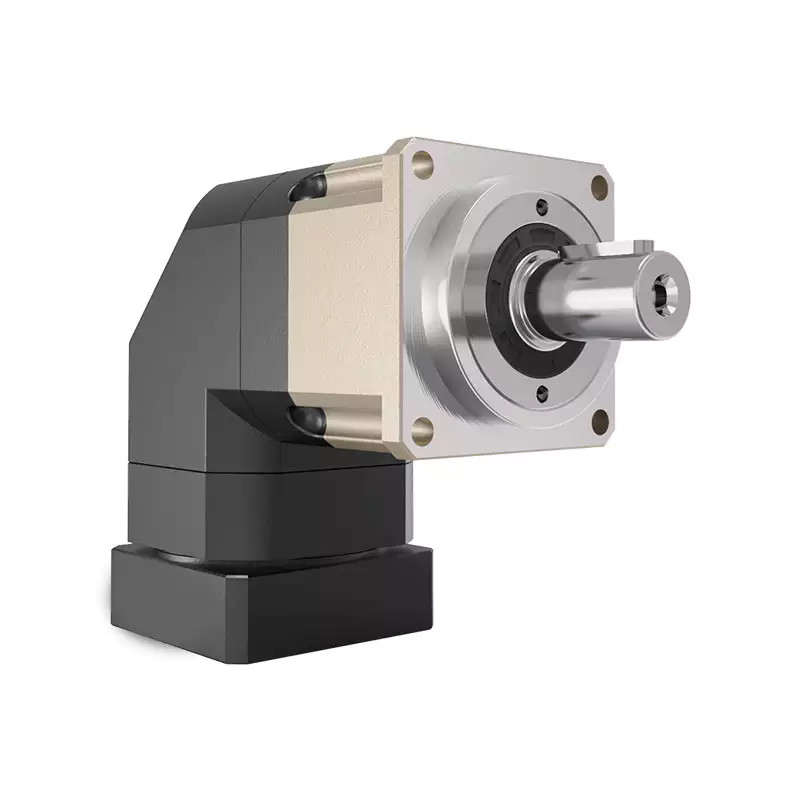

TMR042 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox used in industrial applications for precise and accurate motion control. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The TMR042 Series gearbox features a helical gear design that delivers high precision and low noise operation. It is ideal for applications that require high precision and low backlash motion control.
The basic construction of the high precision planetary gearbox consists of the following components:
The sun gear is located in the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and held in relative position to each other by the planet carrier. Each planet gear meshes with the sun gear and the ring gear, and when power is input, they collectively bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output component or connected to another shaft to transmit or receive torque.
The ring gear is a large diameter circular gear fixed inside the housing with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear can also function as the input or output end.
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between components. The shaft system is designed to transmit torque between components.
The housing is the external frame of the gearbox that protects internal components from external environmental factors and provides installation interfaces. The seals ensure that internal lubricants do not leak while preventing dust and water from entering the gearbox.
The working principle of the high precision planetary gearbox is as follows:
| Consideration Factors | Description |
|---|---|
| Load Characteristics | The type, magnitude, and direction of the load that the gearbox will be subjected to during operation. |
| Speed and Torque Requirements | The desired output speed and torque of the gearbox, which should match the requirements of the application. |
| Accuracy and Backlash | The level of precision and minimal mechanical clearance required for the application. |
| Environmental Factors | The operating temperature range, humidity, and other environmental factors that the gearbox will be exposed to. |
| Mounting and Integration | The mounting and integration requirements for the gearbox in the application, such as shaft orientation, interface dimensions, and compatibility with other components. |
| Cost and Availability | The cost and availability of the gearbox, which should be within the budget and lead time requirements of the application. |
The high precision planetary gearbox has a wide range of applications, including:
