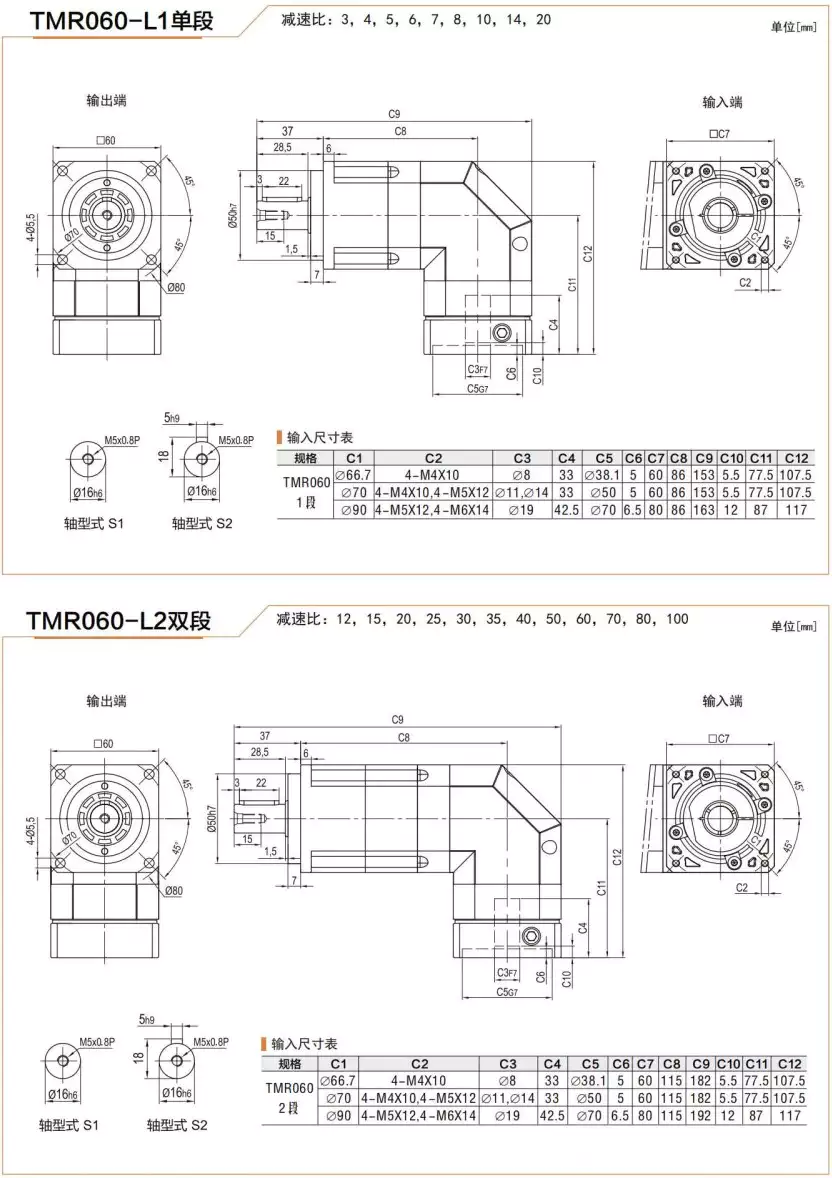

The TMR060 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of gearbox that is commonly used in industrial automation equipment for precise speed control and position positioning. This gearbox is also known as a servo motor planetary gearbox or a low backlash planetary gearbox. It is designed to provide high precision, low backlash, and high torque transmission for various applications.
The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed on the housing as a stationary component.
The planet gears revolve around the sun gear and are supported and kept in relative position to each other by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear. When power is input, they together bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes, which carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or connect with another shaft to transmit or receive torque.
The ring gear is a large diameter ring gear fixed inside the housing. Both the inner and outer surfaces have teeth that mesh with the planet gears. In some applications, the ring gear can also serve as an input or output end.
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between the components.
The housing is the external framework of the entire gearbox, which protects the internal components from external environmental impact and provides installation interfaces. Seals ensure that the internal lubricant does not leak while preventing dust and moisture from entering the gearbox.
When power is input to the sun gear, the planet gears around it rotate. As the planet gears mesh with both the sun gear and the ring gear, they perform self-rotation on their own axis and revolve around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, as the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease simultaneously.
For high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preload technology to reduce or eliminate the clearance between the gears, i.e., the "zero/low backlash" design.
One significant advantage of planetary gear mechanisms is that they can evenly distribute loads among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.
| Consideration Factors | Explanation |
|---|---|
| Load requirements | The load requirements must match the gearbox's rated torque and speed. |
| Application environment | The gearbox's protective level, temperature, and humidity requirements must meet the application's environmental conditions. |
| Mounting requirements | The gearbox's mounting dimensions and installation method must be compatible with the application's space restrictions and installation requirements. |
| Service life and maintenance | The gearbox's service life and maintenance requirements must match the application's expectations. |
We are a professional manufacturer of transmission equipment, including research, production, and sales, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO90012015, and our products have passed the mandatory CCC certification in China and the CE certification in the European Union. Our products are produced according to international IC standards and reach the advanced level of similar international products.
Our advantages:
