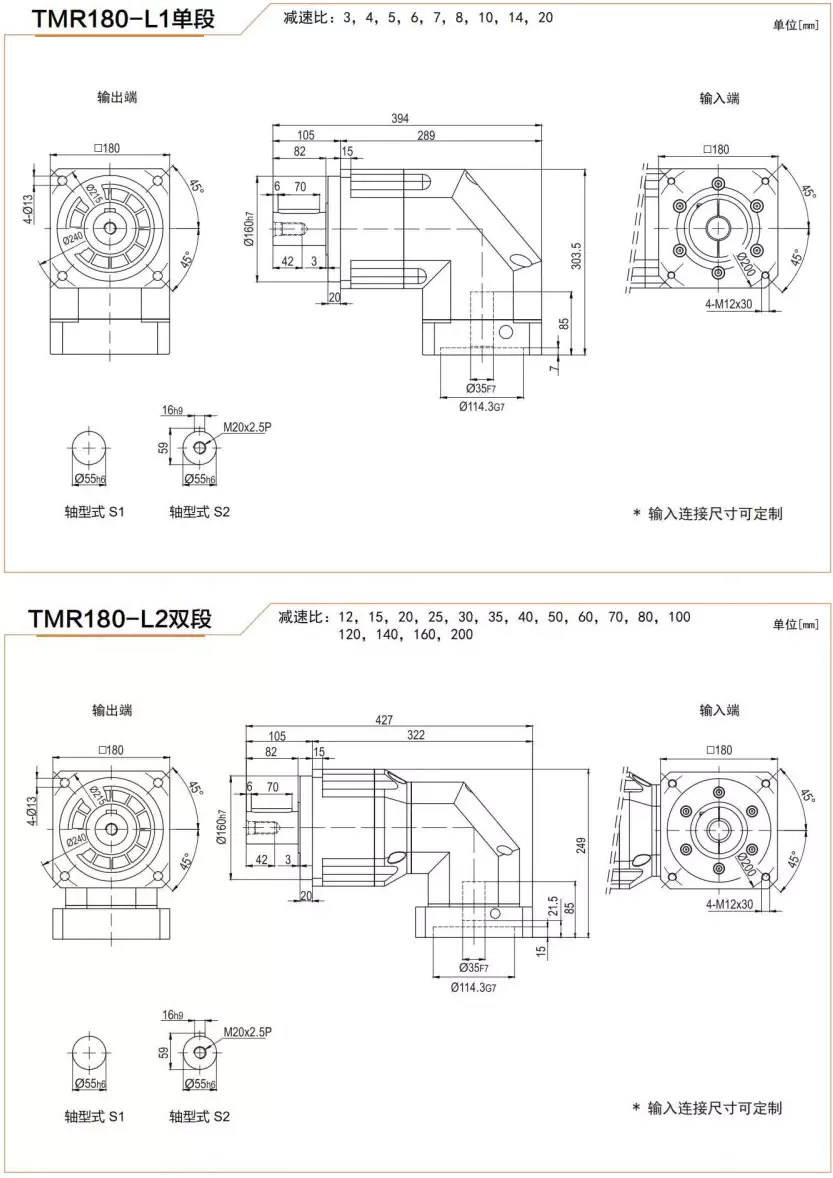

TMR180 Series High Precision Planetary Gearbox Helical Gear Reducer

TMR180 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview

TMR180 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a highly efficient and precise gearbox used in various industries. It is designed to transmit high torque with maximum accuracy and minimum backlash.

Basic Construction

1. Sun Gear: The sun gear is located at the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
2. Planet Gears: The planet gears rotate around the sun gear and are supported and kept in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear, and they together share and distribute the load when power is input.
3. Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes, which carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output component or be connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear is a large diameter circular gear fixed inside the housing with teeth on both inner and outer surfaces, which meshes with the planet gears. In some applications, the ring gear can also serve as an input or output end.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of each component.
6. Housing and Seals: The housing is the external frame of the entire gearbox, which protects internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and moisture from entering the gearbox.

Working Principles

1. Torque Transmission: When power is input to the sun gear, the planet gears around it rotate. Because the planet gears mesh with both the sun gear and the ring gear, they rotate on their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end via the planet gears.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease at the same time.
3. Low Backlash Design: In high precision applications, to ensure accurate position control and minimum mechanical clearance, high precision planetary gearboxes adopt preload technology to reduce or eliminate the clearance between gears, i.e., "zero/low backlash" design.
4. Load Distribution and Dynamic Response: An important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load capacity and stability of the entire system, and optimizing the dynamic response performance.

Design and Selection Considerations

The design and selection of high precision planetary gearboxes depend on various factors, including:

Applications

1. Servo Motor Systems: Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drive, precision machine tool feed mechanism, semiconductor manufacturing equipment, etc.
2. Medical Equipment: Used in high-end medical equipment, such as CT scanners, MRI machines, surgical robots, for precise motion control and torque amplification.
3. Aerospace: Used in aircraft landing gear retracting and extending systems, flight control system actuators, satellite attitude adjustment devices, etc., which require high reliability and precision.
4. Precision Instruments: Used in scientific experiment equipment, precision measuring instruments, optical tracking systems, etc., which require extremely high transmission accuracy.
5. Automotive Manufacturing: Used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
6. Robotics: Used in joint drive parts of industrial robots, service robots, and special operation robots.
7. Logistics Automation: Used in automatic storage systems, such as lifting platforms, conveyor drive units, AGVs (automated guided vehicles), etc.

About Us

We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We specialize in research, production, and sales, strictly following the international quality management system standard ISO90012015. Our products have passed China's mandatory CCC certification and European Union CE certification, and are produced according to international lC standards, reaching the advanced level of similar products worldwide.

Our advantages include:

• High precision and efficiency
• Reliable quality and performance
• Diverse product range and customization options
• Professional technical support and after-sales service
• Competitive pricing and cost-effectiveness

Author: Miya
