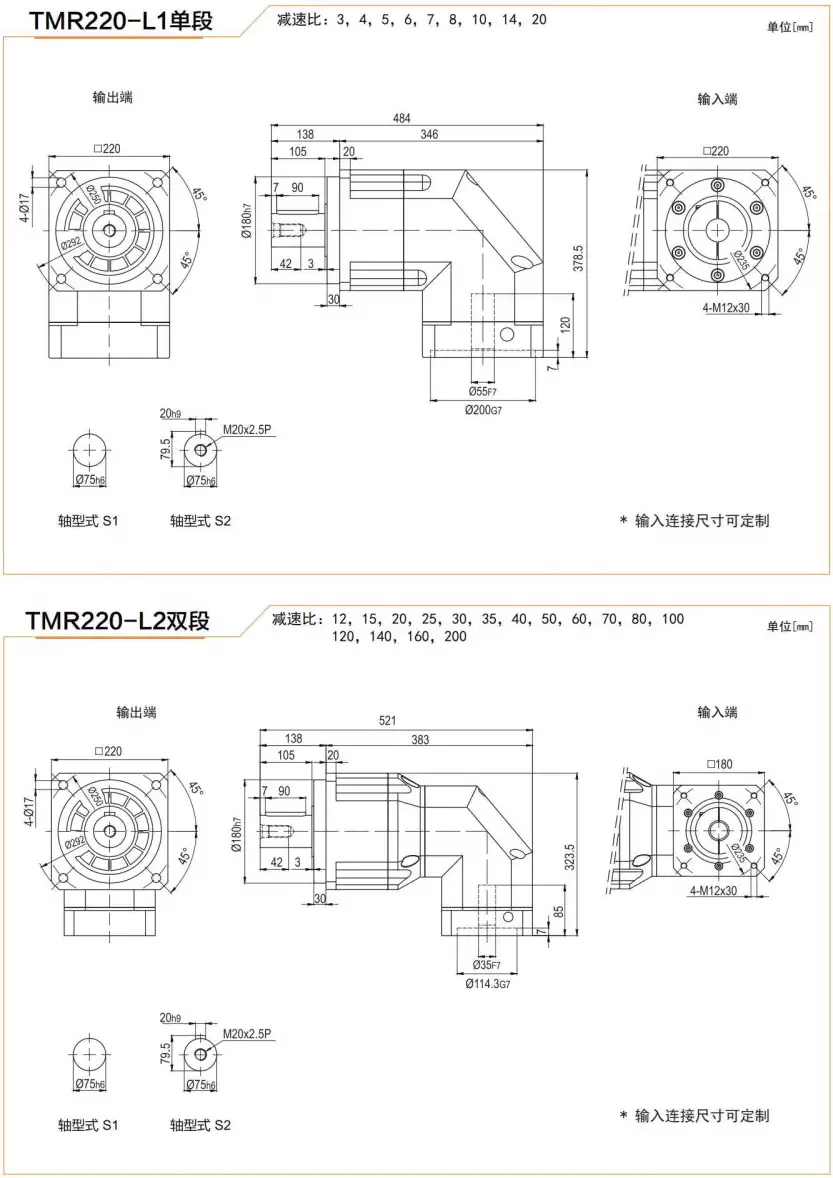

TMR220 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox that is widely used in various industrial applications. It is designed to provide high precision motion control and accurate position feedback for industrial automation equipment. The TMR220 Series High Precision Planetary Gearbox Helical Gear Reducer is a type of high precision planetary gearbox that delivers the highest level of performance and reliability in a compact and lightweight package.
The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The planet gears revolve around the sun gear and are supported and held in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the internal gear, and when power is input, they jointly bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
The internal gear is a large-diameter annular gear fixed inside the housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the internal gear can also serve as an input or output terminal.
The bearings in the high precision planetary gearbox support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between the various components.
The housing is the external frame of the entire gearbox and protects the internal components from external environmental influences while providing installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.
The working principle of the high precision planetary gearbox is based on torque transmission, speed conversion, torque amplification, and low backlash design.
When power is input to the sun gear, it drives the planet gears to rotate around it. Since the planet gears mesh with both the sun gear and the internal gear, they rotate on their own axes while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.
By adjusting the gear ratio of different components, it is possible to achieve speed conversion and torque amplification between the input and output. Generally, the torque amplification effect is more significant when the number of planet gears increases or the gear ratio increases, but the output speed will decrease accordingly.
In high precision applications, zero/low backlash design is often used to reduce or eliminate the clearance between gears, ensuring precise position control and minimal mechanical play in the system.
One important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thus improving the load capacity and stability of the entire system and optimizing dynamic response performance.
| Consideration Factors | Description |
|---|---|
| Gear Ratio | The ratio of the number of teeth between the input and output gears affects the output torque and speed of the gearbox. |
| Backlash | The clearance between gear teeth affects the accuracy and repeatability of the system. |
| Input and Output Speeds | The speed range and required accuracy of the system will determine the optimal gear ratio and type of gearbox for the application. |
| Load Capacity | The maximum torque the gearbox can transmit without damage or excessive wear. |
| Environmental Conditions | The operating environment of the system, such as temperature, humidity, and contamination, will affect the selection of gearbox materials and lubricants. |
The TMR220 Series High Precision Planetary Gearbox Helical Gear Reducer is used in the following applications:
The high precision planetary gearbox is used in conjunction with servo motors to achieve precise speed control and position positioning in industrial automation equipment, such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.
The high precision planetary gearbox is used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots to achieve precise motion control and torque amplification.
The high precision planetary gearbox is used in aircraft landing gear retraction systems, flight control actuation systems, and satellite attitude adjustment devices that require high reliability and precision.
The high precision planetary gearbox is used in scientific experimental equipment, precision measuring instruments, and optical tracking systems that have extremely high requirements for transmission accuracy.
The high precision planetary gearbox is used in power steering systems for new energy vehicles, drive units for electric vehicles, and transmission systems for high-performance racing cars.
The high precision planetary gearbox is used in joint drive sections in industrial robots, service robots, and special operation robots.
The high precision planetary gearbox is used in automated warehousing systems, such as elevator, conveyor drive, and AGV (automated guided vehicle) systems.
We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO90012015 and our products have passed the mandatory CCC certification in China and the CE certification in the European Union. Our products are produced according to international IC standards and have reached the advanced level of similar international products.
Our advantages include:
