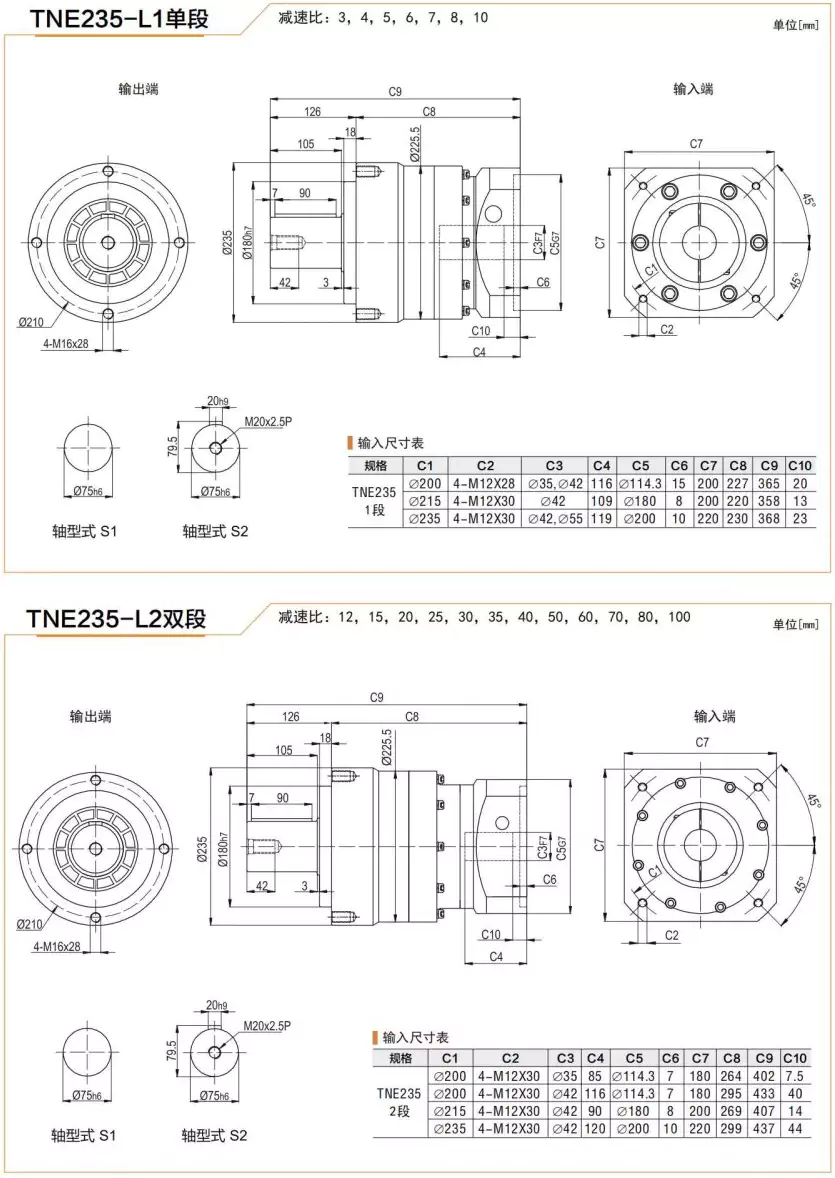

TNE235 Series High Precision Planetary Gearbox Helical Gear Reducer

TNE235 Series High Precision Planetary Gearbox Helical Gear Reducer Overview

TNE235 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a high-precision type of gearbox that is widely used in various industries. It is a type of gearbox that is designed to provide low backlash, high efficiency, high torsional stiffness, and high precision. It is commonly used in applications where high precision is required, such as robotics, medical devices, aerospace, and more.

High Precision Planetary Gearbox Basic Structure

High Precision Planetary Gearbox consists of the following components:

• Sun Gear: Located at the center of the planetary gearbox, it is typically connected to the input shaft or fixed to the housing as a stationary part.
• Planet Gears: Orbit around the sun gear and are supported and held in relative position to each other by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear, and they collectively share and distribute the load when power is input.
• Planet Carrier: A structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can act as an output component or be connected with another shaft to transmit or receive torque.
• Ring Gear/Annulus: A large diameter ring gear with teeth on both its inner and outer surfaces that is fixed inside the housing and meshes with the planet gears. In some applications, the ring gear can also act as an input or output end.
• Bearings and Shaft System: Bearings in the high-precision planetary gearbox are used to support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between the components.
• Housing and Seals: The housing is the outer frame of the entire gearbox, which protects the internal components from external environmental interference and provides mounting interfaces. Seals ensure that the internal grease does not leak and prevent dust and water from entering the gearbox.

Explanation of High Precision Planetary Gearbox Basic Structure Components:

1. The sun gear is the central part of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary part.
2. The planet gears orbit around the sun gear and mesh with both the sun gear and the ring gear, and they collectively share and distribute the load when power is input.
3. The planet carrier carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can act as an output component or be connected with another shaft to transmit or receive torque.
4. The ring gear is fixed inside the housing and meshes with the planet gears. In some applications, the ring gear can also act as an input or output end.
5. Bearings in the high-precision planetary gearbox are used to support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between the components.
6. The housing is the outer frame of the entire gearbox, which protects the internal components from external environmental interference and provides mounting interfaces. Seals ensure that the internal grease does not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of the High Precision Planetary Gearbox is as follows:

1. Torque Transmission: When power is input to the sun gear, it drives the surrounding planet gears to rotate. Because the planet gears mesh with both the sun gear and the ring gear, they rotate around themselves while revolving around the center of the sun gear by means of the planet carrier. In this way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
2. Speed Conversion and Torque Amplification: By adjusting the tooth ratio of different components, speed conversion and torque amplification between the input and output can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification is more significant, but the output speed also decreases.
3. Low Backlash Design: In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate the gap between gears, i.e. "zero/low backlash" design.
4. Load Distribution and Dynamic Response: An important advantage of planetary gear mechanisms is that they can distribute the load evenly among multiple planet gears, thus improving the load-carrying capacity and stability of the entire system and optimizing dynamic response performance.

Explanation of Working Principle of High Precision Planetary Gearbox:

1. When power is input to the sun gear, it drives the surrounding planet gears to rotate. Because the planet gears mesh with both the sun gear and the ring gear, they rotate around themselves while revolving around the center of the sun gear by means of the planet carrier. In this way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.
2. By adjusting the tooth ratio of different components, speed conversion and torque amplification between the input and output can be achieved. Generally, when the number of planet gears increases or the gear ratio increases, the effect of torque amplification is more significant, but the output speed also decreases.
3. In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate the gap between gears, i.e. "zero/low backlash" design.
4. An important advantage of planetary gear mechanisms is that they can distribute the load evenly among multiple planet gears, thus improving the load-carrying capacity and stability of the entire system and optimizing dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

Applications of High Precision Planetary Gearbox

High Precision Planetary Gearbox is widely used in various industries, including:

• Servo Motor Systems: Used in industrial automation equipment for precise speed control and position positioning, such as robotic joint drives, precision machine tool feeding mechanisms, semiconductor manufacturing equipment, and more.
• Medical Devices: Used for precise motion control and torque amplification in high-end medical devices such as CT scanners, MRI machines, surgical robots, and more.
• Aerospace: Used in aircraft landing gear retraction systems, actuating mechanisms in flight control systems, satellite attitude adjustment devices, and other applications that require high reliability and precision.
• Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
• Automotive Manufacturing: Used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, and more.
• Robotics: Used in the joint drive section of industrial robots, service robots, and special operation robots.
• Logistics Automation: Used in automatic storage systems for lifts, conveyor drives, and AGVs (automatic guided vehicles).

Explanation of Applications of High Precision Planetary Gearbox:

1. High Precision Planetary Gearbox is used in industrial automation equipment for precise speed control and position positioning, such as robotic joint drives, precision machine tool feeding mechanisms, semiconductor manufacturing equipment, and more.
2. High Precision Planetary Gearbox is used for precise motion control and torque amplification in high-end medical devices such as CT scanners, MRI machines, surgical robots, and more.
3. High Precision Planetary Gearbox is used in aircraft landing gear retraction systems, actuating mechanisms in flight control systems, satellite attitude adjustment devices, and other applications that require high reliability and precision.
4. High Precision Planetary Gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
5. High Precision Planetary Gearbox is used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, and more.
6. High Precision Planetary Gearbox is used in the joint drive section of industrial robots, service robots, and special operation robots.
7. High Precision Planetary Gearbox is used in automatic storage systems for lifts, conveyor drives, and AGVs (automatic guided vehicles).

About Our Company

We are a professional manufacturer of transmission equipment, located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO90012015. Our products have passed the mandatory CCC certification in China and the European Union CE certification, and are produced according to international lC standards, reaching the advanced level of similar products internationally.

Our Company's Advantages:

• Professional manufacturer of transmission equipment with rich experience.
• Strict adherence to international quality management system standards.
• Products have passed mandatory CCC certification in China and CE certification in the European Union.
• Produced according to international lC standards, reaching the advanced level of similar products internationally.
• Located in Ningbo, Zhejiang, a hub of innovation and manufacturing in China.

Author: Miya
