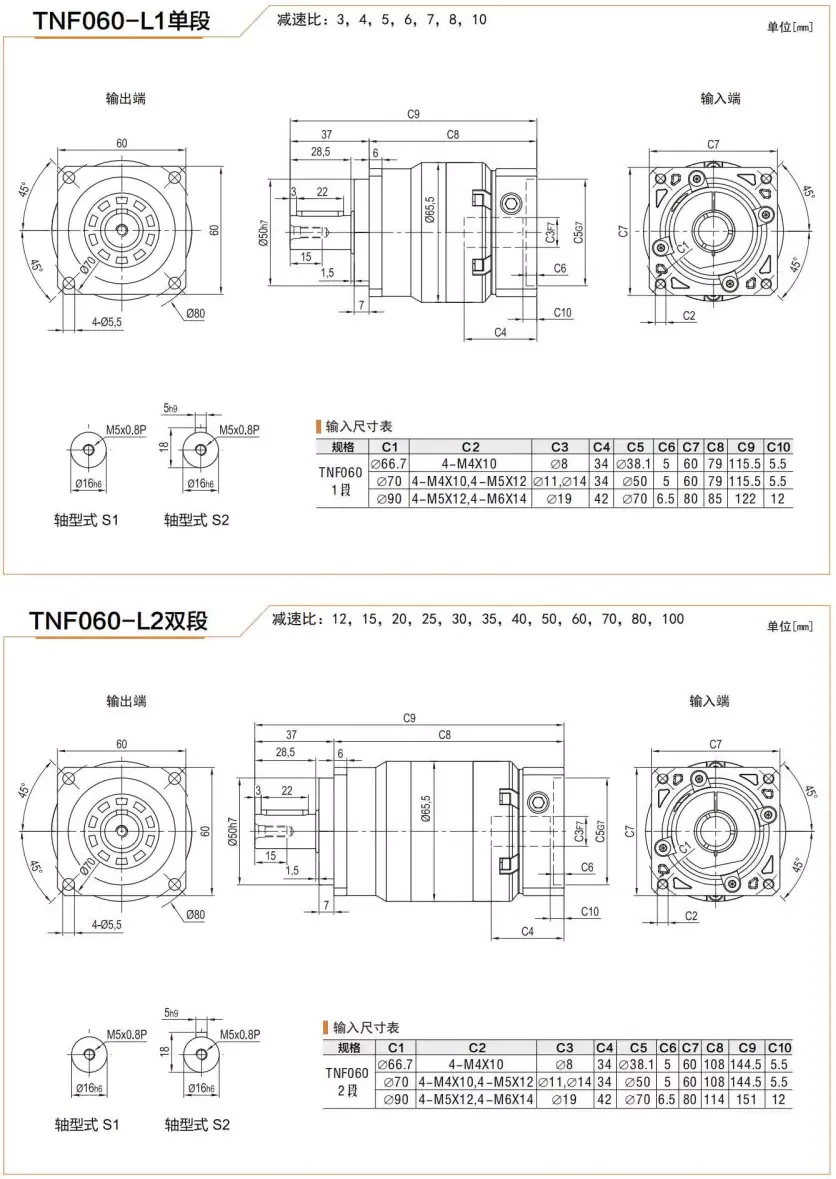

TNF060 Series High Precision Planetary Gearbox Helical Gear Reducer

TNF060 Series High Precision Planetary Gearbox Helical Gear Reducer Overview

TNF060 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox or low backlash planetary gearbox, is a type of gearbox that is commonly used in industrial automation equipment for precise speed control and position positioning. It is designed with a high level of accuracy and reliability, making it suitable for a wide range of applications.

Basic Construction of High Precision Planetary Gearbox

High Precision Planetary Gearbox is comprised of the following components:

• Sun Gear:

  The sun gear is located at the center of the planetary gearbox. It is usually connected to the input shaft or fixed to the housing as a stationary part.

• Planet Gears:

  The planet gears rotate around the sun gear and are supported and kept in relative position to each other through a carrier. Each planet gear meshes with both the sun gear and the ring gear, and they collectively bear and distribute the load when power is input.

• Planet Carrier:

  The carrier is a structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate relative to the sun gear. It can be used as an output element, or connected to another shaft to transmit or receive torque.

• Ring Gear/Annulus:

  The ring gear/annulus is a large diameter circular gear fixed inside the housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear/annulus can also function as an input or output end.

• Bearings and Shaft System:

  The bearings in the high precision planetary gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between each component.

• Housing and Seals:

  The housing is the external frame of the entire gearbox, which protects internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.

Working Principles of High Precision Planetary Gearbox

The working principles of High Precision Planetary Gearbox can be summarized as follows:

• Torque Transfer:

  When power is input to the sun gear, it drives the planet gears to rotate around it. Since the planet gears mesh with both the sun gear and the ring gear, they undergo self-rotation while revolving around the center of the sun gear along with the planet carrier. Thus, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the planet carrier at the output end.

• Speed Conversion and Torque Amplification:

  By adjusting the gear ratio of different components, speed conversion and torque amplification between the input and output ends can be achieved. Generally, when the number of planet gears increases or the gear ratio becomes larger, the effect of torque amplification becomes more significant, but the output speed will decrease at the same time.

• Low Backlash Design:

  In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearbox adopts preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.

• Load Distribution and Dynamic Response:

  An important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, which improves the bearing capacity and stability of the entire system, and optimizes the dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

The following table lists the design and selection considerations of High Precision Planetary Gearbox:

Applications of High Precision Planetary Gearbox

High Precision Planetary Gearbox has a wide range of applications in various industries, including:

• Servo Motor Systems:

  Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.

• Medical Equipment:

  Used in high-end medical equipment such as CT scanners, MRI machines, and surgical robots for precise motion control and torque amplification.

• Aerospace:

  Used in aircraft landing gear retracting systems, actuating mechanisms in flight control systems, and satellite attitude adjustment devices that require high reliability and precision.

• Precision Instruments:

  Used in scientific experimental equipment, precision measuring instruments, and optical tracking systems that have extremely high requirements for transmission accuracy.

• Automotive Manufacturing:

  Used in power steering systems of new energy vehicles, drive units of electric vehicles, and transmission systems of high-performance racing cars.

• Robotics:

  Used in the joint drive section of industrial robots, service robots, and special operation robots.

• Logistics Automation:

  Used in automatic storage systems, lifting platforms, conveyor drive systems, and AGVs (automatic guided vehicles).

About Our Company

We are a professional manufacturer of transmission equipment, specializing in research, production, and sales. We are located in Ningbo, Zhejiang, and operate strictly according to the international quality management system standard ISO9001:2015. Our products have passed the mandatory CCC certification in China and the CE certification of the European Union. Our products are produced according to international IC standards and have achieved the advanced level of similar products in the international market.

Our Advantages

• Strict adherence to international quality management system standard ISO9001:2015
• Product certification obtained: CCC and CE
• Advanced production technology and equipment
• Experienced R&D team, providing customized solutions
• Excellent after-sales service and technical support
• Competitive pricing and timely delivery
