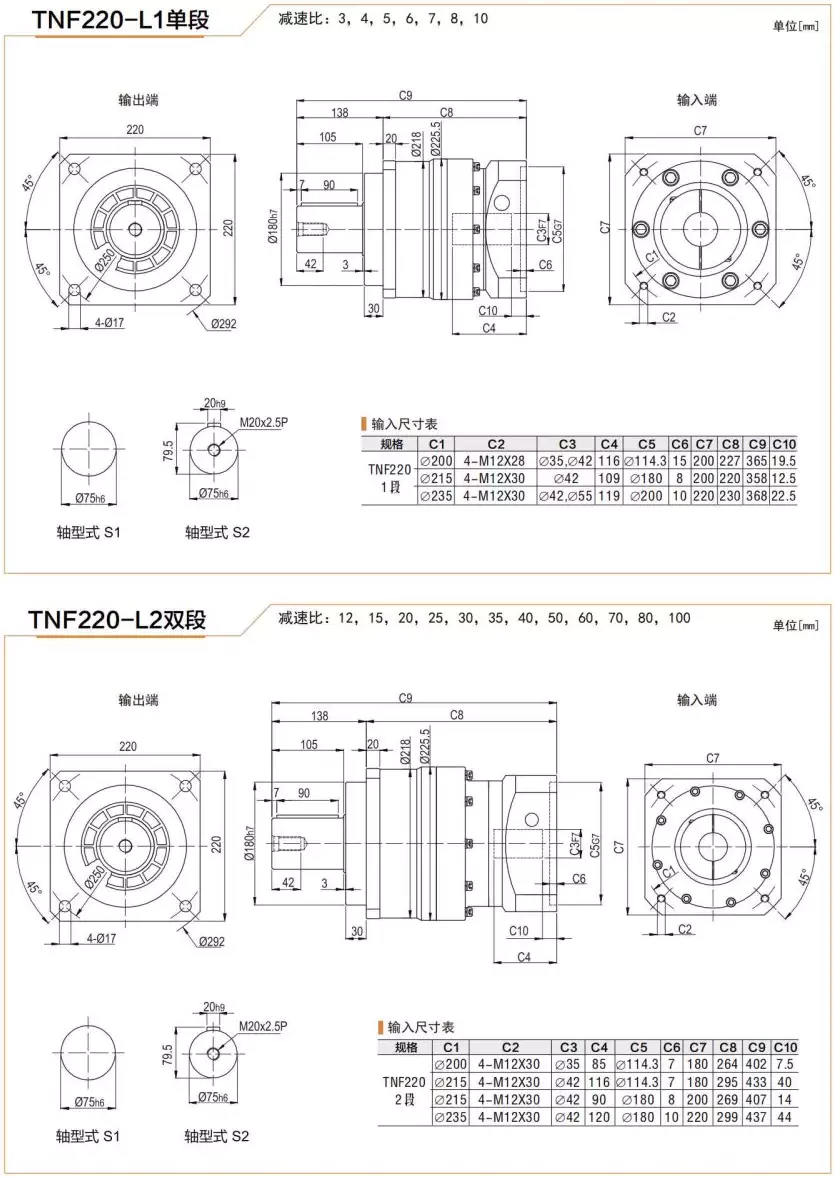

The TNF220 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as the servo motor planetary gearbox and low backlash planetary gearbox, is a high-precision mechanical device used in a variety of applications. It is designed to deliver high torque output with low noise and high efficiency, making it ideal for use in precision motion control systems where high accuracy and repeatability are critical.
The high precision planetary gearbox consists of several key components:
The sun gear is the central gear that transmits power into the planetary gearbox. The planet gears rotate around the sun gear and are supported and kept in relative position to each other by the planet carrier. The internal ring gear meshes with the planet gears, and the entire system distributes torque and load evenly among the gears. The bearings and shaft system ensures smooth operation of the gears, and the housing and seals protect the internal components from environmental damage.
The working principle of the high precision planetary gearbox is based on the following:
When power is input to the sun gear, the planet gears rotate around it and distribute torque and load evenly among the gears. The gear ratio between different components can be adjusted to achieve speed conversion and torque amplification. The low backlash design ensures precise position control and minimum clearance between gears, and the load distribution among multiple planet gears optimizes dynamic response performance.
The design and selection of high precision planetary gearboxes require consideration of the following factors:
| Factor | Considerations |
|---|---|
| Input and Output Speed Range | The gearbox should be selected based on the required range of input and output speeds for the application. |
| Load Capacity | The gearbox should be able to handle the required load capacity of the application without exceeding its rated capacity. |
| Accuracy and Repeatability | The gearbox should meet the required accuracy and repeatability for the application. |
| Backlash | The gearbox should have low or zero backlash to ensure precise position control and minimum clearance between gears. |
| Noise | The gearbox should produce minimal noise and vibration to avoid disrupting the operation of the application. |
| Efficiency | The gearbox should have high efficiency to minimize power loss and heat generation. |
| Size and Weight | The gearbox should be compact and lightweight to fit into the application and minimize space and weight requirements. |
The high precision planetary gearbox is used in a variety of application fields, including:
The high precision planetary gearbox is widely used in various fields that require precise motion control, high torque output, and low noise and vibration. It is particularly suitable for applications that require high accuracy and repeatability, such as industrial automation, medical equipment, aerospace, precision instruments, automotive manufacturing, robotics, and logistics automation.
