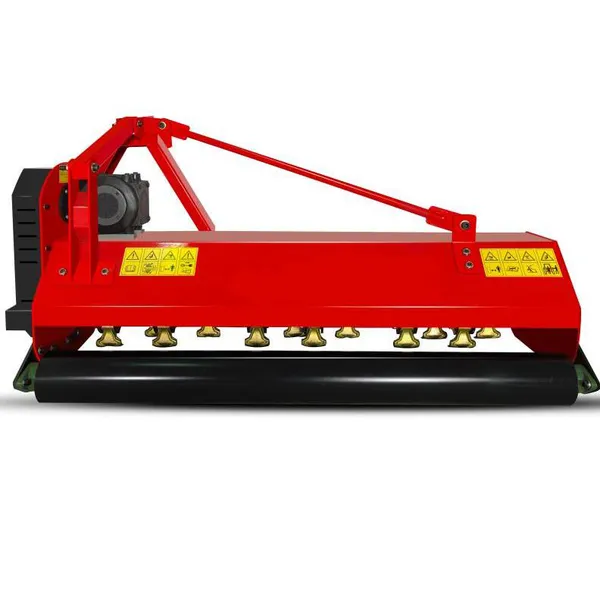

Tractor 3 Point Hitch PTO Driven Flail Mower for Cutting Grass EFCT Series

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Tractor 3 Point Hitch PTO Driven Flail Mower for Cutting Grass EFCT Series

The Tractor 3 Point Hitch PTO Driven EFCT Series Flail Mower is a specialized piece of equipment designed for cutting grass and vegetation. It is commonly used in agricultural and landscaping applications to maintain large areas of land, such as fields, pastures, parks, and roadways. The primary power source for the EFCT Series Flail Mower is the power take-off (PTO) system of a tractor. The PTO transfers power from the tractor's engine to the mower through a rotating driveshaft, enabling the mower's cutting mechanism to operate. One of the key features of the EFCT Series Flail Mower is its three-point hitch, which allows for easy attachment and detachment to the back of a tractor. The three-point hitch system provides stability and control during operation, ensuring that the mower follows the contours of the terrain and maintains a consistent cutting height. The cutting mechanism of the flail mower consists of a rotating drum or rotor with multiple attached flail blades. These blades are typically made of hardened steel and are designed to swing freely and strike the grass or vegetation, effectively cutting it down. The flail blades are sturdy and can handle various types of grasses, shrubs, and light brush. The EFCT Series Flail Mower offers several advantages over other types of mowers. Its flail blades are known for their durability, making them suitable for cutting tough and dense vegetation. The design of the flail mower also allows for better distribution of the cut material, reducing the likelihood of clumping and providing a more even dispersal of grass clippings. This flail mower completes the shredding work for grass, straw, and branches, with more delicate shredding effect. It can easily adjust the stubble height can shred grass roots. It also has a number of operational safety protection mechanisms. It maximizes the side operation with great professionalism and stable performance.

EFCT Series 3 Point Hitch PTO Driven Flail Mower Specifications

Models	Working Width	PTO Input Seed	Hammer Blades	"Y" Grass Blades	Rotor Seed	Required HP	Shipped Weight	Overall Dimensions
	mm	rpm	N.	N.	rpm	hp	Kg	mm
EFCT140	1350	540	22	44	2160	35-70	280	1550*800*750
EFCT160	1550	540	24	48	2160	40-80	293	1750*800*750

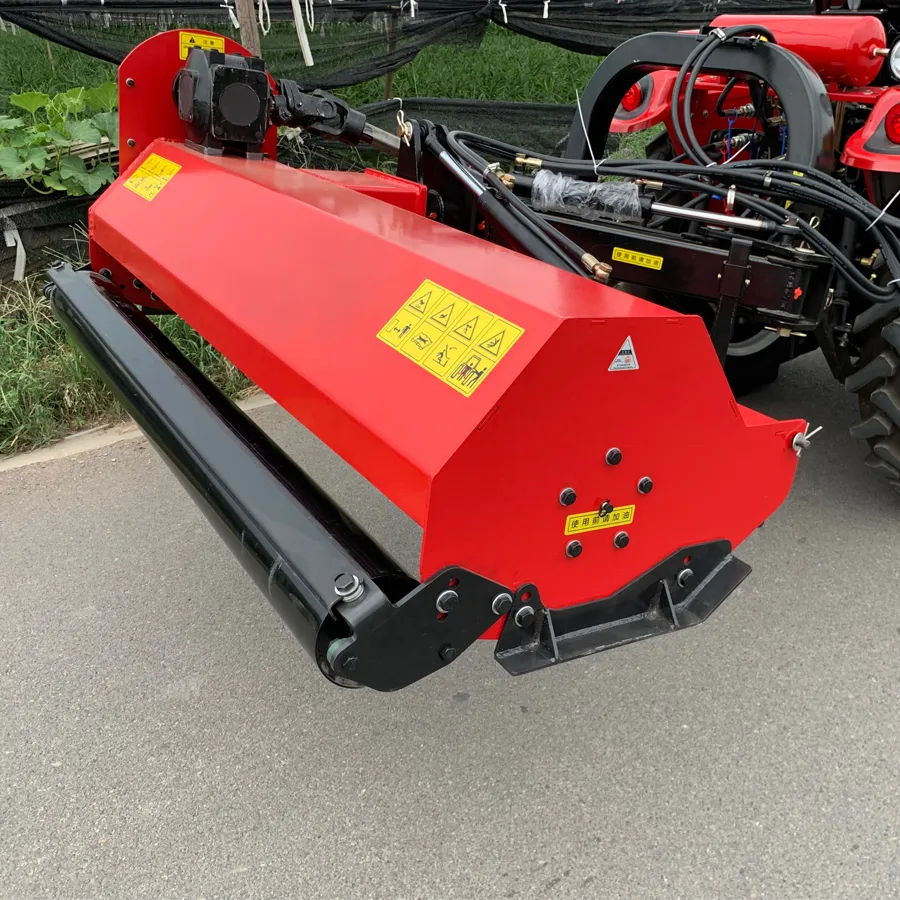

Advantages of Using the Tractor 3 Point Hitch PTO Driven Flail Mower

Using a Tractor 3 Point Hitch PTO (Power Take-Off) Driven Flail Mower comes with a host of advantages that make it a preferred choice for a wide array of mowing tasks in agriculture, landscaping, and land management. The integration of the three-point hitch system and the power efficiency of the PTO system enhance the functionality and versatility of the flail mower. Here are some key advantages: 1. Versatility and Wide Application Range: Thanks to its compatibility with the three-point hitch system, the flail mower can be easily adjusted for height and angle, making it suitable for a range of terrains, from flat fields to uneven landscapes. It's capable of handling not just grass, but also thick weeds, crop residues, and small brush, making it a versatile tool for agricultural land maintenance, roadside clearing, and estate management. 2. High Efficiency and Productivity: The PTO-driven system ensures that the mower receives a steady and strong power supply, allowing it to maintain consistent performance even in demanding conditions. Its ability to tackle a variety of vegetation types without the need for multiple passes saves time and increases productivity. 3. Durability and Reliability: Flail mowers are built to withstand tough conditions, with heavy-duty materials that resist wear and tear, reducing downtime and maintenance costs. Unlike traditional mowers, the swinging action of the flails means they can retract upon hitting hard objects, minimizing the risk of damage to the mower and extending its lifespan. 4. Adjustable Cutting Height: The three-point hitch design of the flail mower allows for easy adjustment of the cutting height. Operators can raise or lower the mower to achieve the desired grass length or adapt to different terrain conditions. This flexibility is particularly useful for maintaining different areas with varying grass heights or when dealing with uneven surfaces. 5. Enhanced Safety: The design of flail mowers minimizes the risk of launching debris as compared to traditional blade mowers. This is particularly important in areas close to public roads or buildings. Many models come with protective shields and guards to further reduce the risk of debris being thrown towards the operator or bystanders. 6. Quality of Cut and Mulching Capability: The flail mower provides a more uniform cut over uneven terrain, contributing to a neater appearance of the mowed area. The mulching action of the flails ensures that the cut material is finely chopped and spread over the mowed area, returning nutrients to the soil and promoting healthier growth.

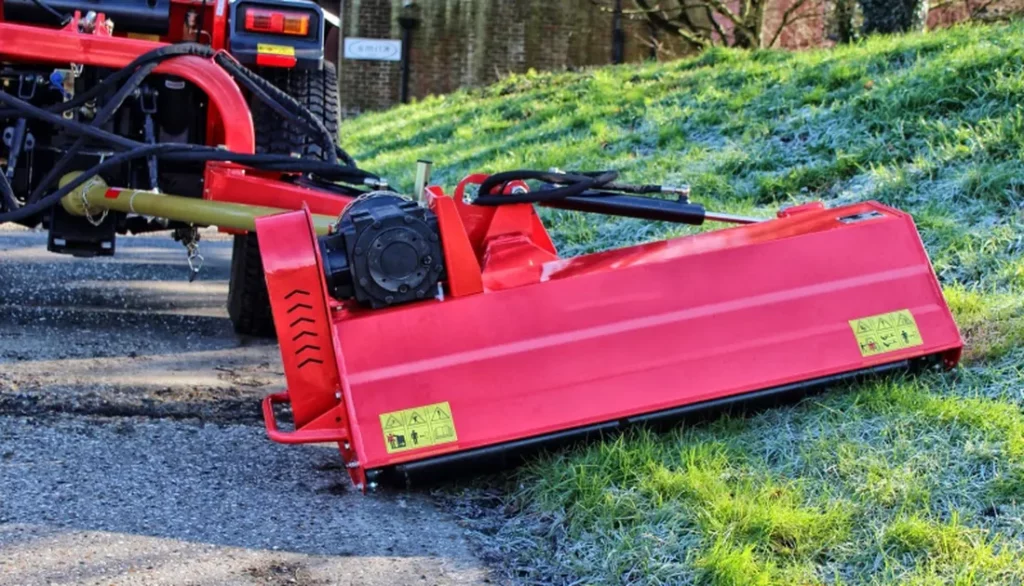

Working Principle of the Tractor 3 Point Hitch PTO Driven Flail Mower

The working principle of a Tractor 3 Point Hitch PTO Driven Flail Mower involves a combination of tractor mechanics and the mower's unique design, making it an effective tool for cutting and mulching vegetation. Here's how it works in detail: 1. Connection to the Tractor

• Three-Point Hitch: The flail mower is attached to the tractor using a three-point hitch system. This system consists of two lower arms and one upper arm that connect the mower securely to the tractor, allowing for easy lifting and lowering.
• Power Take-Off (PTO) Drive: The mower is powered by the tractor's PTO, a shaft that transfers the engine's power to the mower. When engaged, the PTO rotates, turning the mower's drive shaft.

2. Transmission of Power

• Drive Shaft to Rotor: The rotational power from the PTO is transmitted through the mower's drive shaft to a horizontal rotor. This rotor is the heart of the mower, equipped with multiple flail blades.
• Flail Blades: Unlike traditional mower blades, flail blades are not fixed but are attached to the rotor by hinges or chains, allowing them to swing freely.

3. Cutting Action

• Centrifugal Force: As the rotor spins, centrifugal force swings the flails outward. When these flails strike vegetation, they cut and shred it with a hammering action.
• Flexibility and Safety: The free-swinging nature of the flails allows them to retract slightly upon hitting hard objects (like rocks or stumps), reducing the risk of damage to the mower or injury from flying debris.

4. Adjustability for Efficient Mowing

• Height Adjustment: The height of the mower can be adjusted via the three-point hitch, allowing the operator to set the desired cutting height based on the condition of the terrain and the type of vegetation.
• Ground Following: Many flail mowers are equipped with a rear roller or adjustable skids that help stabilize the mower and allow it to follow the contours of the ground, ensuring a uniform cut across uneven terrain.

5. Mulching

• Shredding Vegetation: The flail mower not only cuts the vegetation but also shreds it into small pieces. This mulching action helps to distribute the cut material evenly over the ground, where it can decompose and return nutrients to the soil.

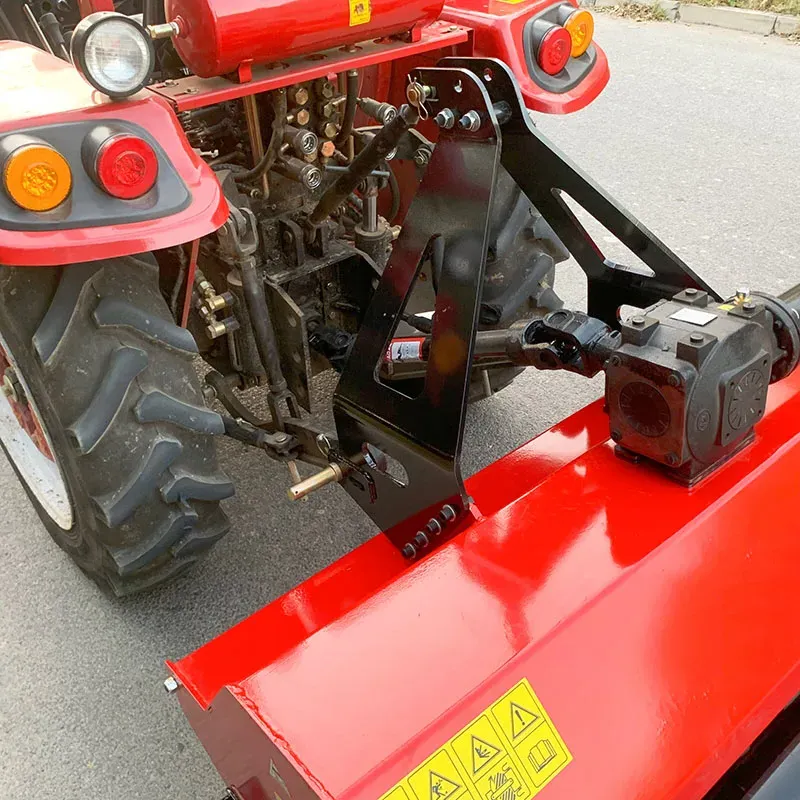

How to Install the 3 Point Hitch PTO Driven Flail Mower to Tractor?

Installing a 3 Point Hitch PTO Driven Flail Mower to a tractor involves a series of steps designed to ensure a secure connection for safe and efficient operation. While specific models might have unique features or requirements, the general process follows a standard sequence. It’s always best to consult the operator's manual of your specific equipment for detailed instructions and safety information. Here’s a basic guide:

Preparation

1. Read the Manual: Start by thoroughly reading the operator's manual for both the tractor and the flail mower. Understanding the specific requirements and safety warnings is crucial.
2. Safety First: Ensure the tractor is turned off, keys removed, and parked on a level surface. Engage the parking brake and block the wheels if necessary to prevent any movement.
3. Inspect Equipment: Check the flail mower for any shipping damage or loose parts. Also, ensure that the PTO shaft is the correct length for your tractor, as an incorrect length can cause damage or safety hazards.

Attachment Process

1. Position the Mower: Move the flail mower close to the tractor’s rear. Using a tractor is often the easiest way to align the mower's three-point hitch with the tractor’s hitch arms.
2. Attach Lower Links: First, attach the two lower arms of the tractor's three-point hitch to the mounting points on the flail mower. You may need to adjust the position of the mower or the length of the arms for proper alignment. Secure the pins and clips to ensure the arms are firmly attached.
3. Connect the Top Link: Attach the top link between the tractor and the flail mower. This link may need adjustment to ensure the mower is level with the ground or set at the desired angle for operation.
4. Adjust Lateral Stability: If your tractor and mower setup includes stabilizers or sway bars, adjust and secure these to prevent excessive lateral movement of the mower during operation.

PTO Connection

1. Align the PTO Shaft: Carefully align the PTO shaft from the mower with the PTO stub on the tractor. The shaft typically has a locking pin or a collar that needs to align and lock into place.
2. Secure the PTO Shaft: Ensure the PTO shaft is securely connected and that any safety chains or guards are properly attached. These features prevent the shaft from becoming disengaged and protect against entanglement.

Final Checks

1. Inspect the Installation: Double-check all connections, pins, and clips to ensure everything is secure. Ensure there are no loose parts or tools left on or near the equipment.
2. Test in a Safe Environment: Start the tractor and engage the PTO at a low RPM to ensure the flail mower operates as expected. Watch for any unusual vibrations or noises that could indicate a problem. Make any necessary adjustments to the mower's height and check the cutting performance on a small, clear area before proceeding to full operation.

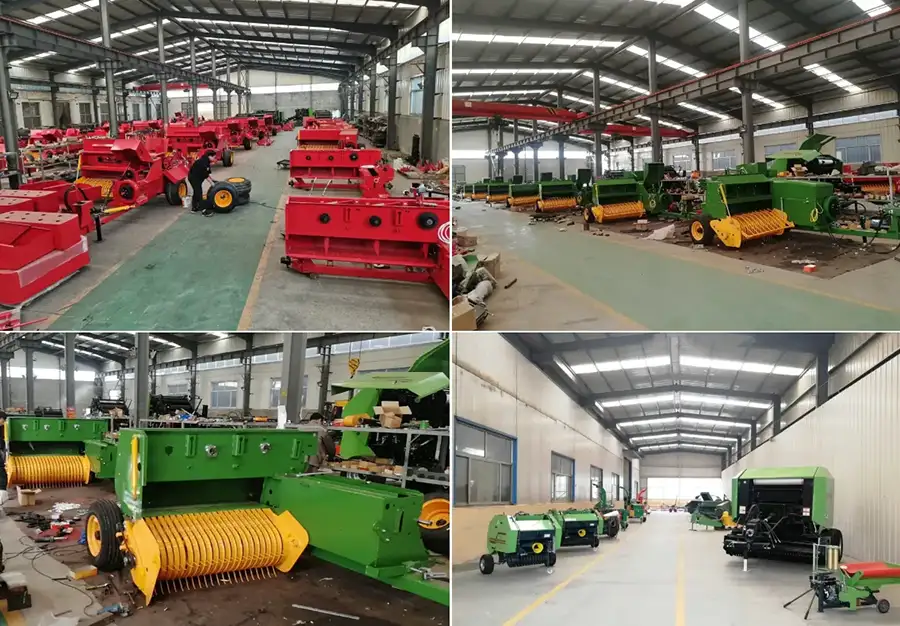

Why Choose Raydafon's Flail Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
