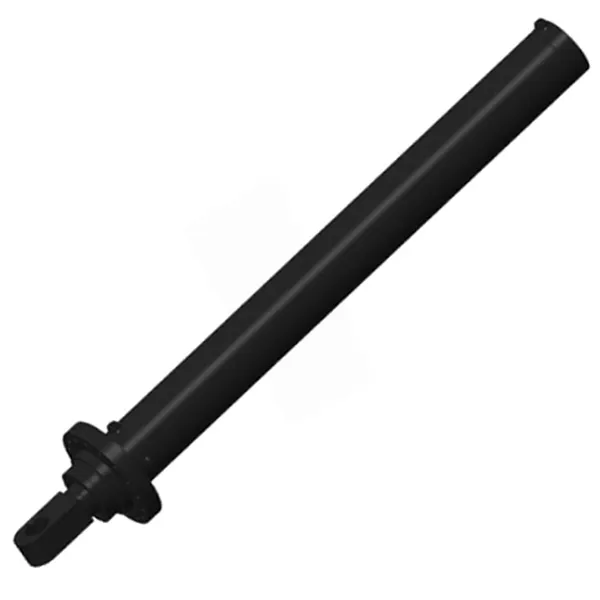

A trailing suction hopper dredger mud door cylinder is a hydraulic cylinder that opens and closes the mud door of a trailing suction hopper dredger. The mud door is a plate that seals off the suction opening of the dredger, preventing water from flowing back into the hopper when the dredger is not in operation. The mud door cylinder is a critical component of the dredger, as it ensures that the mud door can be opened and closed safely and effectively.

The mud door cylinder is typically made of steel and is fitted with a piston and piston rod. The piston is connected to the mud door, and the piston rod is connected to a hydraulic pump. When the pump is activated, it forces hydraulic fluid into the cylinder, which pushes the piston and opens the mud door. When the pump is deactivated, the hydraulic fluid is returned to the reservoir, which allows the piston to return to its original position and close the mud door.

The mud door cylinder is a vital part of the trailing suction hopper dredger, and it is important to ensure that it is properly maintained and operated. Regular inspection and maintenance can help to prevent premature wear and tear, and ensure that the cylinder operates safely and effectively.

Here are some of the key features of a trailing suction hopper dredger mud door cylinder:

• It is made of steel for strength and durability.
• It is fitted with a piston and piston rod to create a hydraulic force.
• It is connected to a hydraulic pump to open and close the mud door.
• It is regularly inspected and maintained to prevent premature wear and tear.

Trailing Suction Dredger Mud Door Cylinder Specifications:

Product Name	Trailing Suction Dredger Mud Door Cylinder
Features:	Pulling force for opening and closing the mud door, and can be equipped with a displacement sensor as required
Bore diameter:	400mm
Rod diameter:	200mmStrok: 1400mm
Pressure:	up to 32MPa
Pulling force:	Maximum 2355KN
Applications:	Trailing Suction Dredger

Benefits of Trailing Suction Dredger Mud Door Cylinder:

The benefits of trailing suction dredger mud door cylinder include:

1. Increased efficiency: The trailing suction dredger mud door cylinder helps to seal the hopper of the dredger by creating a tight seal between the cylinder and the hopper. This prevents water from entering the hopper, which reduces the amount of energy required to pump the dredged material. The savings in fuel and operating costs can be significant, especially for large dredgers.2. Improved safety: The trailing suction dredger mud door cylinder helps to prevent the dredged material from spilling out of the hopper by creating a physical barrier between the material and the water. This can be a safety hazard, as the dredged material can be heavy and can cause injuries if it spills out. The mud door cylinder also helps to prevent the dredger from sinking, as the hopper will be less likely to fill with water.3. Reduced environmental impact: The trailing suction dredger mud door cylinder helps to prevent the dredged material from being released into the water by creating a tight seal between the cylinder and the hopper. This can help to protect the environment, as the dredged material can contain pollutants that can harm marine life.

Overall, the trailing suction dredger mud door cylinder is a valuable piece of equipment that can provide a number of benefits for dredging operations. It can help to improve efficiency, safety, and environmental protection.

Trailing Suction Dredger Mud Door Cylinder Working Principle:

The trailing suction hopper dredger mud door cylinder is a hydraulically operated cylinder that opens and closes the mud door at the bottom of the dredger head. The mud door controls the flow of material into the dredger, and it is important that it operates properly to prevent clogging and ensure efficient dredging.

The mud door cylinder is typically made of steel and has a piston that is connected to a rod. The rod is connected to a linkage that controls the opening and closing of the mud door. The hydraulic cylinder is filled with hydraulic fluid, and when the fluid is pressurized, it moves the piston and opens the mud door. When the pressure is released, the piston returns to its original position and closes the mud door.

The mud door cylinder is controlled by a hydraulic pump and a control valve. The pump provides the pressure to move the piston, and the control valve regulates the flow of fluid to the cylinder. The control valve is typically operated by a joystick or lever, and it allows the operator to precisely control the opening and closing of the mud door.

The trailing suction hopper dredger mud door cylinder is an important part of the dredger, and it is essential for safe and efficient dredging operations.

Here are the steps on how the trailing suction hopper dredger mud door cylinder works:

1. The hydraulic pump pressurizes the hydraulic fluid in the cylinder.
2. The pressurized fluid moves the piston, which opens the mud door.
3. The material is sucked into the dredger through the open mud door.
4. When the dredger is full, the mud door is closed.
5. The hydraulic fluid is released, and the piston returns to its original position.

China Dredger Tank Cylinder Manufacturers
