Trailing Suction Dredger Overflow Cylinder

Trailing Suction Dredger Overflow Cylinder

A trailing suction dredger overflow cylinder is a hydraulically operated cylinder that controls the flow of water and sediment from the hopper of a trailing suction hopper dredger. The overflow cylinder is located at the top of the hopper and has a piston that moves up and down to open and close an overflow valve. When the hopper is full, the piston moves up, closing the valve and preventing any more water or sediment from entering the hopper. When the hopper is not full, the piston moves down, opening the valve and allowing excess water and sediment to overflow back into the water.

The overflow cylinder is an important safety feature on trailing suction dredgers. It prevents the hopper from overflowing, which could cause the dredger to capsize. The overflow cylinder also helps to control the turbidity of the water around the dredger, which is important for environmental reasons.

The trailing suction dredger overflow cylinder is typically made of steel and is powered by a hydraulic pump. The overflow cylinder is typically mounted on the side of the hopper and is accessible for maintenance and repairs.

Trailing Suction Dredger Overflow Cylinder Specifications:

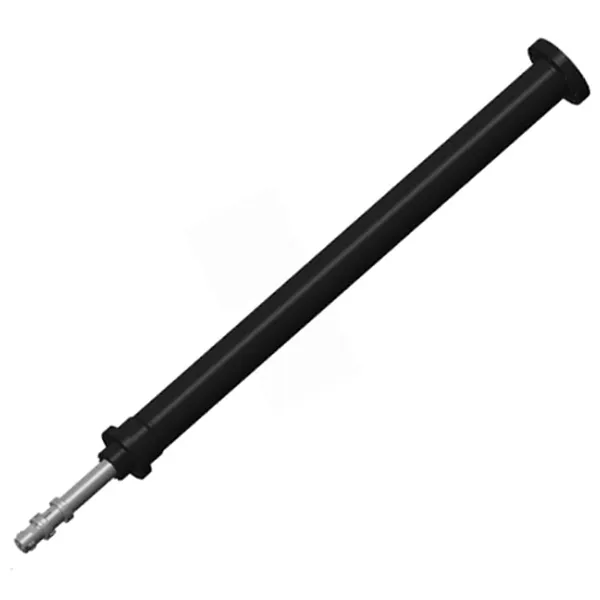

Product Name	Trailing Suction Dredger Overflow Cylinder
Features:	Provide pulling force for the lifting of the relief tube
Bore diameter:	Up to 280 mm
Rod diameter:	Up to 180 mmStroke up to 6000 mm
Pressure:	up to 32MPa
Pulling force:	Maximum 900KN
Applications:	Trailing Suction Dredger

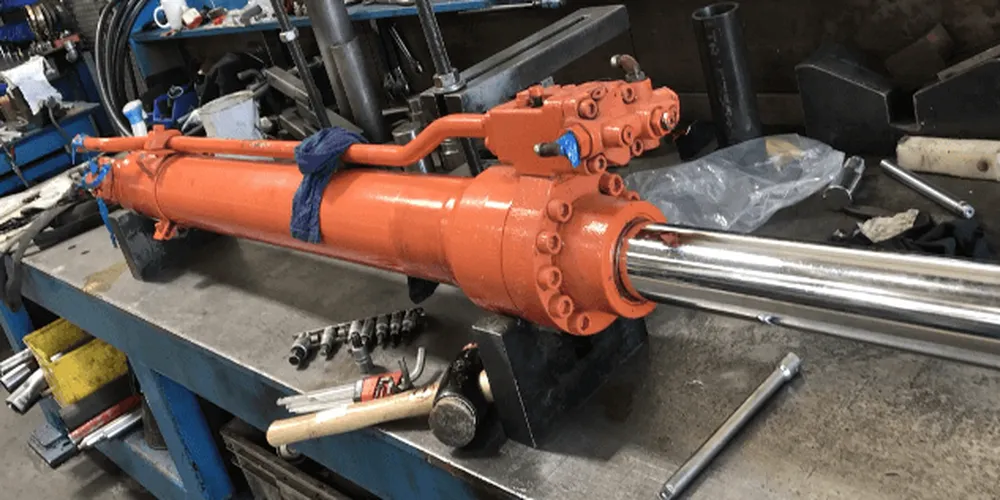

Features of Trailing Suction Dredger Overflow Cylinder:

The overflow cylinder is a key component of a trailing suction hopper dredger (TSHD). It is responsible for controlling the flow of material from the hopper to the sea. The overflow cylinder is typically made of steel and has a hydraulic piston that moves up and down to control the opening of the overflow valve.

The main features of a trailing suction dredger overflow cylinder are:

1. Hydraulically operated: The overflow cylinder is operated by a hydraulic piston. This allows for precise control of the overflow valve and prevents the need for manual operation.2. Continuous position-measuring system: The overflow cylinder is equipped with a continuous position-measuring system. This system ensures that the overflow valve is always in the correct position, regardless of the operating conditions.3. Removable rubber sealing: The overflow cylinder is fitted with a removable rubber sealing. This sealing helps to prevent leaks and keep the hopper contents clean.4. Wall thickness of the steel ducts: The wall thickness of the steel ducts is sufficient to resist rapid wear. This is important because the overflow cylinder is subjected to a lot of wear and tear from the material flowing through it.

The overflow cylinder is a critical component of a trailing suction hopper dredger and its proper operation is essential for the safe and efficient operation of the dredger.

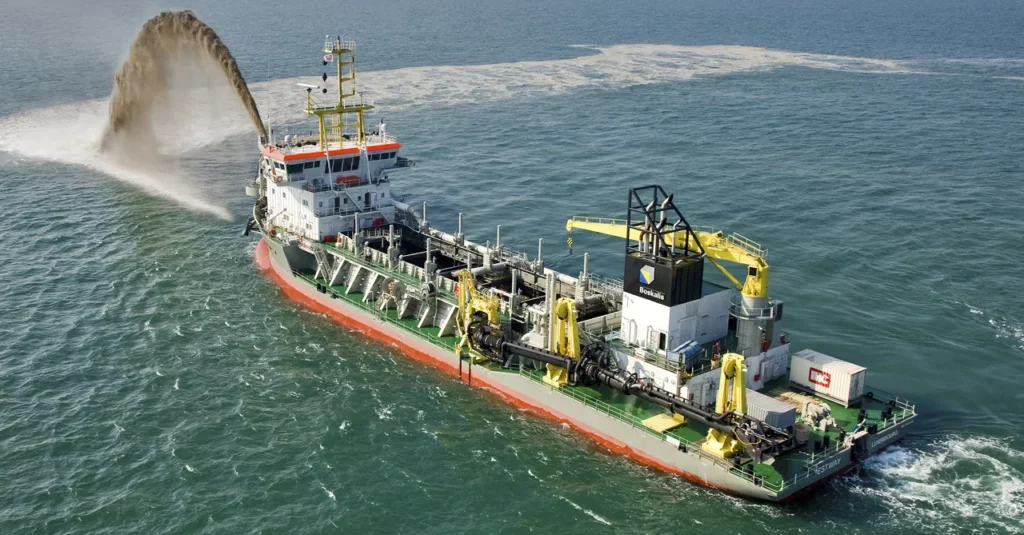

Trailing Suction Dredger Overflow Cylinder Installation:

The overflow cylinder is a critical component of a trailing suction hopper dredger. It is responsible for controlling the flow of water into the hopper and preventing the hopper from overflowing. The hydraulic cylinder is typically made of steel and is fitted with a piston that is operated by a hydraulic system.

The overflow cylinder is installed in the hopper and is connected to the suction pipe. When the hopper is full, the water level will rise and pressurize the cylinder. This will cause the piston to move up, closing the valve and preventing more water from entering the hopper. When the hopper is emptied, the water level will drop and the pressure in the cylinder will decrease. This will cause the piston to move down, opening the valve and allowing more water to enter the hopper.

The overflow cylinder is a complex and critical component, and its installation must be done carefully to ensure that it functions properly. The following steps are typically involved in the installation of an overflow cylinder:

1. The cylinder is lifted into place and secured to the hopper.
2. The hydraulic lines are connected to the cylinder.
3. The piston is installed and the valve is adjusted.
4. The cylinder is tested to ensure that it functions properly.

The overflow cylinder is a vital part of a trailing suction hopper dredger, and its proper installation is essential for the safe and efficient operation of the dredger.

Here are some additional things to keep in mind when installing an overflow cylinder:

• The cylinder must be installed in a level position.
• The hydraulic lines must be properly routed and secured.
• The piston must be installed correctly and the valve must be adjusted properly.
• The cylinder must be tested after installation to ensure that it functions properly.

China Dredger Tank Cylinder Manufacturers
