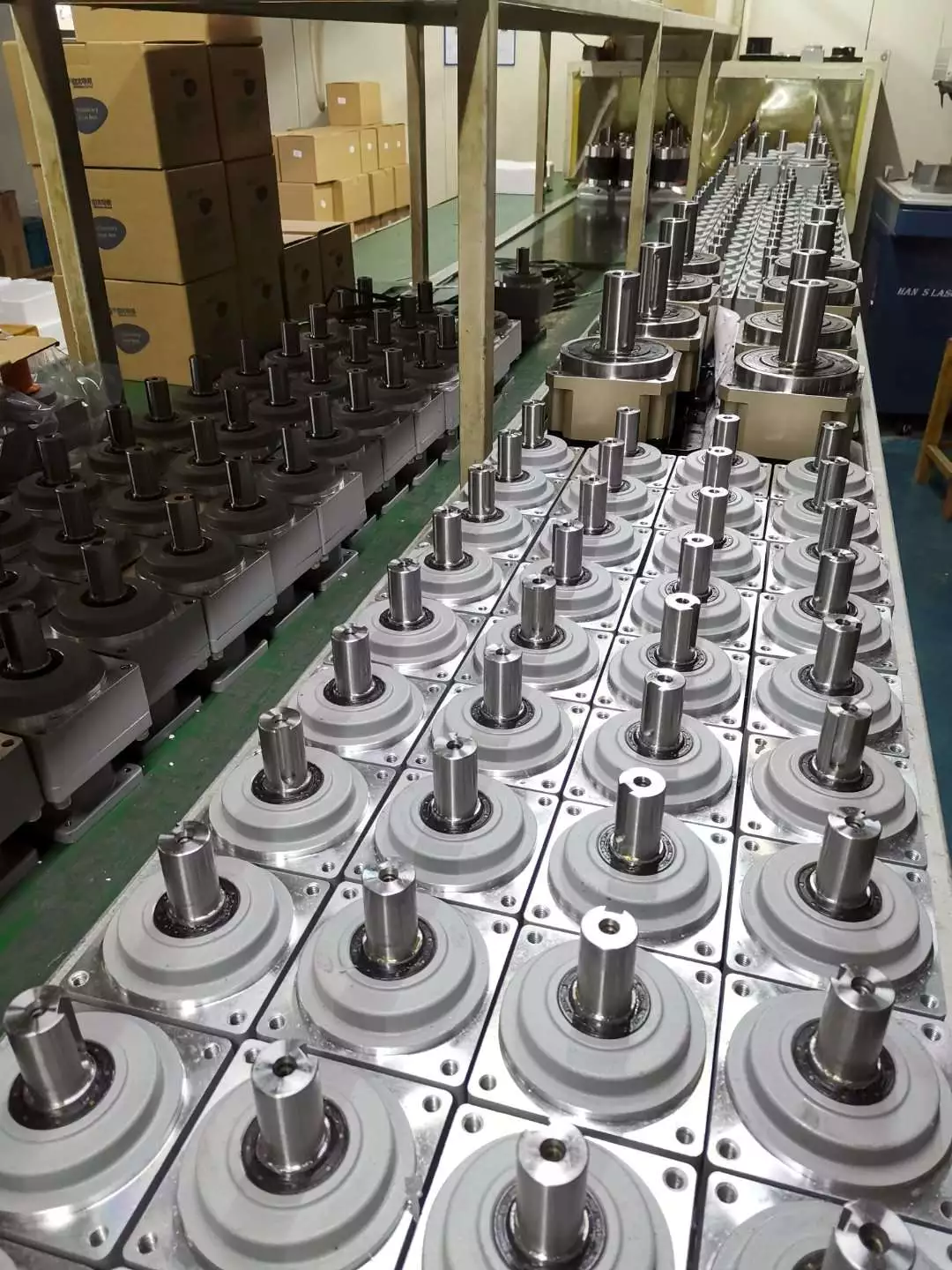

TRE060 Series High Precision Planetary Gearbox Right Angle Reducer

TRE060 Series High Precision Planetary Gearbox Right Angle Reducer

Overview

TRE060 Series High Precision Planetary Gearbox Right Angle Reducer is a type of gearbox that is used to deliver power from a motor to a machine. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. This gearbox is widely used in different industries including automation equipment, robotics, and medical equipment. It is designed to provide an output that is more precise, powerful, and efficient than other types of gearboxes.

High Precision Planetary Gearbox Construction

Sun Gear

The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed on the housing as an immovable component.

Planet Gears

The planet gears rotate around the sun gear and are supported by the carrier to maintain their relative position to each other. Each planet gear meshes with the sun gear and the inner ring gear. When power is input, they collectively bear and distribute the load.

Planet Carrier

The carrier is a structure with several planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The carrier can be used as an output component or connected to another shaft to transmit or receive torque.

Ring Gear/Annulus

The inner ring gear is a large diameter circular gear fixed inside the housing that has teeth on both its inner and outer surfaces and meshes with the planet gears. In some applications, it can also be used as an input or output end.

Bearings and Shaft System

The bearings in the high precision planetary gearbox are used to support the input and output shafts as well as the carrier to ensure stable rotation and smooth operation of the components.

Housing and Seals

The housing is the outer frame of the gearbox that protects the internal components from external environmental influence and provides installation interfaces. Seals ensure that the internal lubricant does not leak while preventing dust and water from entering the gearbox.

High Precision Planetary Gearbox Working Principle

Torque Transmission

When power is input to the sun gear, it drives the planet gears around it. Since the planet gears mesh with both the sun gear and the inner ring gear, they rotate around their own axes while also orbiting the center of the sun gear with the carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end.

Speed Conversion and Torque Amplification

By adjusting the gear ratio of different components, speed conversion and torque amplification between the input and output can be achieved. Generally, as the number of planet gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed will decrease.

Low Backlash Design

In high-precision applications, to ensure precise position control and minimal mechanical clearance, high precision planetary gearboxes use preloading technology to reduce or eliminate gear clearances, that is, "zero/low backlash" design.

Load Distribution and Dynamic Response

One significant advantage of planetary gear mechanisms is that they can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.

High Precision Planetary Gearbox Design and Selection Considerations

The following table lists some essential factors to consider when designing and selecting a high precision planetary gearbox.

Factors	Description
Load capacity	The maximum load that the gearbox can handle.
Gear ratio	The ratio between the number of teeth on the sun gear and planet gears or the planet gears and the ring gear.
Backlash	The amount of clearance between gears that affect accuracy.
Efficiency	The ratio between output power and input power.
Noise and vibration	The level of noise and vibration generated during operation.
Lubrication	The type and method of lubrication that can affect the service life and maintenance cost of the gearbox.
Environmental conditions	The operating temperature range, humidity, and other environmental factors that may affect the gearbox's performance.

High Precision Planetary Gearbox Applications

Servo Motor Systems

The high precision planetary gearbox is used in conjunction with servo motors for accurate speed control and position positioning in industrial automation equipment, such as robotic joints, precision machine tool feeding mechanisms, and semiconductor manufacturing equipment.

Medical Equipment

In high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc., high precision planetary gearboxes are used to achieve precise motion control and torque amplification.

Aerospace

Highly reliable and precise high precision planetary gearboxes are used in landing gear retraction systems, actuation systems in flight control systems, and satellite attitude adjustment devices.

Precision Instruments

High precision planetary gearboxes are used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other scenes that have extremely high requirements for transmission accuracy.

Automotive Manufacturing

High precision planetary gearboxes are used in power steering systems for new energy vehicles, drive units for electric vehicles, and transmission systems for high-performance racing cars, among others.

Robotics Technology

Joint drive components in industrial robots, service robots, and special operation robots.

Logistics Automation

Lifts, conveyor drives, AGVs (Automated Guided Vehicles), etc. in automated warehouse systems.

About Our Company

We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO9001:2015, and our products have passed the mandatory CCC certification in China and the CE certification in the European Union. Our products are produced according to international IC standards and have reached the advanced level of similar products in the world.Our advantages include:

• Advanced production equipment and testing instruments
• Professional and experienced technical team
• Strict quality control system and after-sales service system
• Rich industry experience and excellent market reputation

Author: Miya
