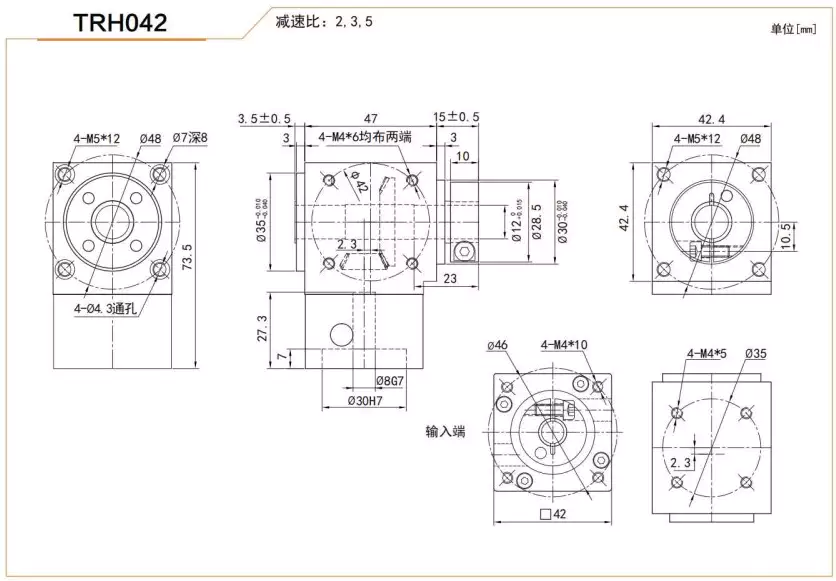

TRH042 Series High Precision Planetary Gearbox Right Angle Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a high-precision gearbox that is used to transmit torque and rotary motion between two parallel shafts. It features a compact design, low noise, high efficiency, and high precision. TRH042 Series High Precision Planetary Gearbox Right Angle Reducer is widely used in various industries, such as robotics, CNC machines, medical devices, aerospace, and transportation equipment.
High Precision Planetary Gearbox consists of several key components, including Sun Gear, Planet Gears, Planet Carrier, Ring Gear/Annulus, Bearings and Shaft System, and Housing and Seals.
The Sun Gear is located at the center of the Planetary Gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The Planet Gears rotate around the Sun Gear and are supported and kept in relative position by the Planet Carrier. Each Planet Gear engages with both the Sun Gear and the Ring Gear/Annulus, and when power is inputted, they share and distribute the load.
The Planet Carrier is a structure with multiple Planet Gear shaft holes, which supports the Planet Gears and allows them to rotate relative to the Sun Gear. The Planet Carrier can be used as an output component or connected to another shaft to transmit or receive torque.
The Ring Gear/Annulus is a large-diameter circular gear fixed inside the housing with teeth on both its inner and outer surfaces, which engage with the Planet Gears. In some applications, the Ring Gear/Annulus can also be used as an input or output end.
The bearings in High Precision Planetary Gearbox support the input shaft, output shaft, and Planet Carrier, ensuring stable rotation and smooth operation of the components. The Shaft System connects all the components together.
The Housing is the outer frame of the entire gearbox, which protects the internal components from external environmental influences and provides installation interfaces. The seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.
The working principle of High Precision Planetary Gearbox involves torque transfer, speed conversion, torque amplification, low backlash design, load distribution, and dynamic response.
When power is inputted into the Sun Gear, it drives the surrounding Planet Gears to rotate. As the Planet Gears engage with both the Sun Gear and the Ring Gear/Annulus, they rotate around their own axis while revolving around the center of the Sun Gear with the Planet Carrier. In this way, the torque inputted into the Sun Gear is amplified and evenly distributed to the Planet Carrier at the output end.
By adjusting the gear ratio of different components, speed conversion and torque amplification can be achieved between the input and output ends. Generally, when the number of Planet Gears increases or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed decreases.
In high-precision applications, to ensure accurate position control and minimum mechanical clearance, High Precision Planetary Gearbox adopts preload technology to reduce or eliminate the clearance between gears, i.e., "zero/low backlash" design.
One of the significant advantages of the planetary gear mechanism is that it can evenly distribute the load among multiple Planet Gears, thereby increasing the load-bearing capacity and stability of the entire system and optimizing the dynamic response performance.
| Considerations | Explanations |
|---|---|
| Application requirements | Different applications have different requirements for torque, speed, precision, and efficiency. |
| Environmental factors | The operating environment, such as temperature, humidity, and dust, affects the performance and service life of the gearbox. |
| Mounting and installation | The gearbox needs to be mounted and installed correctly to ensure its stable operation and avoid damage. |
| Compatibility with other components | The gearbox needs to be compatible with other components, such as motors, sensors, and controllers, in the system. |
| Cost and budget | The cost of the gearbox and the budget of the project need to be considered and balanced. |
High Precision Planetary Gearbox is used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, feed mechanisms for precision machine tools, and semiconductor manufacturing equipment.
High Precision Planetary Gearbox is used in high-end medical devices, such as CT scanners, MRI machines, surgical robots, for accurate motion control and torque amplification.
High Precision Planetary Gearbox is used in aircraft landing gear systems, flight control system actuators, satellite attitude adjustment devices, and other high-reliability and high-precision applications.
High Precision Planetary Gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission accuracy.
High Precision Planetary Gearbox is used in power steering systems of new energy vehicles, drive units of electric vehicles, and transmission systems of high-performance racing cars.
High Precision Planetary Gearbox is used in joint transmission parts of industrial robots, service robots, and special operation robots.
High Precision Planetary Gearbox is used in material handling systems, such as lifts in automated storage systems, conveyor drive units, and AGVs (automated guided vehicles).
We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We specialize in researching, developing, manufacturing, and selling high-quality products that meet international standards. We operate strictly according to the international quality management system standard ISO9001: 2015 and have obtained the mandatory CCC certification in China and the CE certification of the European Union.
