TRH060 Series High Precision Planetary Gearbox Right Angle Reducer

TRH060 Series High Precision Planetary Gearbox Right Angle Reducer Overview

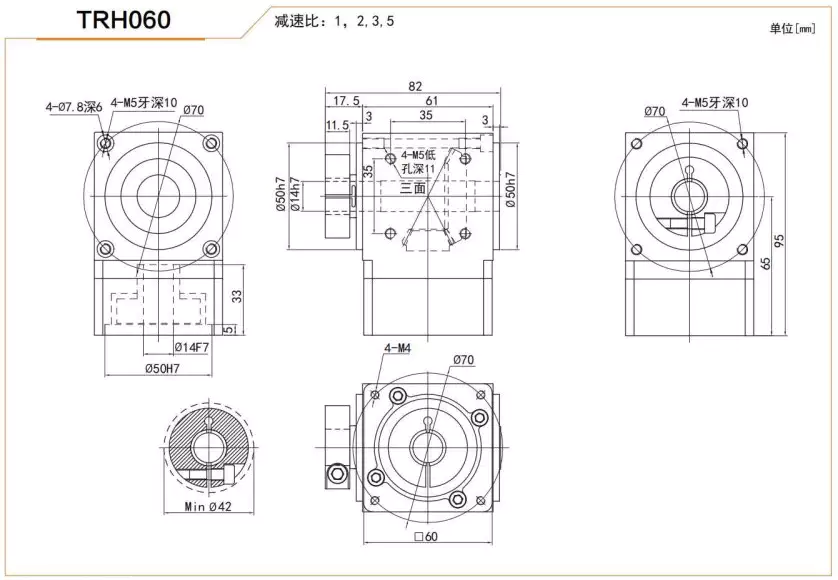

TRH060 Series High Precision Planetary Gearbox Right Angle Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox used to control the speed and movement of machinery. It consists of a system of gears that work together to provide precision movement in various industrial applications. Below is an image of the TRH060 Series High Precision Planetary Gearbox Right Angle Reducer:

High Precision Planetary Gearbox Basic Construction

The High Precision Planetary Gearbox consists of the following components:

• Sun Gear: The central gear that is usually connected to the input shaft or fixed to the housing as a stationary component.
• Planet Gears: Gears that surround the sun gear, rotate around it and are supported and held in relative position to each other by the planetary carrier. Each planet gear meshes with the sun gear and the ring gear/annulus, and they all share and distribute the load when power is input.
• Planet Carrier: A structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate around the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: A large diameter circular gear fixed inside the housing, with teeth on both inner and outer surfaces that mesh with the planet gears.
• Bearings and Shaft System: Bearings used to support the input and output shafts, as well as the planetary carrier to ensure stable rotation and smooth operation of all components in the High Precision Planetary Gearbox.
• Housing and Seals: The housing is the external frame of the entire gearbox that protects the internal components from the external environment and provides mounting interfaces. Seals ensure that internal lubricants do not leak and prevent dust and water from entering the gearbox.

Below is an image of the construction of a High Precision Planetary Gearbox:

High Precision Planetary Gearbox Working Principle

The High Precision Planetary Gearbox works as follows:

• Torque Transmission: When power is input to the sun gear, it drives the planet gears around it. Since the planet gears mesh with both the sun gear and the ring gear/annulus, they rotate on their own axis while revolving around the center of the sun gear with the planetary carrier. Thus, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.
• Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, the High Precision Planetary Gearbox can achieve speed conversion and torque amplification between the input and output. Generally, the more planet gears or the higher the gear ratio, the more significant the torque amplification effect, but the output speed decreases at the same time.
• Low Backlash Design: In high-precision applications, the High Precision Planetary Gearbox uses preload technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design, to ensure accurate position control and minimize mechanical clearance.
• Load Distribution and Dynamic Response: One of the significant advantages of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load-bearing capacity and stability of the entire system and optimizing dynamic response performance.

Below is an image of the servo motor planetary gearbox:

High Precision Planetary Gearbox Design and Selection Considerations

The design and selection considerations for High Precision Planetary Gearbox include:

High Precision Planetary Gearbox Applications

The High Precision Planetary Gearbox has a variety of applications, including:

• Servo Motor Systems: Used for precise speed control and positioning in industrial automation equipment such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, and more.
• Medical Devices: Used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, and more to achieve precise motion control and torque amplification.
• Aerospace: Used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, and more that require high reliability and precision.
• Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, and other applications that require high transmission precision.
• Automotive Manufacturing: Used in power steering systems for new energy vehicles, drive units for electric vehicles, transmission systems for high-performance racing cars, and more.
• Robotics: Used in joint drive parts for industrial robots, service robots, and special operation robots.
• Logistics Automation: Used in automatic storage systems such as lifts, conveyor drive, and AGV (automated guided vehicle).

About Our Company

Our company is a professional manufacturer of transmission equipment located in Ningbo, Zhejiang. We specialize in research and development, production, and sales of transmission products. Our products strictly adhere to the international quality management system standard ISO9001:2015, and they have passed China's compulsory CCC certification and European Union CE certification. Our products are manufactured according to international IC standards and have achieved the advanced level of similar products internationally. Below is an image of our servo motor planetary gearbox:

Our Company's Advantages

• Strict adherence to international quality management system standards
• Products that have passed China's compulsory CCC certification and European Union CE certification
• Manufacturing according to international IC standards
• Advanced level of similar products internationally
• Located in Ningbo, a hub of high-tech industry and innovation in China

Author: Miya
