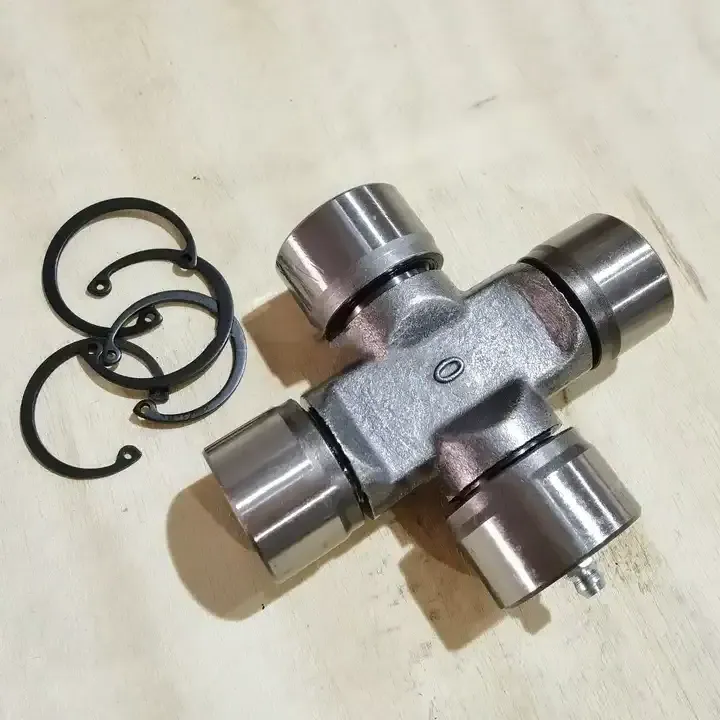

U joint driveshaft 36*89/32*106 Spare Parts for PTO SHAFT

[embed]https://youtu.be/ZJKf3gTO5_Q[/embed]The U joint driveshaft 36*89/32*106 Spare Parts are essential for your PTO SHAFT. With a warranty of 1 year, these parts are applicable across various industries including Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurants, and Retail, among others. They come with customized OEM support, are constructed as a single structure, and made from 20Cr material. They operate both clockwise and counter-clockwise, making them versatile for different applications.These spare parts boast a built-in circlip feature, and consist of a 20 Cr cross, 65 Mn rings, 20 Steel zerk, PE seal, 20 Cr cup, and a bearing steel needle. They come packaged in a white single box and have a size of 36WA 36*89/32*106.

PTO Shaft U joint Specifications

Model Number	36WA 36*89/32*106
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Features of Agricultural PTO Shaft Universal Joints

Agricultural PTO shaft universal joints, often referred to as U-joints, play a critical role in transferring power from a tractor to its implements. These U-joints allow the PTO shaft to transmit power at an angle, which makes it possible to accommodate the movement and alignment changes between the tractor and the implement. Here are some key features of agricultural PTO shaft U-joints:

• Flexibility in Motion: U-joints allow the PTO shaft to flex and bend while transmitting power. This flexibility accommodates the varying angles and movements between the tractor and the implement.
• Durability and Strength: U-joints are typically made from high-strength steel. They are designed to withstand the high torque and heavy loads that come with agricultural work.
• Lubrication System: Most agricultural U-joints have grease fittings for regular lubrication, which is essential for maintaining their functionality and extending their lifespan.
• Compatibility and Standardization: U-joints are designed to fit standard PTO spline sizes. This ensures compatibility with a wide range of tractors and implements.
• Safety Features: Some U-joints incorporate safety features such as a shear pin or a breakaway clutch. These features protect the tractor and implement from damage if the PTO shaft encounters excessive resistance.
• Ease of Connection and Disconnection: U-joints often feature designs that allow for quick and easy coupling and uncoupling, enhancing convenience and efficiency in changing implements.

At Raydafon Drive Shaft Co, Ltd, we produce these agricultural PTO shaft universal joints, providing a perfect replacement for damaged PTO shaft parts.

Applications of Agricultural PTO Shaft Universal Joints

Agricultural PTO shaft U-joints find wide usage in various applications within the agricultural industry. Here are some common applications where PTO shaft U-joints are utilized:

• Power Transmission to Implements: The primary application of PTO shaft U-joints is transmitting power from the tractor's PTO to various implements. These implements can include rotary mowers, hay balers, tillers, seeders, sprayers, and many other tools. The U-joints allow for a smooth transfer of rotational power, enabling the implements to perform their intended functions effectively.
• Mowing and Cutting Operations: Agricultural PTO shaft U-joints are commonly used in mowing and cutting operations. These operations can include mowing grass, cutting crops, shredding vegetation, and maintaining pastures. The U-joints connect the tractor's PTO to rotary cutters, flail mowers, and other cutting implements, allowing for efficient and precise cutting action.
• Harvesting and Forage Operations: PTO shaft U-joints play a key role in harvesting and forage operations. They are used in equipment such as combine harvesters, forage harvesters, and balers. These U-joints facilitate the transfer of power between the tractor and the harvesting equipment, allowing for efficient crop harvesting, forage processing, and baling.
• Soil Preparation and Tillage: Agricultural PTO shaft U-joints are commonly employed in soil preparation and tillage tasks. They connect the tractor's PTO to implements like plows, disc harrows, cultivators, and rotary tillers. The U-joints ensure the smooth transmission of power, enabling the implements to break up soil, mix amendments, and prepare seedbeds for planting.
• Seeding and Planting Operations: PTO shaft U-joints are used in seeding and planting operations. They connect the tractor's PTO to seeders, planters, and transplanters. These U-joints facilitate the transfer of power required for accurate seed or plant placement, ensuring proper spacing and depth for optimal crop establishment.
• Spraying and Fertilizing Applications: Agricultural PTO shaft U-joints are used in equipment involved in spraying and fertilizing operations. They connect the tractor's PTO to sprayers, fertilizer spreaders, and other similar implements. The U-joints enable the efficient transfer of power, allowing for the precise application of pesticides, herbicides, fertilizers, and other agrochemicals.

How to Replace Universal Joint on PTO Shaft

Replacing a universal joint on a PTO shaft requires careful attention and adherence to safety procedures. Here's a general guide on how to replace a universal joint on a PTO shaft:

1. Ensure Safety: Before starting any work, ensure that the tractor is turned off and the PTO shaft is disengaged. Engage the parking brake and chock the wheels to prevent any accidental movement.
2. Access the Universal Joint: Locate the universal joint on the PTO shaft that needs to be replaced. It is typically situated at the connection point between the tractor's PTO and the implement.
3. Remove Retaining Clips or Bolts: Depending on the design of the universal joint, it may be held in place by retaining clips or bolts. Use the appropriate tools to remove these fasteners and set them aside carefully.
4. Separate the Yokes: Once the retaining clips or bolts are removed, you can separate the yokes of the universal joint. This may require tapping the yokes gently with a rubber mallet or using a suitable tool to pry them apart.
5. Remove the Old Universal Joint: With the yokes separated, the old universal joint should be free to remove. Take note of its orientation for proper installation of the new joint.
6. Clean and Inspect: Before installing the new universal joint, thoroughly clean the yokes and other components to remove any dirt, debris, or old grease. Inspect the yokes and the PTO shaft for any signs of damage or wear that may require further attention.
7. Install the New Universal Joint: Take the new universal joint and align the yokes with the corresponding slots. Ensure that the joint is oriented correctly, matching the old joint's position. Carefully press or tap the joint into place until it is fully seated in the yokes.
8. Test the PTO Shaft: After replacing the universal joint, carefully reassemble the PTO shaft and engage the PTO. Rotate the shaft manually to ensure that the joint operates smoothly and without any unusual noises or vibrations.

How to Install U Joint to Tractor PTO Shaft

Installing a universal joint (U-joint) to a tractor's Power Take-Off (PTO) shaft is an important maintenance task. Here's a guide on how to install a U-joint to a tractor PTO shaft:

1. Select the Correct U-joint: Ensure that you have the correct U-joint that matches the specifications of your tractor's PTO shaft. Consider factors such as the shaft diameter, yoke size, and joint type for compatibility.
2. Prepare the PTO Shaft: Thoroughly clean the PTO shaft and yokes to remove any dirt, debris, or old grease. Inspect the shaft for any signs of damage or wear that may require further attention. Ensure that the shaft is properly aligned and straight.
3. Lubricate the U-joint: Apply grease or lubricant to the U-joint and its bearings for smooth operation and longevity of the joint.
4. Align the Yokes: Take the U-joint and align the yokes with the corresponding slots on the PTO shaft. Ensure that the joint is oriented correctly, matching the direction of the PTO rotation and the yoke positions.
5. Insert the U-joint: Carefully insert the U-joint into the yokes, ensuring that the bearings are properly seated. Apply gentle pressure to push the joint into place until it is fully inserted.
6. Secure the U-joint: Once the U-joint is inserted, secure it in place using the retaining clips or bolts provided with the U-joint.
7. Test the PTO Shaft: After installing the U-joint, rotate the PTO shaft manually to ensure that the joint operates smoothly and without any unusual noises or vibrations. Check for proper engagement and disengagement of the PTO.

Maintenance and Care of Agricultural PTO Shaft Universal Joints

Maintaining agricultural Power Take-Off (PTO) shaft universal joints (U-joints) is crucial for the efficient and safe operation of farm machinery. Here is a guide on how to maintain PTO shaft U-joints:

• Regular Inspection: Regularly inspect the U-joint for signs of wear, rust, or damage. Pay special attention to the condition of the bearing caps and the cross. Check for any play or wobbling in the U-joint, which can indicate wear or damage.
• Lubrication: U-joints typically have grease fittings for lubrication. Use a grease gun to apply grease until it begins to seep out from the seals of the bearing caps. Use a high-quality grease that's suitable for agricultural equipment. It should be thick enough to withstand heavy loads and protect against moisture and dirt.

• Cleaning: Keep the U-joint area free from dirt, debris, and excess grease, as these can attract more dirt and lead to premature wear. Clean off any rust and apply a rust inhibitor if the U-joint is exposed to harsh conditions.
• Tightening and Adjustments: Ensure that all bolts and fasteners related to the U-joint and PTO shaft are tightened to the correct specifications. Make sure the U-joint is properly aligned with the PTO shaft and the implement??s input shaft.
• Use and Operational Practices: Do not exceed the recommended torque limits of the PTO shaft and U-joint. Ensure the PTO shaft is the correct length and the operating angles are within recommended limits to avoid excessive strain on the U-joint.
• Storage: When not in use, store the PTO shaft in a dry and clean environment to prevent rust and corrosion. Always ensure the tractor is turned off and the PTO is disengaged before performing any maintenance.

Why Choose Raydafon's PTO Shaft U Joints?

At Raydafon Drive Shaft Co., Ltd, we are committed to delivering high-quality PTO shaft U-joints. Based in Ningbo Zhejiang City, our company is conveniently located two hours from the Pudong Airport and one hour from the Xiaoshan Airport & the East of Ningbo Station. We cover more than 12,000 m2 and have a dedicated team of over 100 staff members. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft yokes, PTO shaft tubes, PTO shaft torque limiters, PTO shaft universal joints, PTO shaft safety shield, PTO shaft safety pin, industrial cardan shafts, car driveshafts, and u-joint coupling shafts, among others.Our annual turnover is 60 million RMB, 9 Million Dollars, and it is increasing year by year. Our products have gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. We insist on our principles: Quality first, Delivery quickly, and price competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in our product range, we continue our activities with the aim of becoming a global company in the fields we work.Author: Yjx
