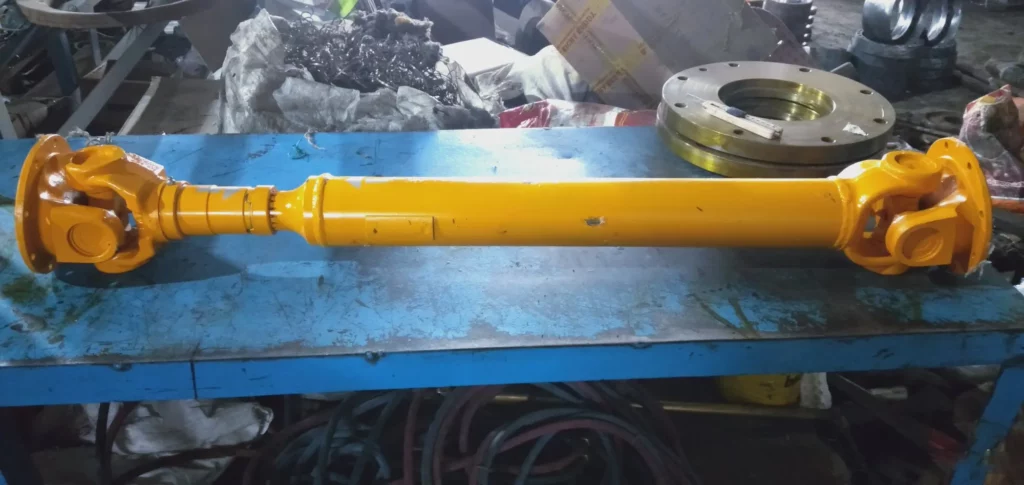

Universal Cardan Drive Shaft SWC-I-315BH for Crusher

Universal Cardan Drive Shaft SWC-I-315BH for Crusher

SWC-I-315BH medium-sized cardan drive shafts are mainly used in steel rolling mills, piercing machines, straightening machines, crushers and ship drives and other mechanical use occasions, is a widely used universal shaft product series. Its flange diameter is 160-620mm, transmitting a rated torque range of 16-1000kN.m, and the axis folding angle is 15°.Crusher cardan drive shafts use the characteristics of its mechanism so that the two shafts are not on the same axis; the existence of the axis of the case of the angle of the cardan drive shafts can realize the two shafts connected to the continuous rotation and reliable transmission of torque and movement. Medium-sized cardan drive shafts are characterized by compact structure, high transmission torque, long service life, and the ability to be used for a long period of time under poor working conditions.

Crusher Cardan Drive Shaft SWC-I-315BH Dimensions

Crusher Cardan Drive Shaft SWC-I-315BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC315BH	315	125	63	≤15	140	1315	280	185	219	180	10-23	32	8	40	15	3.605	0.0795	382	8

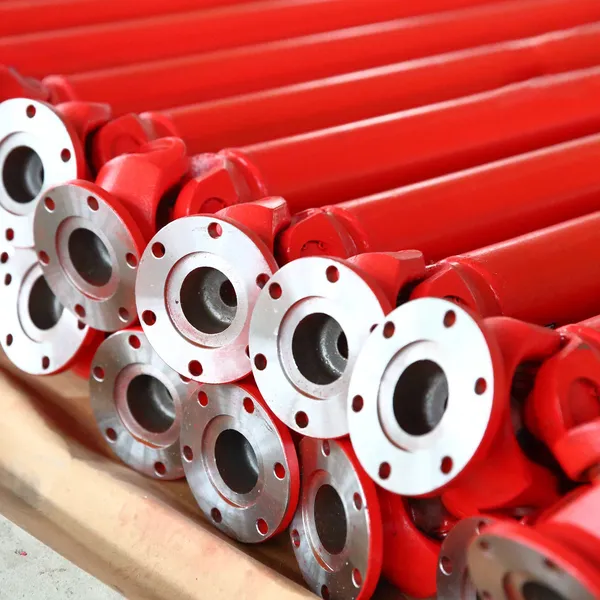

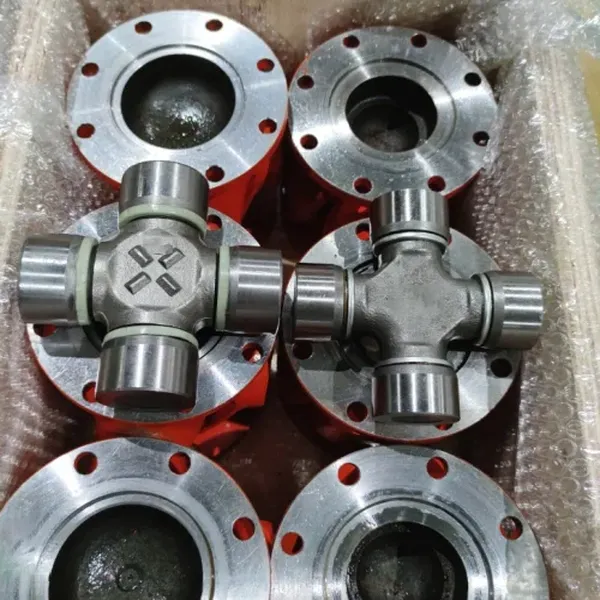

Benefits of the Cardan Drive Shaft SWC-I-315BH for Crusher

The Cardan drive shaft SWC-I-315BH offers several benefits for crushers. Here are some of the advantages it provides:1. Efficient Power Transmission: The Cardan drive shaft efficiently transmits power from the engine or motor to the crusher's crushing mechanism. It ensures minimal power loss during the transmission process, allowing for more efficient operation of the crusher. This efficient power transmission helps maximize the crusher's productivity and overall performance.2. Flexibility and Misalignment Compensation: The Cardan joint design in the SWC-I-315BH drive shaft allows for flexible operation and compensates for angular misalignments between the engine and the crusher's crushing mechanism. It can accommodate slight variations in alignment, which can occur due to machine vibrations, uneven surfaces, or changes in operating conditions. This flexibility helps reduce stress on the drive shaft and other connected components, minimizing the risk of premature wear or failure.3. Smooth Operation: The Cardan joint design also helps in achieving smooth operation of the crusher. It effectively absorbs and reduces vibrations and shocks generated during the crushing process. This smooth operation not only enhances the overall performance of the crusher but also reduces wear and tear on the drive shaft and other components, extending their lifespan and reducing maintenance requirements.4. High Load Capacity: The SWC-I-315BH drive shaft is designed to handle heavy loads commonly encountered in crusher applications. It is constructed using high-strength materials that can withstand the demanding forces and torque requirements of the crushing process. This high load capacity ensures reliable and uninterrupted power transmission, even under extreme operating conditions.5. Durability and Longevity: The drive shaft's robust construction and high-quality materials contribute to its durability and longevity. It is designed to withstand the harsh operating environments and heavy-duty applications typically associated with crushers. By providing a reliable and long-lasting power transmission solution, the SWC-I-315BH drive shaft helps minimize downtime and maintenance costs.6. Safety: The Cardan drive shaft SWC-I-315BH, when properly installed and guarded, enhances safety in crusher operations. It helps ensure the smooth and reliable transfer of power, reducing the likelihood of sudden failures or accidents. Proper maintenance and inspection of the drive shaft also contribute to a safer working environment.

Applications of the Cardan Drive Shaft SWC-I-315BH for Crusher

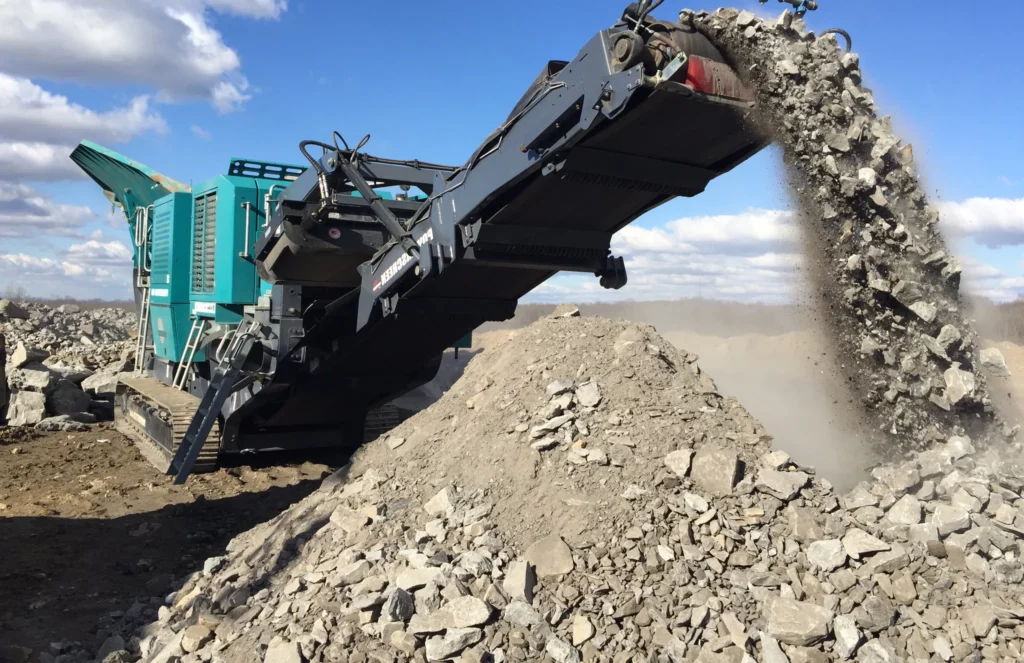

The Cardan drive shaft SWC-I-315BH is primarily used in crushers for various applications involving the crushing and processing of materials. Here are some specific applications where the drive shaft is commonly utilized:(1) Stone Crushing: In stone crushers, the Cardan drive shaft SWC-I-315BH helps transmit power from the engine or motor to the crushing mechanism. It enables the crusher to break down large stones into smaller pieces, facilitating the production of aggregates used in construction, road building, and other applications.(2) Ore Crushing: Crushers used in mining and mineral processing operations often employ the SWC-I-315BH drive shaft. It enables the crushers to effectively crush and grind ores, including coal, iron ore, copper ore, gold ore, and other minerals. The drive shaft plays a crucial role in transmitting the required power and torque to the crushing equipment.(3) Recycling and Waste Management: Crushers used in recycling plants and waste management facilities utilize the Cardan drive shaft SWC-I-315BH to process and crush various materials. These may include recycled materials like concrete, asphalt, and demolition waste, as well as other waste products. The drive shaft enables efficient power transmission for effective material reduction and recycling.(4) Quarrying and Aggregate Production: The drive shaft is commonly employed in crushers used in quarrying operations and aggregate production facilities. It helps crush and process various types of rocks, including limestone, granite, sandstone, and more. The SWC-I-315BH drive shaft ensures reliable and efficient power transmission for optimal crushing performance.(5) Industrial Applications: Crushers are utilized in various industrial sectors for diverse applications. For example, in the cement industry, crushers are used to crush raw materials such as limestone and clay before they undergo further processing. The Cardan drive shaft SWC-I-315BH facilitates the power transmission required for these industrial crushing operations.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturingvarious series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
