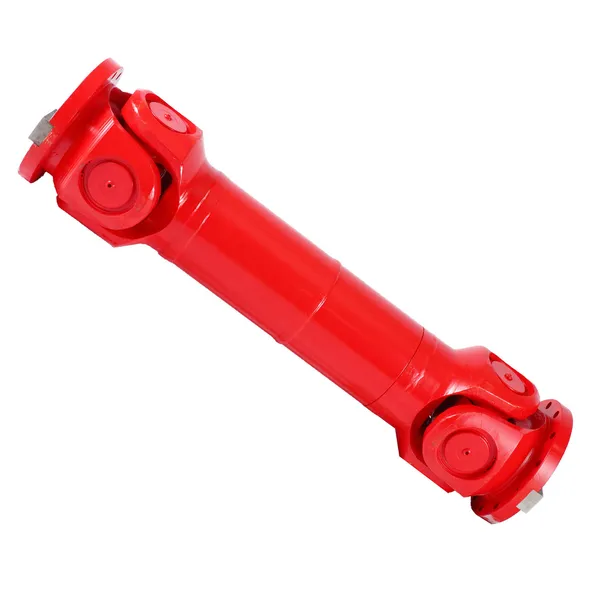

Universal Cardan Drive Shaft SWC180BH for Sand Making Machine

Universal Cardan Drive Shaft SWC180BH for Sand Making Machine

The cardan drive shaft SWC180BH is a crucial component used in sand making machines. It plays a significant role in transmitting power from the motor to other parts of the machine, enabling the efficient operation of the sand-making process.The universal cardan drive shaft is a mechanical device that transfers torque and rotation between two non-aligned shafts. Its design incorporates a series of universal joints, which are flexible couplings that allow for angular misalignment between the input and output shafts. This flexibility is essential in sand making machines, where various components may be positioned at different angles or in non-parallel orientations.The SWC180BH cardan drive shaft is specifically designed for sand making machines, taking into account the demanding operating conditions and power requirements of this application. It features a sturdy construction, using high-quality materials to ensure durability and withstand the harsh environment often encountered in sand production.The SWC180BH model typically includes a flange connection on one end to attach it to the motor or power source, while the other end is designed to connect with the driven components within the sand making machine. The universal joints within the shaft allow for smooth power transmission, even when there are slight misalignments or fluctuations in torque. By utilizing the universal shaft SWC180BH, sand making machines can effectively transfer power from the motor to the various components involved in the sand production process. This helps ensure smooth and efficient operation, reducing downtime and maximizing productivity.

Sand Making Machine Cardan Drive Shaft SWC180BH Dimensions

Sand Making Machine Cardan Drive Shaft SWC180BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC180BH	180	20	10	≤25	100	810	155	105	114	130	8-17	17	5	24	14	0.175	0.007	70	2.8

Advantages of the Cardan Drive Shaft SWC180BH for Sand Making Machine

The Cardan Drive Shaft SWC180BH offers several advantages for sand making machines. Here are some of the key benefits:1. Power transmission efficiency: The Cardan Drive Shaft SWC180BH efficiently transfers power from the motor to the driven components of the sand making machine. Its design minimizes power loss during transmission, ensuring that a high percentage of the input power is effectively utilized, leading to improved overall energy efficiency.2. Flexibility and angular misalignment compensation: Sand making machines often have components positioned at different angles or in non-parallel orientations. The universal joints in the Cardan Drive Shaft SWC180BH provide flexibility and compensate for angular misalignments between the input and output shafts. This allows for smooth power transmission even in situations where misalignment occurs, reducing stress on the components and increasing the lifespan of the equipment.3. Increased durability and reliability: The SWC180BH model is constructed using high-quality materials and robust engineering. It is designed to withstand the demanding operating conditions encountered in sand production, including heavy loads, vibrations, and abrasive materials. The durable construction of the Cardan Drive Shaft ensures reliable and long-lasting performance, reducing the need for frequent repairs or replacements.4. Reduced maintenance requirements: With its sturdy design and ability to accommodate misalignments, the Cardan Drive Shaft SWC180BH minimizes the wear and tear on other components of the sand making machine. This results in reduced maintenance requirements and downtime, allowing for continuous and uninterrupted sand production.5. Versatility and compatibility: The Cardan Drive Shaft SWC180BH is designed to be compatible with a wide range of sand making machines. Its standardized dimensions and flange connections make it easy to integrate into different equipment configurations. This versatility allows for seamless installation and replacement in existing sand making machines, providing a cost-effective solution for equipment upgrades or repairs.

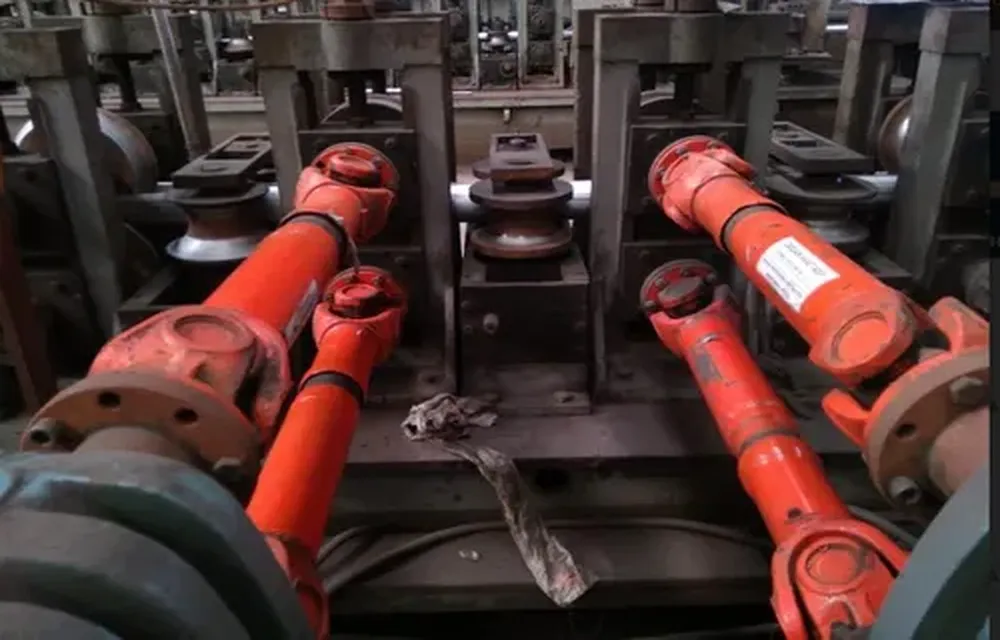

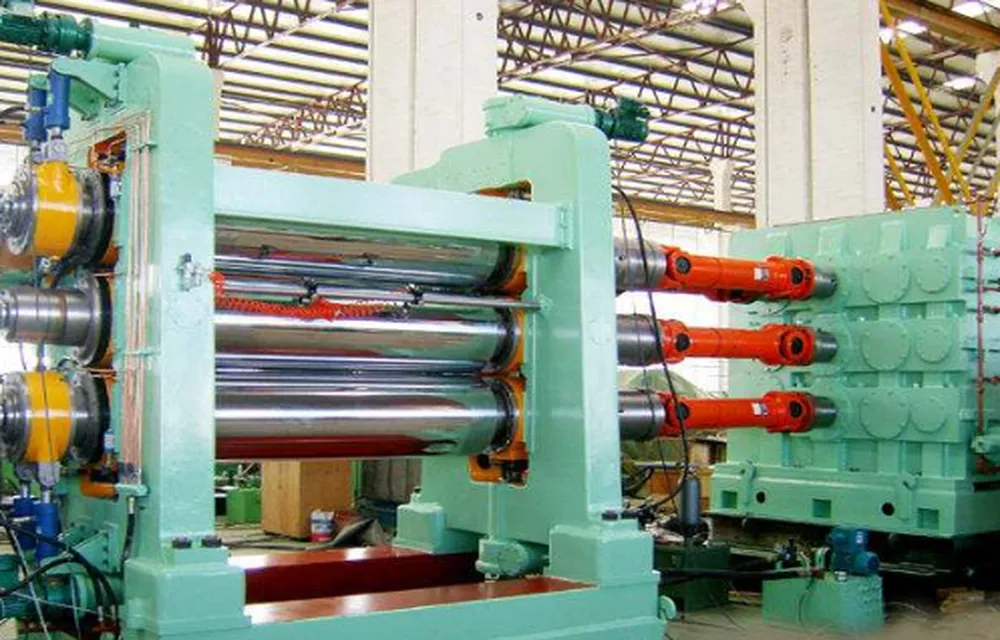

Working Principle of Cardan Drive Shaft for Sand Making Machine

The working principle of a Cardan drive shaft for a sand making machine is based on the concept of transmitting rotational power from the motor to the driven components while accommodating angular misalignments between the input and output shafts. Here's a breakdown of the working principle:(1) Input Power: The Cardan drive shaft is connected to the motor or power source of the sand making machine. The motor generates rotational power that needs to be transferred to the driven components, such as the rotor or conveyor system.(2) Universal Joints: The Cardan drive shaft consists of a series of universal joints, which are flexible couplings that allow for angular misalignments. Each universal joint consists of two yokes connected by a cross-shaped bearing assembly. The yokes are connected to the input and output shafts of the drive shaft.(3) Angular Misalignment Compensation: As the motor rotates, it transfers rotational power to the input shaft of the Cardan drive shaft. The universal joints in the drive shaft allow for angular misalignments between the input and output shafts. This means that even if the shafts are not perfectly aligned or are at different angles, the drive shaft can still transmit power smoothly.(4) Power Transmission: As the motor rotates the input shaft, the universal joints enable the rotational power to be transmitted to the output shaft. The rotational motion is transferred through the bearing assembly of each universal joint, which allows for the necessary flexibility to accommodate misalignments.(5) Driven Components: The output shaft of the Cardan drive shaft is connected to the driven components of the sand making machine, such as the rotor or conveyor system. The rotational power from the input shaft is effectively transmitted to these components, enabling their operation.

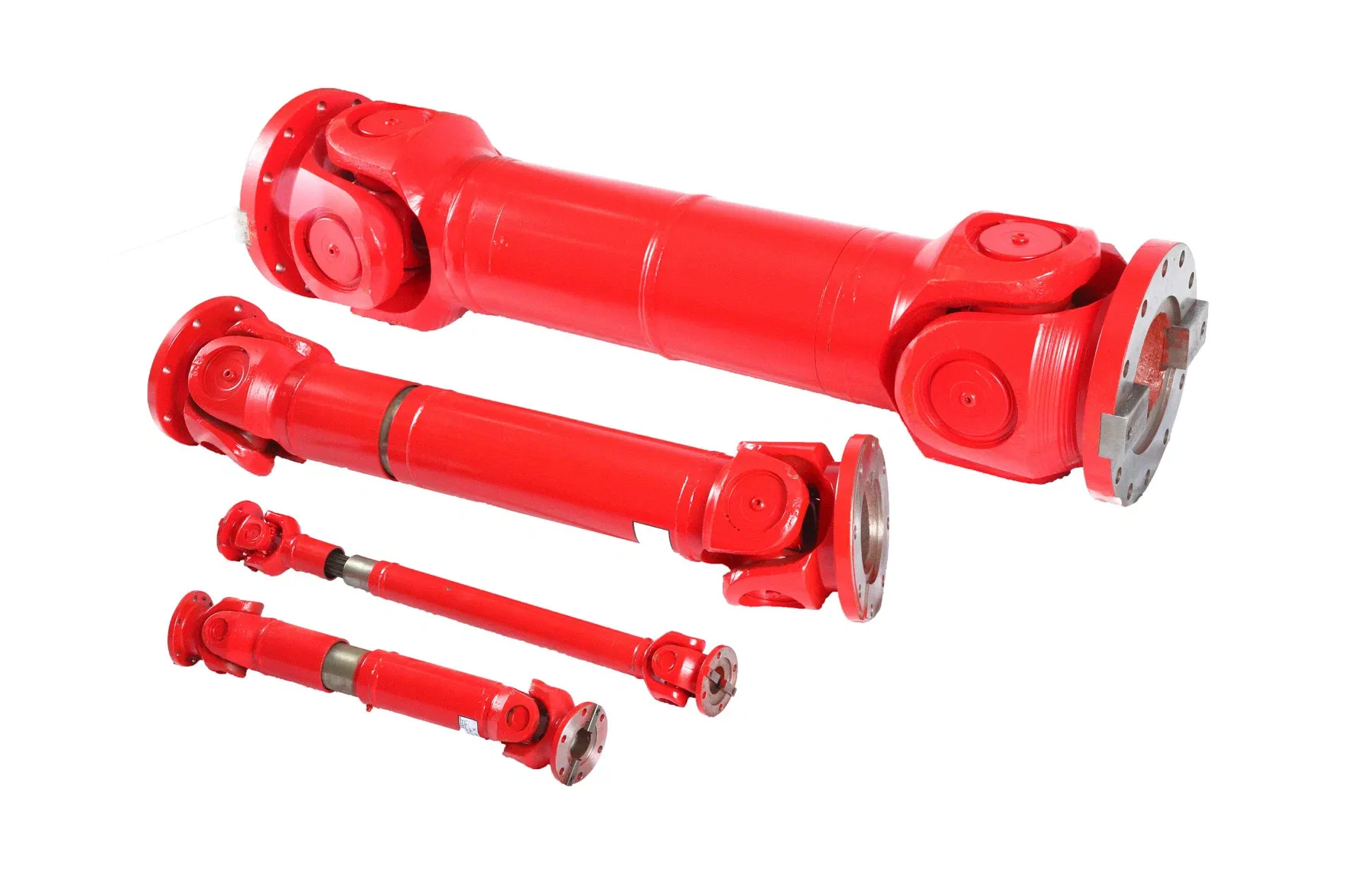

Maintenance Tips of Cardan Drive Shaft SWC180BH for Sand Making Machine

Proper maintenance of the Cardan Drive Shaft SWC180BH is essential to ensure its optimal performance and longevity in a sand making machine. Here are some maintenance tips to consider:

• Regular Inspection: Perform regular visual inspections of the Cardan Drive Shaft to check for any signs of damage, wear, or misalignment. Look for cracks, corrosion, loose bolts, or any abnormal movement in the universal joints. Address any issues promptly to prevent further damage.
• Lubrication: Ensure proper lubrication of the universal joints and other moving parts of the Cardan Drive Shaft. Follow the manufacturer's recommendations for the type of lubricant to use and the maintenance schedule. Regularly check the lubrication levels and replenish as necessary.
• Cleanliness: Keep the Cardan Drive Shaft and its surrounding area clean from dirt, dust, and debris. Regularly remove any accumulated particles that may affect the smooth operation of the drive shaft.
• Alignment: Check the alignment of the Cardan Drive Shaft with the motor and driven components of the sand making machine. Misalignment can cause excessive stress and premature wear on the drive shaft. If misalignment is detected, take corrective measures to realign the components properly.
• Torque Check: Periodically check the torque of the bolts, flanges, and connections of the Cardan Drive Shaft. Loose bolts can lead to misalignment and compromised performance. Ensure that all connections are tightened to the manufacturer's recommended torque specifications.
• Vibration Monitoring: Monitor vibrations during the operation of the sand making machine. Excessive vibrations can indicate issues with the Cardan Drive Shaft or other components. If abnormal vibrations are observed, investigate and address the root cause to prevent further damage.

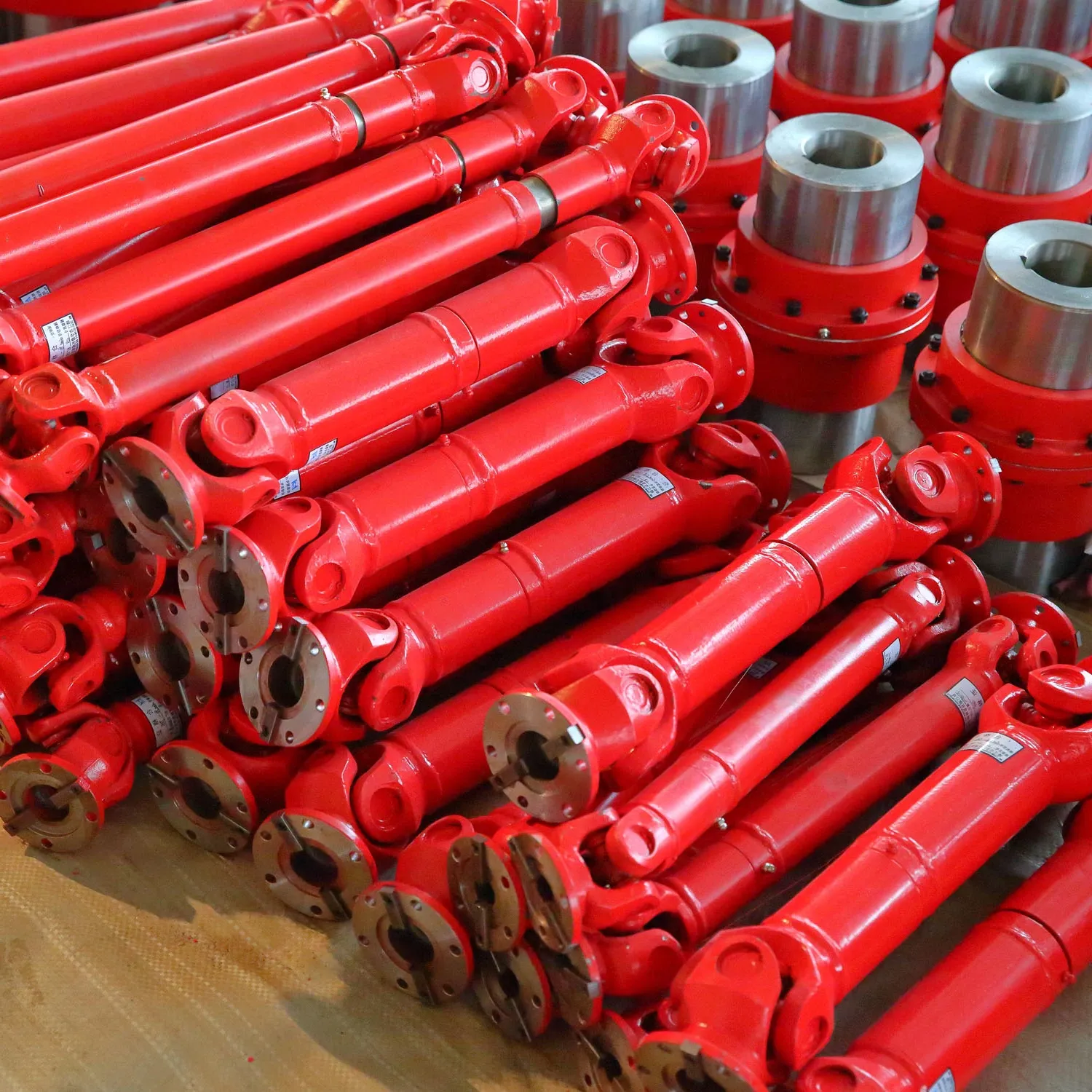

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturingvarious series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
