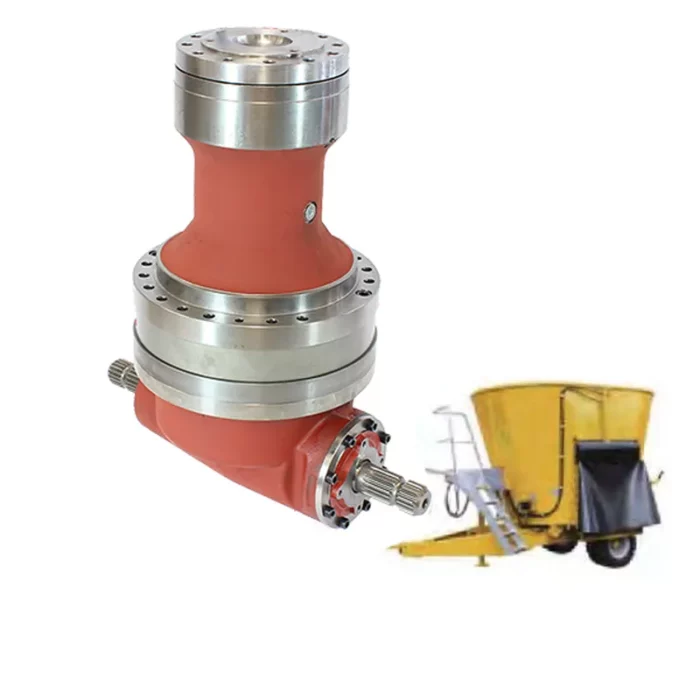

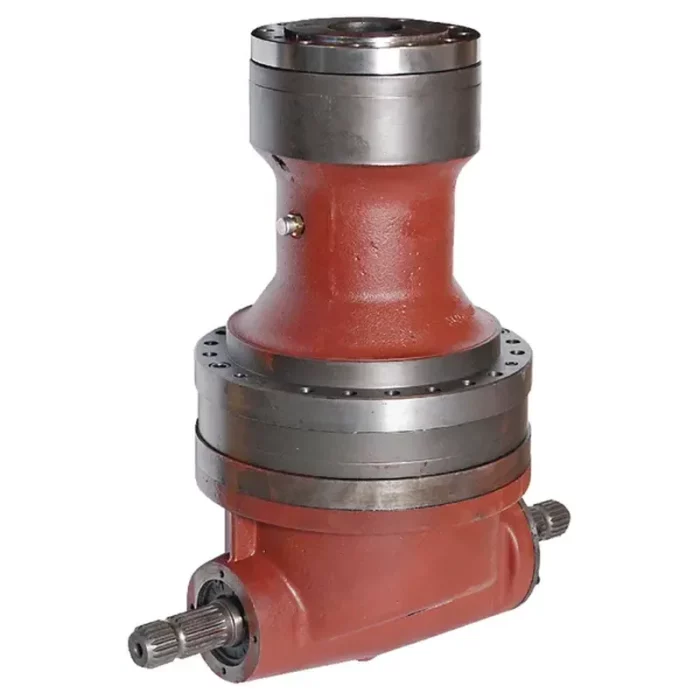

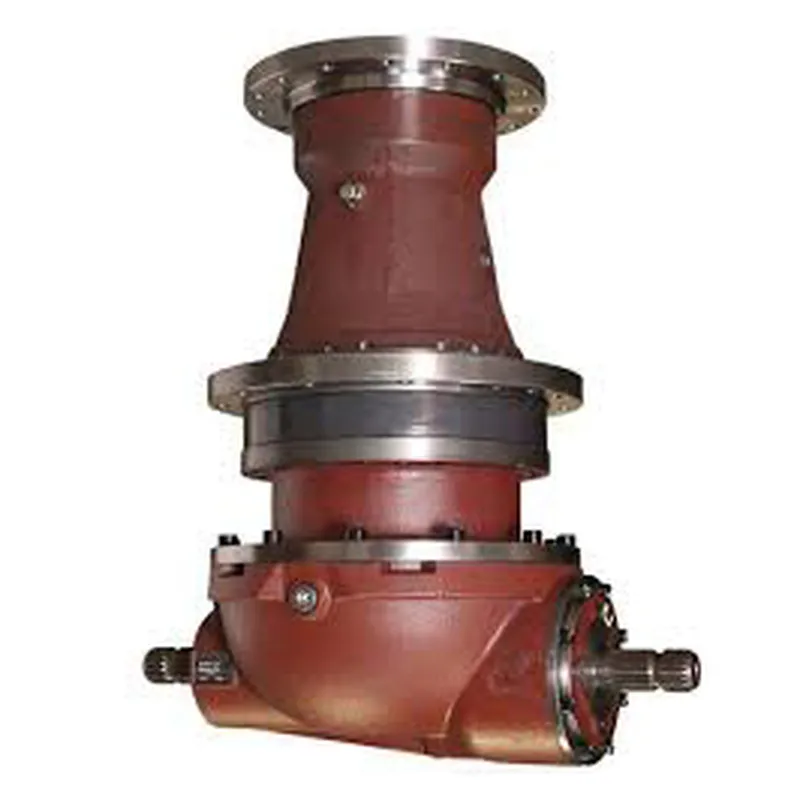

Vertical Feed Mixer Gearbox-Replacement of Comer PGA1202VM Gearbox

The Vertical Feed Mixer Gearbox Replacement for the Replacement of Comer PGA1202VM gearbox is a specialized mechanical component designed to transmit the rotational power from a tractor’s engine to a vertical feed mixer. This gearbox is an essential part of agricultural machinery used for mixing various feed components into a homogeneous animal feed. It harnesses the power provided by the tractor's PTO shaft, which typically operates at speeds of 540 or 1000 RPM, and adjusts this power to the optimal speed and torque needed for the mixing process.This replacement gearbox is engineered to withstand the rigorous conditions of feed mixing, featuring robust construction and high-quality materials that resist wear and tear. It usually comes with a similar or improved gear ratio, allowing for optimal torque and speed that match or exceed the original specifications. Additionally, the gearbox is often equipped with reinforced bearings and seals to enhance durability and prevent leaks, which are crucial for maintaining consistent operation in dusty and moist environments typical of agricultural settings.

Product Specifications:

Product Description	Vertical Feed Mixer Gearbox-Replacement of Comer PGA1202VM Gearbox
Details	Has a special bearing complete where the screw spindle can be directly connected.
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, oil change is after 50-70 operating hours, then after 500-700 operating hours, or at least once a year.
Application range	Mixing wagon Suitable for: Single mixer 10–14 cubic metres Double mixer 16–24 cubic metres
Benefits	No separate bearing completely required for the winch
Consists of	Gearbox Order oil separately
Contains oil	No

Advantages of Using the Vertical Feed Mixer Gearbox PGA1202VM

Using a vertical feed mixer gearbox offers several advantages that enhance the efficiency and effectiveness of feed mixing operations in agriculture. Here are some key benefits:

1. Consistent and Uniform Mixing: The primary advantage of a vertical feed mixer gearbox is its ability to provide consistent and thorough mixing of feed ingredients. This results in a uniform mix, which is crucial for the nutritional consistency of the feed. Proper mixing ensures that animals receive a balanced diet with every bite, which can lead to better health and increased productivity.
2. High Efficiency: These gearboxes are designed to deliver high torque at low speeds, which is ideal for the heavy-duty mixing required in feed preparation. This design allows the mixer to handle large volumes of ingredients efficiently, reducing the time needed for each mixing session and saving energy.
3. Durability and Reliability: Vertical feed mixer gearboxes are built to withstand the demanding conditions of agricultural environments. They are typically made from high-strength materials that resist wear and corrosion. This durability ensures that the gearbox can operate reliably for extended periods, minimizing downtime due to repairs or replacements.
4. Ease of Maintenance: Many vertical feed mixer gearboxes are designed with maintenance in mind. They often feature simple construction that allows for easy access to internal components for cleaning, inspection, and repair. This ease of maintenance helps keep the gearbox in optimal condition and extends its lifespan.
5. Versatility: These gearboxes can be adapted to various mixer sizes and configurations, making them suitable for different farming operations, from small family farms to large commercial feed mills. This versatility ensures that farmers can find a gearbox that fits their specific needs.

Common Applications:

The vertical feed mixer gearbox is an integral component in various agricultural applications, particularly in enhancing the efficiency and effectiveness of feed processing operations. Here are some specific applications within the agricultural sector:

• Livestock Feed Preparation: The most common application of the vertical feed mixer gearbox is in the preparation of livestock feed. The gearbox powers mixers that blend different types of grains, additives, and supplements to create a homogeneous mixture. This ensures that livestock receive a balanced diet, which is crucial for their growth, health, and productivity.
• Dairy Farming: In dairy farming, consistent feed quality can significantly affect milk production. The vertical feed mixer gearbox helps in maintaining a consistent mix, which is essential for the health and productivity of dairy cows. A well-mixed feed helps in optimizing digestion and nutrient absorption, leading to better milk yield.
• Poultry Feed Mixing: Poultry feed often requires precise mixing of ingredients to maintain the health and growth rates of birds. The gearbox ensures that mixers can handle the specific textures and densities of poultry feed components, delivering a consistent product that supports optimal poultry health.
• Aquaculture Feed Production: Aquaculture relies heavily on well-mixed feed to ensure the health and growth of aquatic species. The vertical feed mixer gearbox can also be used in the production of fish feed pellets, where it ensures the thorough integration of various nutrients essential for aquatic life.
• Fertilizer Mixing: Beyond feed production, these gearboxes are also used in the mixing of fertilizers. They can handle the heavy-duty requirements of combining different fertilizer components into a uniform product. This uniformity is crucial for ensuring that crops receive a balanced nutrient supply.

Key Components of Tractor PTO Driven Vertical Feed Mixer Gearbox

A PTO (Power Take-Off) driven vertical feed mixer gearbox is crucial in agricultural machinery, designed to harness power from a tractor or similar vehicle to operate the mixer. Here are the key components of such a gearbox:

1. Housing: The housing encases all the internal components, providing structural support and protection. It's typically made from cast iron or steel, offering durability and resistance to wear under harsh operating conditions.
2. Input Shaft: The input shaft is connected to the tractor’s PTO. It transfers the rotational energy from the tractor to the gearbox. This shaft is engineered to withstand high torque and continuous operation.
3. Gears: The gears are the core components that transmit power from the input shaft to the output shaft at the desired speeds and torque. They are usually made from hardened steel for high strength and durability. The gear arrangement can vary, but helical gears are common for their smooth operation and high load capacity.
4. Bearings: Bearings support the rotational movement of the shafts while reducing friction. High-quality bearings ensure the gearbox operates smoothly and extend its lifespan by minimizing wear.
5. Output Shaft: The output shaft delivers the adjusted rotational power to the mixer. It is designed to fit securely with the mixer's drive system, ensuring efficient power transmission.
6. Seals and Gaskets: These components prevent lubricant leaks and keep contaminants out of the gearbox. Proper sealing is crucial for maintaining the efficiency of the gearbox and preventing premature wear

Working Principle:

The working principle of a tractor PTO (Power Take-Off) driven vertical feed mixer gearbox revolves around transferring and converting the power from the tractor engine to the mixer mechanism to efficiently mix feed or other materials. Here's how it typically works:

• Power Initiation: The process begins with the tractor's engine, which generates power. This power is accessed via the PTO shaft, a protruding component from the tractor that rotates when the engine runs.
• PTO Shaft Connection: The gearbox is connected to the tractor's PTO shaft. When engaged, the rotating motion of the PTO shaft is transmitted to the gearbox’s input shaft. This engagement is usually controlled by a lever in the tractor, allowing the operator to start or stop the transmission of power to the gearbox.
• Gear Transmission: Inside the gearbox, the rotational energy from the input shaft is transmitted to the gears. The type and arrangement of gears (such as helical, spur, or planetary) determine how this energy is modified in terms of speed and torque. Gearboxes can reduce speed while increasing torque, which is essential for heavy-duty mixing operations.
• Speed and Torque Adjustment: The gearbox’s primary function is to adjust the speed and torque of the power received from the tractor to the optimal levels required by the mixer. This adjustment is crucial because mixers need a specific speed to ensure thorough and efficient mixing without causing damage to the components or the materials being mixed.
• Output Shaft Power Delivery: After the gears modify the power, it is transferred to the output shaft. This shaft is connected to the mixing mechanism, which could be augers or paddles within the vertical feed mixer. The output shaft's rotation causes these mixing elements to rotate or move, thus mixing the feed.
• Mixing Process: The mixer utilizes the mechanical energy provided by the gearbox to combine various feed materials into a homogeneous mixture. The design of the mixer ensures that all parts of the mixture are reached and evenly blended.

Common Troubleshooting:

Troubleshooting a PTO driven vertical feed mixer gearbox involves diagnosing and resolving common issues that may impair its performance. Here’s a detailed guide on identifying and addressing these problems:

1. Insufficient Power Transmission: If the mixer appears to be receiving insufficient power, check the alignment and condition of the PTO shaft. Misalignment or wear can lead to inefficient power transfer. Ensure that the shaft is correctly connected and that there are no worn or damaged components that might need replacing.
2. Abnormal Noise or Vibration: Unusual noises or vibrations often indicate mechanical issues such as loose fittings, worn bearings, or damaged gears. Inspect the gearbox for any loose components and check the bearings and gears for signs of wear. Replacing worn parts and ensuring everything is tightly secured can often resolve these issues.
3. Overheating Gearbox: Overheating can be caused by inadequate lubrication or overloading the gearbox beyond its capacity. Ensure that the gearbox is properly filled with the correct type and amount of lubricant. Also, check for any blockages in the ventilation or cooling systems, and ensure the gearbox is not being overloaded by monitoring the mixer’s capacity usage.
4. Leakage of Lubricant: Leaks can lead to a drop in lubricant levels, affecting the gearbox’s operation. Inspect the seals and gaskets for any signs of wear or damage. Replace faulty seals to prevent further leakage. Also, ensure that all fittings are tight and the gearbox housing is intact without cracks.
5. Difficulty in Engaging or Disengaging: If the gearbox is hard to engage or disengage, this could be due to a malfunctioning clutch or linkage problems between the tractor and the gearbox. Check the clutch for wear and ensure it is properly adjusted. Inspect the linkage for proper operation and replace any worn or broken parts.
6. Inconsistent Mixing Performance: If the mixer fails to mix properly, the issue may be related to the gearbox’s output shaft or the mixing mechanism itself. Ensure the output shaft is delivering power effectively, and check the mixer paddles or augers for wear or misalignment. Adjustments or replacements might be needed to restore optimal mixing performance.

Choose the Right PTO Shaft for the Vertical Feed Mixer Gearbox

Choosing the right PTO (Power Take-Off) shaft for a vertical feed mixer gearbox is crucial for achieving optimal performance and ensuring long-term durability. Here are detailed considerations to guide you in selecting the appropriate PTO shaft:

• Determine the Required Power Rating: First, understand the power requirements of the feed mixer gearbox. Check the manual's specifications for the required horsepower and torque. The PTO shaft you choose must be capable of handling this power level without overloading.
• Match the Shaft Size to the Tractor and Gearbox: The PTO shaft must fit both the tractor’s PTO output and the gearbox's input. Measure the diameter and the number of splines on both the tractor output and the gearbox input to ensure compatibility. Getting the right size ensures efficient power transmission and reduces wear.
• Consider the Length of the Shaft: The length of the PTO shaft is critical for safe and efficient operation. It must be long enough to accommodate the distance between the tractor and the mixer but not so long that it poses a safety hazard or loses power. Check the operational length requirements when the tractor and mixer are in use, ensuring the shaft can extend and retract.
• Look for Safety Features: Safety is paramount when choosing a PTO shaft. Opt for shafts with protective shields to prevent accidents. Additionally, ensure it has features like a shear bolt or slip clutch which protect the gearbox and tractor from torque overloads by breaking or slipping under excessive load.
• Select the Right Type of Joints: The PTO shaft should have durable and flexible joints to accommodate angular and longitudinal movements between the tractor and mixer. Universal joints or constant velocity (CV) joints are commonly used. CV joints are preferable if the shaft angle between the tractor and the mixer varies significantly during operation.
