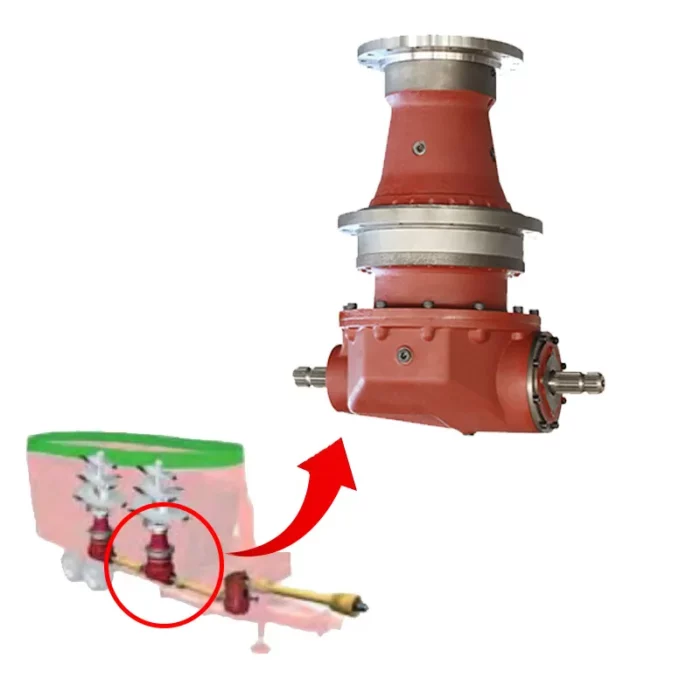

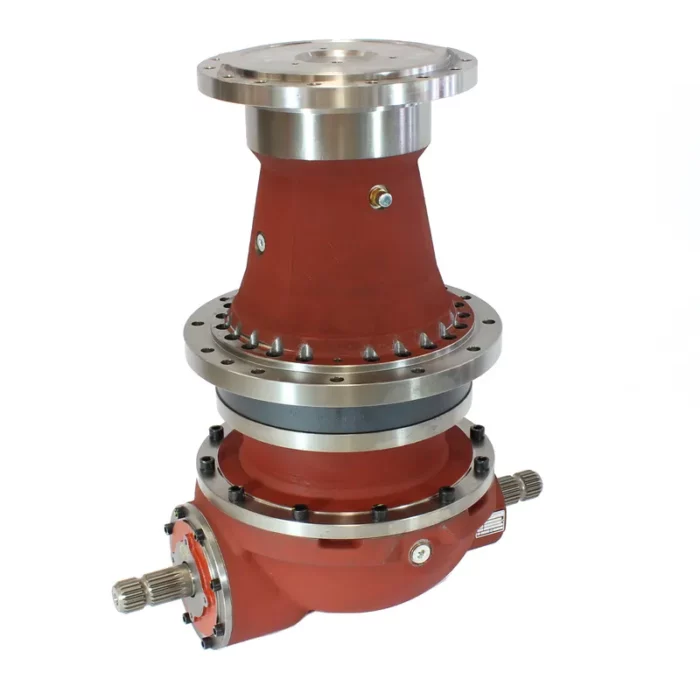

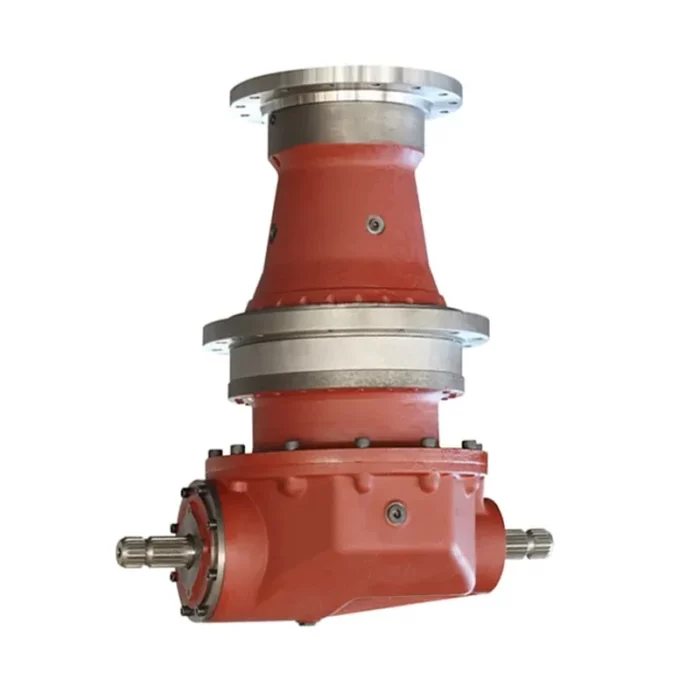

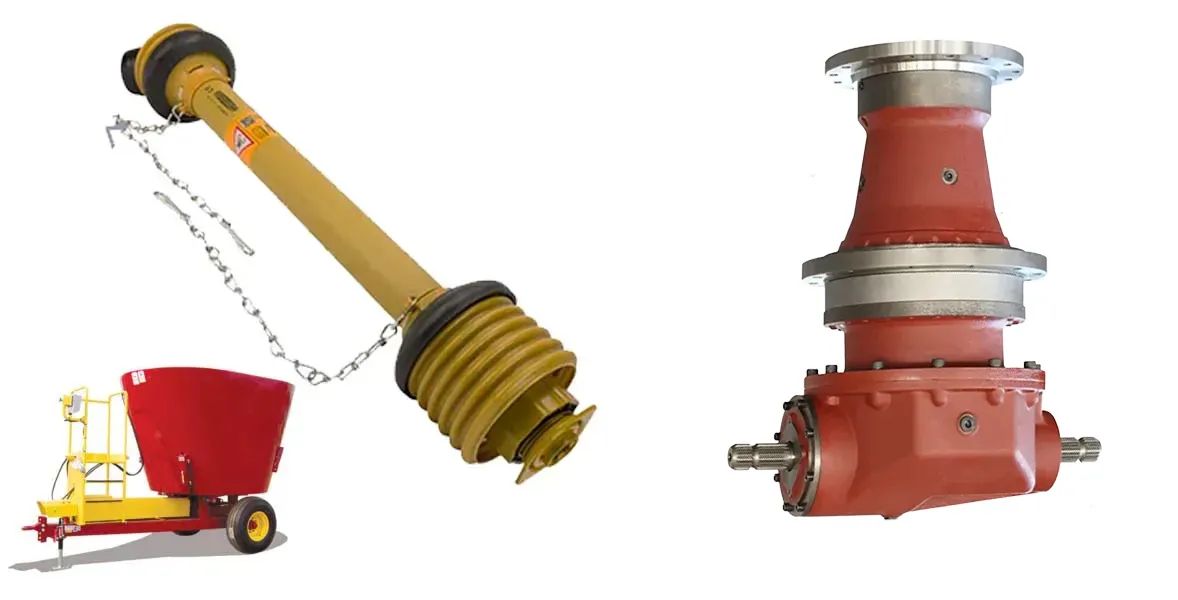

Vertical Feed Mixer Gearbox-Replacement of Comer PGA1602VM Gearbox

The vertical feed mixer gearbox replacement for the Replacement of Comer PGA1602VM, this gearbox is a specialized mechanical device designed to transmit power and torque from the motor to the mixing chamber of a vertical feed mixer, which is commonly used in agricultural settings for blending various animal feeds. The gearbox is critical for managing the rotational speed and ensuring the efficient mixing of ingredients. It typically features a robust housing that contains a series of gears and bearings configured to withstand the heavy loads and abrasive environment of feed mixing. This component is essential for achieving a uniform mix of feed, optimizing the nutritional value of the feed, and enhancing the productivity of farming operations.

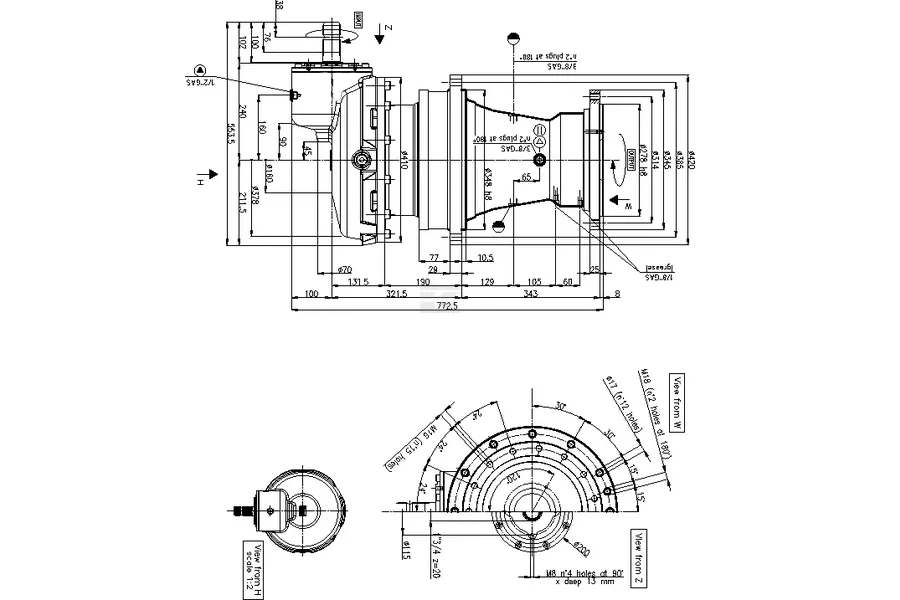

Vertical Feed Mixer Gearbox PGA1602VM Dimensions

Product Specifications:

Product Description	Vertical Feed Mixer Gearbox-Replacement of Comer PGA1602VM Gearbox
Details	Has a special bearing complete where the screw spindle can be directly connected.
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Mixing wagon Suitable for: Single mixer 10–14 cubic metres Double mixer 16–24 cubic metres
Benefits	No separate bearing complete required for the winch
Model	PGA 1602 VM
Consists of	Gearbox Order oil separately
Max. output rotation speed	62 r/min
Max. output power	88,7 kW
Max. output torque	1570 daNm
Connection 1 outside diameter	1-3/4 Inch
Connection 1 number of splines	20
Contains oil	No
Oil SAE viscosity grade	90
Weight	265 kg

Key Benefits:

Using a vertical feed mixer gearbox offers significant benefits that enhance the efficiency and effectiveness of feed mixing operations in agricultural settings. Here are some of the key advantages:1. Improved Feed Quality: The gearbox enables the mixer to operate at optimal speeds, ensuring a thorough and consistent mix of ingredients. This results in a uniform feed mixture where nutrients are evenly distributed, critical for the health and growth of livestock.2. High Efficiency: The gearbox is designed to convert a high-speed input from the tractor's PTO into a lower speed but higher torque output necessary for mixing. This efficient power transmission allows the mixer to handle large volumes of feed quickly, saving time and energy.3. Durability and Reliability: Typically built to withstand tough agricultural conditions, these gearboxes are made from robust materials that resist wear and tear. Their design also often includes features that protect against environmental factors like dust and moisture, ensuring long-lasting performance and minimal downtime.4. Ease of Maintenance: Many vertical feed mixer gearboxes are designed with maintenance in mind. They may feature simple, accessible components and self-lubricating systems that reduce the need for frequent maintenance checks, thus reducing the overall maintenance cost.5. Versatility: These gearboxes can be used in a variety of mixing applications beyond just feed mixing, such as compost, fertilizers, and other agricultural materials. This versatility makes them a valuable asset in diversified farming operations.

Typical Applications of the Vertical Feed Mixer Gearbox

The vertical feed mixer gearbox is a versatile component used in various agricultural applications to enhance efficiency and productivity. Here’s how it is commonly employed:1. Livestock Feed Production: The primary application of the vertical feed mixer gearbox is in the mixing of feed for livestock. It ensures that various ingredients, including grains, minerals, and vitamins, are thoroughly mixed to create a homogeneous feed. This is essential for the health and growth of animals, ensuring they get all the necessary nutrients in every bite.2. Dairy Farming: In dairy operations, consistent and high-quality feed is crucial for maximizing milk production. The gearbox helps in producing a precise mix that supports optimal milk yield and health of the dairy cows by ensuring that the nutritional content is consistent across different batches of feed.3. Poultry Industry: Poultry feed requires a consistent mix of ingredients to maintain the health and productivity of the birds. The gearbox facilitates the thorough mixing of these ingredients, preventing segregation or clumping that can affect the growth and egg production of poultry.4. Fertilizer Mixing: Beyond feed production, the gearbox can be employed in the mixing of fertilizers. Accurate and uniform mixing of various chemical components ensures the effectiveness of fertilizers used in boosting crop production.

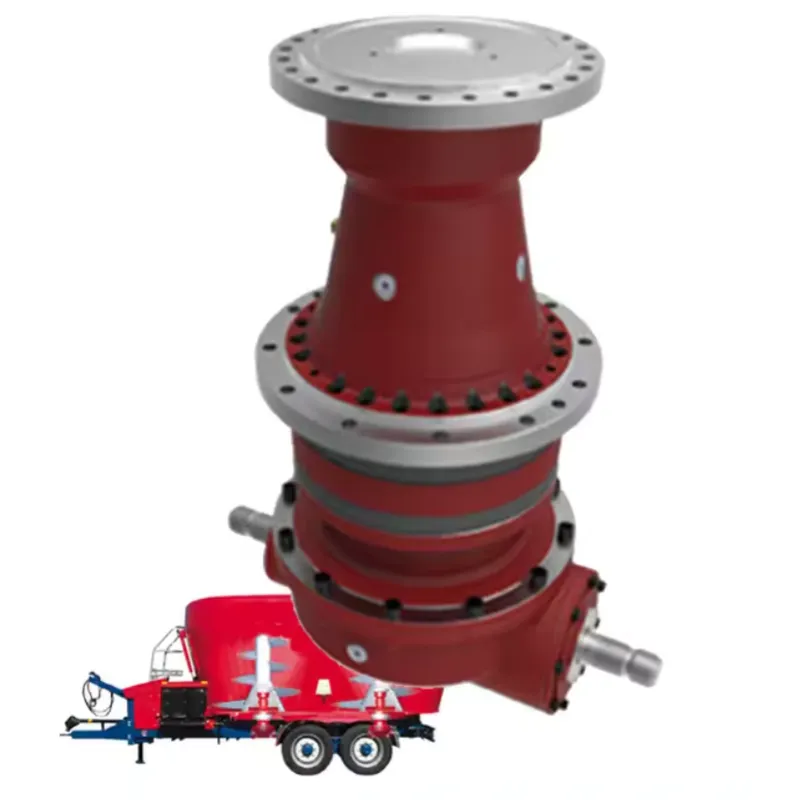

How Does the Tractor PTO Driven Vertical Feed Mixer Gearbox Work?

The tractor PTO (Power Take-Off) driven vertical feed mixer gearbox is a key component in agricultural machinery that uses the power generated by a tractor to operate a feed mixer. Here's a detailed explanation of how this system works:

1. Power Source Connection: The process begins with the tractor’s engine, which serves as the primary power source. The tractor’s PTO shaft, which is an external shaft typically located at the rear or side of the tractor, transfers the engine's power to attached implements or machinery.
2. Engagement of the PTO Shaft: The tractor operator engages the PTO shaft via a lever inside the tractor. This lever controls the PTO clutch, allowing the shaft to rotate at speeds proportional to the tractor’s engine speed. The rotational speed can be adjusted depending on the requirements of the attached equipment.
3. Power Transfer to Gearbox: The rotating PTO shaft connects to the gearbox of the vertical feed mixer through a drive shaft. This connection transmits the rotational energy directly to the gearbox’s input shaft. The design and build of the gearbox allow it to handle the high torque and power transmitted through the PTO shaft.
4. Speed and Torque Conversion: Inside the gearbox, a series of gears adjust the input power to the desired output power. This typically involves reducing the speed while increasing the torque. The gearbox is specifically designed to deliver the optimal torque and rotational speed required for effective mixing of the feed.
5. Output to Mixing Mechanism: The modified power output by the gearbox is then transferred from the gearbox’s output shaft to the mixing mechanism of the feed mixer. This mechanism could be a series of paddles, augers, or blades arranged vertically or horizontally, depending on the mixer design.
6. Mixing Operation: As the gearbox delivers consistent rotational motion to the mixing mechanism, the feed ingredients loaded into the mixer are stirred, lifted, and folded back on themselves. This action ensures a thorough and uniform mix of all ingredients, which is critical for producing quality feed with evenly distributed nutrients.

Installation Steps:

Installing a tractor PTO driven vertical feed mixer gearbox involves several critical steps to ensure the system functions effectively and safely. Here’s a step-by-step guide:

• Preparation and Safety Checks: Before starting the installation, ensure the tractor and mixer are on a stable, level surface and that the tractor is turned off. Check the compatibility of the gearbox with both the tractor PTO and the mixer. Gather all necessary tools and equipment needed for the installation.
• Mounting the Gearbox: Position the gearbox onto the mixer, aligning it with the mounting points provided. Use bolts and nuts to secure the gearbox firmly in place. It's crucial to ensure that the gearbox is mounted solidly to avoid vibrations or misalignment during operation.
• Connecting to the PTO Shaft: Attach the PTO shaft to the tractor’s PTO stub. Ensure that the splines of the shaft match and fit securely into the PTO stub. This connection must be tight and secure to transmit power efficiently. Always double-check that the locking pins or collars are engaged correctly.
• Aligning the Drive Shaft: Align the drive shaft from the gearbox to the mixing mechanism. This may involve adjusting the length of the drive shaft or the position of the tractor and mixer to ensure that the shaft is neither too stretched nor too compressed, which could lead to wear or mechanical failure.
• Safety Shield Installation: Install protective shields on the PTO shaft and any other rotating components. These shields are crucial for safety, preventing clothing, body parts, or debris from getting entangled in the moving parts.
• Testing and Calibration: Once the gearbox is installed, conduct a test run by starting the tractor at a low speed and engaging the PTO. Observe the operation of the mixer to ensure there is no unusual vibration, noise, or other issues. Adjust as necessary to achieve smooth operation. Check all connections and fittings again to ensure everything is secure.

Choose the Right Vertical Feed Mixer Gearbox for the Mixing Wagon

Choosing the right vertical feed mixer gearbox for a mixing wagon involves considering several factors to ensure you get the best performance and durability. Here’s a comprehensive guide to help you select the appropriate gearbox:

1. Determine the Power Requirements: First, assess the power requirements of your mixing wagon. This includes understanding the horsepower (HP) and torque needed for efficient operation. The gearbox you choose must be able to handle the power output of the tractor without overloading. It's crucial to match the gearbox’s capacity with the tractor's PTO output.
2. Consider the Mixing Capacity: Evaluate the capacity of the mixing wagon. Larger wagons require gearboxes that can deliver more torque to handle the increased load of materials. Ensure the gearbox can sustain the operational demands of mixing large volumes without compromising efficiency or performance.
3. Check Compatibility with Existing Equipment: The gearbox must be compatible with the specific model and make of your mixing wagon and tractor. This includes matching the input shaft and output shaft sizes, mounting configurations, and the rotational direction required by the mixing mechanism.
4. Gearbox Durability and Build Quality: Opt for a gearbox made from high-quality, durable materials that can withstand the rigors of farm work. The gearbox should be robust enough to handle exposure to various environmental conditions and continuous operation.
5. Safety Features: Ensure the gearbox comes with essential safety features, such as overload protection mechanisms (like shear bolts or a slip clutch). These features help prevent damage to the gearbox and the tractor in case of overloading or jams during operation.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc. If you want to buy a feed mixer gearbox, please get in touch with us.

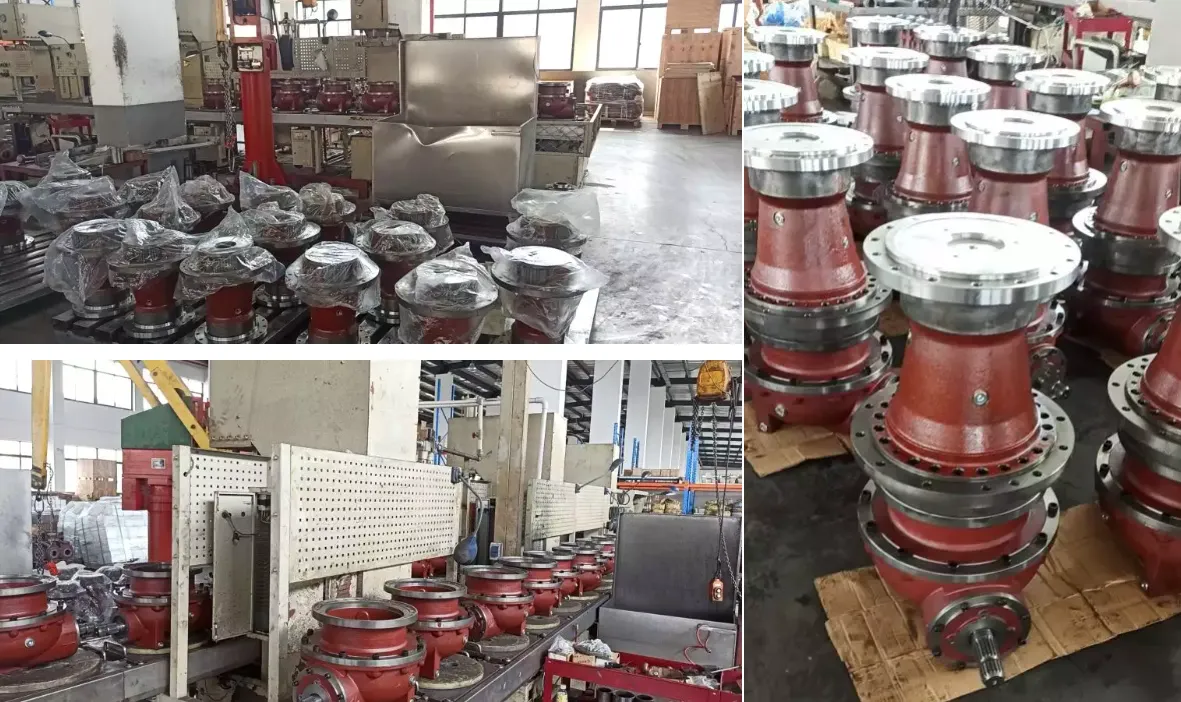

Vertical Feed Mixer Gearbox Manufacturers

AGKNX is a leading manufacturer of high-performance vertical feed mixer gearboxes. Our vertical feed mixer gearboxes are a powerful replacement option for Replacement of Comer Industries, Replacement of Bondioli & Pavesi, Brevini, Kuhn, Storti, Trioliet, Jaylor, Schuler, and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom vertical feed mixer gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a vertical feed mixer gearbox.  If you want to buy a vertical feed mixer gearbox, please get in touch with us.
