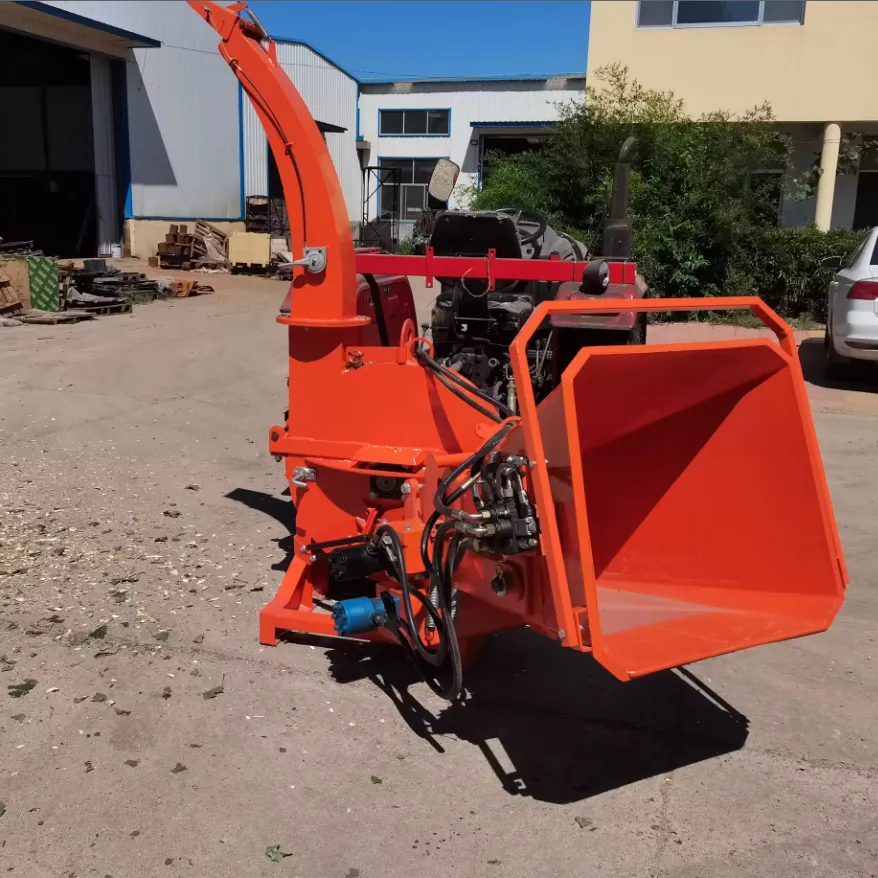

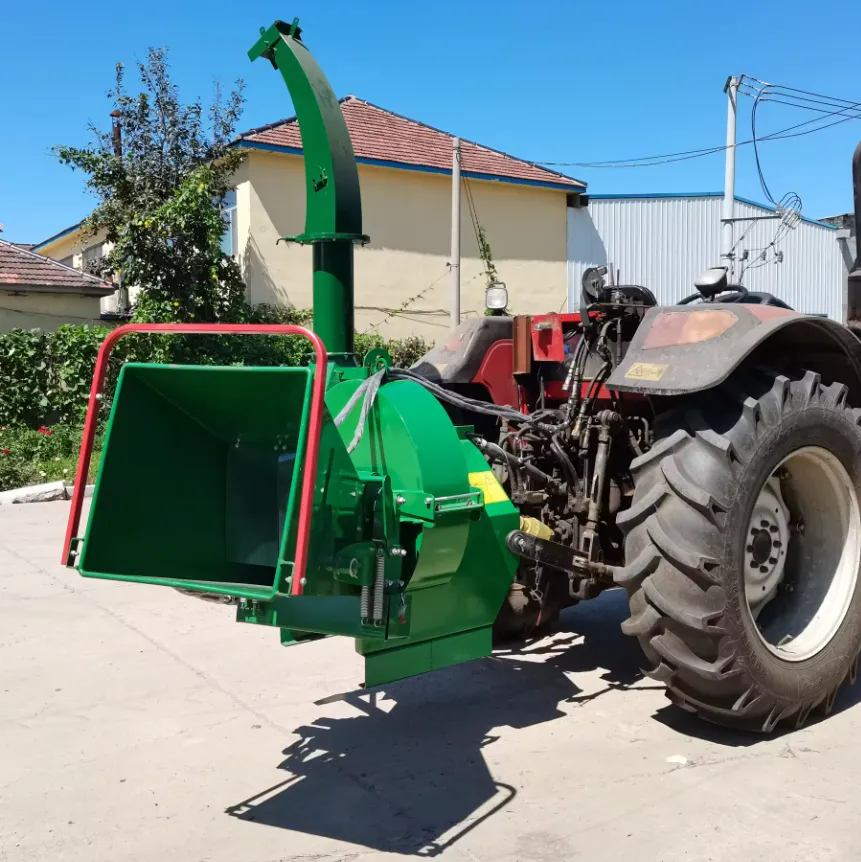

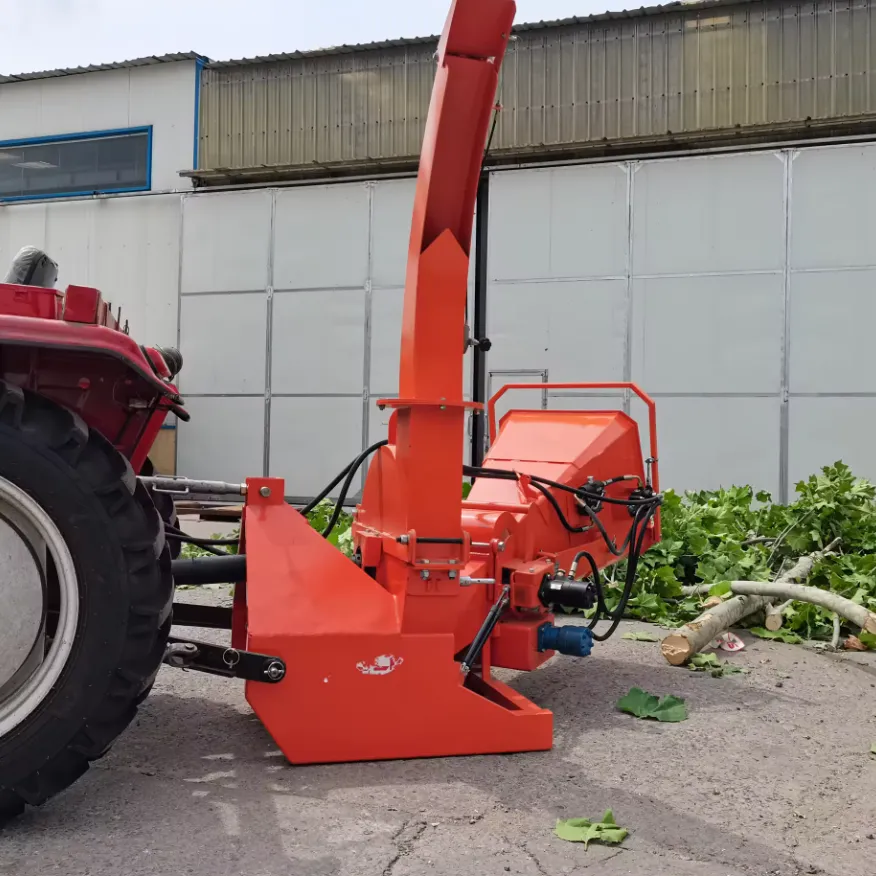

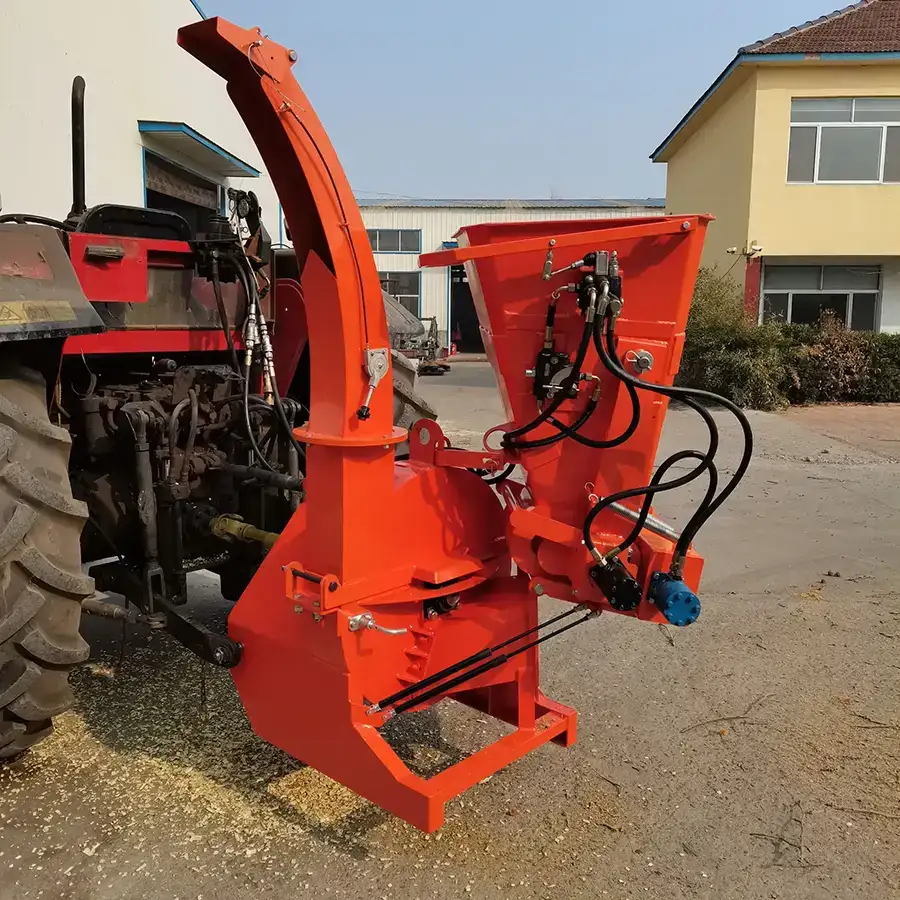

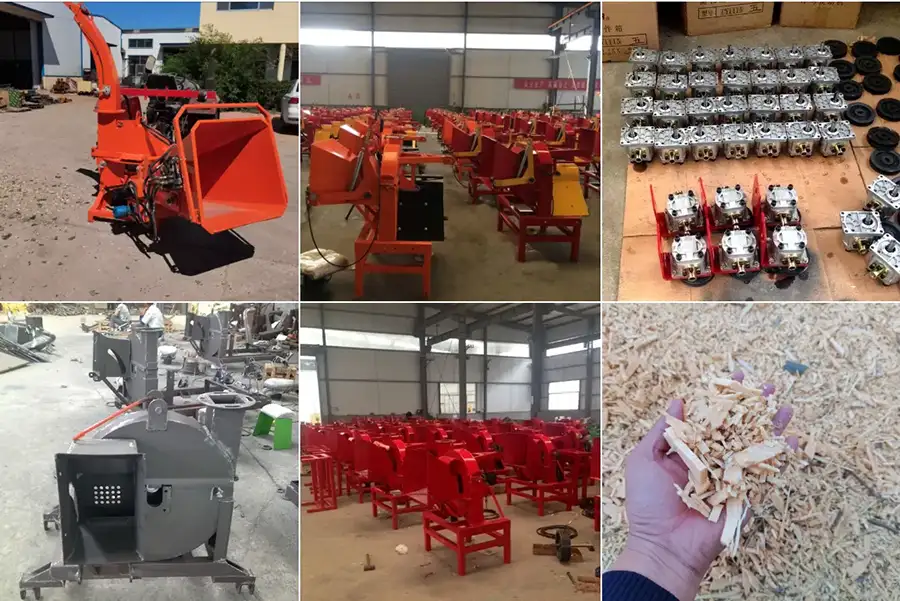

WC-8 PTO Wood Chips Making Machine for Chipping Wood and Tree Branch

[embed]https://youtu.be/j3Wm-RDreEc[/embed] The WC-8 PTO Wood Chipper Machine is a new benchmark in the world of wood chipping machines. Whether you are dealing with wood scraps or looking to process wood products and sawdust, this machine is your go-to solution. The machine is designed for chipping wood and tree branches and is powered by a tractor PTO drive. It offers a production capacity of 10-12cbm/h and comes in three model numbers: WCHA-8, WCHB-8, and WCMA-8. The machine is equipped with two rotary blades and one stationary blade, which can handle a maximum chipping diameter of 20 cm/8 inches.

Specifications of WC-8 PTO Wood Chippers

Specifications for PTO Wood Chipper
Model	WCHA-8	WCHB-8	WCMA-8
Chipper capacity	max. 200mm	max. 200mm	max. 200mm
Feeding system	Hydraulic	Hydraulic	Mechanical
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
PTO Speed	540rpm	540rpm	540rpm
Weight	390kg	390kg	390kg
Working efficiency	10-12cbm/h	10-12cbm/h	10-12cbm/h
Blade turning radius	302mm	302mm	302mm
Power required	25-50hp	25-50hp	25-50hp
Dimensions	1600*1020*1400mm	1600*1020*1400mm	1600*1020*1400mm
Hydraulic oil tank	with	without	without
Hydraulic pump	with	without	without
Double feeding rolls	Optional	Optional	Optional

Advantages of WC-8 PTO Wood Chipper Machine

The advantages of choosing our PTO Wood Chips Making Machine are plenty:

1. High Production Capacity: With the ability to produce 10-12cbm/h, it guarantees high efficiency.
2. Versatile Models: Available in three models, WCHA-8, WCHB-8, WCMA-8, fitting the unique needs of every user.
3. Powerful Cutting Blades: It is equipped with two rotary blades and one stationary blade, ensuring effective wood chipping.
4. Customizable Color Options: You can choose from red, green, orange, or a customized color according to your preferences.
5. Tractor PTO Driven: It is powered by tractor PTO, making it a versatile and convenient option for users.
6. 360 Degrees Discharge Hood Rotation: This feature allows for easy and efficient discharge of chipped wood.

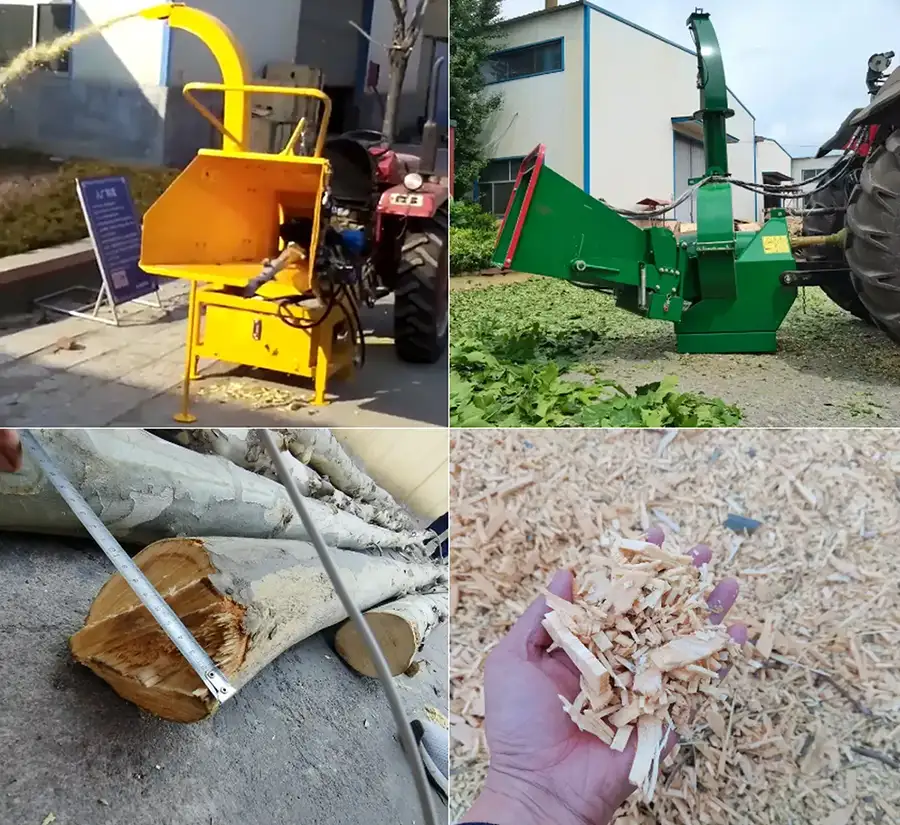

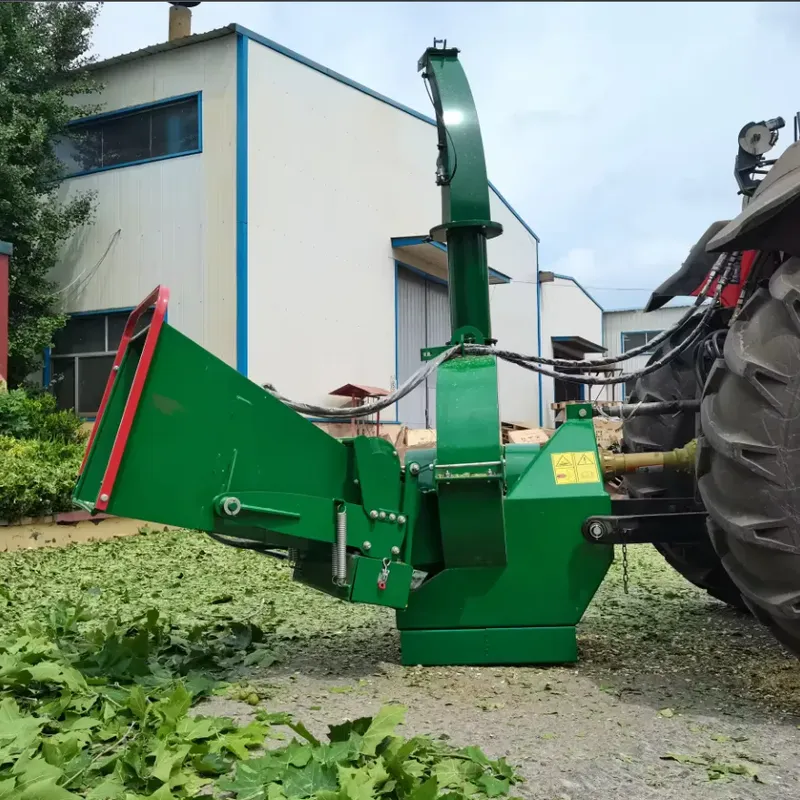

Common Applications:

The WC-8 PTO Wood Chipper is versatile and finds numerous applications across various industries and settings:

• Forestry Operations: In forestry, the WC-8 PTO Wood Chipper is crucial for clearing paths and processing tree limbs and branches left from logging. It efficiently reduces this biomass into usable wood chips, aiding in forest management and waste reduction.
• Agriculture: Farmers benefit from the PTO wood chippers by converting orchard and vineyard prunings into mulch or compost. This process enhances soil health, retains moisture, and reduces the need for chemical fertilizers, promoting sustainable agricultural practices.
• Landscaping: Ideal for residential and commercial properties, landscapers use the PTO wood chipper to clear brush and tree trimmings. The resulting wood chips are utilized as mulch, which improves aesthetics, suppresses weeds, and retains soil moisture in gardens and landscapes.
• Biomass Production: Industries involved in biomass energy utilize wood chips from the three point wood chipper shredder as a renewable energy source. These chips serve as feedstock for bioenergy production, contributing to sustainable energy practices and reducing dependence on fossil fuels.
• Municipalities: Public works departments rely on the WC-8 PTO wood chipper for managing storm-damaged trees and green waste. By chipping this material, municipalities efficiently handle debris removal and recycling, contributing to cleaner urban environments.
• Construction and Site Clearing: Contractors use the PTO Wood Chipper during site preparation to clear trees and brush. This process transforms vegetation into manageable wood chips, facilitating site development while promoting eco-friendly construction practices.
• Wildlife Habitat Management: Conservation efforts benefit from the WC-8 PTO wood chippers by creating wildlife habitats. By converting woody debris into natural cover and mulch, conservationists enhance biodiversity and promote sustainable habitat management practices.

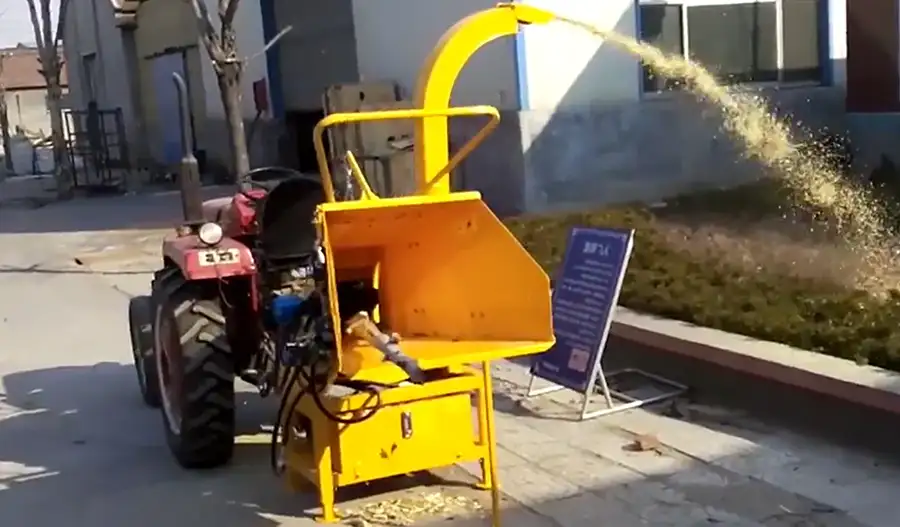

Working Principle of PTO Wood Chipper for Chipping Wood and Tree Branch

The PTO Wood Chipper operates on a straightforward yet effective principle to efficiently chip wood and tree branches:

1. Power Source: The PTO Wood Chipper, like the WC-8 model, relies on the tractor's Power Take-Off (PTO) shaft for power. This shaft transfers rotational energy from the tractor's engine to the chipper's internal mechanisms, allowing it to operate independently and effectively in remote or agricultural settings.
2. Feeding Mechanism: Wood and tree branches are fed into the chipper through a hopper, either manually or via a self-feeding mechanism. This initiates the chipping process by directing the material towards the rotating blades inside the chipper.
3. Rotor and Blades: At the heart of the chipper is a high-speed rotor equipped with sharp blades. As the rotor spins, these blades cut and shred the incoming wood and branches into smaller, uniform pieces suitable for various uses.
4. Chipping Action: The blades' rapid rotation generates immense cutting force, effectively slicing through the wood. The resulting centrifugal force propels the chipped material outward against an internal screen or anvil, further refining it into consistent wood chips.
5. Discharge: After processing, the wood chips exit the chipper through an adjustable discharge chute. Operators can control the chute's position and angle to direct the chips precisely where needed, optimizing efficiency and usability.

Operation Precautions:

Operating a PTO Wood Chipper, such as the WC-8 model, requires careful attention to safety and operational guidelines to prevent accidents and ensure efficient performance:

• Read the Manual: Before operating the PTO Wood Chipper like the WC-8, thoroughly review the manual. It provides essential instructions on setup, safety precautions, and operational guidelines specific to your model. Understanding these details ensures safe and effective use of the equipment.
• Inspect Before Use: Conduct a comprehensive pre-operational inspection of the chipper. Check for any signs of wear, damage, or loose components. Ensure all safety guards, shields, and emergency stop mechanisms are securely in place and operational.
• Clear Area: Create a clear workspace around the chipper before starting operations. Remove debris, obstacles, and ensure bystanders are at a safe distance. Establish a designated work zone with restricted access to prevent unauthorized entry during operation.
• Feed Material Properly: Feed wood and tree branches into the chipper's hopper carefully and gradually. Avoid overloading the machine to prevent jamming and maintain consistent chipping performance. Use the self-feeding mechanism if available, following manual-recommended feeding rates.
• Monitor Operation: Stay vigilant while the chipper is in use. Watch and listen for any unusual sounds, vibrations, or signs of mechanical issues. Immediately shut down the chipper if you observe abnormalities and inspect the equipment to resolve any potential problems promptly.
• Use the Discharge Chute Safely: Adjust the discharge chute to direct wood chips away from yourself and others. Maintain a safe distance from the discharge area to avoid injury from ejected materials. Regularly check and adjust the chute angle to control the trajectory of discharged chips effectively.
• Emergency Procedures: Know the location and operation of emergency shut-off controls on both the chipper and the tractor. In case of emergency, such as jamming or malfunction, immediately disengage the PTO and shut down the chipper to prevent further complications and ensure operator safety.

Common Troubleshooting of PTO Wood Chipper Shredder

Troubleshooting a PTO wood chipper shredder involves addressing common issues to ensure smooth operation and avoid downtime:

1. Engine Start Issues: If the chipper doesn't start, check the PTO engagement and ensure it's properly connected and engaged. Verify that the tractor's engine speed is sufficient to drive the chipper. Inspect the fuel level, battery charge, and ignition system for any faults that may prevent starting.
2. Jamming or Blockages: If material jams inside the chipper, immediately disengage the PTO and shut off the engine. Clear the hopper and feeding mechanism of any debris or oversized material causing the blockage. Inspect the blades and rotor for damage or wear that could contribute to repeated jamming.
3. Uneven Chipping or Poor Performance: Assess the quality of the wood chips produced. Uneven chipping may indicate dull blades or improper blade alignment. Sharpen or replace blades as needed and adjust the blade clearance to ensure consistent chipping performance. Verify the PTO speed matches the manual's recommendations for optimal operation.
4. Excessive Vibration or Noise: Unusual vibrations or excessive noise during operation could stem from loose components, worn bearings, or misalignment. Inspect the chipper's frame, rotor assembly, and drivetrain components for signs of wear or damage. Tighten loose bolts and bearings, and align components according to the manual's specifications.
5. Hydraulic or Mechanical Fluid Leaks: Inspect hydraulic lines, fittings, and reservoirs for signs of leaks. Address leaks promptly by tightening connections or replacing damaged hoses and seals. Monitor fluid levels regularly and use the correct type of hydraulic fluid recommended by the manual.
6. Overheating: If the chipper overheats, check for insufficient lubrication in bearings or excessive friction in moving parts. Ensure adequate airflow around the engine and chipper components. Clean debris and dirt buildup from cooling fins and vents to improve heat dissipation. Verify that the engine coolant levels are adequate and cooling system components are functioning correctly.

Agricultural PTO Shafts for PTO Wood Chippers

The agricultural PTO shaft serves as a critical link between tractors and various implements, including the PTO wood chipper. It transfers mechanical power from the tractor's engine to the chipper, enabling it to operate effectively. The PTO shaft connects directly to the chipper's drivetrain, typically powering a high-speed rotor equipped with blades. This setup allows the chipper to efficiently process wood and tree branches into smaller, uniform wood chips suitable for mulching, composting, or biomass applications. The PTO shaft's rotational energy drives the chipper's internal mechanisms, ensuring consistent and powerful performance. Agricultural operations benefit significantly from this connection, as it enables farmers and land managers to manage vegetation and organic waste on-site. By utilizing the PTO wood chipper, agricultural operations can convert prunings, tree limbs, and other biomass into valuable resources like mulch, which enhances soil health, conserves moisture, and reduces weed growth. Moreover, the versatility of the PTO wood chipper extends to forestry, landscaping, and municipal applications where efficient waste management and resource recycling are essential. The direct coupling via the PTO shaft ensures seamless integration with tractor power, making the chipper a cost-effective and sustainable solution for maintaining agricultural landscapes and managing wood waste. Thus, the Agricultural PTO Shaft and PTO Wood Chipper combination represent a vital link in modern agricultural practices, promoting efficiency, sustainability, and environmental stewardship.
