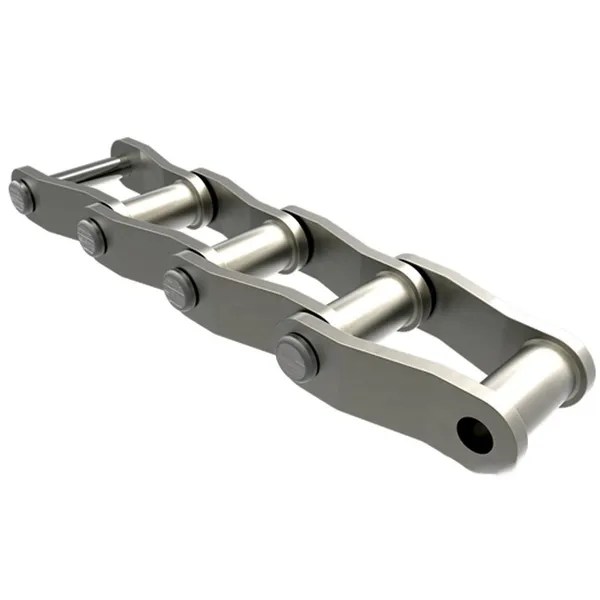

WH106HD Chain WH106HD Welded Steel Mill Chain

WH106HD Chain WH106HD Welded Steel Mill Chain

WH106HD welded steel mill chain that we offer exceeds in quality, working life, and strength. Additionally, This WH78HD heavy-duty welded steel chain is extremely durable, low maintenance, and is supplied at a great price. Something that is notable about this chain is that each and every component has been heat-treated and constructed using high-quality steel to further increase the overall working life and strength of the chain. Also, this WH106HD chain is stronger than the standard WH160 chain because it has thicker sidebars and larger diameter pins and barrels which in turn dramatically increases the overall working life and durability of the chain.WH106HD welded steel chain is often recommended for most conveying, driving, and elevating applications where a high-strength and durable steel roller-less chain is required. Some of the applications where WH106HD heavy-duty welded steel mill chain is most commonly found are heavy-duty conveyors, forest products, grain handling, pulp and paper, and sugar processing. If you are looking for a high-strength, heavy-duty chain for use in demanding applications, then the WH106HD welded steel mill chain is a great option.

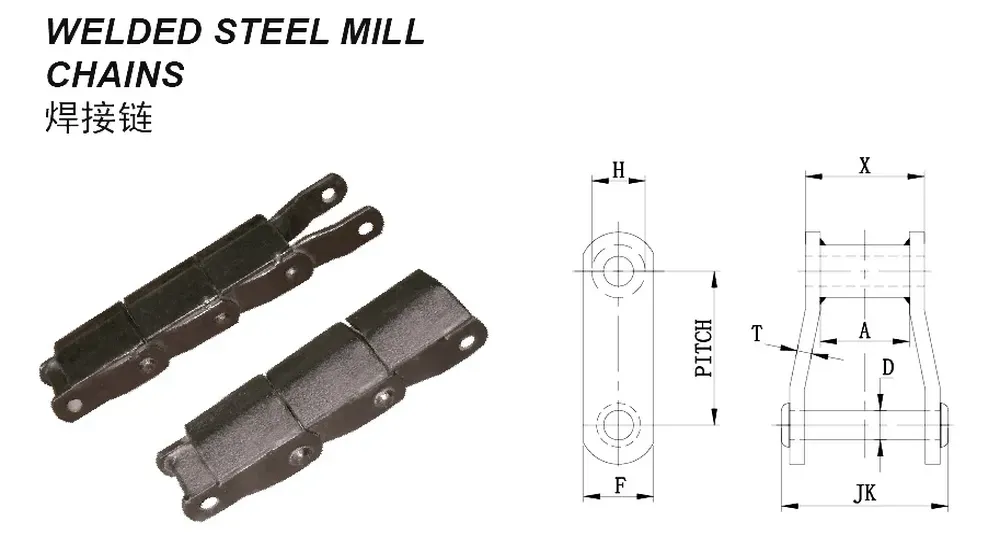

▍WH106HD Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH106HD Chain	6.000	92500	7875	20	9.0	3.00	0.75	0.50	1.50	1.25	1.62

▍WH106HD Welded Steel Mill Chain Advantages:

The WH106HD welded steel mill chain has a number of advantages over other types of chains, including:1. High tensile strength: The WH106HD welded steel mill chain has a tensile strength of 92,500 pounds, which makes it one of the strongest chains on the market. This means that it can withstand high loads and stresses without breaking.2. Wide pitch: The WH106HD welded steel mill chain has a wide pitch of 6 inches, which makes it ideal for applications where high speeds are required. The wider pitch means that the chain can move more freely, which reduces friction and wear.3. Heat-treated construction:?The WH106HD welded steel mill chain is made from high-quality steel and is fully heat-treated. This gives the chain a high degree of strength and durability, making it ideal for use in demanding applications.4. Durability:?The WH106HD welded steel mill chain is a very durable chain that can withstand a lot of wear and tear. It is also resistant to corrosion, making it ideal for use in harsh environments.5. Long lifespan: The WH106HD welded steel mill chain has a long lifespan, making it a cost-effective investment. It can last for many years with proper care and maintenance.6. Easy to maintain: The WH106HD welded steel mill chain is relatively easy to maintain. It can be cleaned and lubricated with standard chain lubricants.7. Cost-effective: The WH106HD welded steel mill chain is a cost-effective chain. It is priced competitively and has a long lifespan, which means that it will save businesses money in the long run.Overall, the WH106HD welded steel mill chain is a high-quality, heavy-duty chain that is ideal for use in demanding applications. It is strong, durable, and long-lasting, making it a wise investment for businesses that need a reliable chain for their conveyors, machinery, or other equipment.

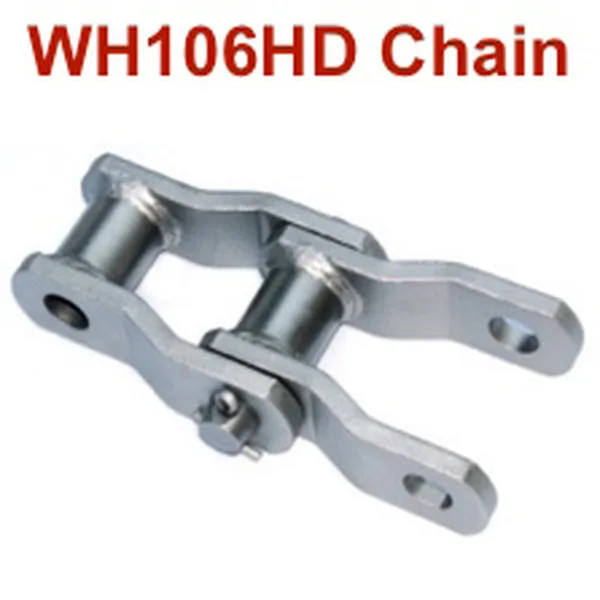

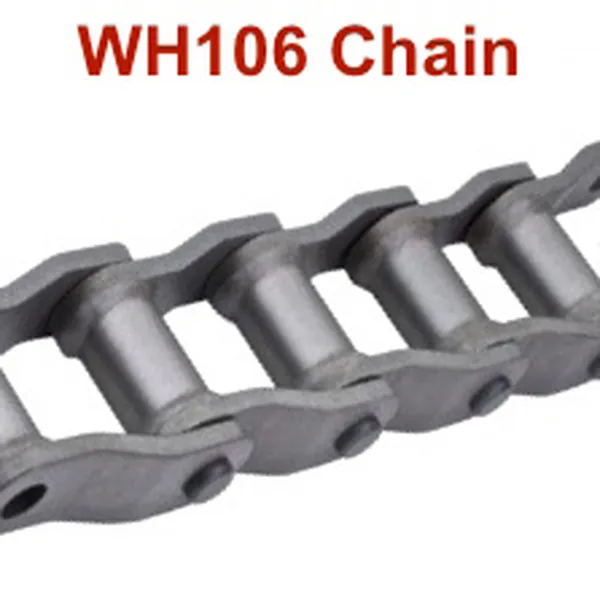

▍WH106HD Welded Steel Chain Vs WH106 Welded Steel Chain

WH106HD Welded Steel Chain	WH106 Welded Steel Chain

The WH106HD welded steel chain, and the WH106 welded steel chain are both high-quality, heavy-duty chains that are designed for use in demanding applications. However, there are some key differences between the two chains.The WH106HD welded steel chain has a higher tensile strength of 92,500 pounds than the WH106 welded steel chain, which has a tensile strength of 69,000 pounds. This means that the WH106HD welded steel chain can withstand higher loads and stresses without breaking.The WH106HD welded steel chain also has a wider pitch of 6 inches than the WH106 chain, which has a pitch of 5 inches. This means that the WH106HD welded steel chain can move more freely, which reduces friction and wear.Finally, the WH106HD welded steel chain is made from high-quality steel that is fully heat-treated, while the WH106 welded steel chain is made from high-quality steel that is not heat-treated. This gives the WH106HD welded steel chain a higher degree of strength and durability.In general, the WH106HD welded steel chain is a more robust and heavy-duty chain than the WH106 welded steel chain. However, the WH106 welded steel chain is also a more affordable option.Here is a table that summarizes the key differences between the two chains:Ultimately, the best chain for you will depend on your specific application. If you need a high-strength, heavy-duty chain for demanding applications, then the WH106HD chain is a great option. However, if you are looking for a more affordable chain, then the WH106 chain is a good choice.

▍WH106HD Chain Sprockets and WH106HD Chain

WH106HD chain sprockets and WH106HD chains are components commonly used in industrial power transmission applications. WH106HD chains are heavy-duty roller chains designed to withstand high loads and provide reliable power transmission in demanding applications. They are commonly used in mining, construction, and agricultural equipment, as well as in manufacturing and processing machinery.WH106HD chain sprockets are the toothed wheels that mesh with the WH106HD chain to transmit power. They are designed to match the pitch of the WH106HD chain and are available in a variety of sizes and configurations to accommodate different power transmission requirements.Together, the WH106HD chain and WH106HD chain sprockets form a power transmission system that can efficiently transmit power over long distances and withstand heavy loads. When selecting WH106HD chain sprockets and WH106HD chains, it's important to consider factors such as the required load capacity, speed, and environmental conditions, to ensure optimal performance and longevity of the system.

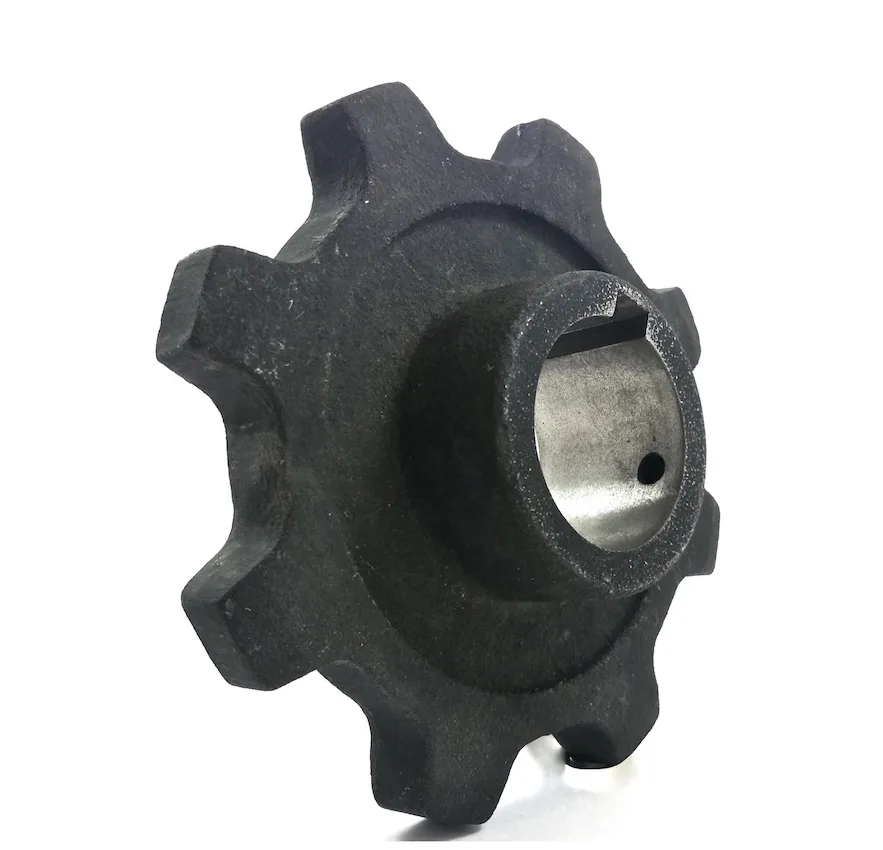

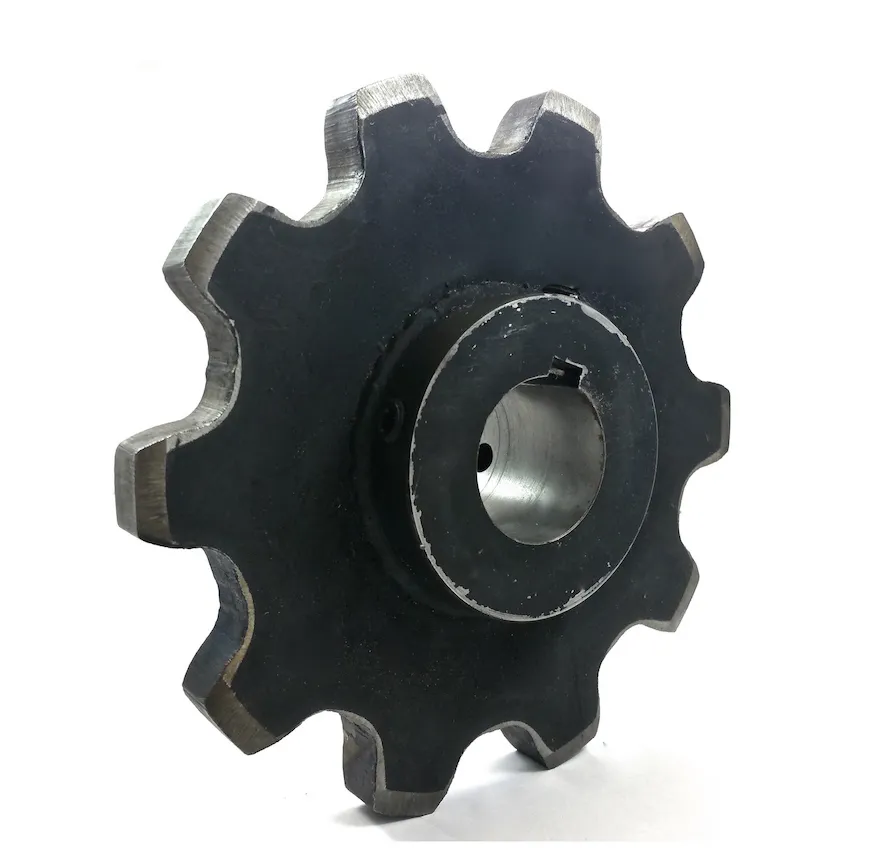

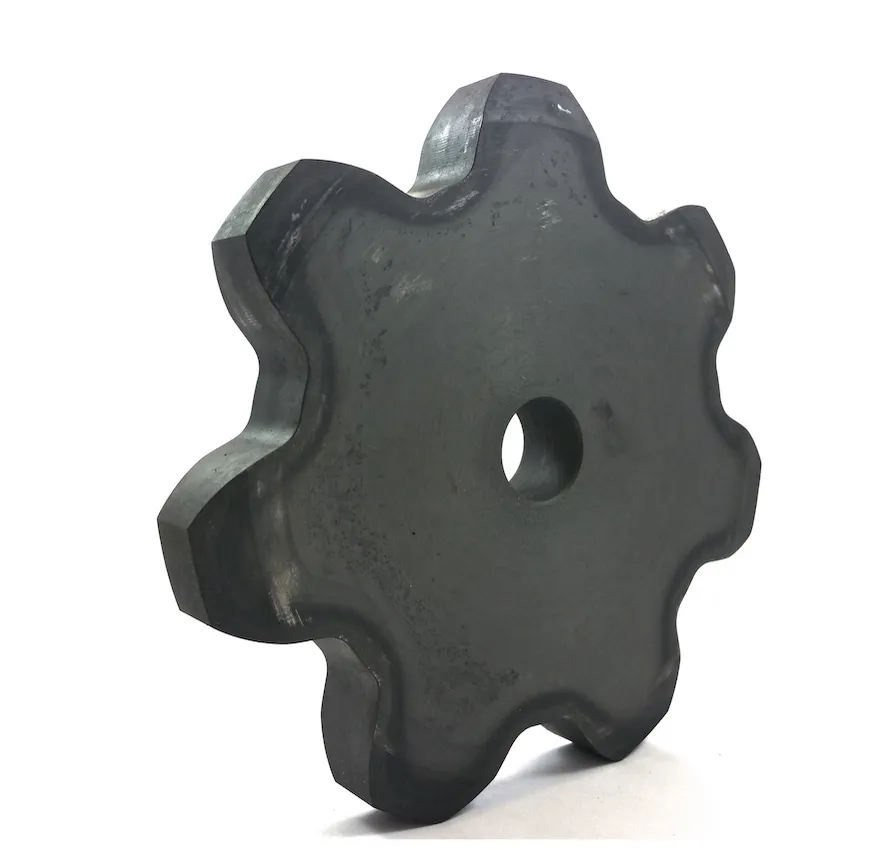

A-Plate WH106HD Chain Sprockets	B-Hub WH106HD Chain Sprockets	C-Hub WH106HD Chain Sprockets

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
