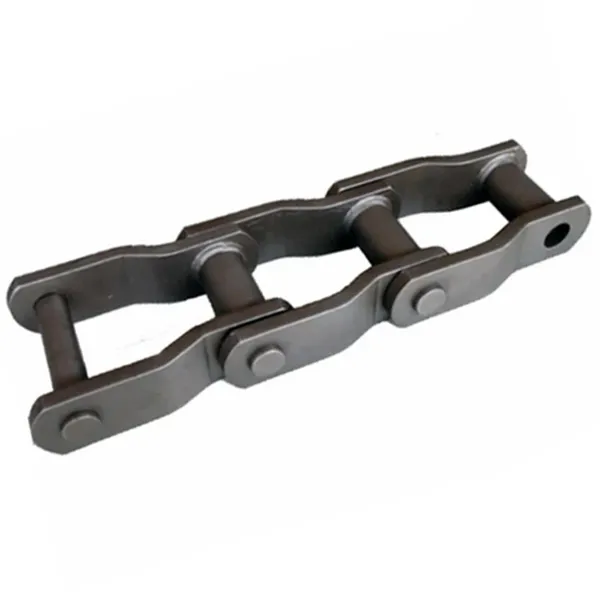

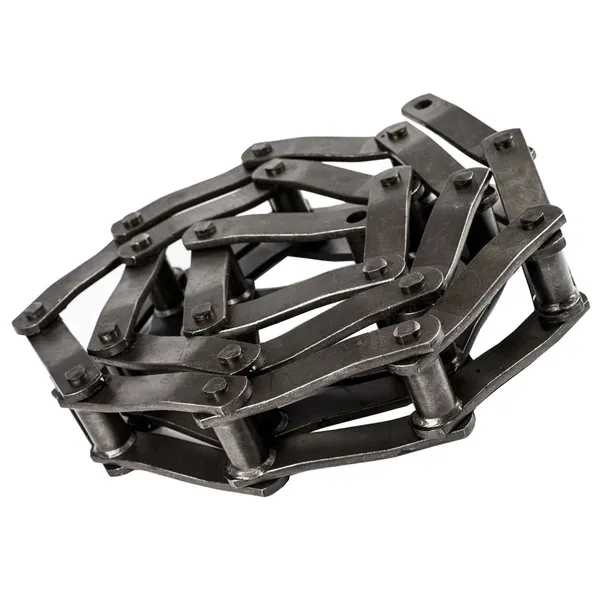

WH110 Chain WH110 Welded Steel Mill Chain

WH110 Chain WH110 Welded Steel Mill Chain

The WH110 welded steel mill chain is a strong and durable chain that is used in a variety of applications, such as mining, construction, and manufacturing. The WH110 chain is made of high-quality steel and welded together for strength and durability. It is also heat-treated to improve its strength and resistance to wear and tear. The WH110 welded steel mill chain is available in a variety of sizes and lengths to meet the needs of any application. This WH110 welded steel chain that we offer exceeds in quality, working life, and strength. Additionally, This WH110 chain is extremely durable, low maintenance, and is supplied at a great price.Here are some of the features of the WH110 welded steel mill chain:

• High-strength steel construction
• Offset or cranked link design
• Heat treated for improved strength and durability
• Versatile and easy to repair
• Can be used in a wide range of applications

The WH110 welded steel mill chain is a cost-effective solution for many mill, bulk handling, and washing applications. It is a versatile and durable chain that can withstand the rigors of demanding environments.

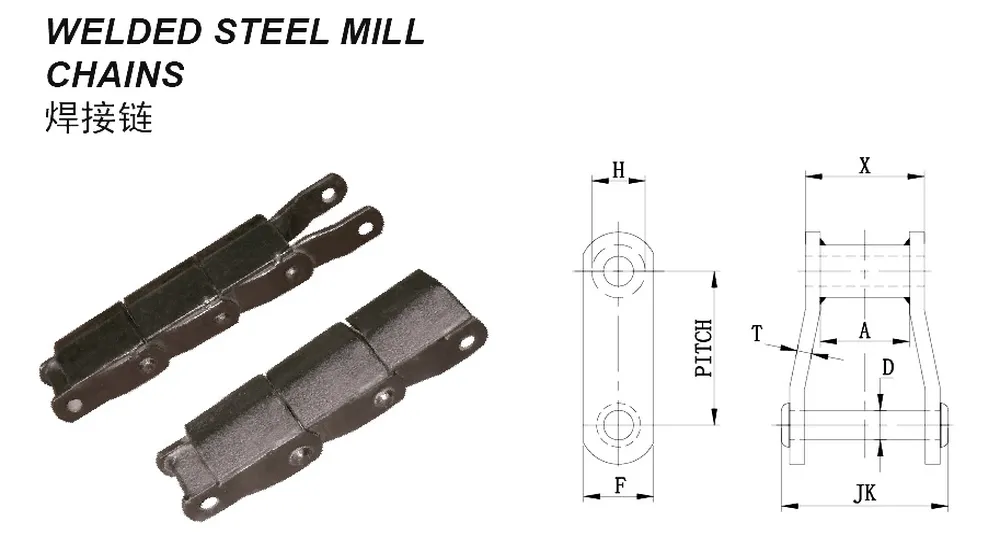

▍WH110 Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH110 Chain	6.000	69000	7875	20	7.2	3.00	0.75	0.38	1.50	1.25	1.88

▍Benefits of WH110 Welded Steel Mill Chain:

The WH110 welded steel mill chain offers a number of benefits, including:1. High strength and durability:?The WH110 chain is made of high-strength steel and is heat treated to improve its strength and durability. This makes it a good choice for use in demanding applications where high loads and wear are common.2. Versatile:?The WH110 welded steel mill chain has an offset or cranked link design, which makes it more versatile than other types of welded chains. This design also makes it easier to repair the chain if it is damaged.3. Low maintenance:?The WH110 chain is relatively low-maintenance, requiring minimal lubrication. This can save you time and money in the long run.4. Increased strength:?The heat treatment process strengthens the steel in the WH110 welded steel chain, making it more resistant to wear and tear. This can extend the lifespan of the chain and reduce the need for repairs.5. Reduced wear:?The offset or cranked link design helps to reduce wear on the WH110 chain by distributing the load more evenly. This can also help to prolong the lifespan of the chain.5. Easy to repair:?The WH110 welded steel mill chain is relatively easy to repair if it is damaged. The offset or cranked link design makes it easy to replace individual links, which can save you time and money.6. Wide range of applications: The WH110 welded steel mill chain is a versatile chain that can be used in a wide range of applications. It is a good choice for use in conveying, driving, and elevating systems, as well as in wood and paper processing, mining, and quarrying industries.

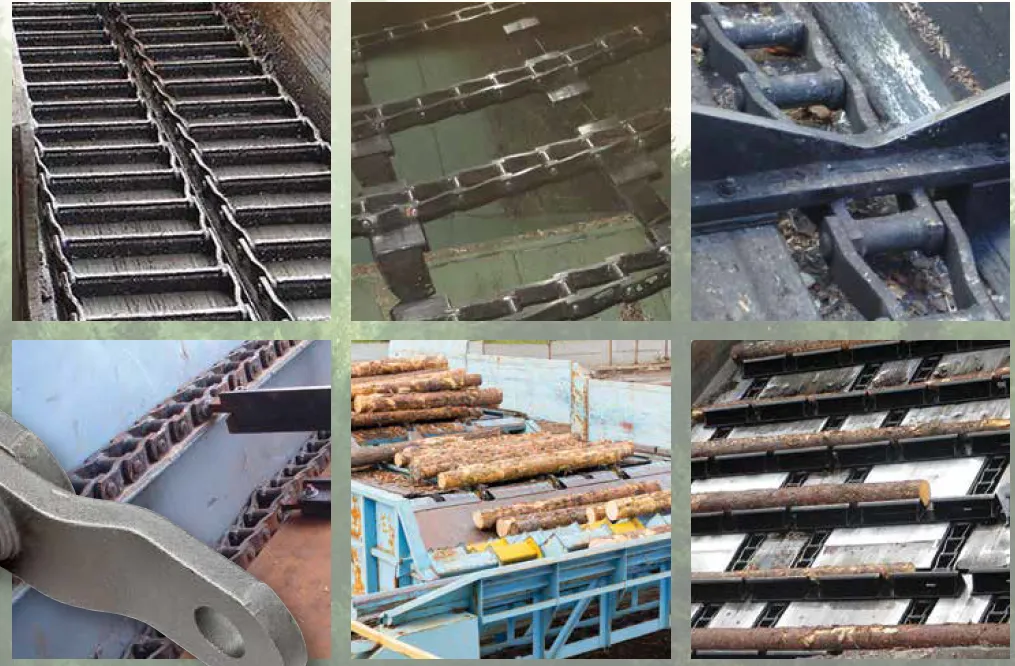

▍WH110 Welded Steel Mill Chain Uses:

WH110 welded steel mill chain is a type of chain that is commonly used in demanding applications such as conveying, driving, and elevating. It is made of high-strength steel and has an offset or cranked link design, which makes it more versatile and easier to repair than other types of welded chains. The WH110 chain is also heat treated to improve its strength and durability.Here are some of the uses of WH110 welded steel mill chain:

• Conveying systems:?WH110 chain is often used in conveyor systems to transport materials from one place to another. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and wear that are common in conveyor systems.
• Driving systems:?WH110 chain can also be used in driving systems to transmit power from one part of a machine to another. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and wear that are common in driving systems.
• Elevating systems:?WH110 chain can also be used in elevating systems to lift materials up and down. It is a good choice for this application because it is strong and durable, and it can withstand the high loads and wear that are common in elevating systems.
• Wood and paper processing industries:?WH110 chain is commonly used in the wood and paper processing industries to transport materials and power equipment. It is a good choice for this application because it is strong and durable, and it can withstand the harsh environments that are common in these industries.
• Mining and quarrying industries:?WH110 chain is also used in the mining and quarrying industries to transport materials and power equipment. It is a good choice for this application because it is strong and durable, and it can withstand the harsh environments that are common in these industries.

▍WH110 Chain Sprockets for WH110 Chain

A WH110 chain sprocket is a sprocket that is specifically designed to work with a WH110 chain. It has a pitch of 6 inches and a width of 2.395 inches. The sprocket is made of high-strength steel and is heat treated to improve its strength and durability.WH110 chain is a type of welded steel chain that is commonly used in demanding applications such as conveying, driving, and elevating. It is made of high-strength steel and has an offset or cranked link design, which makes it more versatile and easier to repair than other types of welded chains. The WH110 chain is also heat treated to improve its strength and durability.WH110 chain is available in a variety of lengths and sizes. It is typically sold in rolls of 10 feet or more. Both WH110 chain sprockets and WH110 chain are essential components of many industrial machines and equipment. They work together to transmit power and move materials from one place to another.Here are some of the benefits of using WH110 chain sprockets and WH110 chain:

• High strength and durability:?WH110 chain sprockets and WH110 chain are made of high-strength steel and are heat treated to improve their strength and durability. This makes them a good choice for applications where high loads and wear are common.
• Versatile:?WH110 chain sprockets and WH110 chain can be used in a wide range of applications. They are a good choice for conveying, driving, and elevating systems.
• Cost-effective: WH110 chain sprockets and WH110 chain are cost-effective solutions for many applications. They are relatively inexpensive to purchase and maintain.

Overall, WH110 chain sprockets and WH110 chain are reliable and cost-effective ways to transmit power and move materials in demanding applications.

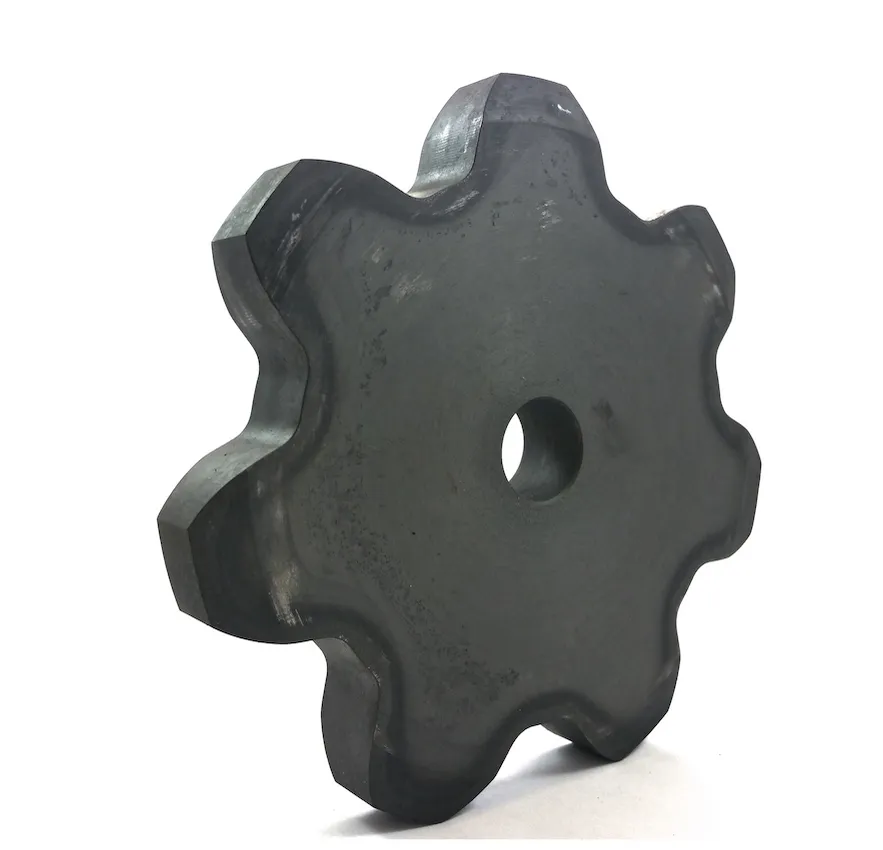

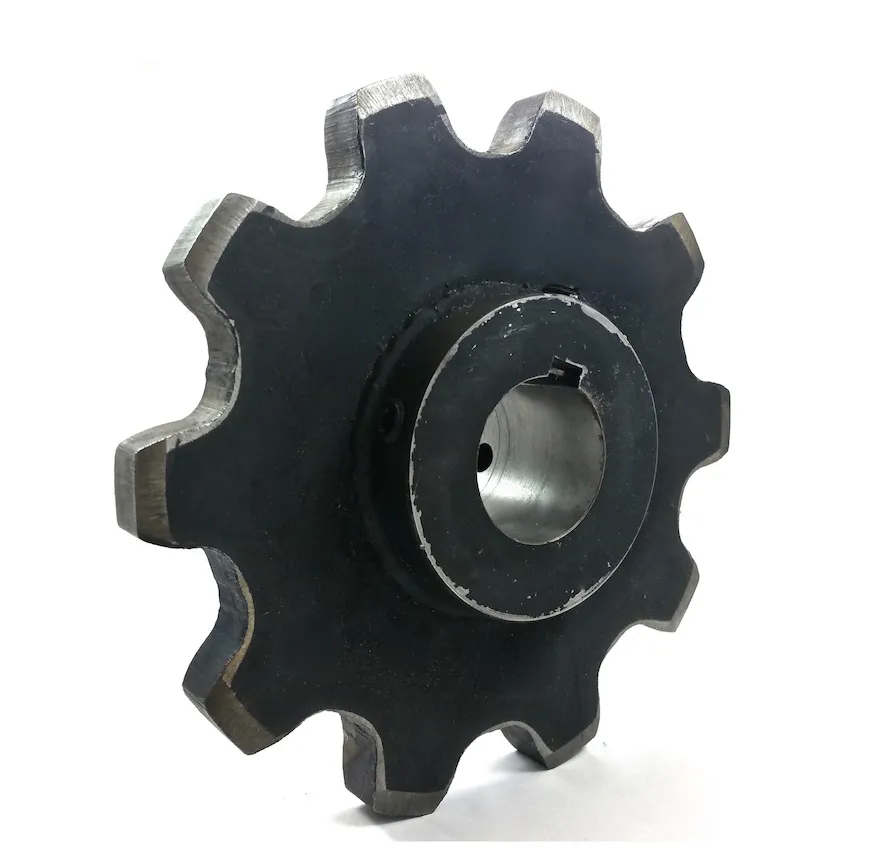

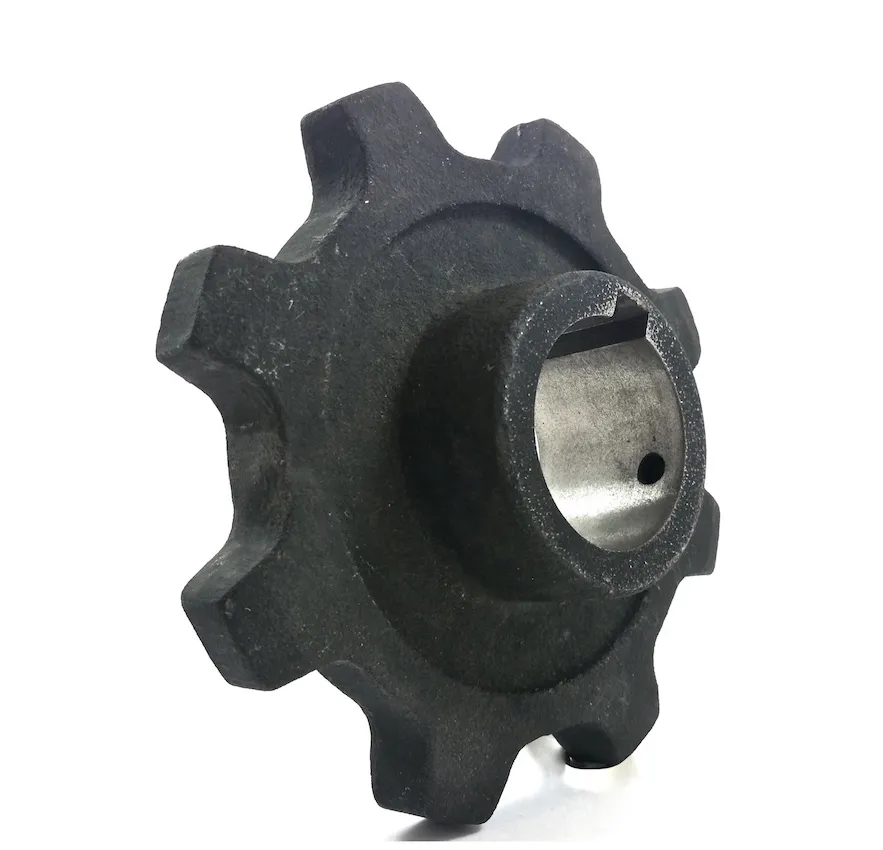

A-Plate WH110 Chain Sprockets	B-Hub WH110 Chain Sprockets	C-Hub WH110 Chain Sprockets

▍WH110 Welded Steel Mill Chain Maintenance Instructions:

here are some WH110 welded steel mill chain maintenance instructions:Inspect the chain regularly for wear and damage. Look for signs of wear, such as kinks, cracks, or missing links. If you see any damage, replace the WH110 welded steel chain immediately.Lubricate the chain regularly. This will help to reduce wear and keep the WH110 welded steel mill chain running smoothly. Use a high-quality lubricant that is designed for use with steel chains.Keep the chain clean.?Dirt and debris can build up on the chain and cause wear. Clean the chain regularly with a mild soap and water solution.Adjust the tension of the chain regularly. The WH110 welded steel mill chain should be tight enough to prevent it from slipping, but not so tight that it puts undue strain on the sprockets.Replace the chain at regular intervals. The frequency of replacement will depend on the severity of the application. However, it is a good idea to replace the WH110 welded steel mill chain every few years, even if it does not show any signs of wear.By following these maintenance instructions, you can help to extend the life of your WH110 welded steel mill chain and keep it running smoothly.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
