WHC124XHD Straight Sidebar Welded Steel Chain Sprockets

WRC124 Sprocket

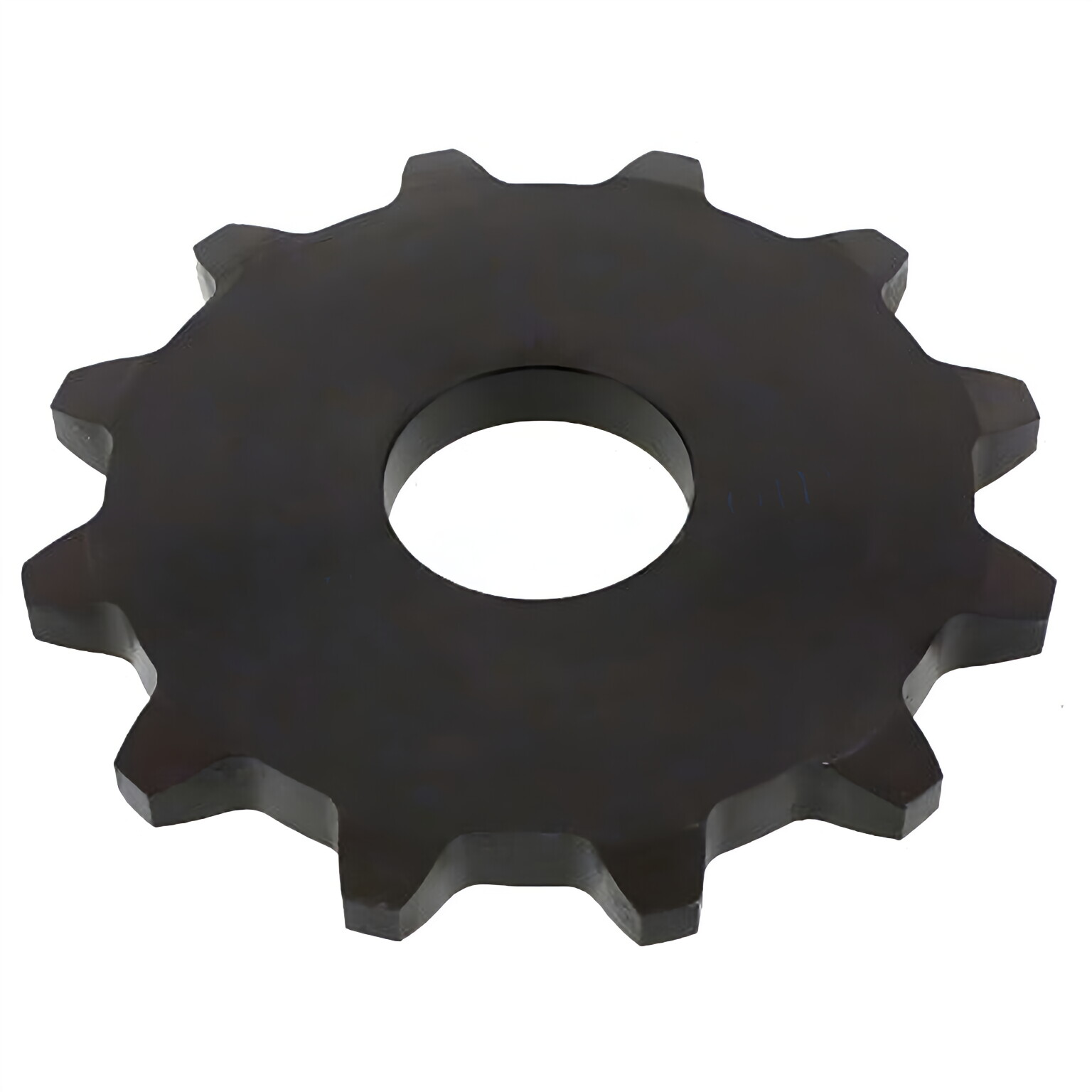

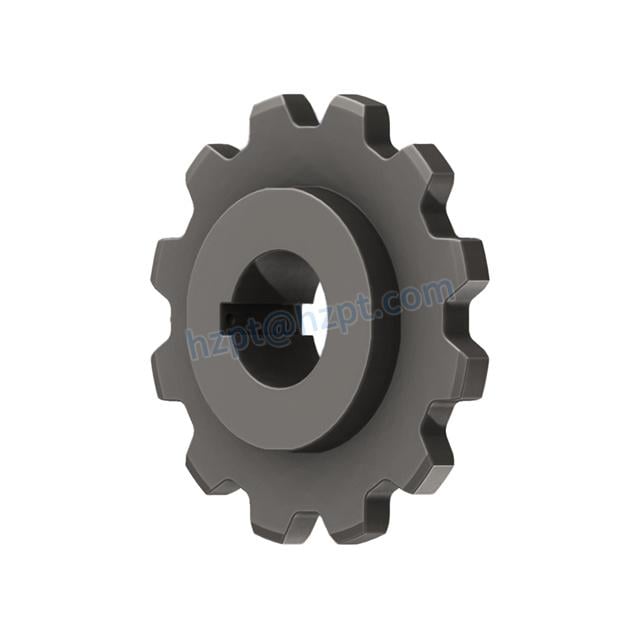

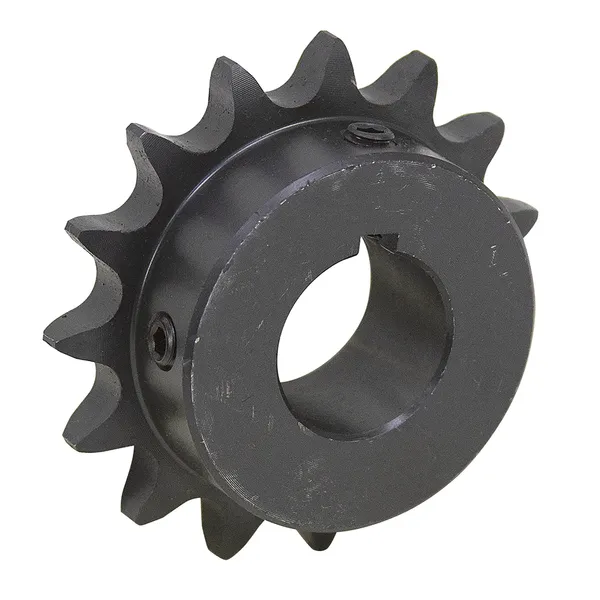

This WRC124 sprocket is a high quality and durable sprocket. We supply this sprocket in a wide range of configurations including; A-Plate, B-Hub, C-Hub, Hobbed, Split Construction, with brass, nylon, or UHMW inserts and more! Additionally we supply these sprockets at really great prices along with some of the fastest lead times in the industry.

• High Quality Sprocket
• Extremely Durable
• Available In A Wide Range Of Configuration

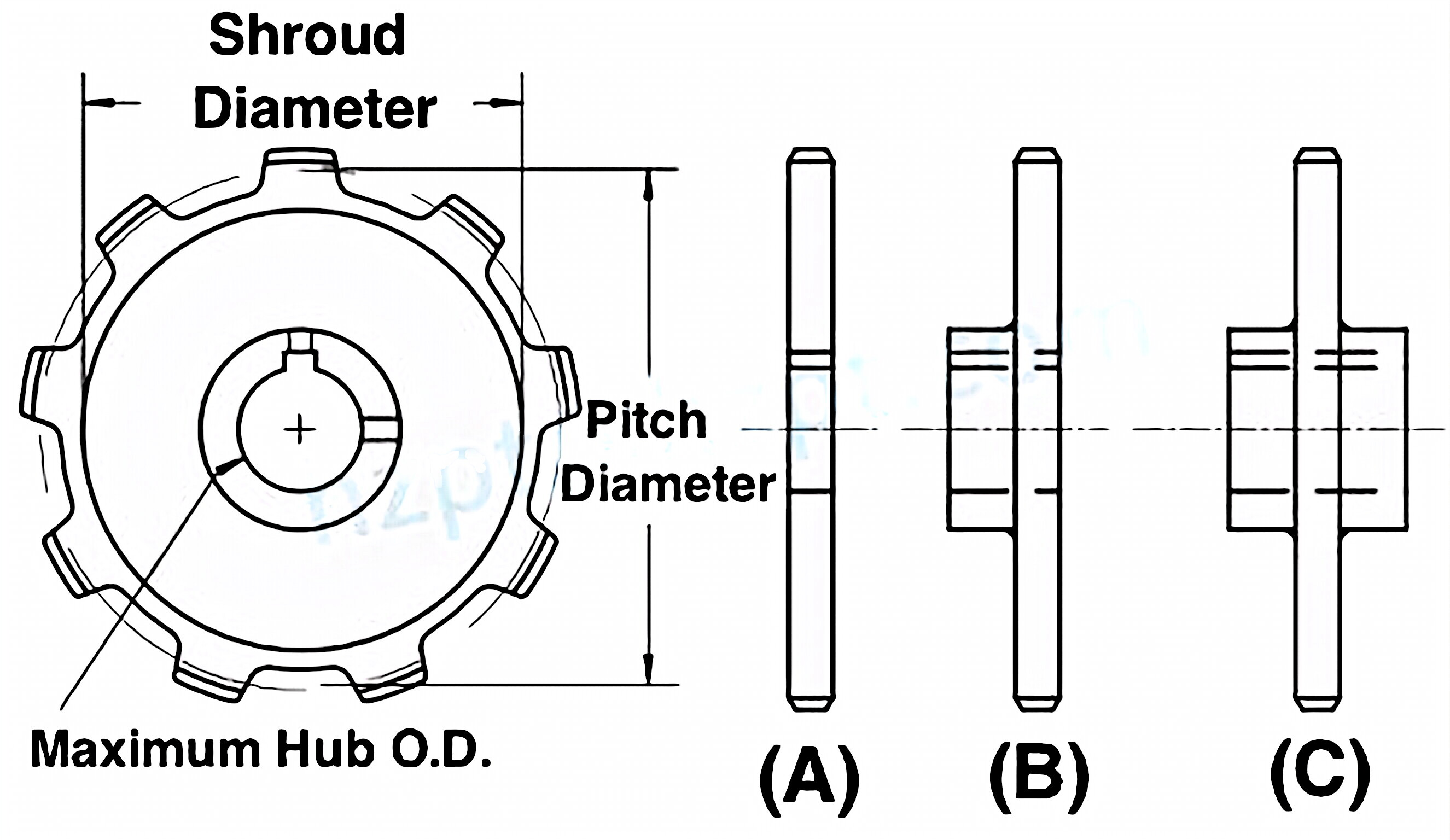

Sprocket Number	Pitch	Number of Teeth	Pitch Diameter	Maximum Bore	Shroud Diameter	Tooth Face
WRC124-9	4.050"	9	11.84"	4-15/16"	9.130"	1-1/2"
WRC124-10	4.050"	10	13.11"	5-7/16"	10.468"	1-1/2"
WRC124-11	4.050"	11	14.38"	5-15/16"	11.776"	1-1/2"
WRC124-12	4.050"	12	15.65"	5-15/16"	13.120"	1-1/2"
WRC124-13	4.050"	13	16.92"	5-15/16"	14.430"	1-1/2"
WRC124-14	4.050"	14	18.20"	5-15/16"	15.744"	1-1/2"
WRC124-15	4.050"	15	19.48"	5-15/16"	17.052"	1-1/2"
WRC124-16	4.050"	16	20.76"	5-15/16"	18.364"	1-1/2"
WRC124-17	4.050"	17	22.04"	5-15/16"	19.667"	1-1/2"
WRC124-18	4.050"	18	23.04"	5-15/16"	20.970"	1-1/2"

 We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
