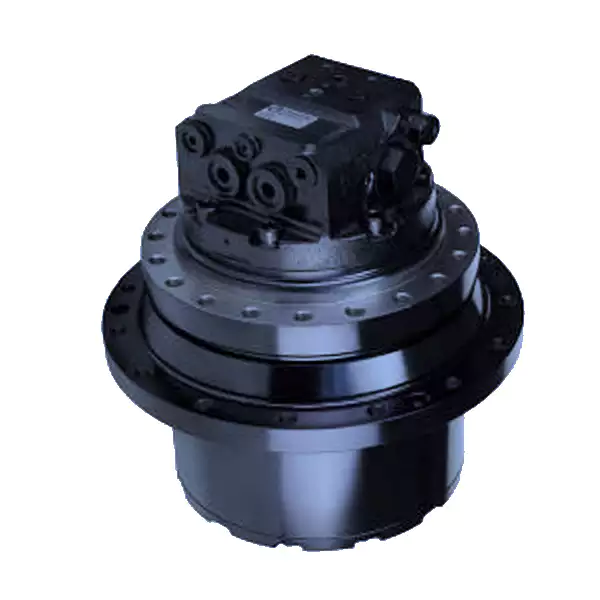

Wheel Drive Planetary Gearbox for Tandem Roller

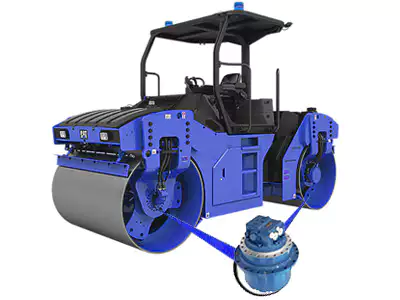

Where is the Wheel Drive installed on the Tandem Roller?

Tandem Roller  has two or more closely spaced drums and is used in road construction and other infrastructure projects to deliver ground or pavement materials. Uniform compaction. In the Tandem Roller, the Wheel Drive (wheel drive system) is installed at the driving part of each roller drum.Wheel Drive systems are usually integrated at or near the axle of each drum and are connected to the roller's engine or electric motor through a series of transmission components such as gears, chains or direct drives. This is designed to transfer power from a power source (usually a diesel engine or electric motor) to the rolling wheels of the roller, thereby driving the roller forward or backward.

What Role Does Wheel Drive Play In Tandem Roller?

• Providing driving force: The Wheel Drive system is the basis of the roller's action. It converts the power generated by the engine into the rotational motion of the wheels, allowing the roller to move freely on the job site.
• Control and adjustment: Through the control device of the drive system, the operator can adjust the speed and direction of the roller to adapt to different compaction requirements and working conditions.
• Uniform compaction: The Tandem Roller's two wheels are closely arranged, coupled with precise wheel drive control, to ensure uniform and deep compaction of construction materials, improving work quality and efficiency.
• Enhanced climbing ability and stability: The powerful wheel drive system can also enhance the roller's driving ability on uneven ground or slopes, maintain stable operation, avoid slipping, and ensure construction safety.

How Wheel Drive Works With Tandem Roller

The working principle of the Wheel Drive system in the Tandem Roller involves several key links, which together ensure that the roller can perform compaction operations efficiently and stably. The following are the basic steps and principles of its cooperation:

1. Power source: Tandem Roller is usually powered by a diesel engine or electric motor. This engine transmits power to the drive system through transmission components such as flywheels, clutches, and gearboxes.
2. Transmission system: The transmission system further transmits the power output from the engine to each drive wheel. In some designs, this may involve a hydraulic system, with variable displacement pumps and hydraulic motors driving the wheels; in other designs, it may be directly mechanical transmission such as gears, chains or shaft drives.
3. Differential (if present): In some configurations, a differential may be installed to allow the inner and outer wheels to rotate at different speeds when the roller turns. This ensures that the roller remains stable and works efficiently even when traveling on uneven or curved paths.
4. Drive Distribution: In a Tandem Roller, each drum wheel usually has an independent drive, ensuring adequate traction and control even in difficult terrain conditions. This allows each wheel to be individually adjusted as needed to adapt to ground conditions and maintain optimal compaction.
5. Operating controls: The operator regulates engine power output, travel speed and direction through controls within the cab such as the accelerator pedal, steering system and possibly a drive mode selector. Modern rollers are often equipped with advanced control systems that can accurately manage power output and improve operating efficiency and compaction quality.
6. Feedback and adjustment: The roller may also be equipped with sensors and control systems that monitor ground feedback and machine status, automatically adjusting the drive system to suit different compaction requirements to ensure uniform and appropriate depth of compaction.

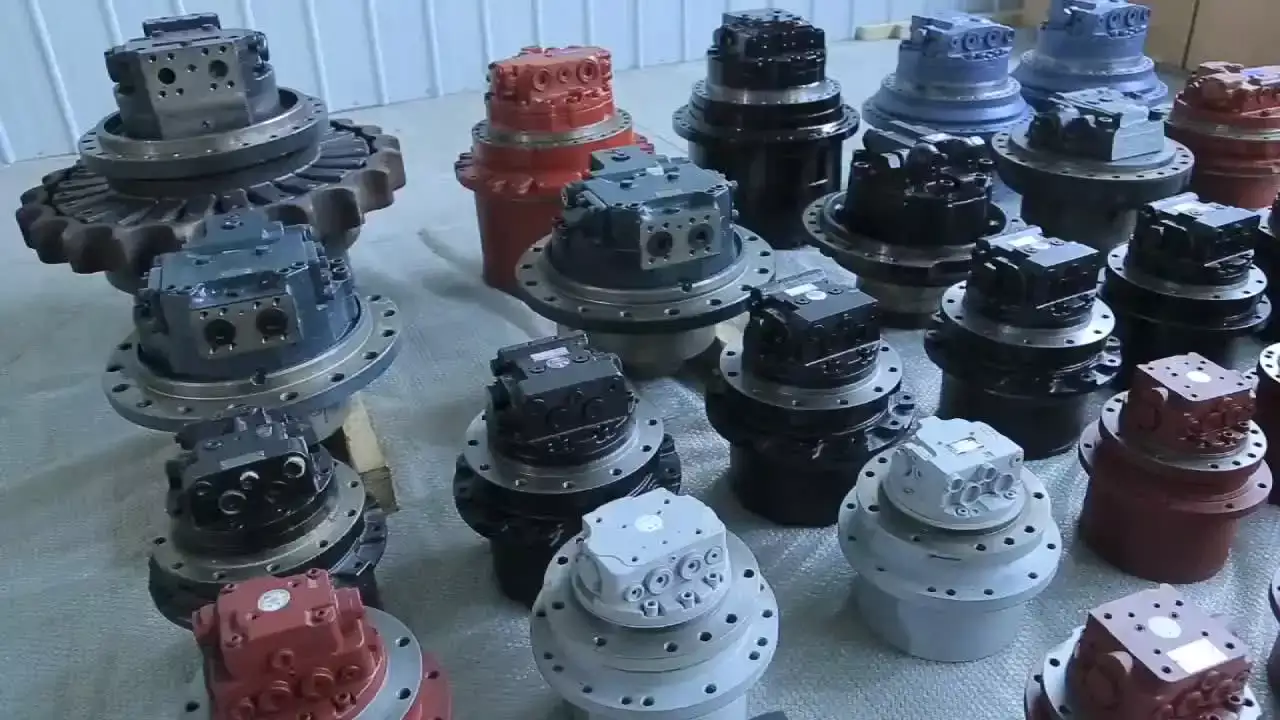

Highly Flexible and Compatible Design

We are proud to announce that our gearbox product line is designed for high flexibility and compatibility, seamlessly adapting to the vast majority of Tandem Rollers on the market, whether you are using an industry-leading brand or a special Custom models. With years of R&D experience and exquisite manufacturing technology, our gearbox can provide excellent transmission solutions for different brands and models of Tandem Roller to ensure efficient and stable operating performance.There are many common Tandem Roller brands and models on the market, covering internationally renowned brands such as Caterpillar, Bomag, Vögele, Dynapac, Hamm and so on. Each brand is subdivided into multiple models, such as Caterpillar's CS series, Bomag's BW series, etc. Each of these models has its own characteristics and is designed for different working conditions and compaction needs.

Customized Services

For such a wide range of market choices, the customized services we provide cover the following key elements to ensure that each gearbox can perfectly match your Tandem Roller needs:

• Customized interface size: Whether it is flange size, shaft diameter, keyway size or thread specification, we can accurately match the customer's existing roller configuration to ensure easy installation without additional adaptation work.
• Power matching: Based on the Tandem Roller's engine output power, we carefully design the speed ratio and load-bearing capacity of the gearbox to ensure efficient and lossless power transmission and maximize equipment efficiency.
• Torque demand adjustment: According to the different torque requirements for different compaction tasks and working conditions, we optimize the gear module, gear ratio and box strength to provide precise torque output and ensure compaction quality.
• Environmental adaptability: For extreme working conditions, such as high and low temperatures, dusty or humid environments, we choose appropriate materials and sealing technologies to improve the weather resistance and durability of the gearbox.
• Maintenance-friendly design: Considering the importance of daily maintenance, we optimize the structural design of the gearbox to ensure easy replacement of wearing parts, and the scientific design of the lubrication system extends the service life.
