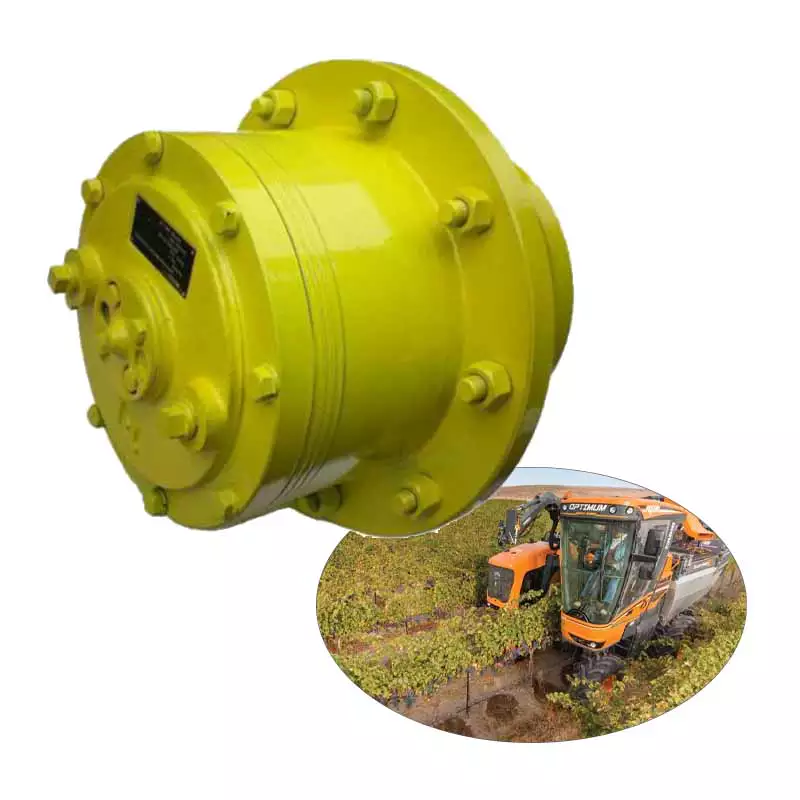

Wheel Drive Planetary Gearbox Reducer For Grape Harvester

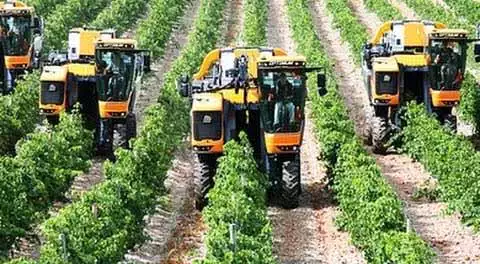

Wheel Drive in Grape Harvester

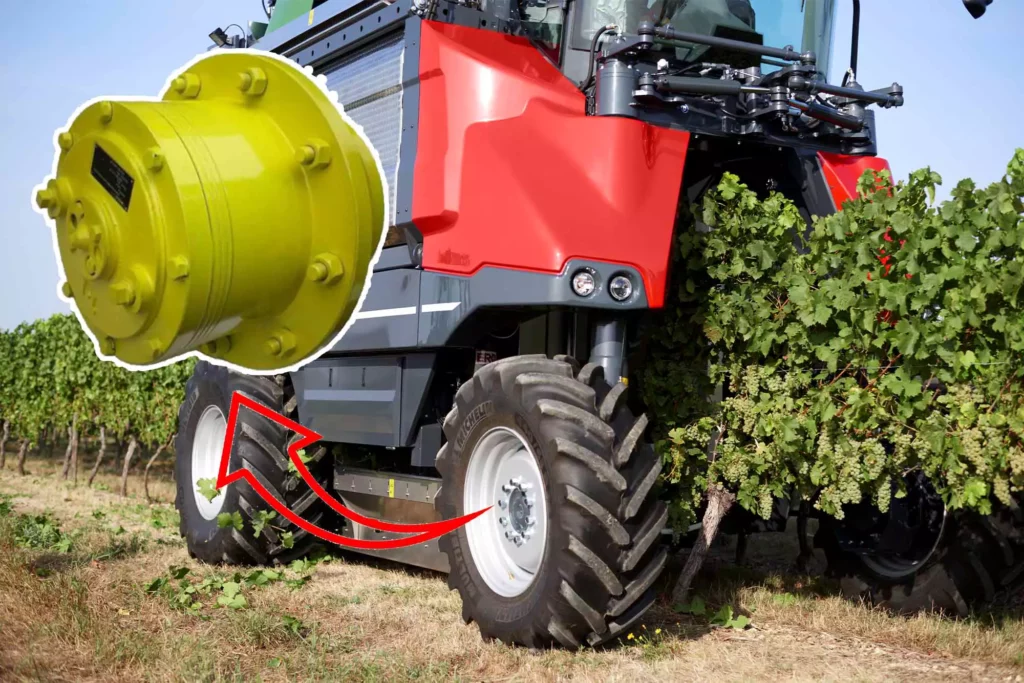

The Wheel Drive Planetary Gearbox Reducer for Grape Harvester is an essential component for machines that require power transmission. In the grape harvester, the wheel drive gearbox is responsible for transmitting power to the wheels, which enables the machine to move in the field and harvest grapes. The gearbox is usually located at the center of the machine and is crucial for its efficient functioning.In Grape Harvesters, the Wheel Drive Planetary Gearbox Reducer is typically installed on the drive axle of the machine. Its function is to transmit the high-speed rotational power generated by the engine or electric motor to the wheels after deceleration and torque increase, thereby providing sufficient traction and torque to drive the harvester smoothly in various complex terrain conditions of the vineyard and complete efficient grape picking operations.The main roles of Wheel Drive Planetary Gearbox Reducer in Grape Harvester include:

• Torque amplification: By using a planetary gear mechanism, the input lower torque is converted into a high torque output suitable for wheel rotation.
• Speed control: Effectively adjust the wheel speed to ensure that the equipment can maintain suitable driving speed under different loads and ground conditions.
• Stability and efficiency: Improve the stability and reliability of the entire machine during operation, reduce mechanical failures or decreased work quality caused by unstable speed or insufficient driving force.

As for how many wheel drive reducers a large Grape Harvester requires, it depends on the specific design and driving method of the harvester. Generally speaking, if it is a large grape harvester with four-wheel drive, each driving wheel requires a wheel drive planetary gearbox reducer, so theoretically it is 4; If it is a two wheel drive, only two are needed. However, the specific situation should refer to the specific harvester model and its technical specifications.

Performance of Wheel Drive for Grape Harvester

Adapting to vineyard mud and picking environments, there are special requirements for the performance of the wheel drive system:

1. Torque amplification capabilityOn muddy or slippery ground, the vehicle requires greater traction to drive smoothly. Therefore, the wheel drive planetary gearbox reducer must have sufficient torque amplification function to effectively convert the power generated by the engine or motor into high torque output on the wheels.
2. Low speed and high torque characteristicsDue to the complex and variable terrain of vineyards, vehicles often need to maintain strong driving force at low speeds. This means that the wheel drive should be able to provide higher torque at lower speeds to cope with challenges such as uphill, downhill, turning, and passing through soft soil.
3. Dust and waterproof designThe vineyard operating environment may contain pollutants such as soil, moisture, and debris, so the wheel drive and its surrounding components need to have good sealing and protection level to prevent external pollutants from entering the interior and ensure long-term stable operation.
4. Corrosion resistanceConsidering that the harvester may come into contact with fertilizers or moist soil containing acidity or alkalinity, wheel drive component materials should have good corrosion resistance.
5. Heat dissipation performanceWorking under heavy load conditions for a long time may cause the wheel drive to overheat, so a good heat dissipation design is essential, including the use of efficient lubricants and optimized cooling systems.
6. Reliability and DurabilityGiven the workload and time constraints of the harvest season, a wheel drive should have high reliability and long lifespan, able to withstand the wear and impact caused by continuous high-intensity operations.
7. Flexible handlingIn order to shuttle flexibly between narrow grape rows, the wheel drive needs to cooperate with the steering system to provide precise control feedback, allowing the driver to easily control the machine.

Compatibility with Machine Models

Our Wheel Drive Planetary Gearbox Reducer is compatible with various models of grape harvesters.The following are some well-known grape harvester models that can theoretically be compatible with various wheel drive reducers. But for specific adaptation situations, please refer to the original technical manual and consult with the wheel drive manufacturer for confirmation:

• Gregorire: For example, Gregorire Omega series, Sudoe series, etc.

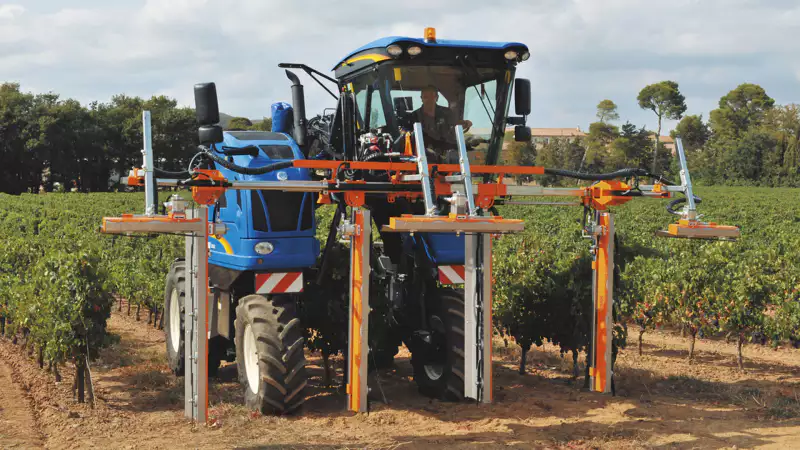

• New Holland Agriculture: Grape harvesters from the Braud series, such as the Braud 9000L series.
• Fendt: Fendt Katana series grape combine harvester.
• SIPMA: Provides multifunctional grape harvesters of different models, which may have the potential to adapt to various drive systems.
• Carraro: Although mainly known for its agricultural machinery transmission systems, its products may be used in other brands or models of grape harvesters.
• Claas: Although Claas is primarily known for their grain and forage harvesters, they may also have harvesting equipment suitable for vineyard operations.

In practical applications, different grape harvesters may have different power transmission requirements. Therefore, when choosing a wheel drive planetary gearbox reducer, the optimal matching scheme needs to be determined based on factors such as the actual design requirements of the harvester, torque output range, speed control, and spatial layout.
