Worm Gearbox for Industrial Robotics, Solar Energy, Military Industry, VRV030 Replacement of Ondrives & Rino PF60

Worm Reducer VRV030 Replacement of Ondrives & Rino PF60

Worm gearbox is a type of gearbox that uses a worm gear to transmit power from the motor to the output shaft. It is widely used in industrial robotics, solar energy, military industry and other fields that require high precision and torque. The VRV030 gearbox is a popular replacement for the Ondrives & Rino PF60 gearbox. The VRV030 offers a number of advantages over the PF60, including higher torque capacity, better precision, and lower noise levels.Our VRV030 Worm Gearbox is the perfect replacement for Ondrives & Rino PF60 Worm Gearbox. Please note that our products are replacement parts, not original factory parts. If you need to purchase original factory parts, please contact the original supplier for purchase.

Applications of Worm Gearbox VRV030 Replacement of Ondrives & Rino PF60

Industrial Robotics

The VRV030 worm gearbox is commonly used in industrial robotics, where it provides precise and efficient motion control. It is particularly useful for applications that require high torque and precise positioning.

Solar Energy

The VRV030 worm gear motor is also used in solar energy applications, where it is used to control the movement of solar panels. Its high torque capacity and precision make it an ideal choice for this application.

Military Industry

The VRV030 worm gear reducer is used in military applications, where it is used to control the movement of weapons and other equipment. Its high precision and reliability make it an essential component in many military systems.

Features of VRV030 Worm Reducer

The VRV030 Worm Reducer body structure is compact and easy to install, with fully synthetic lubricating oil that has long service life. The integrated body has good sealing performance and no risk of oil leakage. The simple structure, high transmission efficiency, stable operation, good noise reduction effect, compact size, and strong corrosion resistance make it a standout choice for any industrial robotics, solar energy, or military industry application.

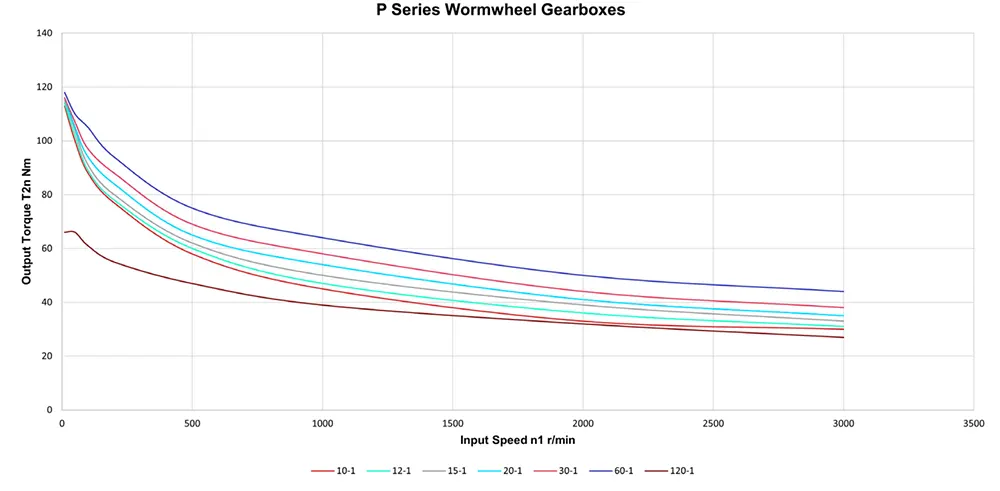

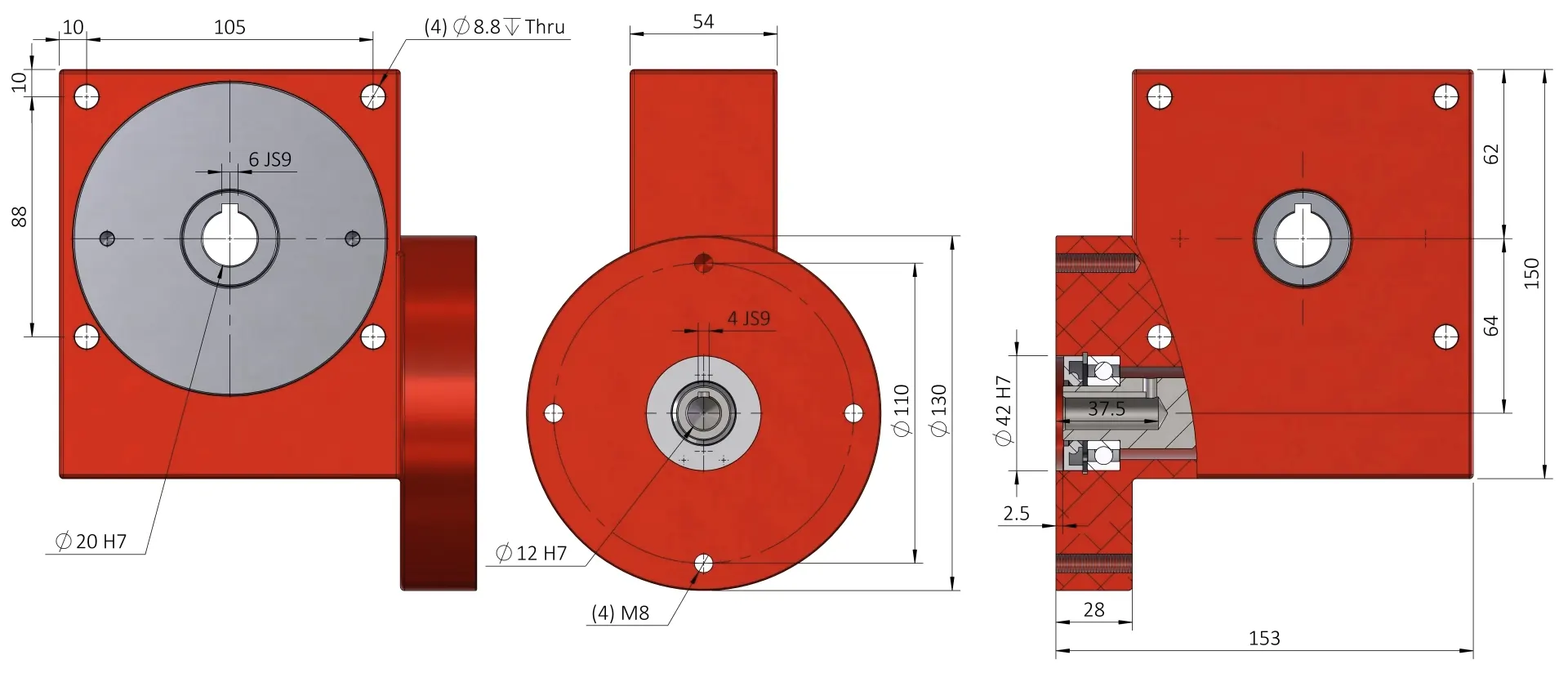

Worm Gearbox Technical Specifications

Specification	Value
Weight	5.1 kg
Nom. Input Speed [S1 T₂n]n1nom	1,000 min-1 (r/min)
Max. Input Speed n1max	3,000 min-1 (r/min)
Lubrication	Grease Shell Gadus S5 V4P 2.5
Lubrication Temperature	Max. Operating ≈ 60℃
Max. Output Radial Load Fr2	700N
Max. Output Axial Load Fa2	500N

Advantages of Worm Gearmotor VRV030

VRV030 is a type of worm gearbox that is commonly used in industrial robotics, solar energy, military industry and other fields. It is a high-precision worm gear reducer that can transmit torque efficiently and accurately.

High precision

The VRV030 gearbox uses a worm gear to transmit power, which provides high precision and accuracy. It is an ideal choice for applications that require precise positioning and motion control.

High torque capacity

The VRV030 gearbox has a high torque capacity, which means it can handle higher loads and provide more power. This makes it an ideal choice for heavy-duty applications.

Low noise

The VRV030 gearbox operates quietly, which makes it suitable for applications that require low noise levels. This is particularly important in industries such as medical and semiconductor manufacturing.

Electric Motors for Worm Gearboxes

Electric Motors and Worm Gearboxes go hand in hand when it comes to industrial applications. Our company not only provides quality Worm Gear Reducers, but also high-quality electric motors to power them. Together, they make for a powerful combination in any industrial setting, including for industrial robotics, solar energy, and military industry applications.
