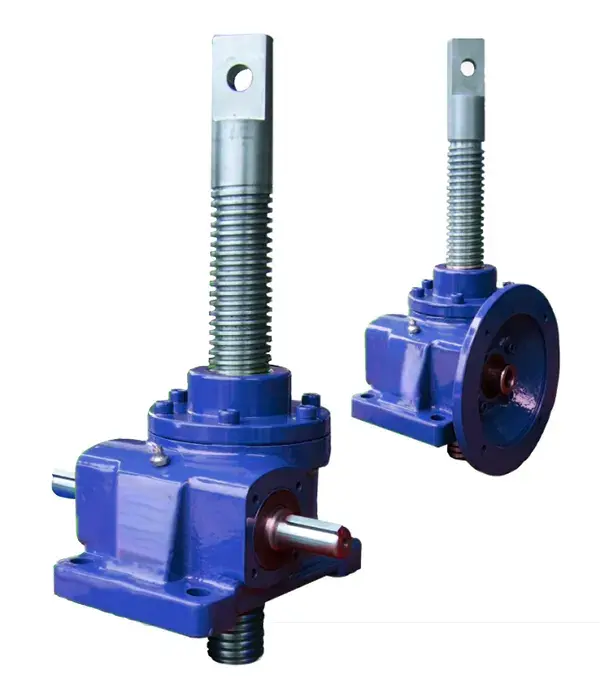

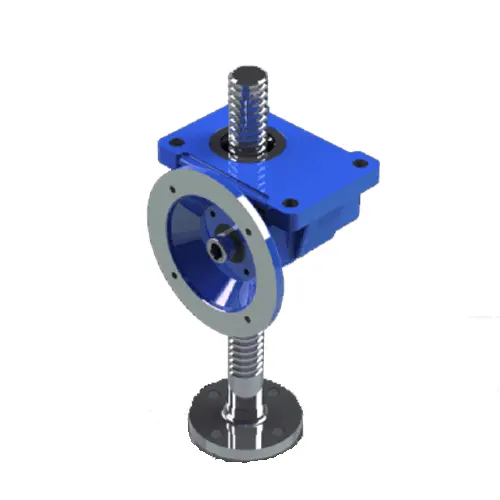

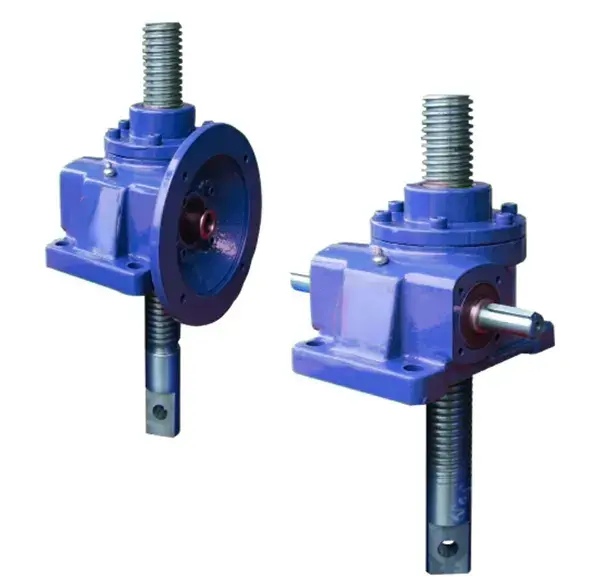

Worm Gearbox-Replacement of Chenta JTM35 Screw Jack Worm Reducer(Input Flange)

Upgrade your machinery with Raydafon Group's Worm Gearbox-Replacement of Chenta JTM35 Screw Jack Worm Reducer(Input Flange), a durable and efficient solution offering precise motion control, reduced maintenance, and seamless compatibility for industrial applications, ensuring reliability and enhanced performance that boosts productivity.

Send Inquiry

Product Description

Our company provides a replacement for the Chenta JTM35 Screw Jack Worm Reducer (Input Flange), which is a high-quality product at a competitive price. It is important to note that our product is a replacement part and not an original part. If you need to purchase an original part, please contact the original supplier.

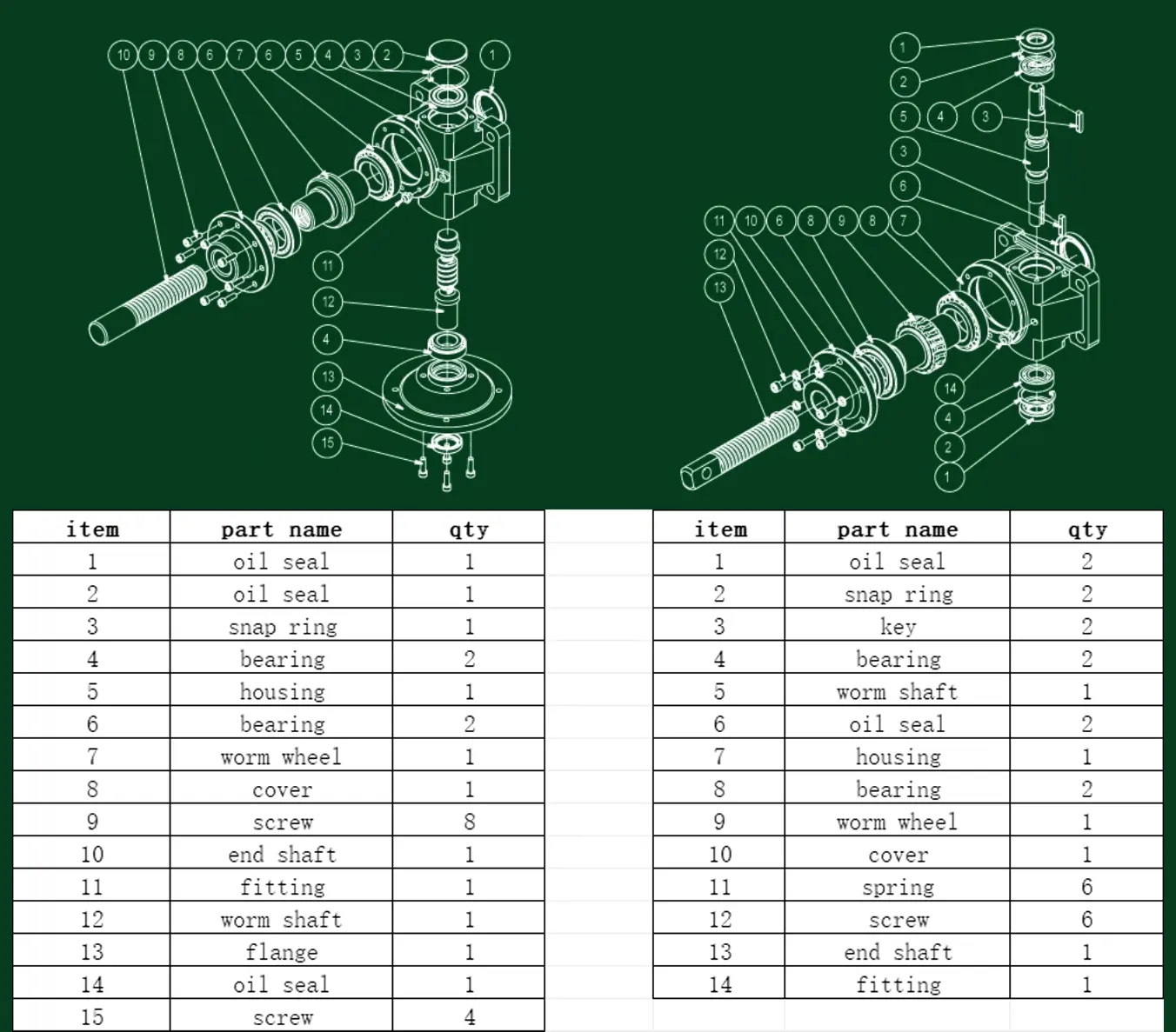

Structure of Screw Jack Worm Reducer

The screw jack worm reducer is composed of the following parts:

Worm Gear: It transmits power and motion.
Worm Shaft: It is driven by the motor and transmits power to the worm gear.
Housing: It supports the worm gear and protects it from dust and other particles.
Input Flange: It connects the motor to the worm shaft.
Output Flange: It connects the reducer to the equipment that needs to be driven.
Bearing: It supports the worm shaft and reduces friction.
Oil Seal: It prevents lubricant from leaking out of the reducer.

The above parts work together to make the screw jack worm reducer function properly.

Features of Screw Jack Worm Reducer

The screw jack worm reducer has the following features:

Wide Application: It is widely used in mechanical, metallurgical, construction, water conservancy, solar power generation and other industries.
Flexibility: It has many functions such as lifting, lowering, auxiliary propulsion, flipping, and various height adjustments.
Power Source: It can be driven by a motor or other power sources, or manually.
Easy Installation: It has various structural forms to meet different installation methods for different occasions.
Smooth Transmission: The worm gear and nut are made of high wear-resistant bronze, and the transmission has low noise and high reliability, ensuring that there is no jamming phenomenon.
Self-locking: The transmission of this screw jack worm reducer has self-locking (irreversibility), which makes the transmission more secure and convenient.
High Strength: The housing and cover of this screw jack worm reducer are made of high-strength ductile iron, which has higher strength than products in the same industry.
Beautiful Appearance: The structure of the screw jack worm reducer is beautiful and sturdy.

Overall, the screw jack worm reducer is a reliable and convenient product that can be applied to various industries and functions.

Chenta Screw Jack Worm Gear Reducer Replacement

Our company provides a replacement for the Chenta Screw Jack Worm Gear Reducer. The advantages of our replacement products are:

High Quality: Our replacement products are made of high-quality materials and have undergone rigorous testing to ensure their reliability.
Competitive Price: Our replacement products are sold at a competitive price, which can help customers save costs.
Perfect Replacement: Our replacement products are perfect replacements for the Chenta products, and can function the same as the original products.

It is important to note that our product is a replacement part and not an original part. If you need to purchase an original part, please contact the original supplier. In addition, we welcome customers to provide us with drawings or samples for customization.

Possible Abnormal Situations and Solutions of Worm Gear Reducer

Abnormal Situation	Solution
Overheating	Check the oil level and quality, and replace it if necessary. Check for any blockages or malfunctions in the cooling system.
Noise	Check for any loose parts or worn components, and replace them if necessary. Check for proper lubrication.
Leaking Oil	Check for any damaged or worn seals, and replace them if necessary. Check for any damage to the housing or cover.
Insufficient Torque	Check for any loose connections or worn components, and replace them if necessary. Check for proper lubrication.
Abnormal Vibration	Check for any unbalanced or misaligned components, and adjust or replace them if necessary. Check for proper lubrication.
Stuck or Jammed	Check for any blockages or worn components, and replace them if necessary. Check for proper lubrication.
Abnormal Wear	Check for any loose connections or worn components, and replace them if necessary. Check for proper lubrication.
Damaged Teeth	Check for any damaged or worn gears, and replace them if necessary. Check for proper lubrication.
Abnormal Smell	Check for any burnt oil or overheating components, and replace or repair them if necessary.
Electrical Problems	Check for any loose or damaged electrical connections, and repair or replace them if necessary.

Installation of Screw Jack Worm Reducer

The installation of the screw jack worm reducer should follow these guidelines:

When connecting the input shaft directly to the motor, use an elastic coupling.
When connecting the output shaft directly to the equipment, use a gear coupling.
The reducer should be installed on a stable foundation, and attention should be paid to the convenience of air circulation and oil change.
The centerline of the input shaft and the output shaft must be aligned, and the error should not be greater than the allowable value of the coupling used.
After the reducer is installed, it should rotate flexibly without any jamming phenomenon.
Before use, the reducer should be run under no load to ensure that all parts are working properly. If there are any problems, they should be addressed before using the reducer.

Lubrication and Maintenance of Screw Jack Worm Reducer

The screw jack worm reducer should be lubricated and maintained regularly to ensure its reliability and longevity. The following guidelines should be followed:

The new reducer should have its oil replaced after running for 500 hours, and then every 2500 hours.
Regularly check and replace the oil. Use oil of the same specifications, and do not mix it with other brands or specifications.
Before changing the oil, flush the inside of the reducer and drain the old oil. Then, add new oil.
If the temperature exceeds 80 degrees Celsius or any abnormal noise occurs during operation, stop the reducer immediately and check for the cause. Only start running the reducer again after the problem has been resolved.
The reducer should be regularly inspected and maintained. If any abnormalities or significant wear are found, effective measures must be taken to stop them. Spare parts must be manufactured according to standard materials and accuracy. After updating the parts, run the reducer under no load to ensure that it is functioning properly before using it.

Motors for Worm Gear Reducers

The screw jack worm reducer and electric motors are complementary to each other. A high-quality motor can provide stable power for the reducer, making it function properly and efficiently. Our company also provides various electric motors for sale.

We understand the importance of a reliable and efficient transmission system for the success of any project. Therefore, we are committed to providing our customers with the best products and services. Our gearboxes are widely used in various industries, and we have received praise from customers all over the world.

At Raydafon, we have more than 20 years of experience in the design, production, manufacture and sales of speed reducers. We employ industry professionals and technicians to carry out innovative research and development and manufacturing, and use standardized production management methods to ensure that every aspect of the production of reducers is strictly controlled. We are committed to providing customers with high-quality, energy-efficient, and stable production. Our customers are mainly located in Europe and America, and we offer the most competitive prices and the best service in the market.

If you are interested in our products, please feel free to explore our website or contact us for more information. We are always ready to help you with your transmission needs.
