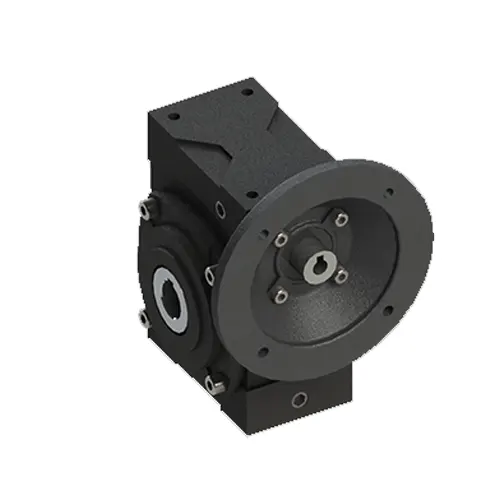

Worm Gearbox-Replacement of Chenta UHM Worm Gear Reducer (Universal Mounting)

Product Introduction

Our company provides the Worm Gearbox, also known as Worm Gearmoto, Worm Speed Reducer, and Worm Drive, as a replacement for the Chenta UHM Worm Gear Reducer. Our products are of high quality and offered at competitive prices. Please note that our products are replacement parts and not original equipment manufacturer (OEM) parts. If you require OEM parts, please contact the original supplier for purchasing.

Product Structure

The Worm Gearbox consists of the following components:

• High-quality double-lip oil seals
• Medium carbon steel worm, hardened and thread-ground
• Chrome molybdenum alloy steel worm, heat-treated and thread-ground, suitable for gearbox sizes 300 and above
• Aluminum bronze sand wheel, durable
• Sturdy housing made of gray cast iron and ductile cast iron, suitable for gearbox sizes 300 and above
• Detachable base for universal mounting

Product Features

The Worm Gearbox offers the following features:

• Suitable for IEC and NEMA motors
• Ratio range from 1/5 to 1/3600
• Horsepower range from 1/4HP to 100HP
• Utilizes high-quality double-lip oil seals
• Medium carbon steel worm, hardened and thread-ground
• Chrome molybdenum alloy steel worm, heat-treated and thread-ground, suitable for gearbox sizes 300 and above
• Aluminum bronze sand wheel, durable
• Sturdy housing made of gray cast iron and ductile cast iron, suitable for gearbox sizes 300 and above
• Detachable base for universal mounting

Applications

The Worm Gearbox is suitable for various applications:

• Equipment industry
• Food industry
• Car washing industry
• Packaging industry
• Transmission industry
• Automation industry
• Solar energy industry

Chenta Worm Gear Reducer Replacement

Our Chenta Worm Gear Reducer replacement offers the following advantages:

• High-quality replacement for Chenta UHM Worm Gear Reducer
• Competitive prices
• Excellent product quality
• Replacement parts, not original equipment manufacturer (OEM) parts

Please note that if you require OEM parts, you should contact the original supplier for purchasing.We also welcome custom orders based on your specific requirements.

Installation

1. Connect the input shaft directly to the motor using a flexible coupling.
2. Connect the output shaft to the machine, preferably using a gear coupling.
3. Install the gearbox on a stable foundation, considering good ventilation and convenient oil filling/drainage.
4. Align the input shaft of the gearbox with the motor shaft, ensuring tolerances are met.
5. After installation, manually check the smooth operation of the input shaft and ensure the nut rotates smoothly.
6. Perform a no-load test run before starting the gearbox. If any abnormalities are detected, they should be rectified immediately.

Lubrication and Maintenance

1. At the beginning of operation, replace the gearbox after 300 hours, and then every 2500 hours.
2. Regularly check and change the oil. Use the same specifications of oil and avoid mixing with oils of other brands.
3. Prior to oil change, clean and drain the gearbox internals, and then add new oil.
4. If the temperature exceeds 80??C or any abnormal noise occurs during operation, immediately shut down the gearbox for inspection and only resume operation after addressing the issue.
5. Regular maintenance is necessary. If any wear is found, corrective measures should be taken. The replacement parts should have the same precision as the original standards and should undergo a no-load test run in advance.

Motors for Worm Gear Reducers

The motors and Worm Gearbox complement each other and are integral to the system. We also offer a variety of electric motors for sale.

About Raydafon

We are a comprehensive transmission equipment manufacturer specializing in the research, development, manufacturing, and sales of speed reducers. With over 20 years of experience, we have served customers in Europe, America, Africa, Asia, and other regions, earning a reputation for providing high-quality products and excellent service at competitive prices. Our production facilities are equipped with advanced equipment and our dedicated team of professionals and technicians ensures innovative research, strict production control, and the delivery of high-quality and energy-efficient gearboxes. Our gearboxes are widely used in various industries including equipment, food, car washing, packaging, transmission, automation, and solar energy. We welcome customers to explore our products and contact us for purchasing.

Q&A

Q1: Can the Worm Gearbox be used with both IEC and NEMA motors?

A1: Yes, the Worm Gearbox is suitable for both IEC and NEMA motors.

Q2: What is the recommended lubrication interval for the gearbox?

A2: It is recommended to replace the gearbox after 300 hours of operation, and then every 2500 hours.

Q3: What should I do if the gearbox temperature exceeds 80??C during operation?

A3: If the gearbox temperature exceeds 80??C or any abnormal noise occurs, immediately shut down the gearbox for inspection and only resume operation after addressing the issue.
