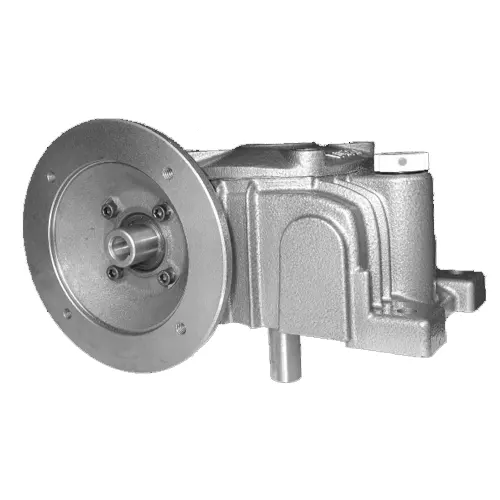

Worm Gearbox-Replacement of Chenta VSM Worm Gear Reducer (Output Downward)

Product Introduction

Our company offers a replacement for the Chenta VSM Worm Gear Reducer. Our products are of high quality and competitively priced. It is important to note that our products are replacement parts and not original manufacturer parts. If you need to purchase original manufacturer parts, please contact the original supplier.

Structure of the Worm Gear Reducer

The Worm Gear Reducer consists of the following components:

• Worm Shaft: Transmits power and motion
• Worm Wheel: Converts rotary motion into linear motion
• Housing: Provides protection and support for the gears
• Bearing: Reduces friction and supports the rotating shafts
• Oil Seal: Prevents leakage of lubricating oil

Features of the Worm Gear Reducer

• Compatible with IEC and NEMA motors
• Ratio range from 1/5 to 1/3600
• Horsepower range from 1/4HP to 100HP
• High-quality double-lip oil seal
• Medium carbon steel worm shaft with hardened heat treatment and thread grinding
• Chromium molybdenum alloy steel worm wheel with high-frequency heat treatment and thread grinding, suitable for sizes 300 and above
• Aluminum bronze sand casting wheel for durability
• Robust housing made of gray cast iron and ductile cast iron, suitable for sizes 300 and above
• Detachable base for universal gearbox installation

Applications of the Worm Gear Reducer

• Conveyor systems
• Industrial machinery
• Food processing equipment
• Packaging machinery
• Automation systems

Chenta Worm Gear Reducer Replacement

When it comes to replacing the Chenta Worm Gear Reducer, our alternative offers several advantages:

• High-quality and competitively priced
• Only provides replacement parts, not original manufacturer parts

If you need to purchase original manufacturer parts, please contact the original supplier.We also welcome custom orders based on your specific requirements.

Installation of the Worm Gear Reducer

1. Connect the input shaft to the motor using a flexible coupling
2. Connect the output shaft to the machine, preferably using a gear coupling
3. Install on a stable foundation, considering good ventilation and convenient oiling/draining
4. Align the input shaft of the reducer with the motor shaft, ensuring proper tolerances
5. Before starting, manually check the smooth operation of the input shaft and make sure the nuts are tightened
6. Perform a no-load test run before operation and immediately rectify any abnormalities

Lubrication and Maintenance of the Worm Gear Reducer

• Replace the gearbox every 300 hours of operation, and subsequently every 2500 hours. Regularly check and change the lubricating oil.
• Use oil of the same specifications, do not mix with oil from other brands.
• Before replacing the oil, clean and drain the gearbox, then refill with new oil.
• If the temperature exceeds 80?? or there is any abnormal noise during operation, immediately shut down the reducer for inspection and only resume operation after resolving the issue.
• Regular maintenance is required, and any wear should be corrected. The replacement parts should have the same precision as the original standard and require a no-load test run in advance.

Motors for Worm Gear Reducers

Worm gear reducers and electric motors are complementary to each other and play a crucial role in various industries. Our company also offers a wide range of electric motors for sale.

About Raydafon

We are a comprehensive transmission equipment manufacturer specializing in the research, development, manufacturing, and sales of speed reducers. With over 20 years of experience, we have served customers worldwide and earned a reputation for providing high-quality products, excellent service, and competitive prices. Our gearboxes are widely used in various industries such as equipment, food, car washing, packaging, transmission, automation, and solar energy. We encourage customers to explore our products and contact us for purchases.

Q&A

Q: Can I use the Worm Gearbox with motors other than IEC and NEMA motors?A: The Worm Gearbox is specifically designed to be compatible with IEC and NEMA motors for optimal performance. It is recommended to use these motors for the best results.Q: What is the recommended lubrication interval for the Worm Gear Reducer?A: It is recommended to replace the gearbox every 300 hours of operation, and subsequently every 2500 hours. Regularly check and change the lubricating oil to ensure smooth operation.Q: Can I use oil from different brands for lubricating the Worm Gear Reducer?A: It is important to use oil of the same specifications and not mix it with oil from other brands. This ensures compatibility and maintains the performance of the gearbox.
