Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25

Bonvario BL Series Worm Gearbox

The BL Series Worm Gearbox is a high-quality product that is manufactured using the best materials available to ensure maximum reliability and strength, thereby extending the gearbox's service life. The worm is made of steel and has been subjected to surface hardening treatment, reaching a hardness of 58-60 HRC, and then shaped by grinding. Within the allowable gear ratio of the module value, the thread grinding uses the ZI type. This improves the contact between the tooth surfaces, thus improving the gearbox's performance. It also reduces the operating noise of the gearbox. The worm wheel is made of G20 cast iron wheel hubs, with AS 1 bronze wheel rim castings mounted on the hubs. The series gearbox's housing and flanges are made of aluminum alloy, and the maximum size is 90. All sizes of the series gearbox have universal mounting options. The series gearbox uses ISO VG 320 synthetic oil below 90 numbers, almost maintenance-free, and no oil change is required during its service life. The gearbox specifications of 63 and above are installed with two tapered roller bearings on the worm shaft to improve the mechanical resistance to the axial thrust generated by the worm.We provide replacement BONVARIO brand worm reducers that are of high quality and affordable prices. It should be noted that our products are replacement parts, not original parts. If you need to purchase original parts, please contact the original supplier for purchase.

Features of the Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25

• High efficiency operation: The worm reducer has a high efficiency operation, which results in less energy loss and lower power consumption. This makes it an energy-saving option for industrial applications.
• Compact design: The worm reducer is designed with a compact structure, which makes it easy to install and maintain. It is ideal for use in tight spaces and confined areas.
• Low noise operation: The worm reducer operates quietly, making it suitable for use in noise-sensitive environments.
• Durable construction: The worm reducer is constructed with high-quality materials, which makes it robust and long-lasting.
• Smooth transmission: The worm reducer provides smooth and steady transmission, which results in improved performance and reliability.

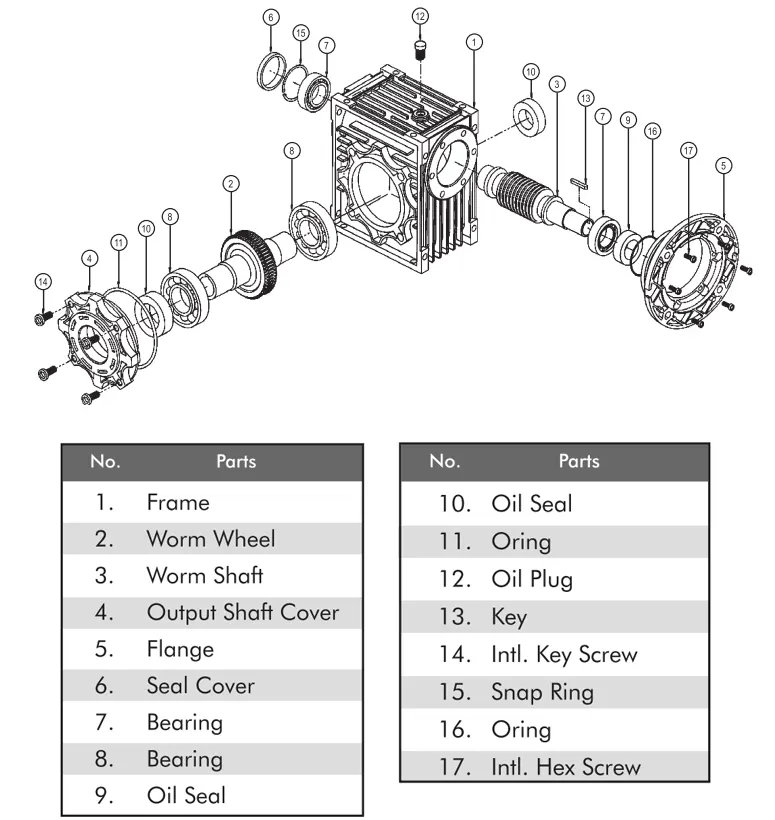

Internal structure of Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25

The internal structure of the Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25 includes the following components:

• Worm
• Worm Wheel
• Bearing
• Housing
• Shaft

Working Principle of Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25

The worm reducer works based on the principle of a worm and worm wheel. The worm rotates and drives the worm wheel, which in turn drives the output shaft. The rotation of the worm causes the worm wheel to rotate in the opposite direction. The worm wheel has teeth that mesh with the worm, resulting in power transmission.

Lubrication and Maintenance of Worm Reducer-Replacement of Bonvario BL Series Worm Gearbox Size 25

• Oil level: Check the oil level regularly and add oil as needed.
• Oil change: The oil should be changed every 6 months or after 1000 hours of operation.
• Cleaning: Clean the gearbox regularly to remove any dirt or debris that may have collected on the surface.
• Temperature: The operating temperature of the gearbox should be kept within the range specified in the user manual.

Bonvario Worm Gear Unit Replacement

Our company provides replacement worm reducers for the Bonvario brand, which are of high quality and affordable prices. The following are some of the advantages of our worm reducers:

• Cost-effective: Our worm reducers are a cost-effective alternative to the original Bonvario brand.
• Easier to install: Our worm reducers are easier to install than the original Bonvario brand, making them a more convenient and time-saving option.
• Improved performance: Our worm reducers are designed to provide improved performance compared to the original Bonvario brand. They offer higher efficiency and lower noise levels.
• Durable construction: Our worm reducers are constructed with high-quality materials, making them robust and long-lasting.
• Customizable options: We offer customizable options for our worm reducers to meet the specific needs of our customers.

It should be noted that our products are replacement parts, not original parts. If you need to purchase original parts, please contact the original supplier for purchase. We welcome customers to explore our products and contact us for purchases or customize according to their requirements.

Motors for Worm Reducers

Motors and worm reducers are essential components of industrial machinery. The motor provides the power, and the worm reducer provides the speed reduction and torque multiplication necessary for the machinery to operate effectively. Our company provides various electric motors for use in conjunction with our worm reducers to ensure optimal performance.The motor and worm reducer are interdependent and crucial to the effective functioning of industrial machinery. The motor provides the power, and the worm reducer provides the necessary torque multiplication and speed reduction to match the machinery's load. The use of a high-quality motor and worm reducer combination can significantly improve the efficiency and performance of industrial machinery.

About Raydafon

We are a comprehensive transmission equipment manufacturer that integrates research and development, manufacturing, and sales of speed reducers. We have more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, etc., and have won the praise of the market. Our consistent mission and vision over the years, our company has introduced advanced production equipment and testing equipment at home and abroad, employing industry professionals and technicians to carry out innovative research and development and manufacturing, the use of standardized production management methods to strictly control every aspect of the production of reducers, over the years has been to provide customers with high-quality, high-energy-efficiency, high-stability production. Our gearboxes are widely used in equipment Industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, etc. We offer the highest quality products and services to customers at competitive prices.

Q&A

Q: How do I know if a worm reducer is the right choice for my industrial machinery?
A: Worm reducers are ideal for use in applications that require high torque and low speed. They are also suitable for use in tight spaces and confined areas. If your industrial machinery requires high torque and low speed, a worm reducer may be the right choice for you.Q: How often should I change the oil in my worm reducer?
A: The oil in your worm reducer should be changed every 6 months or after 1000 hours of operation. Regular oil changes help to maintain the gearbox's performance and prolong its service life.Q: Can I use a motor that is not recommended by the manufacturer with my worm reducer?
A: It is not recommended to use a motor that is not recommended by the manufacturer with your worm reducer. Using a motor that is not designed to work with the worm reducer can result in reduced efficiency, increased operating costs, and decreased equipment lifespan.
