Worm Reducer-Replacement of PREMIUM Modular MSO Mark I 500 Worm Gearbox

Introduction

The Worm Reducer is a highly durable and efficient product with a wide range of specifications. It has an rated power of up to 350 kW, a reduction ratio of 5:1 to 3000:1, and a size of up to 203.2 mm (8 inches). It is highly wear-resistant and strong, with a compact design that makes it easy to install and maintain. The lubrication of the Worm Reducer is simple, requiring only a full oil level in the lubricant. It has high load-carrying capacity and long-lasting performance. Our company provides a replacement brand for the PREMIUM Modular MSO Mark I 500 Worm Gearbox, with good quality and affordable prices. Please note that our products only provide replacement parts for the original factory parts. For purchasing original factory parts, please contact the original supplier.

Composition and Function

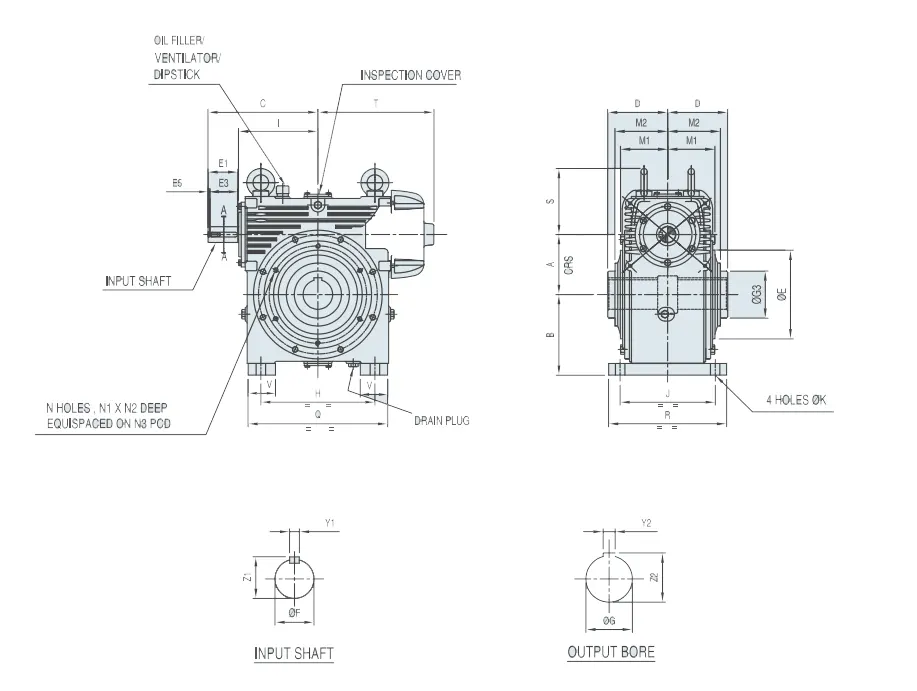

The Worm Reducer is composed of several parts, including an input shaft, an output shaft, a worm gear, a worm, a bearing, and a housing. The input shaft is used to connect the motor, the output shaft is used to connect the load, and the worm gear and worm are important parts of the reducer. The worm is used to mesh with the worm gear, and the bearing is used to support the shaft. The housing is used to protect the inner parts of the reducer. Please refer to the following diagram for details:

Features

The Worm Reducer series is based on a universal housing for each size, with highly universal parts and interchangeability. All devices are equipped with double-extension input shafts, and operation can be changed by moving the fan and rectifier from one end to the other. By reversing the device and changing the position of the oil drain plug, oil filler/ventilator, oil gauge, and detachable foot, the installation position can be quickly changed from underdrive to overdrive, and vice versa. Due to its interchangeability principle, comprehensive maintenance of inventory and faster delivery can be achieved. It has a sturdy, compact, streamlined design with fewer parts and a large heat capacity. It also has good aesthetics with few bolts and screws.

Applications

The Worm Reducer has a wide range of applications in industries such as mining, oil and gas, packaging and labeling, pulp and paper, power, rubber and plastics, sugar, cement, chemical, food and beverage, material handling, and steel. Its applications are as follows:

• Mining: Conveyor belts, crushers, and grinders
• Oil and gas: Pumps, compressors, and fans
• Packaging and labeling: Labeling machines, filling machines, and capping machines
• Pulp and paper: Paper machines, pulp machines, and wastewater treatment equipment
• Power: Generators, turbines, and boilers
• Rubber and plastics: Extruders, mixers, and injection molding machines
• Sugar: Cane knives, conveyors, and diffusers
• Cement: Crushers, mills, and kilns
• Chemical: Reactors, mixers, and agitators
• Food and beverage: Mixers, conveyors, and bottling machines
• Material handling: Conveyors, elevators, and cranes
• Steel: Rolling mills, blast furnaces, and continuous casting machines

Choosing the Right Worm Reducer

When choosing the right Worm Reducer, several factors must be considered:

1. Type of the original motor
2. Horsepower of the original motor
3. Output torque required by the driven component
4. Input speed of the gear device
5. Output speed of the gear device
6. Required driving device configuration and shaft configuration
7. Total operating hours per day. If intermittent operation, the work cycle should be detailed.
8. Details of any abnormal starting load
9. Details of any reverse or impact load
10. Details of any external load on the gear device
11. Details of any abnormal operating conditions, such as ambient temperature, humidity, etc.

PREMIUM Worm Gearbox Replacement

Our company's replacement brand for the PREMIUM Modular MSO Mark I 500 Worm Gearbox has several replacement advantages, including:

1. Good quality
2. Affordable prices
3. Interchangeable with original factory parts
4. Customizable based on customer's needs
5. Shorter delivery time than original supplier

Our company provides customers with high-quality and energy-efficient gearboxes with stable performance. Please note that we only provide replacement parts for original factory parts. If you need to purchase original factory parts, please contact the original supplier.

Worm Gear Reducer Lubrication

The lubrication of the Worm Gear Reducer is achieved through the lubricating oil splashed from the oil sump onto the gears and bearings. The modular series of Worm Gear Reducers is equipped with an oil-immersed rod-oil filter and ventilator. Except for occasionally adding the recommended lubricating oil to the required level, no special care is needed. The input and output shafts are equipped with chloroprene rubber lip oil seals. Forced lubrication is required for extremely low speeds below 50 rpm. The reducer does not come with lubricating oil and must be filled with the correct amount of lubricating oil. Care must be taken not to exceed the correct oil level, as overfilling can cause oil agitation, resulting in overheating and leakage.

Worm Gear Reducer Maintenance

The Worm Gear Reducer requires weekly maintenance that includes:

1. Checking the oil level using the oil gauge or oil level plug and adding the recommended lubricating oil if necessary
2. Ensuring regular cleaning of the breather. Note: Do not paint the breather, as this will create pressure and cause oil leakage
3. For equipment with grease-lubricated bearings, add grease twice with a grease gun, or screw in the threaded lubricator two turns and add the recommended grease if necessary.

Regularly changing the oil is essential to ensure long-term trouble-free operation of the equipment. The frequency of oil changes depends on factors such as oil temperature, oil type, environment, and operating conditions such as impact load. Oil life is significantly shortened under high temperature conditions. To prevent equipment damage due to lubricating oil failure, the lubricating oil should be updated on time.

Motors for Worm Gear Reducers

Motors and Worm Gear Reducers are complementary and essential components of any transmission system. The Worm Gear Reducer is used to reduce the speed and increase the torque of the input power, while the motor provides the input power for the transmission system. The combination of the two determines the output speed and torque of the system.Our company also provides various types of electric motors for sale, ensuring the perfect match for Worm Gear Reducers. We have a wide range of motors, including AC motors, DC motors, and stepper motors, with different power ratings and operating voltages to choose from.

About Raydafon

Raydafon is a comprehensive transmission equipment manufacturer that integrates research and development, manufacturing, and sales of speed reducers. With over 20 years of experience in designing, producing, manufacturing, and selling gearboxes, we serve customers in Europe, America, Africa, Asia, etc., and have won the praise of the market. Our consistent mission and vision focus on introducing advanced production equipment and testing equipment at home and abroad, hiring industry professionals and technicians for innovative research and development and manufacturing, and using standardized production management methods to strictly control every aspect of the production of reducers. Over the years, we have provided customers with high-quality, energy-efficient, stable reducer products.Our gearboxes are widely used in equipment Industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry and so on. We are committed to providing customers with the best services, highest product quality, and competitive prices. We welcome and trust customers to explore and purchase our products.

Q&A

Q: What is the rated power of the Worm Reducer?

A: The rated power of the Worm Reducer is up to 350 kW.

Q: What is the lubrication method for the Worm Gear Reducer?

A: The Worm Gear Reducer's lubrication is achieved through the lubricating oil splashed from the oil sump onto the gears and bearings.

Q: Does Raydafon provide original factory parts for Worm Reducers?

A: No, Raydafon only provides replacement parts for original factory parts. If you need to purchase original factory parts, please contact the original supplier.
