Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox

Introduction

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox is a highly durable and strong product with a compact design that makes it easy to install and maintain. It has a high wear resistance, high efficiency, and high load-bearing capacity. This product has a broad range of specifications, with a rated power of up to 350 kW, a reduction ratio of 5:1 to 3000:1, and a size of up to 203.2mm (8 inches).

Structure

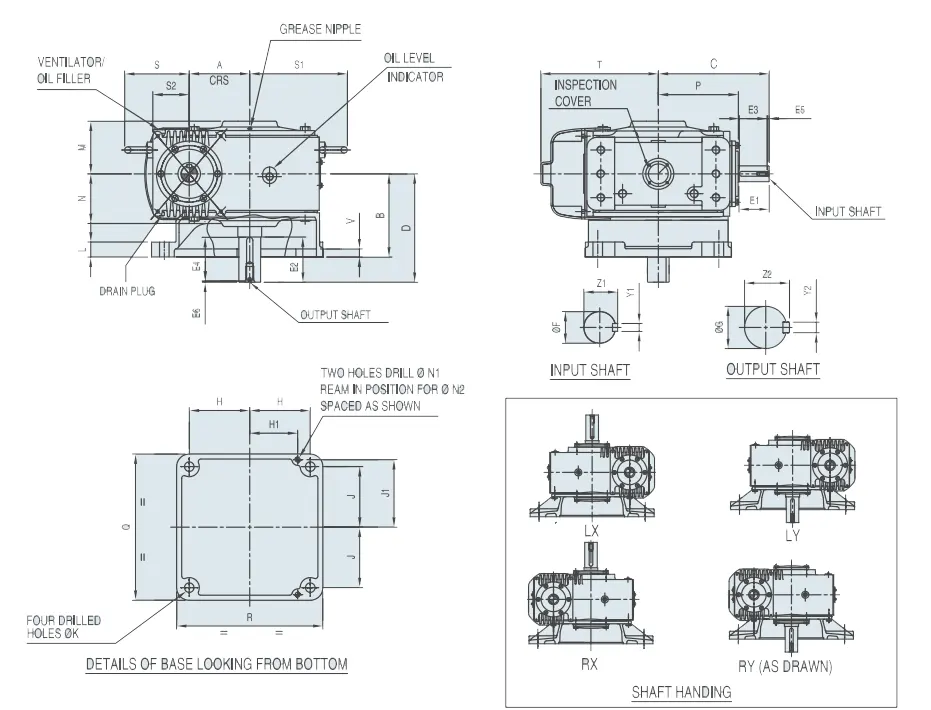

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox is composed of several parts:

• Worm shaft
• Worm wheel
• Housing
• Bearing
• Oil seal
• Lubrication system

The worm shaft and worm wheel are the primary components that provide the reduction in speed and torque. The housing and bearing provide support and protection for the internal components. The oil seal prevents oil leakage, and the lubrication system ensures smooth operation without overheating or wear.

Features

• The series is based on a universal housing design for each size, with high component universality and interchangeability.
• All units are equipped with double extended input shafts, making it easy to change the operation mode by moving the fan and rectifier from one end to the other.
• The mounting position can be quickly changed from underdrive to overdrive by simply inverting the unit and changing the position of the drain plug, filler/breather, and removable feet.
• With the principle of interchangeability, comprehensive maintenance of inventory can be achieved, and faster delivery can be achieved.
• The design is sturdy, compact, and streamlined, with fewer parts and a large heat capacity.
• The appearance is good, with few bolts and screws.

Applications

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox has a wide range of applications in industries such as:

• Mining
• Oil and gas
• Packaging and labeling
• Pulp and paper
• Power
• Rubber and plastic
• Sugar
• Cement
• Chemical
• Food and beverage
• Material handling
• Steel

Choosing the Right Worm Gear Reducer

Choosing the right Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox depends on several factors:

1. Type of prime mover
2. Horsepower of the prime mover
3. Output torque required from the driven member
4. Input speed of the gear unit
5. Output speed of the gear unit
6. Required drive arrangement and shaft configuration
7. Total hours of operation per day. For intermittent operation, the work cycle should be described in detail.
8. Details of any abnormal starting loads
9. Details of any reverse or shock loads
10. Details of any external loads on the gear unit
11. Details of any abnormal operating conditions, such as ambient temperature, humidity, etc.

PREMIUM Worm Gearbox Replacement

Our company provides Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox at a competitive price, which are high-quality replacement parts and not original parts. The replacement parts are compatible with the original parts and have superior quality and performance. Some of the advantages of our replacement parts include:

• High quality and performance
• Competitive price
• Easy to install and maintain
• Compatible with original parts
• Fast delivery

We also offer a variety of electric motors for use with our gearboxes. The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox and electric motors are complementary products that work together to provide efficient and reliable power transmission. We supply all kinds of electric motors to meet different needs.

Lubrication for Worm Gear Reducer

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox is lubricated by oil splashed from the oil sump onto the gears and bearings. The modular series worm gearboxes come with a dipstick-oil filter and breather. No special care is required except to fill the oil to the desired level occasionally. The input and output shafts are fitted with chloroprene rubber lip-type oil seals. Forced lubrication is required for extremely low speeds below 50 rpm. The reducer does not come with lubricant and must be filled with the correct amount of lubricant. Make sure not to overfill the lubricant, as excess oil can cause oil churning, overheating, and leakage.

Maintenance for Worm Gear Reducer

1. Weekly checks:
   • Check the oil level using the dipstick or level plug and add the recommended grade of lubricant if necessary.
   • Ensure regular cleaning of the breather. Care must be taken not to paint the breather, or pressure will build up, resulting in leakage.
   • For units with greased bearings, pump twice with grease gun, or turn the threaded grease fitting two turns if equipped with a threaded lubricator, and add the recommended grease as necessary.
2. Oil changes:

   Regular oil changes are essential to ensure trouble-free operation of the equipment. The frequency of oil changes depends on several factors:

   • Oil temperature - equipment operating under load
   • Type of oil - regular or additive oil
   • Environment - humidity, dust, etc.
   • Operating conditions - shock loads, etc.

Our Company - Raydafon

We are a comprehensive transmission equipment manufacturer with over 20 years of experience in designing, manufacturing, and selling gearboxes. Our Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox and electric motors are widely used in various industries, and we have won the praise of our customers in Europe, America, Africa, Asia, and other regions. Our mission and vision are to provide high-quality, high-energy-efficient, and high-stability transmission equipment, and we have introduced advanced production and testing equipment from home and abroad, employed industry professionals and technicians, and adopted standardized production management methods to strictly control every aspect of the production of gearboxes. Our products are known for their high quality, competitive price, and excellent service.

We encourage customers to explore our products and contact us for purchasing or customization.

Q&A

1. What is the rated power of the Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox?

The rated power of the Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox can reach up to 350 kW.

2. What are the applications of the Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox?

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox has a wide range of applications, including mining, oil and gas, packaging and labeling, pulp and paper, power, rubber and plastic, sugar, cement, chemical, food and beverage, material handling, and steel.

3. What is the lubrication system for the Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox?

The Worm Reducer-Replacement of PREMIUM Modular MV Mark I 400 Worm Gearbox is lubricated by oil splashed from the oil sump onto the gears and bearings.
