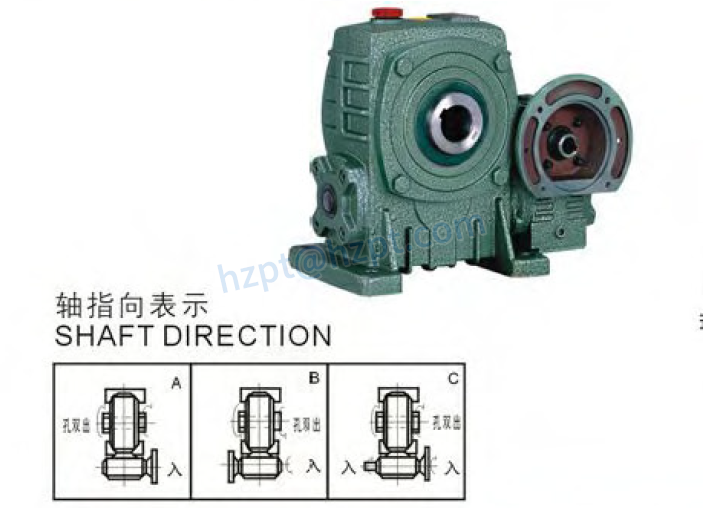

WPEDKA Series Double Stage Worm Gearboxes

WPEDKA Series Double Stage Worm Gearboxes

Worm gearbox is one of the more commonly used reducers. Worm gear reducer has a beautiful appearance, simple installation, and ample torque, which more and more customers love. It can be seen in the transmission system of various machinery, from ships, automobiles, locomotives, heavy machinery for construction, processing machinery, and automated production equipment used in the machinery industry to common household appliances in daily life, Clocks, and so on. In industrial applications, the reducer has the functions of deceleration and torque increase. Therefore, it is widely used in speed and torque conversion equipment.

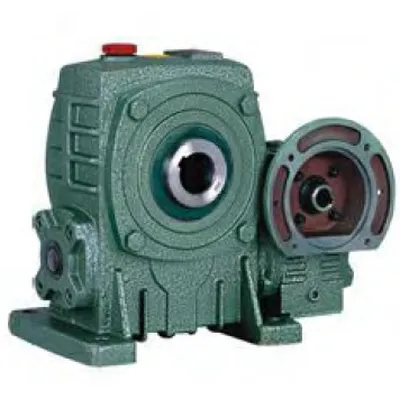

WPEDKA Worm Drive Gearbox

Type	worm drive gearbox
Model	WPEDKA
Ratio	1: 200, 300, 400, 500, 600, 800, 900
Color	Blue/Green Or On Customer Request
Material	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC.
	Shaft-chromium steel-45#
Packing	Carton and Wooden Case
Warranty	1 Year
Usages	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing, Woodworking, Glass.
IEC Flange	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant	Synthetic&Mineral

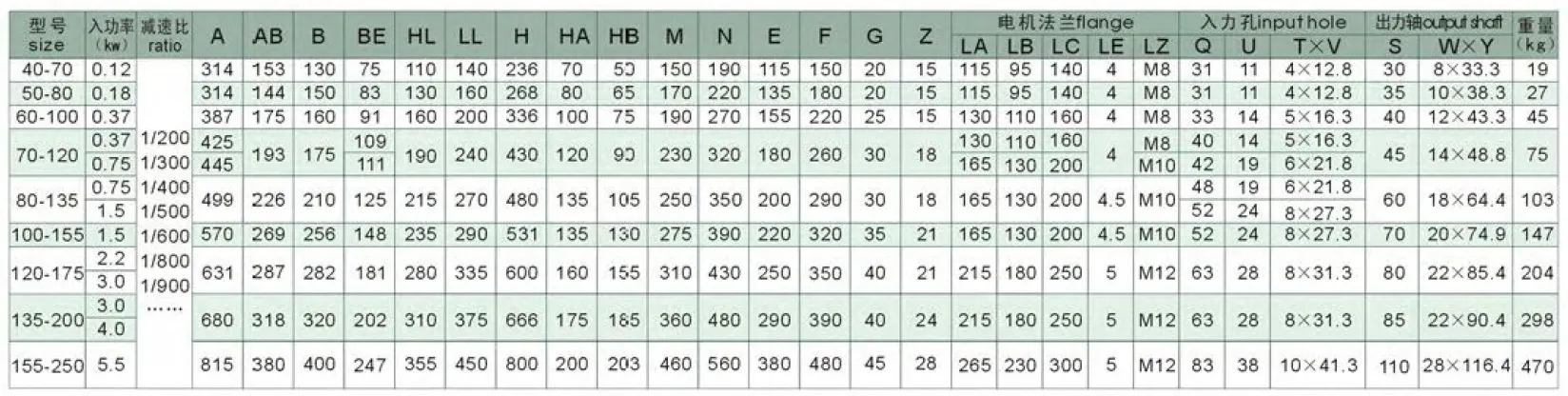

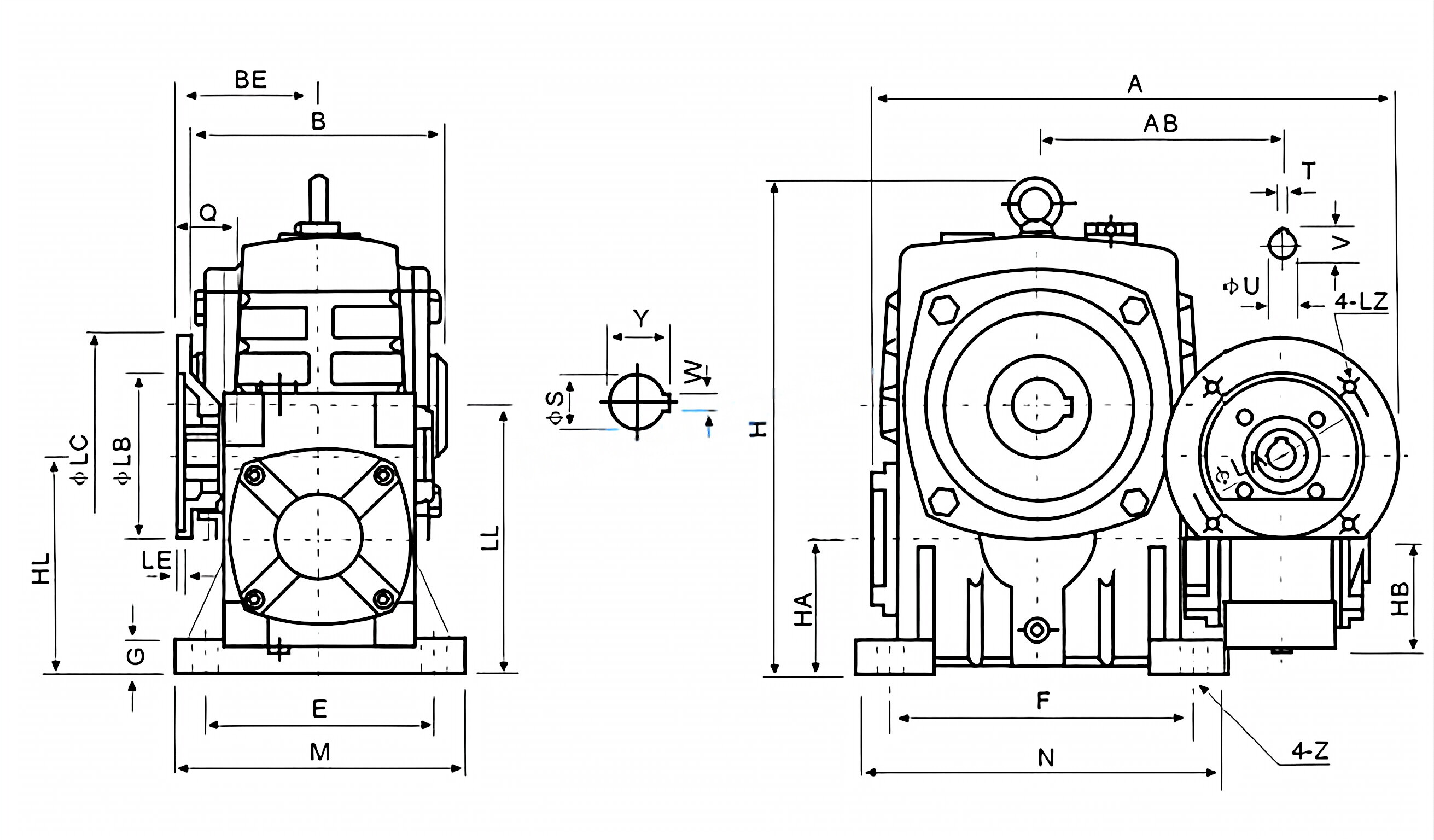

Specifications Parameter

Materials and Functions of Some Accessories of Worm Gearbox:

Housing: Aluminum alloy (seat:025-090) cast iron (seat:110-250);Worm: 20Cr steel.Carbon and nitrogen co-treatment (after fine grinding, HRC60 hardness of tooth surface is maintained, hardness thickness is greater than 0.5mm);Worm gear: specially equipped wear-resistant nickel bronze;Oil cover/ventilator: mainly used to discharge the gas in the turbine worm reducer;The end cover: is divided into a large and small end cover. The end cover is the axial position of the fixed shafting component and bears the axial load. Both ends of the bearing seat hole are sealed with a bearing cover.Oil seal: Mainly used to prevent the leakage of lubricating oil inside the chassis, and improve the service time of lubricating oil;The oil discharge screw plug: is used primarily for discharging sewage oil and cleaning aid when changing lubricating oil;The oil label cover/oil label: is primarily used to observe whether the oil quantity inside the turbine worm reducer is up to the standard;

Company Profile

We handle power transmission products; our lines mainly cover series products in speed reducers, gearboxes, associated electrical motors, and other accessories. Based on their versatile functions, our products can be utilized in many fields: wastewater treatment machines, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers worldwide.Furthermore, the R&D investment is increasing annually to meet our customers' new demands better and adapt to the recent tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

FAQ

Q: Are you a trading company or manufacturer?A: We are a factory.Q: How long is your delivery time?A: Generally, it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock.Q: Can we buy one pc of each item for quality testing?A: We are glad to accept a trial order for quality testing.Q: How to choose a gearbox that meets your requirement?A: You can refer to our catalog to choose the gearbox, or we can help to decide when you providethe technical information of required output torque, speed, and motor parameters.Q: What information shall we give before placing a purchase order?A: a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information.b) Housing color.c) Purchase quantity.d) Other special requirements.
