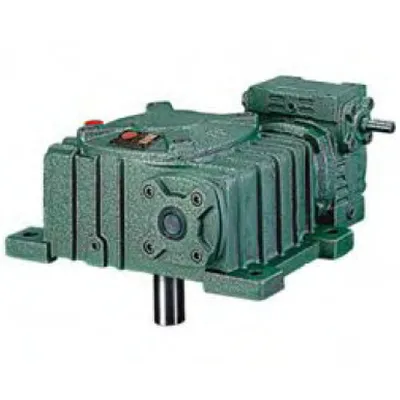

WPEX Series Double Stage Worm Gearboxes

Introducing Raydafon Group's WPEX Series Double Stage Worm Gearboxes—an advanced solution for heavy-duty industrial applications that require high torque and reliable power transmission. These gearboxes feature durable construction, precision engineering, and efficient design, ensuring smooth operation and long-lasting performance in demanding environments like manufacturing, conveyor systems, and machinery. Perfect for engineers and operators seeking enhanced durability and reduced maintenance, they solve common issues like overheating and wear, offering superior value compared to standard models. Experience the difference in reliability and efficiency today!

Send Inquiry

Product Description

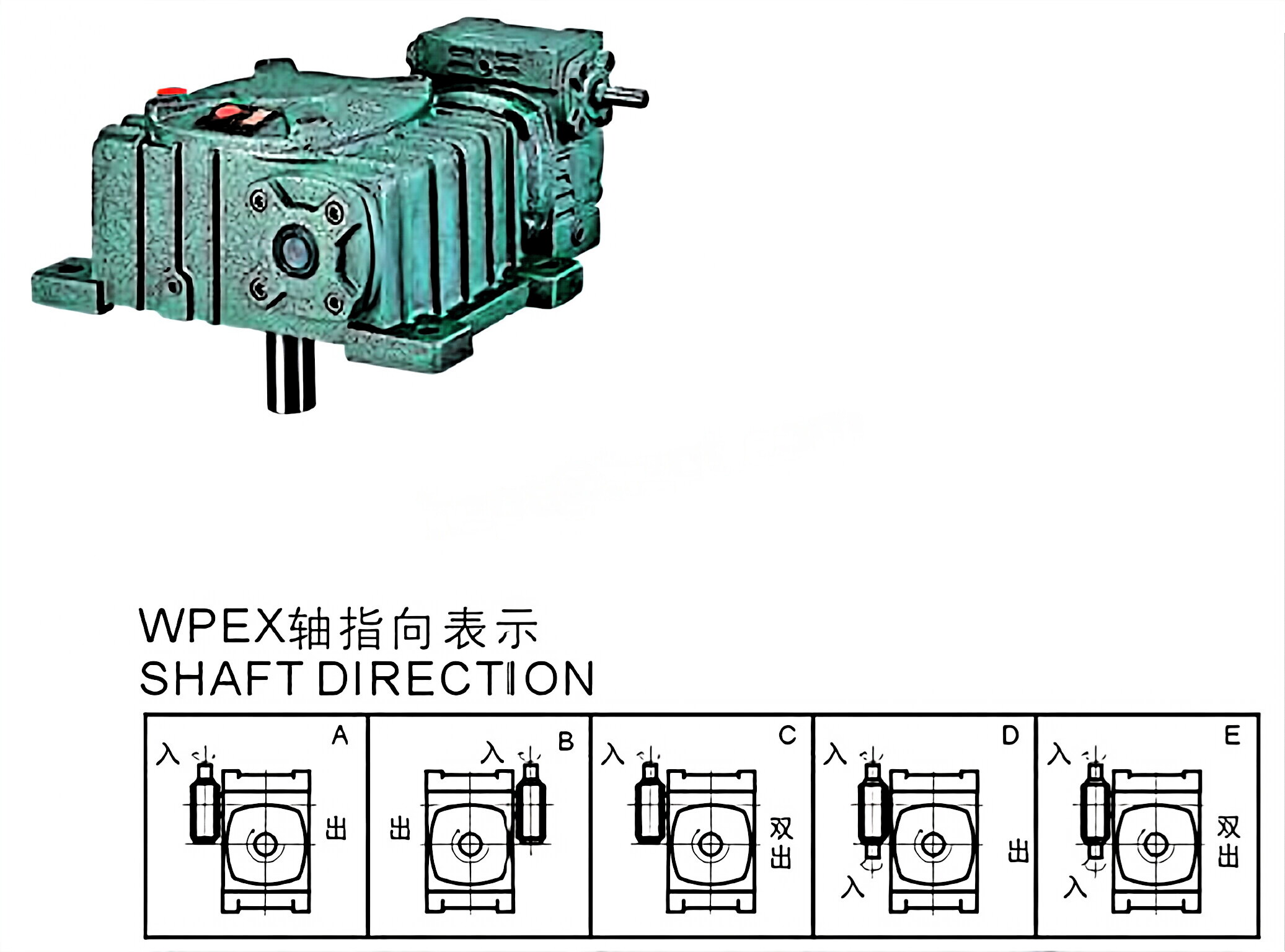

WPEX Series Double Stage Worm Gearboxes

The chassis of the worm gearbox is usually made of cast iron, and only a few heavy-duty gearboxes are made of cast steel. The gearbox shell comprises a box seat and cover, and the split surface passes through the transmission's axis. The holes for mounting the bearings on the casing must be precise to ensure the correct solution of the mutual positions of the gear axes. Bolts connect the box seat and the box cover, and two positioning pins are used to accurately fix the joint work of the box cover and the box seat. The arrangement of the bolts should be reasonable, and the space required to move the wrench should be considered. The diameter of the bolts around the bearing can be slightly larger, as close as possible to the bearing.

Products Description

Model NO.	WPEX right angle worm gearbox
Application	Industry
Hardness	Hardened
Type	Worm and Worm wheel
Frame Size	Wpex40/70~155/250
Input Power	0.12~15kw
Output Speed	25~300rpm
Output Torque	17~3000n, M
Gear Arrangement	Worm
Input Speed	1500rpm
Color	Green, Grey
Package Details	Wooden Case/Carton/Pallet
Weightz	5~500kgs
Manufacturing Method	Rolling Gear
Toothed Portion Shape	Bevel Wheel
Material	Cast Aluminum
Specification	ISO9001

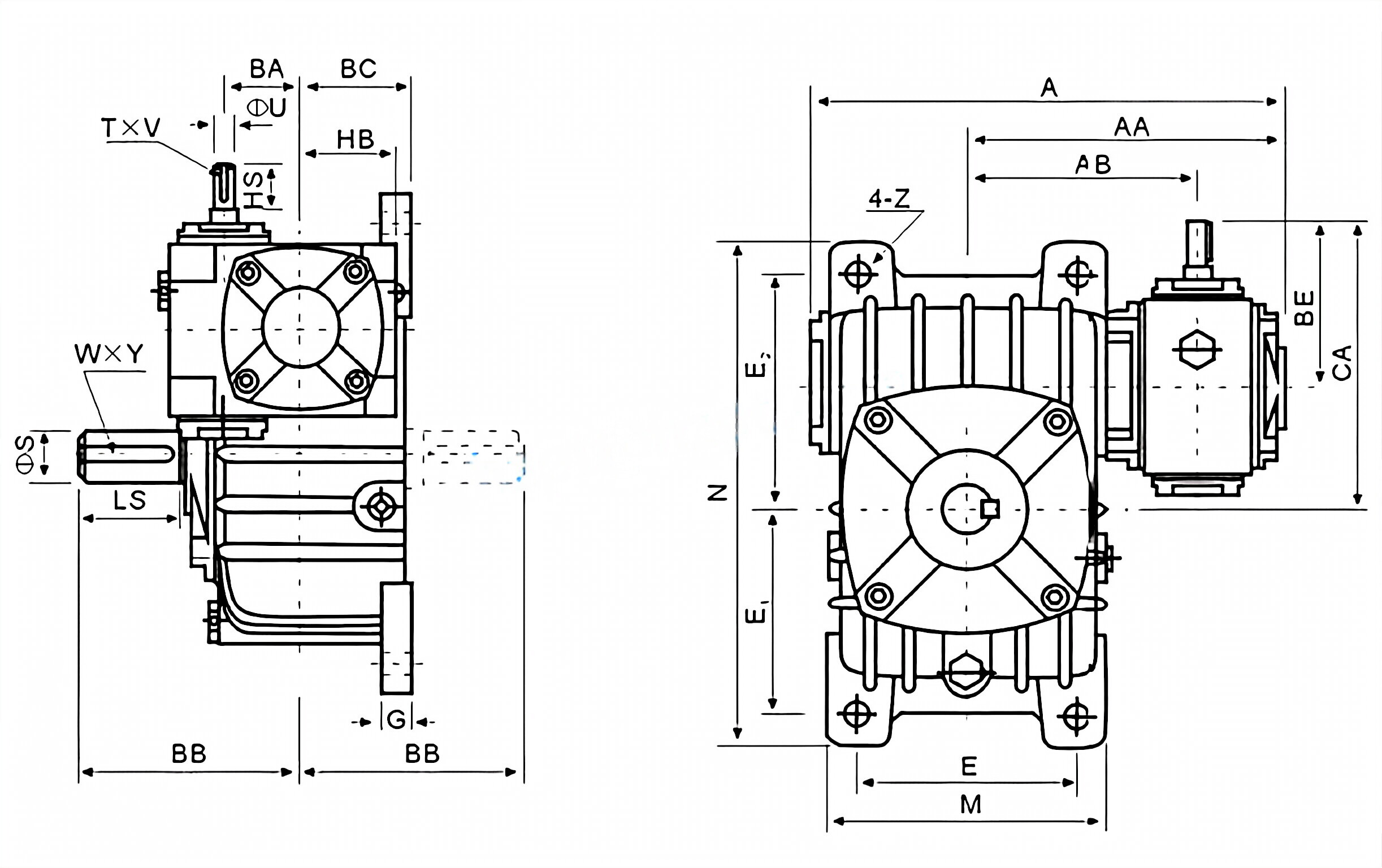

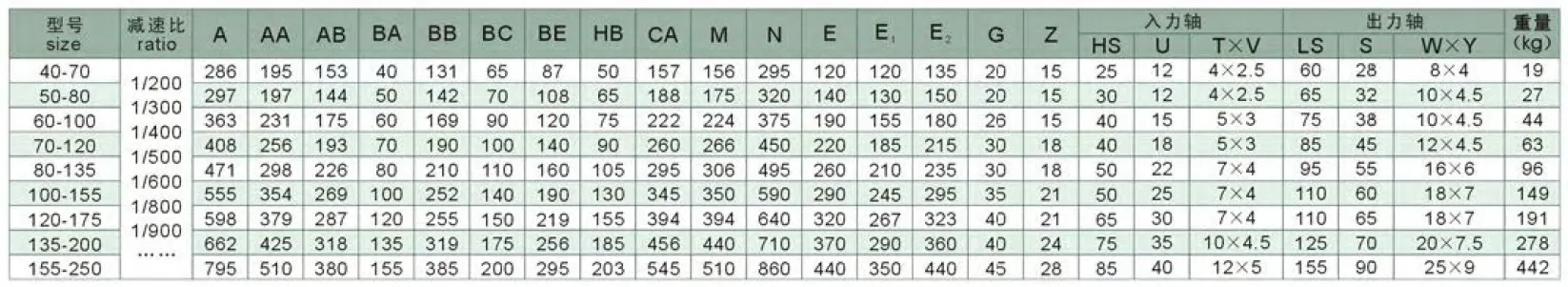

Specifications Parameter

The Characteristics of Double Stage worm gearboxes are:

1. The mechanical structure is compact, the volume is light and the shape is small and efficient.2. Good heat exchange performance and fast heat dissipation.3. Easy to install, flexible and light, superior performance, easy to maintain and repair.4. Smooth operation, low noise and durable.5. Strong applicability, high safety and reliability. WPEX Series Double Stage Worm Gearboxes

Precautions for Using Worm Gearbox

1. Before using, please check carefully whether the gearbox model, distance, ratio, input connecting method, output shaft structure, input and output shaft direction and revolving direction accord with requirement2. According to the requirement of selecting lubricant oil in the product manual, please fill proper category and brand lubricant. And then screw on the vent-plug; Unlock the small cone-plug of vent-plug. Only after doing these, reducer is already for starting up running. The proper brand and adequate lubricant oil is required, replacing oil in time conforming to the request of product manual is also necessary, especially after using first 100 hours, it is required refilling new oil3. When abnormal circumstances occur, please stop and check reducer per solutions and reasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, if oil temperature no more goes up, please let reducer continue running).

Application of WPEX Series Worm Gearboxes

It is mainly suitable for the deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction, etc. WPEX Series Double Stage Worm Gearboxes

Packing and Transportation

●Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. WPEX Series Double Stage Worm Gearboxes

Company Profile

We handle power transmission products; our lines mainly cover series products in speed reducers, gearboxes, associated electrical motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: wastewater treatment machines, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers worldwide.Furthermore, the R&D investment is increasing annually to meet our customers' new demands better and adapt to the recent tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

FAQ

Q1: Are you a trading company or a manufacturer?A: We are a manufacturer in China. Our company owns the ability to manufacture, process, design, and R&D. We welcome your visit.Q2: How do we select models and specifications?A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…Q3: How is your price? Can you offer any discount?A: Our prices are always competitive. If the customer can place a large order, we indeed will allow a discount.Q4: How long should I wait for the feedback after I send the inquiry?A4: We will reply as soon as possible, 12 hours at most.Q5: What is your product warranty period?A: We have the certifications of ISO9001, CE, and SGS.Q6: What industries are your gearboxes being used in?A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.

Hot Tags: WPEX Worm Gearboxes Manufacturer, Double Stage Worm Gearboxes Wholesale, Custom Worm Gear Reducers
