Overview

WPL Series High Precision Planetary Gearbox is a type of gearbox that uses planetary gears to transfer torque and reduce speed. It is widely used in various industries due to its high precision, high torque density, smooth operation, reliability, durability, and versatility in installation and configuration.

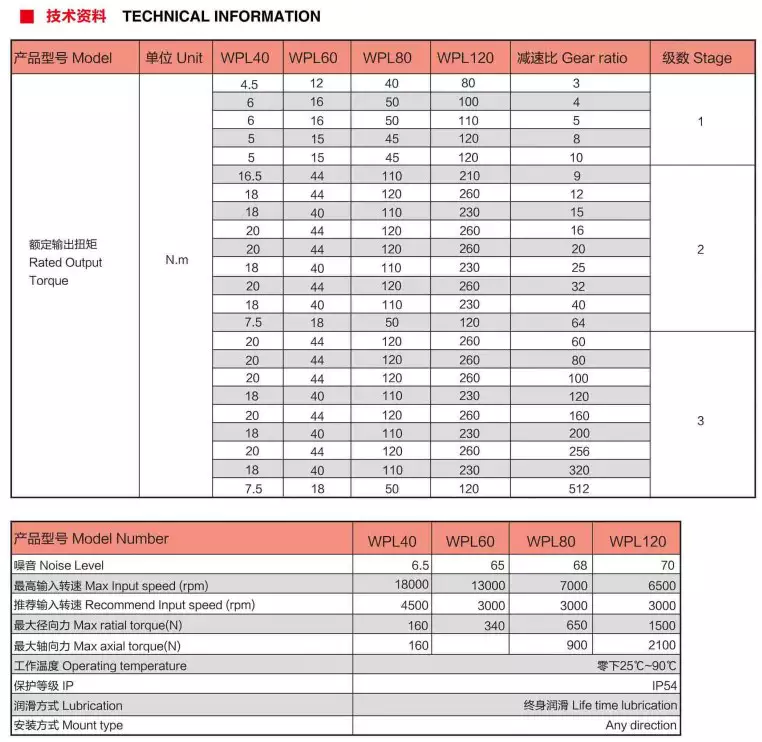

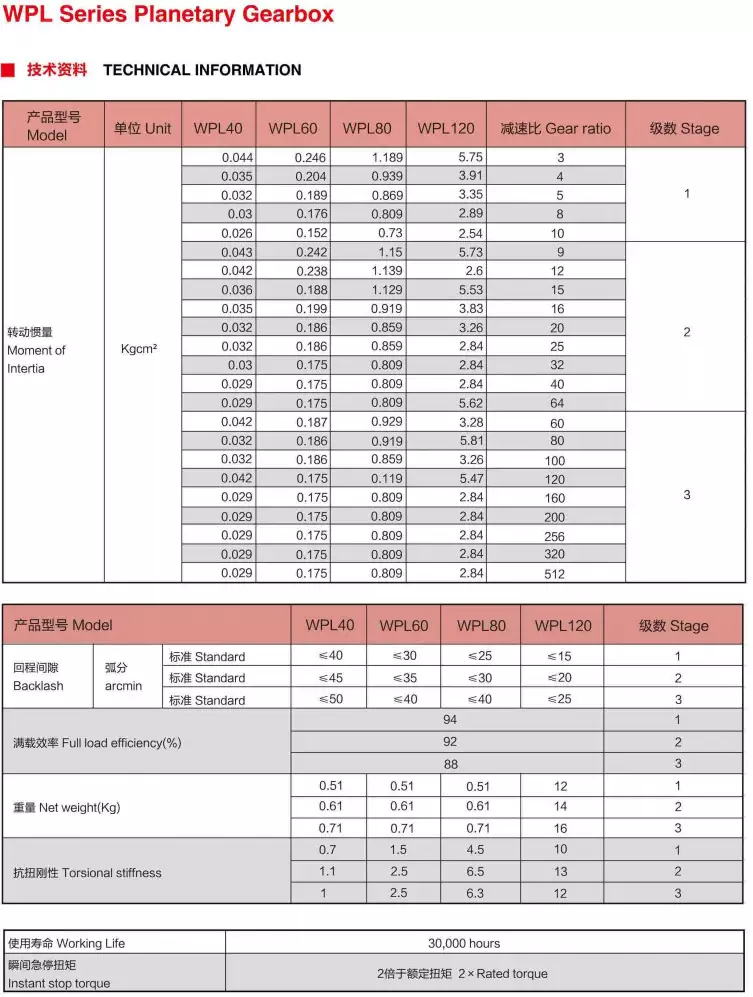

Technical Parameter:

Features

1. Precision Transmission

The WPL Series High Precision Planetary Gearbox uses high-precision gears that offer accurate and reliable transmission. It delivers low backlash, low noise, and high torsional stiffness, making it suitable for high-precision applications.

2. High Torque Density

The WPL Series High Precision Planetary Gearbox provides high torque density due to its compact design and the use of high-quality materials. It offers a high power-to-weight ratio and can handle high loads and high speeds.

3. Smooth Operation

The WPL Series High Precision Planetary Gearbox provides smooth operation due to the even distribution of load among multiple planet gears. It delivers high efficiency and minimizes vibration and noise.

4. Reliability and Durability

The WPL Series High Precision Planetary Gearbox is built to last. It features high-quality materials, such as carburized and hardened gears, and is designed to withstand demanding environments, heavy loads, and frequent start-stop cycles.

5. Versatile Installation and Configuration

The WPL Series High Precision Planetary Gearbox can be installed in various positions and configurations to meet different requirements. It offers a wide range of input and output options, such as shafts, flanges, and couplings, and can be customized to fit specific applications.

6. Wide Speed Adjustment Range

The WPL Series High Precision Planetary Gearbox offers a wide speed adjustment range, making it suitable for applications that require variable speed control. It can be used with different types of motors and controllers to achieve precise speed control.

7. Strong Adaptability

The WPL Series High Precision Planetary Gearbox has strong adaptability to different environments and operating conditions. It can be used in various industries, such as robotics, automation, packaging, textile, and medical equipment.

8. High Efficiency

The WPL Series High Precision Planetary Gearbox delivers high efficiency due to its precise transmission and low friction. It reduces energy consumption and operating costs and contributes to environmental protection.

9. Protection Measures

The WPL Series High Precision Planetary Gearbox features various protection measures, such as IP65 rating, overload protection, and anti-corrosion coating. It ensures safe and reliable operation in harsh conditions.

Internal Structure

The WPL Series High Precision Planetary Gearbox consists of several parts, including integral double wall planet pinion carrier, bearing for the output shaft, steel output flange, integral inner gear housing, planetary wheel, sun wheel, bearing for the input shaft, integral hoop clamp coupling, and back cover.

Each part has a specific material and function:

1. The integral double wall planet pinion carrier is made of high-strength steel and provides rigid support for the planet gears.
2. The bearing for the output shaft is made of high-quality material and ensures smooth rotation of the output shaft.
3. The steel output flange is made of high-strength steel and provides a reliable connection to the driven equipment.
4. The integral inner gear housing is made of high-quality material and provides a stable base for the planet gears.
5. The planetary wheel is made of carburized and hardened steel and transfers torque from the input shaft to the output shaft.
6. The sun wheel is made of high-strength steel and provides the central axis for the planet gears.
7. The bearing for the input shaft is made of high-quality material and ensures smooth rotation of the input shaft.
8. The integral hoop clamp coupling is made of high-strength steel and provides a secure connection between the input shaft and the sun gear.
9. The back cover is made of high-quality material and provides protection for the gearbox.

Applications

The WPL Series High Precision Planetary Gearbox can be used in various applications, such as:

• Industrial Robots: The WPL Series High Precision Planetary Gearbox is widely used in industrial robots due to its high precision, high torque density, and smooth operation. It provides reliable transmission and precise positioning for the robot arms and joints.
• Automated Machinery: The WPL Series High Precision Planetary Gearbox is used in automated machinery, such as packaging, labeling, and cutting machines, due to its high efficiency, versatility, and adaptability. It ensures smooth and accurate operation of the machinery.
• Solar Tracking Systems: The WPL Series High Precision Planetary Gearbox is used in solar tracking systems due to its high torque density, wide speed range, and reliability. It enables the solar panels to follow the sun's movement and maximize energy output.
• Medical Equipment: The WPL Series High Precision Planetary Gearbox is used in medical equipment, such as imaging machines and surgery robots, due to its high precision, low noise, and reliability. It ensures precise and safe operation of the equipment.
• Food Processing Equipment: The WPL Series High Precision Planetary Gearbox is used in food processing equipment due to its hygiene, durability, and versatility. It can withstand frequent washdowns and harsh environments and ensure smooth and safe operation of the equipment.
• Conveyors: The WPL Series High Precision Planetary Gearbox is used in conveyors due to its high torque density, wide speed range, and reliability. It ensures smooth and efficient transportation of goods and materials.
