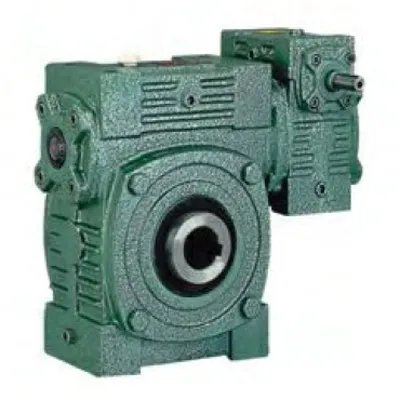

WPWEK Series Double Stage Worm Gearboxes

WPWEK Series Double Stage Worm Gearboxes

Worm gearbox design to improve its application power, the worm gear uses non-ferrous metal as the primary data. The worm generally uses hard steel, so it is easy to generate large heat during the application, plus the influence of the ambient temperature. The temperature of the reducer is challenging to control as the operating temperature range is.The operating temperature of the worm gear reducer should be controlled at -40°C~40°C. When the ambient temperature is lower than 0°C, it should be heated before the start so that the lubricating oil is fully dissolved or a low freezing point lubricating oil is used.

WPWEK Worm Gearboxes

Type:	Speed reducer Worm gearbox
Model:	WPWEK
Ratio:	1:200.300.400.500.600.800.900
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, the surface hardness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Warranty:	1 Year
Usages:	Industrial Machine: Food Stuff, Ceramics, Chemicals, Packing, Dyeing,Woodworking, Glass.
IEC Flange:	56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON
Lubricant:	Synthetic&Mineral

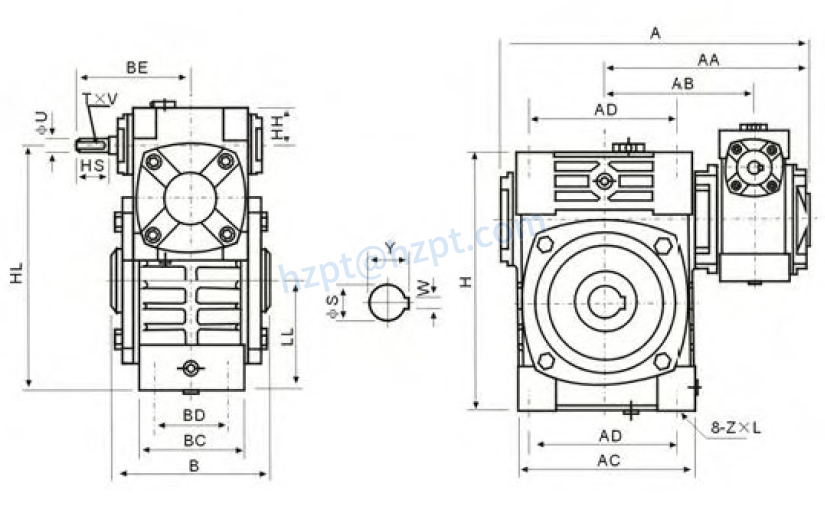

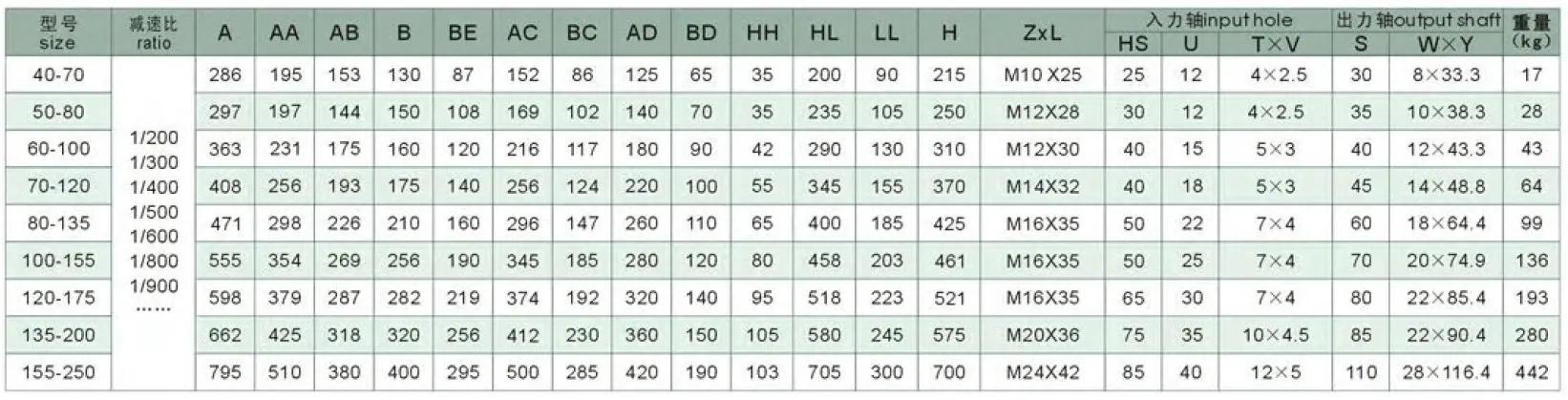

Product Specifications

Features:

We produce WP series and RV series worm speed reducers, Single, double, and universal speed reducers.1  High quality, It adopts rugged tooth gear with high accuracy.2  Large output torque, stable transmission with lower noise.3  High heat-radiating efficiency, elegant shape, durable service life 4, Suitable for Omni-bearing installation.5  Low noise and smooth running.6  Worm drive uses hollow flank worms.7  High loading capacity, low-temperature rise, and long functional life.8  Few differences between the transmission ratio rate, I = 6~13800.9  Compact structure, small size, convenient maintenance.

Common Cooling Method of Worm Gearbox

1. The cooling coil of the equipment in the tank oil pool, the cooling water in the pipe, takes away part of the heat of the lubricating oil.2. The electric fan is cooled, and an electric fan is added to the outgoing shaft of the worm to increase the heat dissipation and reach the cooling.3. Install cooling fins outside the box to increase the cooling surface.4. Equipment lubricating oil external circulation equipment reduces oil temperature.

Company Profile

Raydafon Machinery Co., Ltd. is one of the largest manufacturing companies of Archimedes and gradual worm gearboxes in China. It has first-class processing equipment and testing equipment at home and abroad. It has introduced advanced technology from America, Japan, Germany, Italy, and other countries and has developed 11 series of worm gearboxes with more than 10,000 kinds of specifications. Products cover metallurgy, stone, woodworking, tobacco, food, leather, textile, glass, medical, chemical, light industry, rubber and plastic, and other industries; the products are shipped to Europe, America, and Southeast Asia.Company in line with a professional, efficient, robust, innovative concept, cultivate unity, dedication, professionalism, and skilled staff, adheres to humanized management, building a harmonious enterprise. The first one in the industry through the ISO9001-2000 international quality system certification, the company will strive hard, take the road of scientific and technological innovation, regard customer satisfaction as our highest pursuit, and continue to hold high in the forefront of the industry.

Our Service

Pre-sale Service1. Inquiry and consulting support.2. Sample testing support.3. View our Factory.4. Highly skilled service engineers available within 24 hours.After-Sales Service1. Training on how to install the machine, training how to use the machine.2. Engineers available to service machinery overseas.3. We have already got an "ISO 9001" quality certificate.4. Warranty period: 12 months ( Free spares will be provided as non-artificial quality reason within 12 months).
